MIDI 700 FIREPLACES
MIDI 700 FIREPLACES

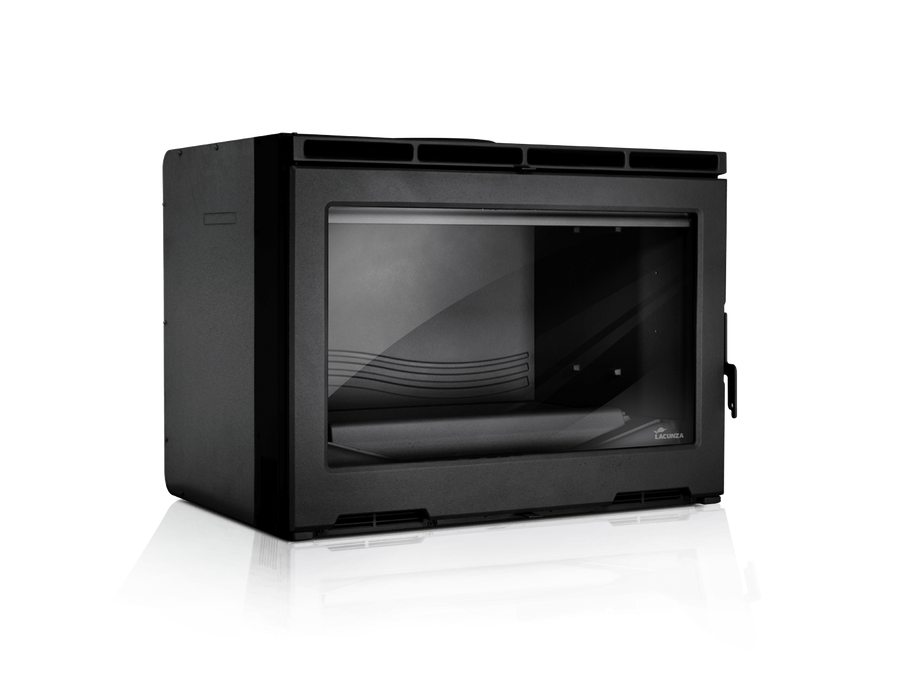

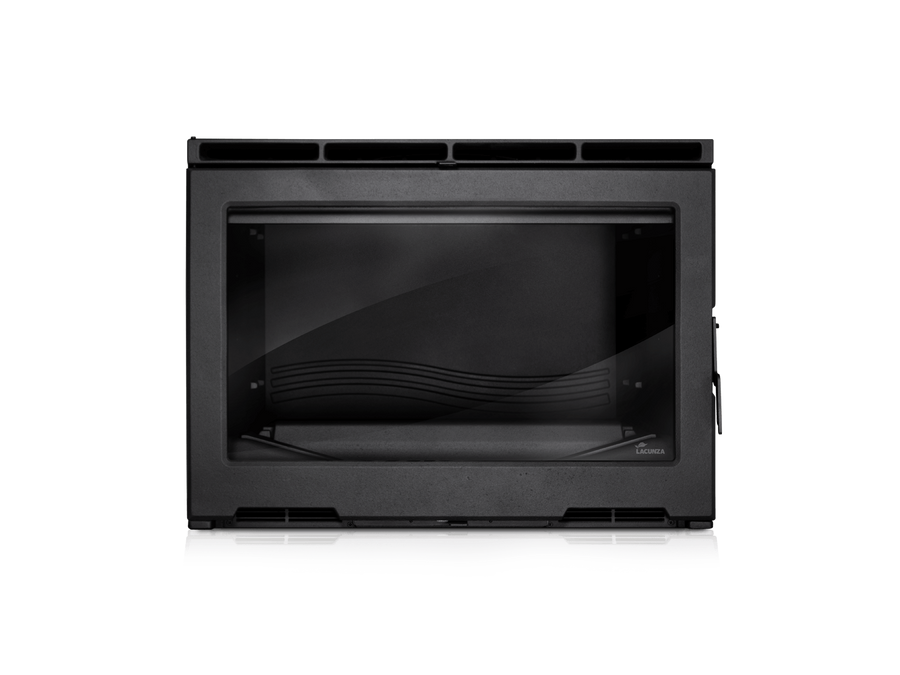

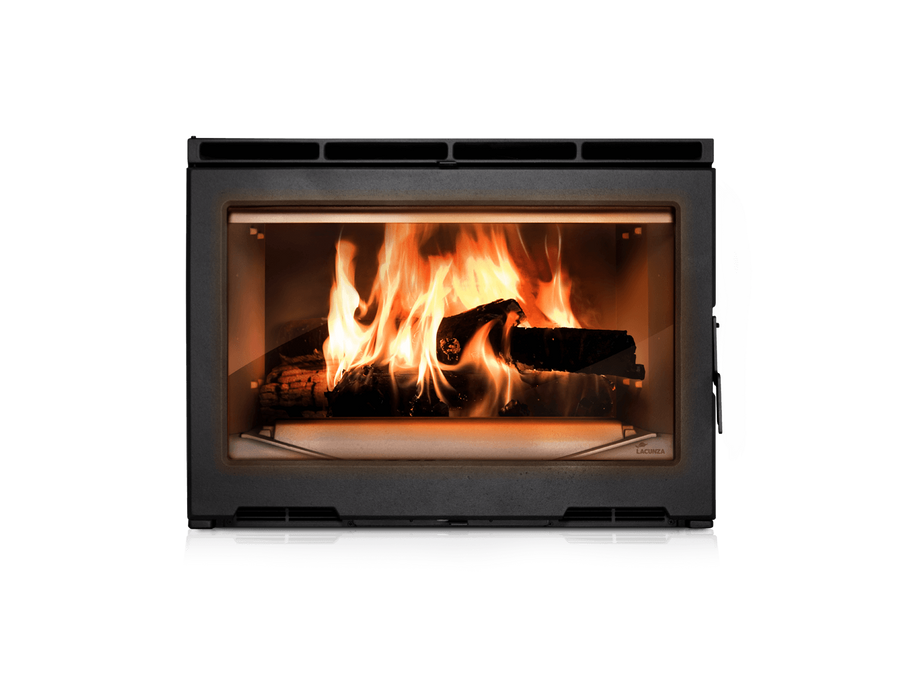

An inset made entirely of cast iron with the standard measures of most existing open fireplaces. With MIDI you can enjoy the fire without putting up with any stove odours or fumes.
FEATURES
EXTRA CLEAN GLASS
New air-intake-to-glass system to keep the glass cleaner for longer
CLEANING ACCESS
Easy access for sweeping via a hatch (patented). Deflectors easy to dismantle by hand without tools.
PERFECT COMBUSTION
Optimum burning technology which achieves great combustion efficiency. Lower consumption and greater autonomy of firewood loads.
EOLO SYSTEM
High-pressure ventilation system with centrifugal turbines and speed regulator (control unit) or fans which allows you to heat different rooms in the home via ducts.
INFORMATION
BRAND
Lacunza
PRODUCT TYPE
Fireplace
CONTROL
Speed control and air direction
COLLECTION
MIDI 700
PRODUCTION
Made in Spain
SERIAL CONFIGURATION
- Ashtray
- Grate
- Deflector
- Ventilation
- Anti-stain glass
- Optimal combustion
EFFICIENCY
75,0 %
EMISSIONS CO
0,10 %
TOTALS DIMENSIONS
- Height : 522 mm
- Width : 700 mm
- Depth : 502 mm
FIREBOX DIMENSIONS
- Height : 250 mm
- Width : 560 mm
- Depth : 400 mm
WEIGHT
135 kg
NOX EMISSIONS
97 mg
OGC EMISSIONS
67 mg
PARTICLES
31 mg
SWEEPING
Easy chimney sweeping
NOMINAL HEAT OUTPUT
11 kW
FIRE VISION
High
TYPE OF VENTILATION
Axial fan
HEAT OUTPUT RANGE
8-14 kW
FIREWOOD MEASURE
55 cm
FLUE SOCKET
ø200 mm
HEATING AREA
98 m2
OUTER MATERIAL
Foundry
FIREBOX MATERIAL
Foundry
HEATING VOLUME
244 m3
ENERGY LABEL
