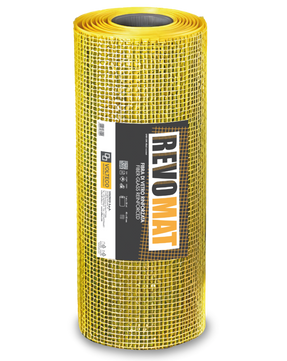

Volteco Revomat Reinforcement Meshes
REVOMAT REINFORCEMENT MESHES
REVOMAT REINFORCEMENT MESHES
An AR fibreglass mesh with high resistance to the alkalis contained in the cement, it is not affected by oxidation and disaggregation.
INFORMATION
HIGH TENSILE
High tensile strength
BRAND
Volteco
PRODUCT TYPE
Reinforcement Meshes
ANTI-ALKALINE FINISH
Values Ca. 19%
THE ADVANTAGES OF REVOMAT
- Good flexibility to facilitate shaping for changes in direction
- Excellent durability, unalterable in damp and chemically aggressive environments
- It features a special anti-alkaline surface treatment (finish) which enhances the properties and provides dimensional stability
COMBINATION
In combination with mortars and/or plasters to provide widespread partition of stresses
PACKAGING AND STORAGE

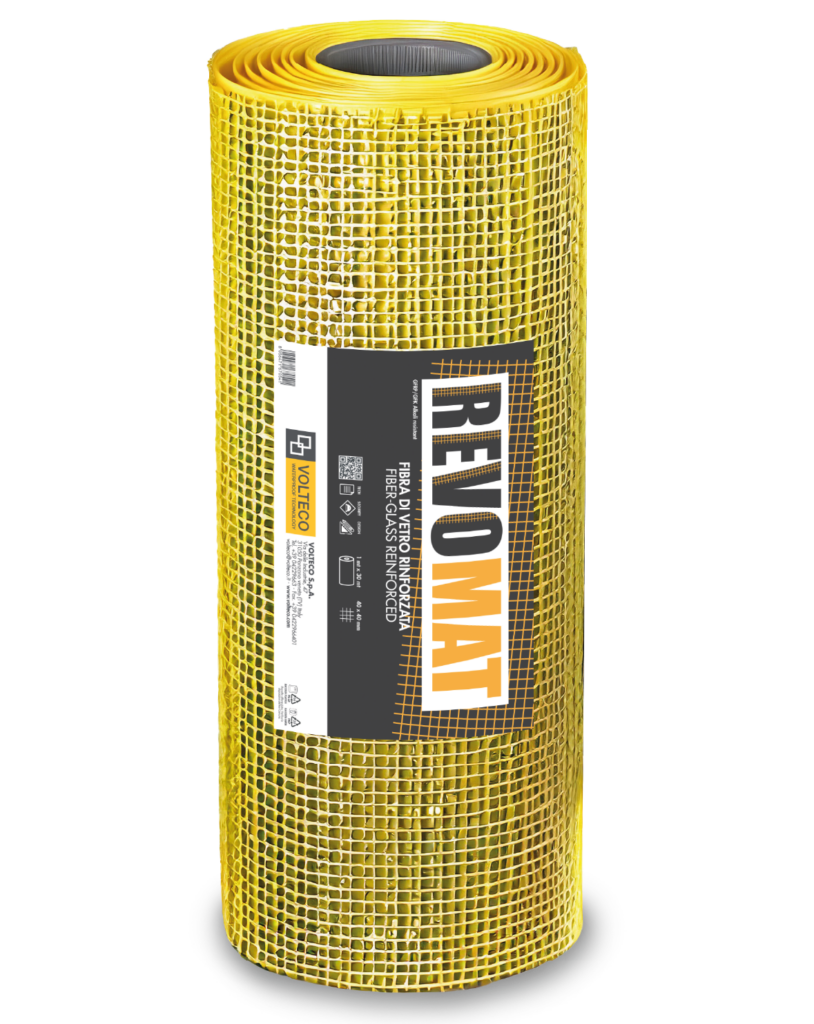

Revomat is available in rolls of 30 m², with width of 100 cm and length of 30 m.
PRODUCTION
Made in Italy
WEIGHT (ISO 3374)
Finished mesh 315 g/m² ±10%
COLLECTION
Revomat
USE
Indoor and outdoor
COMPOSITION
AR fibreglass (according to UNI EN 15422)
EQUIVALENT MESH THICKNESS
Warp movement & Weft movement : 0.046 mm ±5%
AXIAL TENSILE STRENGTH EA
Warp movement & Weft movement: tensile strength at average value 2333 kN/m
TENSILE STRENGTH OF THE FINISHED MESH (ISO
4606)
Warp/Woof : tensile strength at average value 70 kN/m tensile strength at average value 70 kN/m
PREPARATION AND APPLICATION
PREPARATION AND APPLICATION
The preparation and installation data refer to normal environmental conditions (temperature +20°C; relative humidity 60%).
PREPARING THE SURFACES
Before applying REVOMAT reinforcement mesh, the substrate must be carefully prepared. The masonry must be clean and free of plaster, dust and loose materials. Plasters must be removed with hand or mechanical tools until the solid underlying masonry is reached. Any cavities or lesions must be repaired with specific Volteco mortars.
If necessary, use stone, brick or tuff similar to the original materials to fill in the gaps. Remove dirt, dust and any processing residues that may affect the adhesion of the mortar to the substrate (possibly with a pressure washer).
APPLICATION

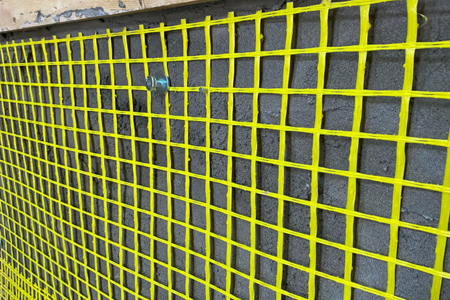

Locate the anchorage points for the connectors before laying the revomat mesh, according to the project Specifications. Drill the holes at the intended points and thoroughly clean the cavities with an air blower to completely remove dust, Debris and loose material. Proceed with the installation, using the bi fix 300 chemical anchor, of the steel connector 20 or the revogrid Connector-l in gfrp (glass fiber reinforced polymer) following the distribution diagram and the design Anchorage depth (see relevant data sheets).

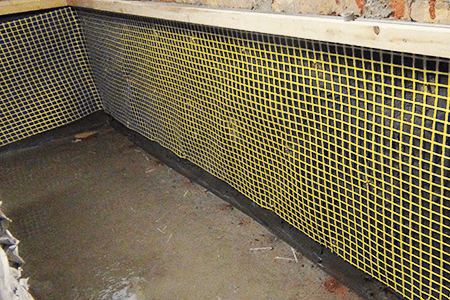

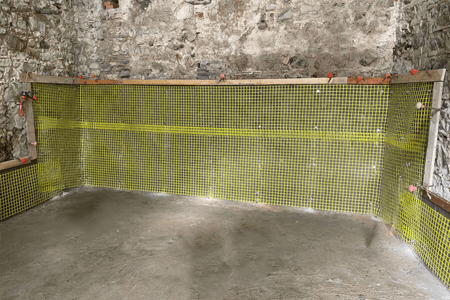

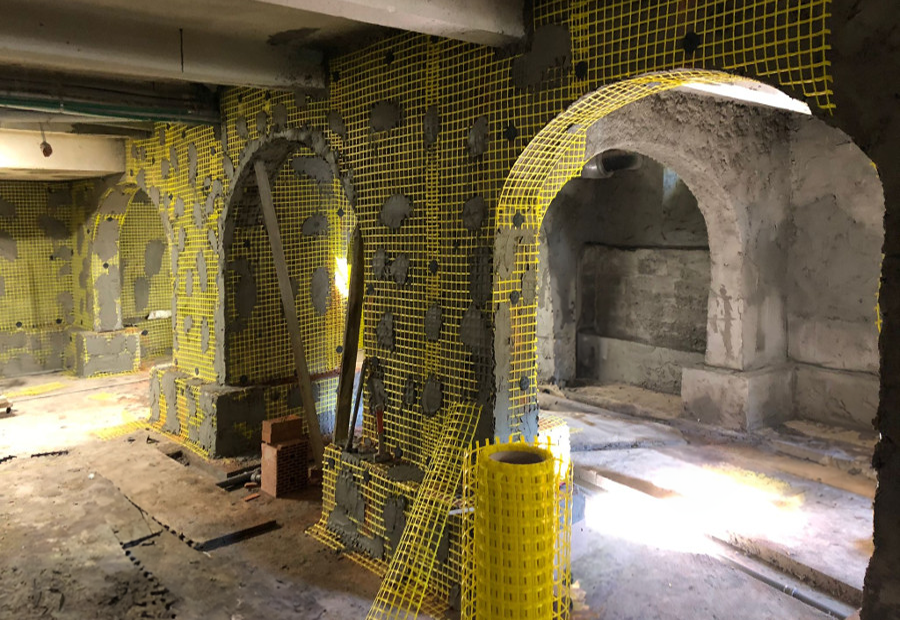

Revomat must be placed immediately after the application of the first coat of volteco mortar, while it is still fresh, Favouring incorporation into it. Rolls of revomat should be overlapped by at least 10 cm both lengthwise and crosswise to ensure continuity in all Directions.
Revomat must then be covered with a second coat of volteco mortar, which must be spread evenly and compactly, Taking care to fill in any voids or discontinuities remaining in the first coat.
At the end of this operation, revomat should be positioned at approximately half of the total thickness of the Plasterwork made, so as to ensure a correct distribution of the mechanical stresses and an optimal behaviour of the System.
With regard to the preparation, application methods and recommended thicknesses of volteco mortar, always refer to the technical data sheet of the chosen product.
