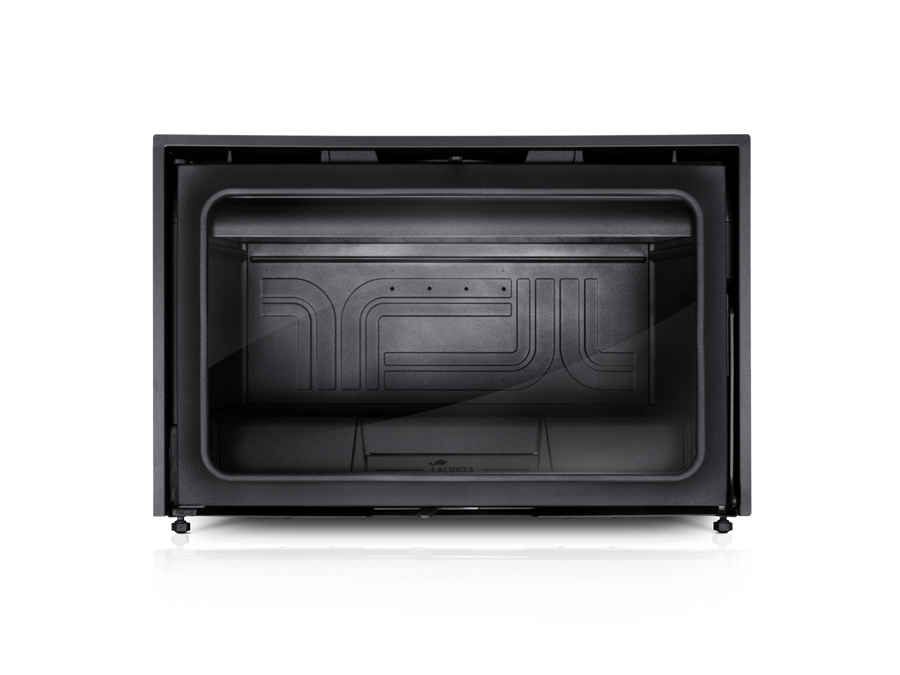

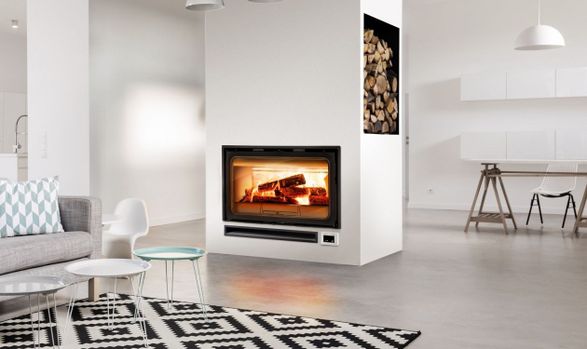

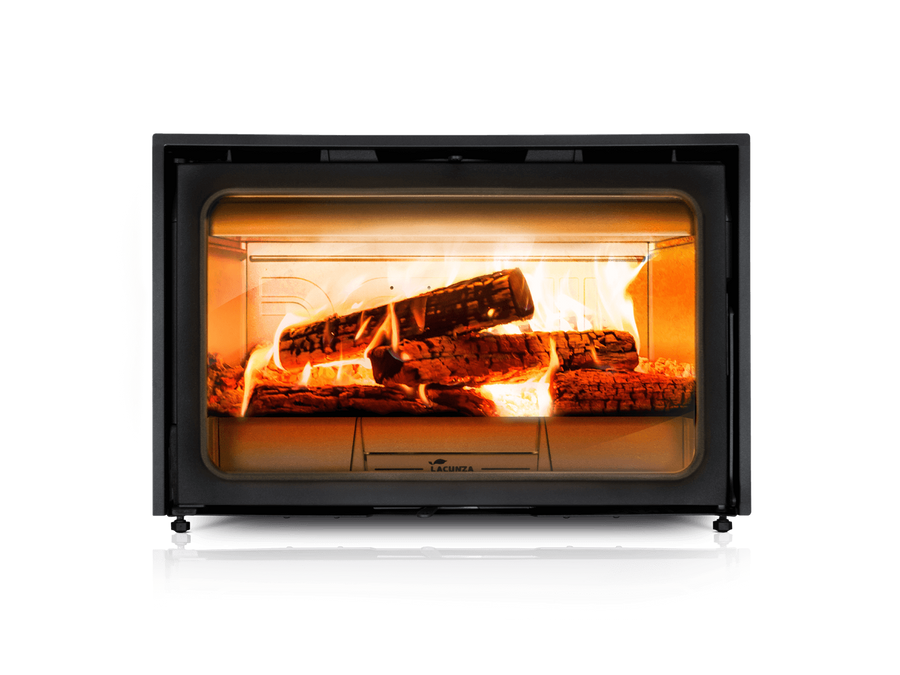

Lacunza If 800 Fireplace
IF 800 FIREPLACE
IF 800 FIREPLACE
The IF800 is one of the most complete and purchased insets in the market. It has the best features and innovations at a price that's unbeatable for any other similar product. Enjoy unforgettable moments with it.
FEATURES
CLEANING ACCESS
Easy access for sweeping via a hatch (patented). Deflectors easy to dismantle
by hand without tools.
PERFECT COMBUSTION
Optimum burning technology which achieves great combustion efficiency. Lower consumption and greater autonomy of firewood loads.
DOUBLE COMBUSTION
Technology to burn the gas generated during the initial combustion of firewood. More efficient, longer autonomy and lower consumption.
EOLO SYSTEM
High-pressure ventilation system with centrifugal turbines and speed regulator (control unit) or fans which allows you to heat different rooms in the home via ducts.
INFORMATION
COLLECTION
IF 800
BRAND
Lacunza
PRODUCT TYPE
Fireplace
HEATING AREA
80 m2
PRODUCTION
Made in Spain
HEAT OUTPUT RANGE
6-12 kW
EXTRA CLEAN GLASS
New air-intake-to-glass system to keep the glass cleaner for longer.
WEIGHT
155 kg
EFFICIENCY
76.0 %
FIREBOX DIMENSIONS
- Height : 290 mm
- Width : 580 mm
- Depth : 350 mm
EMISSIONS CO
0.09 %
HEATING VOLUME
200 m3
TOTAL DIMENSIONS
- Width : 826 mm
- Depth : 495 mm
- Height : 518/584 mm
EXTRA CLEAN GLASS
New air-intake-to-glass system to keep the glass cleaner for longer.
FLUE SOCKET
ø200 mm
GASS MASS FLOW AT Pnom
13.4 g/s
VOLTAGE (AC)
230V
FIREWOOD MEASURE
55 cm
FIREBOX MATERIAL
- Foundry
- Deflector
- Double Combustion
- Type of ventilation : Centrifugal turbine
OUTER MATERIAL
- Foundry
- Grate
- Ventilation
- Optimal combustion
- Easy chimney sweeping
FIRE VISION
- Very high
- Ashtray
- Anti-stain glass
- Speed control and air direction
CHIMNEY SWEEPING
Easy
NOMINAL HEAT OUTPUT
9.0 kW
MAXIMUM LENGTH OF THE LOGS
55 Cm
CAPACITY OF THE ASHPIT
1.1 L
