Modernfold Pureview® Movable Glass Wall Systems
PUREVIEW® MOVABLE GLASS WALL SYSTEMS
PUREVIEW® MOVABLE GLASS WALL SYSTEMS
Modernfold has amplified its PureView® glass wall system portfolio and we are excited to showcase its versatility and performance.
Offering a contemporary design, daylighting, and acoustical control up to 37 STC, the PureView® product family offers single, paired, continuously-hinged configurations, manual and push-button-technology deployment, and custom design options to satisfy any client.
INFORMATION
BRAND
Modernfold
PRODUCT TYPE
Movable Walls
MATERIAL
- Glass
- Aluminium
OPERATION
- Single Panel Manual
- Paired Panel Manual
- Continuously Hinged Manual
ACOUSTICS - STC (SINGLE AND PAIRED PANELS/ CONTINUOUSLY HINGED PANELS)
- 15 STC
- 33 STC Fully Framed
- 35 STC Fully Framed
- 37 STC Fully Framed
COLLECTION
Pureview®
PRODUCTION
Made in USA
RAIL FINISH OPTIONS - SINGLE AND PAIRED PANELS/ CONTINUOUSLY HINGED PANELS
- Clear Anodized
- Black Anodized
- Powder Coat Std RAL
- Dark Bronze Anodized
- Satin Stainless Anodized
TRACK OPTIONS - SINGLE AND PAIRED PANELS
G330 or ComfortDrive®
TRACK OPTIONS -CONTINUOUSLY HINGED PANELS
G330
MAXIMUM HEIGHT
12' (3657 mm)
MAXIMUM PANEL WIDTH
4' (1219 mm)
GLASS OPTIONS
- Low Iron
- Frosted
- Etched
- Applique
- Laminated
- Polar White Markerboard Glass
MAXIMUM PANEL WEIGHT -CONTINUOUSLY HINGED PANELS
225 lbs. (102 kg)
MAXIMUM PANEL WEIGHT - SINGLE AND PAIRED PANELS
330 lbs. (150 kg)
RAIL HEIGHT - SINGLE AND PAIRED PANELS/ CONTINUOUSLY HINGED PANELS
- 4.12" (105 mm) Square Top & Bottom
- 10" Square Bottom with PureView Plus®
GLASS THICKNESS
½" (13mm)
STANDARD GLASS
Clear & Tempered
DETAIL
PUREVIEW® AND PUREVIEW PLUS®
PureView®, the ultimate in space flexibility and daylighting provides a highly desired movable glass partition wall system that provides a variety of acoustical control options, daylighting, and uninterrupted sight lines. It also offers a variety of glass options, vinyl top and bottom seals, and interconnecting floor bolts for convenience and security. The PureView® model provides a variety of anodized aluminum options, and the ability to powder coat in over 170 RAL color options.
PUREVIEW® ON COMFORTDRIVE®
The epitome of high-end design, the PureView® on ComfortDrive® system is an automated self-driving panel system that provides outstanding convenience and flexible space utilization.

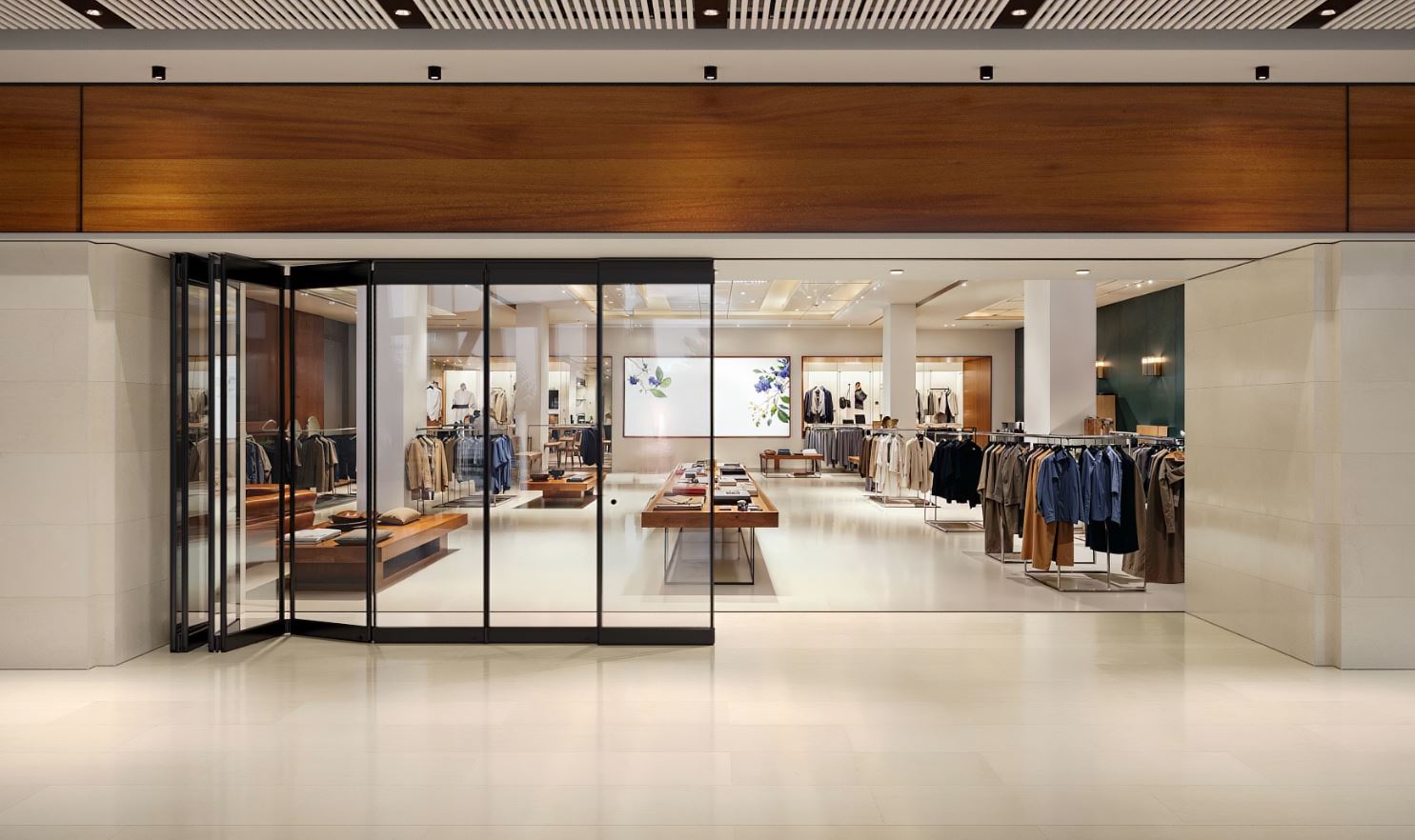

PUREVIEW® CONTINUOUSLY HINGED
Modernfold's PureView® Continuously Hinged systems provide openness and functionality while filling spaces with light.
The continuously hinged sliding panel system offers easy setup and manual operation. Folding glass partition panels can be stacked on the centerline or perpendicular to it, allowing for a clean look, whether extended or retracted. Today, thanks to improved engineering, Modernfold’s Continuously Hinged option now can cover larger openings as well.
