Volteco Akti-Vo 201 Waterstop Hydro Expanding Mastics
AKTI-VO 201 WATERSTOP HYDRO EXPANDING MASTICS
AKTI-VO 201 WATERSTOP HYDRO EXPANDING MASTICS
High-performance hydro-expansive mastic for definitively sealing and waterproofing penetrations and cracks in general.
Allows you to intervene directly on the inflow point. It is the most effective, resolutive solution, through direct intervention on the water flow point.
INFORMATION
BRAND
Volteco
PRODUCT TYPE
Hydro-expanding mastics
TYPE OF PROTECTION
Waterproofing Barrier
ADVANTAGES
- Also applicable on wet and very uneven surfaces
- Resolutive intervention on existing structures
- Practical and fast for accurate applications
- It can support significant loads of wate
TYPE OF WORK
Reinforced concrete
BOUNDARY CONDITIONS
Aquifer
AREA OF APPLICATION
Waterproofing of swimming pools and fountains
SEQUENCE OF INSTALLATION
Before pouring concrete
CONSTRUCTION
New
EXCAVATION TYPE
Free
SPECIFIC WEIGHT
> 1 g/cc
WATER TIGHTNESS
1 atm
VOLUMETRIC EXPANSION IN WATER
> 100%
POLYMERIZATION (AT +20°C, 60% R.H.)
< 10 hours
FIELD
Underground Waterproofing
APPEARANCE
White color mastic
LEVEL OF RISK
High
PRODUCT APPLICATION
Supply and installation of hydro-expansive mastic for definitively sealing and waterproofing penetrations and cracks in general.
The product must be used for :

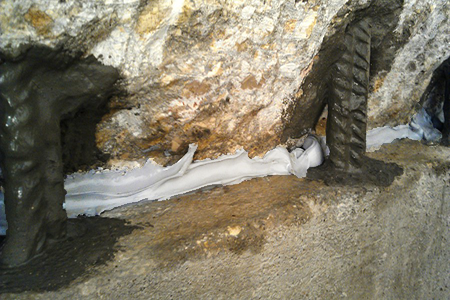

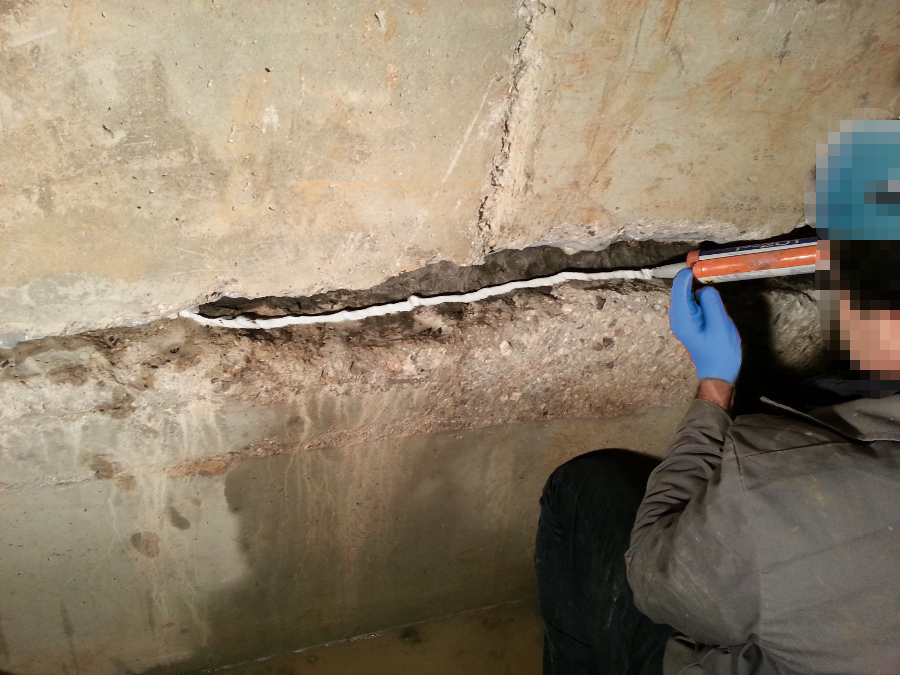

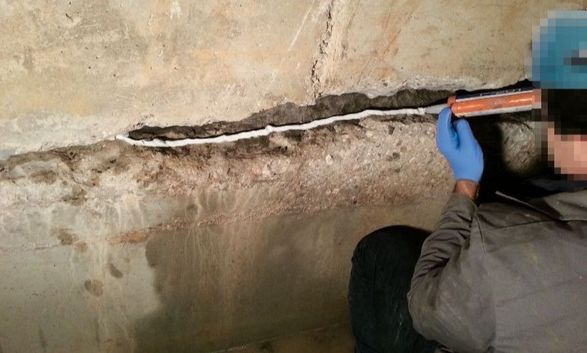

- To seal damage to reinforced concrete structures due to shrinkage

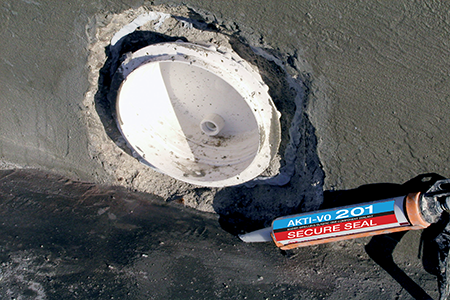

- To seal concrete, metal and plastic pipes embedded into the concrete
- To create seals, as long as confined, between prefabricated elements
- Watertight construction joints in reduced section structures
- To level surfaces and seals at the ends of the WT profiles

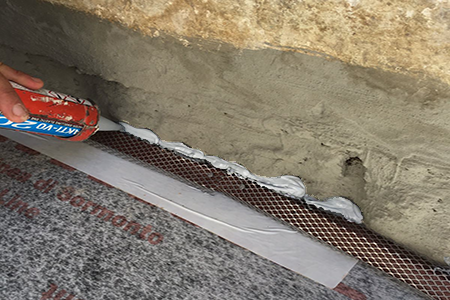

- Sealing of through-elements and holes in general of the Amphibia membrane
PROTECTION
The products must be stored in a dry place protected from sun and humidity.
DOWNLOADS
TECHNICAL & SAFETY DATA SHEETS
↓ TS_AKTI-VO 201_122_EN.pdf
↓ SS_AKTI-VO 201_Rev. 1.0 26_09_25_EN.pdf
SPECIFICATIONS
↓ CP_AKTI-VO_201_EN.docx
↓ CP_AKTI-VO_201_EN.pdf
BROCHURES AND DEPLIANTS
↓ Volteco Waterproofing Design Ground level_En.pdf
TECHNICAL DRAWINGS
↓ Ds_dewatering well with amphibia_672_en.Pdf
↓ Ds_amphibia with diaphragm wall_443_en.Pdf
↓ Ds_air shaft with amphibia and plastivo_660_en.Pdf
↓ Ds_amphibia 3000 grip - intermediate slab_659_en.Pdf
↓ Ds_micropiles with amphibia - horizontal section_662_en.Pdf
↓ Ds_raft foundation with piles - amphibia over pile head_680_en.Pdf
↓ Ds_ramp with amphibia with wt expansion and wt panel_521_en.Pdf
↓ Ds_raft foundation with piles - amphibia around pile head_452_en.Pdf
↓ Ds_raft foundation - construction joint - wall against piling_445_en.Pdf
↓ Ds_raft foundation_ amphibia installation pattern type (b)_669_en.Pdf
↓ Ds_tanking with bi mortar plaster seal, plastivo and amphibia_518_en.Pdf
↓ Ds_rc raft foundation with amphibia - horizontal expansion joint_675_en.Pdf
↓ Ds_metal sheet piles with amphibia - plan view - horizontal section_664_en.Pdf
↓ Ds_construction joint with amphibia pre-applied against formworks_674_en.Pdf
↓ Ds_construction joint with amphibia pre-applied against formworks_454_en.Pdf
↓ Ds_rc raft foundation with amphibia - expansion joint with wt expansion_677_en.Pdf
↓ Ds_rc raft foundation with amphibia - expansion joint with pvc waterstop_676_en.Pdf
↓ Ds_amphibia 3000 grip pre-applied installation - sealing of penetrations_449_en.Pdf
↓ Ds_internal waterproofing of existing basement with plastivo and amphibia_446_en.Pdf
↓ Ds_rc raft foundation with amphibia - sealing of internal 90° corner on formworks_678_en.Pdf
↓ Ds_amphibia installed on slurry walls-existing structures - sealing of penetrations_665_en.Pdf
↓ Ds_rc raft foundation with amphibia - sealing of internal 270° corner on formworks_679_en.Pdf
↓ Ds_amphibia 3000 grip pre-applied installation - sealing penetrations with pipe sleeve_682_en.Pdf
↓ Ds_connection between amphibia 3000 grip and bituminous waterproofing membranes_683_en.Pdf
↓ Ds_rc raft foundation with amphibia - sealing of internal 270° corner on diaphragm walls_666_en.Pdf
↓ Ds_rc walls with amphibia - vertical expansion joint with pvc waterstop - horizontal section_681_en.Pdf
↓ Ds_construction joint between raft foundation and foundation walls - volgrip installed inside formworks with foundation toe_731_en.Pdf
↓ Ds_connection between amphibia under the raft foundation and amphibia installed vertically on the internal side of formworks before casting the walls without raft foundation toe_517_en.Pdf
