Boon Edam Lifeline Speedlane Swing
LIFELINE SPEEDLANE SWING
LIFELINE SPEEDLANE SWING

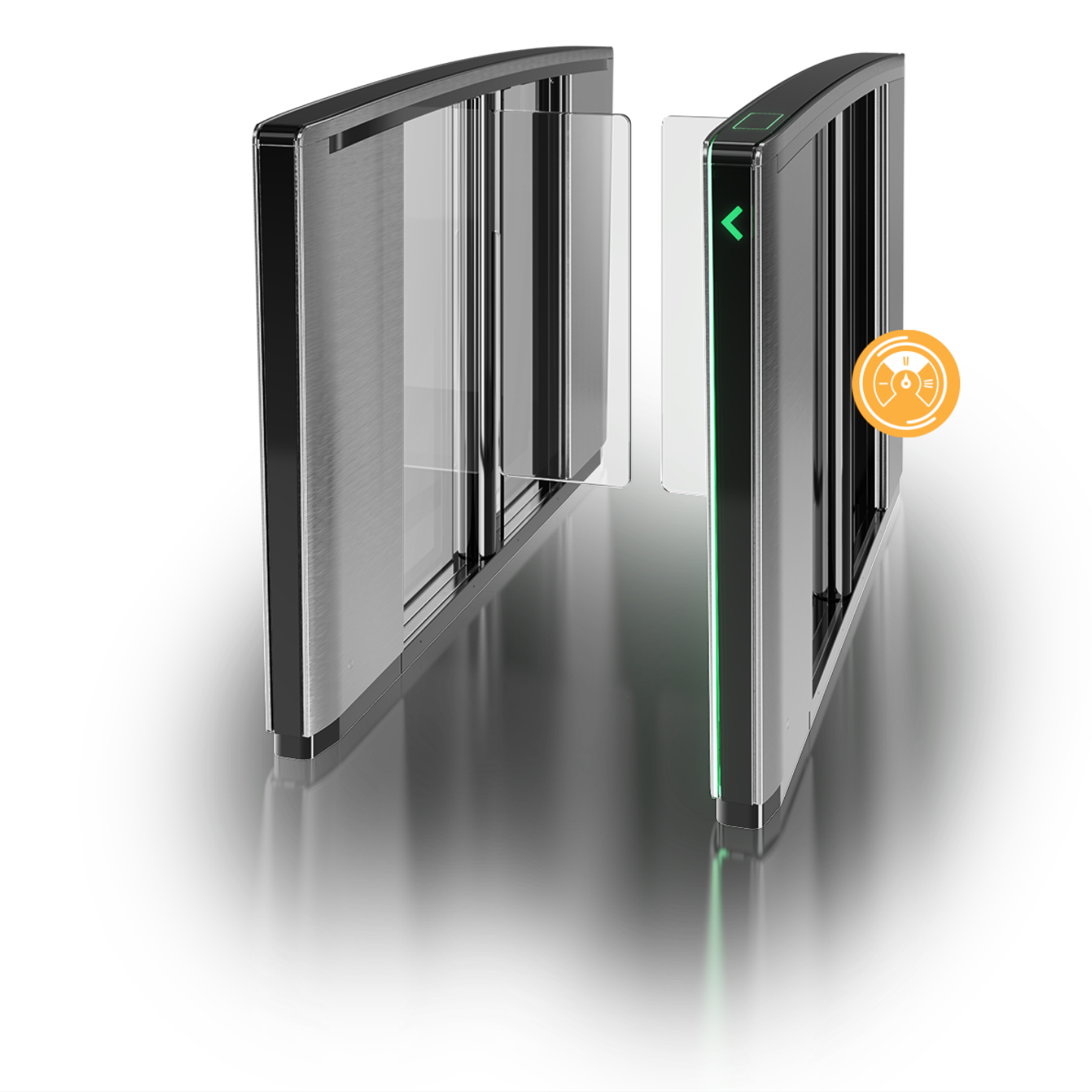

The Lifeline Speedlane Swing is the narrowest speed gate turnstile in the Lifeline family, and one of the most slender in the market.
This, combined with the fact that it is highly customisable, opens up a world of possibilities to the security manager – who is tasked with providing a medium security solution to a high flow area.
The Lifeline Speedlane Swing acts as a boundary between public and private environments and does so with finesse.
INFORMATION
BRAND
Boon Edam
PRODUCT TYPE
Speedlane Swing
CAPACITY (PER MINUTE IN ONE DIRECTION)
20–30; dependent on access control system.
SAFETY
Standard : Fail-safe operation, fire alarm connection, safety sensors
AESTHETICS
- Standard finish : Stainless Steel
- Level Up aesthetics :
Other colours and branding
COLECTION
Lifeline
WEIGHT
100 Kg
SECURITY
- Security Level : Medium - detect
- Level Up Security : Extra jump-over detection, sound module, Tailgate+
VOLTAGE
110-240 VAC
FREQUENCY
50 / 60 Hz
OPERATING POWER
80W
OPERATING TEMPERATURE
-15°C / +5°F to +50°C / +122°F

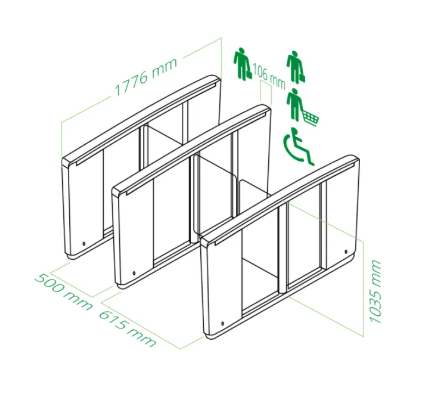

STANDARD UNIT SIZE
- Width : 106 mm
- Length : 1776 mm
- Height : 1035 mm
STANDARD DIMENSIONS
- Height : 940 mm door wing
- Width : 615 mm passage
ENVIRONMENT
Indoor
MATERAIL
Aluminium
LEVEL UP HIGH
1200–1800 mm door wing height, 615 mm passage width, two wings.
LEVEL UP NARROW
940 mm door wing height, 500 mm passage width, one wing.
LEVEL UP WIDE
940 mm door wing height, 915 mm passage width, suitable for wheelchair use width, two wings.
COMFORT
Intuition : Approach sensors, Feedback signals Lifeline LED guidance
FEATURES
- Tailgating detection
- Flexible lane configurations
- Smooth, swinging-motion glass barriers
- Slim, V-shaped, tapered cabinets with ergonomic design and small footprint
FLEXIBILITY
Scalable flexibility is the future
The ability to integrate a large variety of secondary security technology into our speed gate turnstiles is the ideal way in which to fine-tune by ‘Levelling Up’ their entrance security when increased protection is required. Meeting your security goal easily and within your budget is the reason why we work together with you to ensure that by using these options, you end up with a product that outperforms the others safely, beautifully and profitably.
SERVICE AND MAINTENANCE OF THE SPEED GATE TURNSTILE
With hundreds or thousands of visitors passing through an entry every day, continued and reliable operation is vital. Regular service and maintenance can prevent unexpected hardware breakdowns. Boon Edam’s service and maintenance teams across the world are experienced in the effects the local conditions have on the wear and tear of your entry solutions and can offer specialised service and maintenance contracts that correspond to those conditions perfectly.
With a proven Mean Cycle Before Failure (MCBF) of 5 million cycles without service and 10 million with service, our entrance solutions are designed for lasting performance in high-traffic environments. Ensuring uninterrupted performance and low total cost of ownership.
SPEED GATE
THIS SPEED GATE TURNSTILE IS THE PREFERRED CHOICE FOR COMPACT AESTHETICS
This speed gate turnstile has been thoughtfully crafted with design aesthetics in mind.

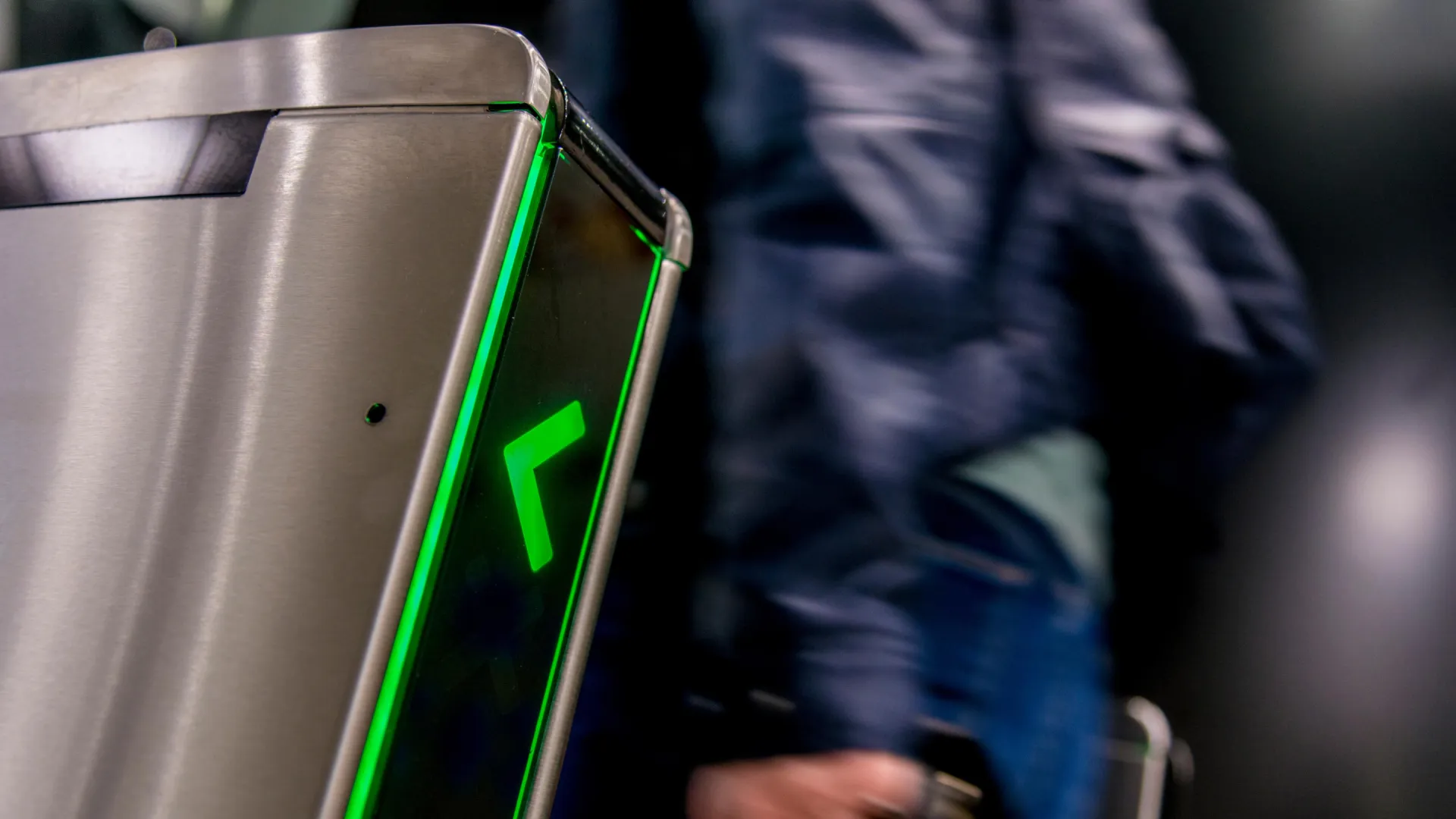

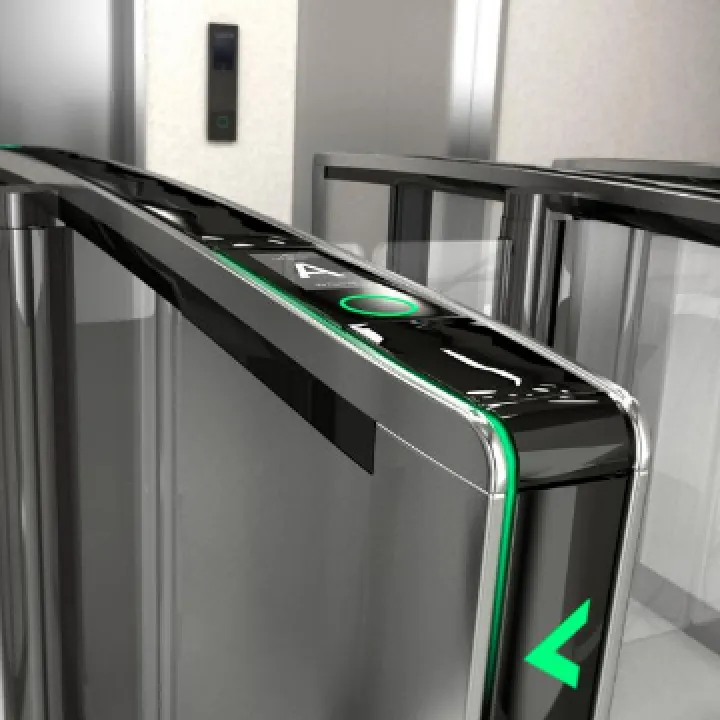

The smooth, premium glass casing houses intuitive-coloured LED lights which effortlessly glide along the cabinet top,guiding users from entry through authorisation to the secured area. This product effectively detects tailgating, and the aesthetics can be easily adjusted to either blend in or stand out, depending on your needs.

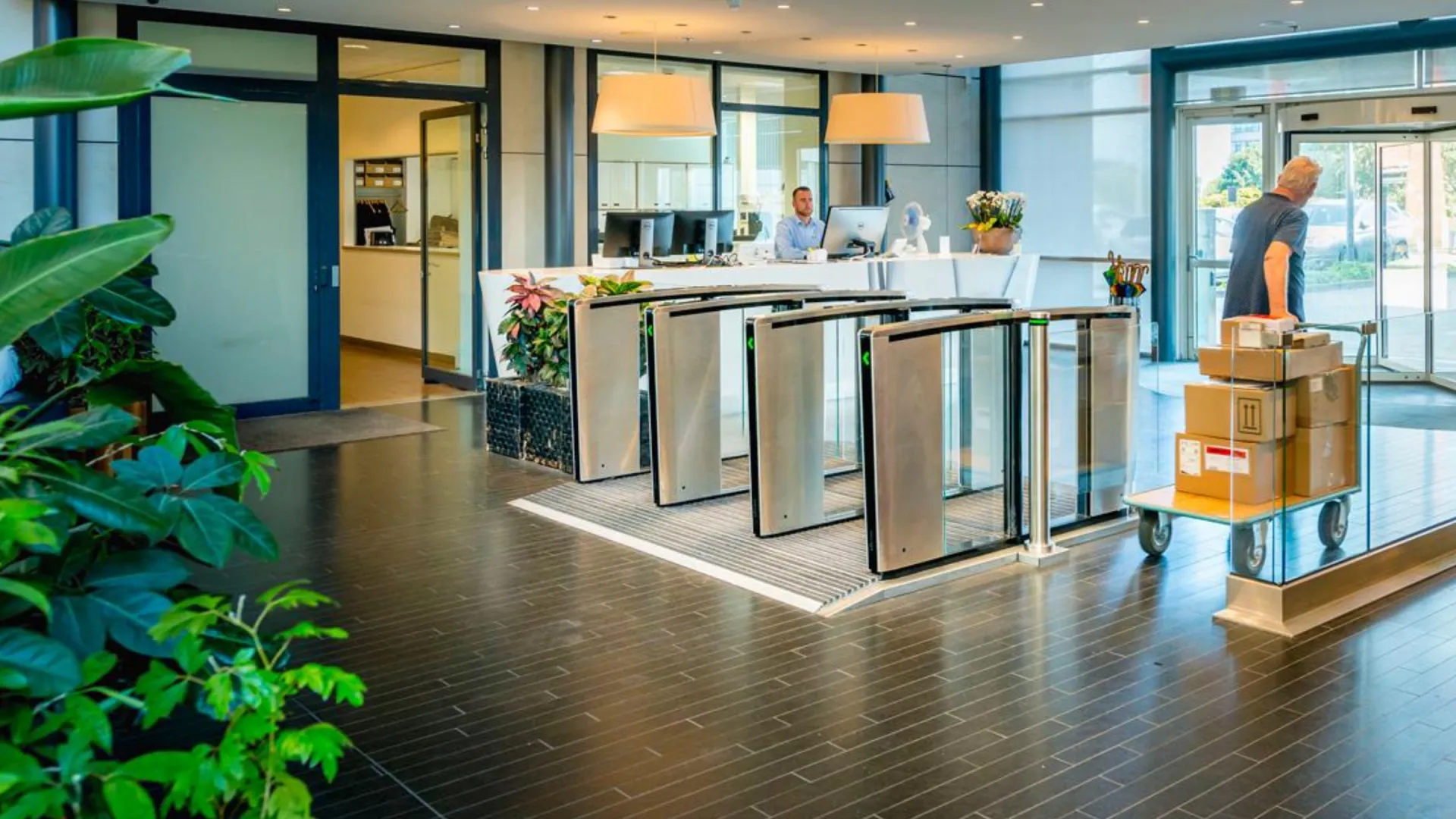

INSTALLED

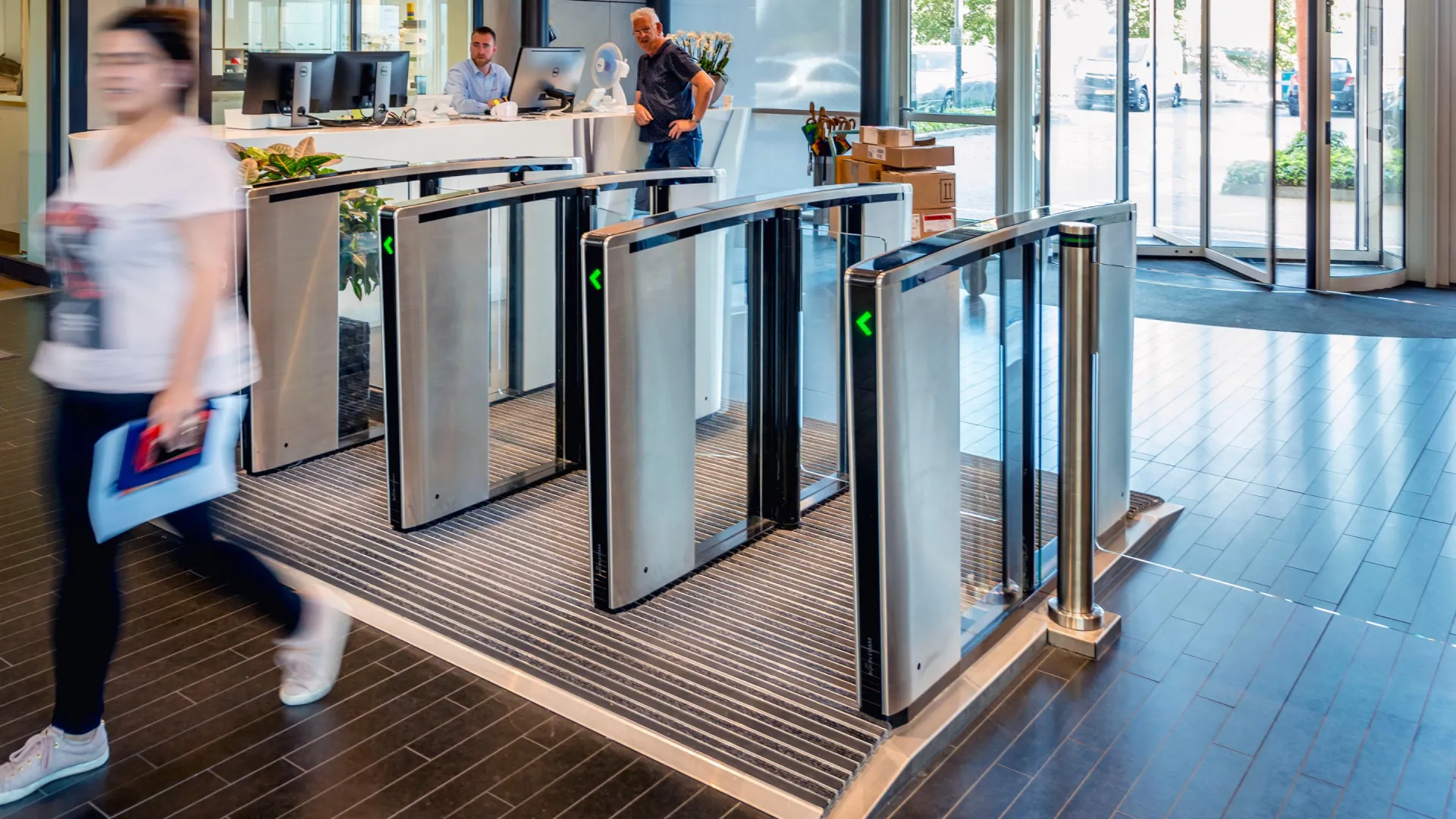

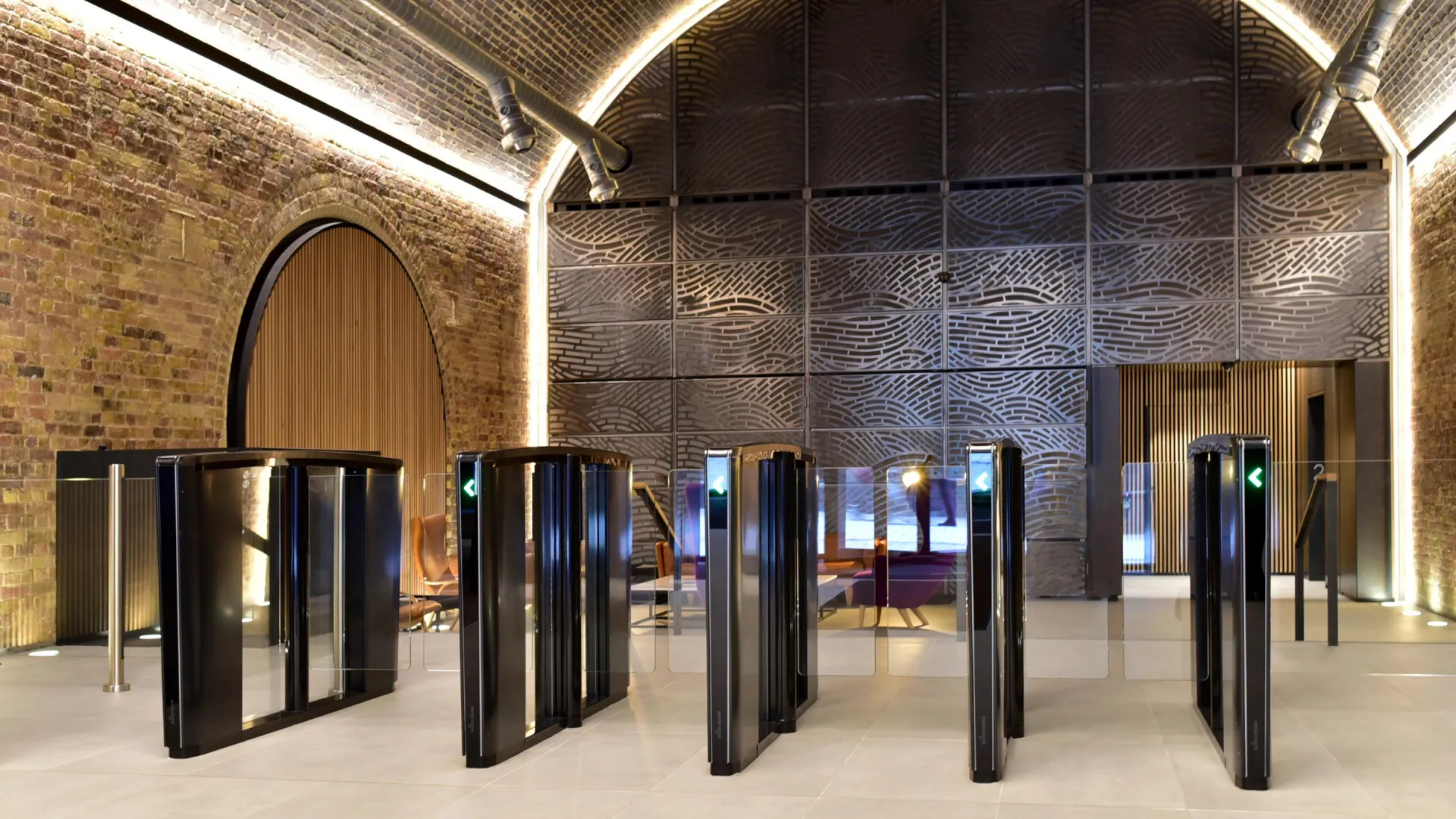

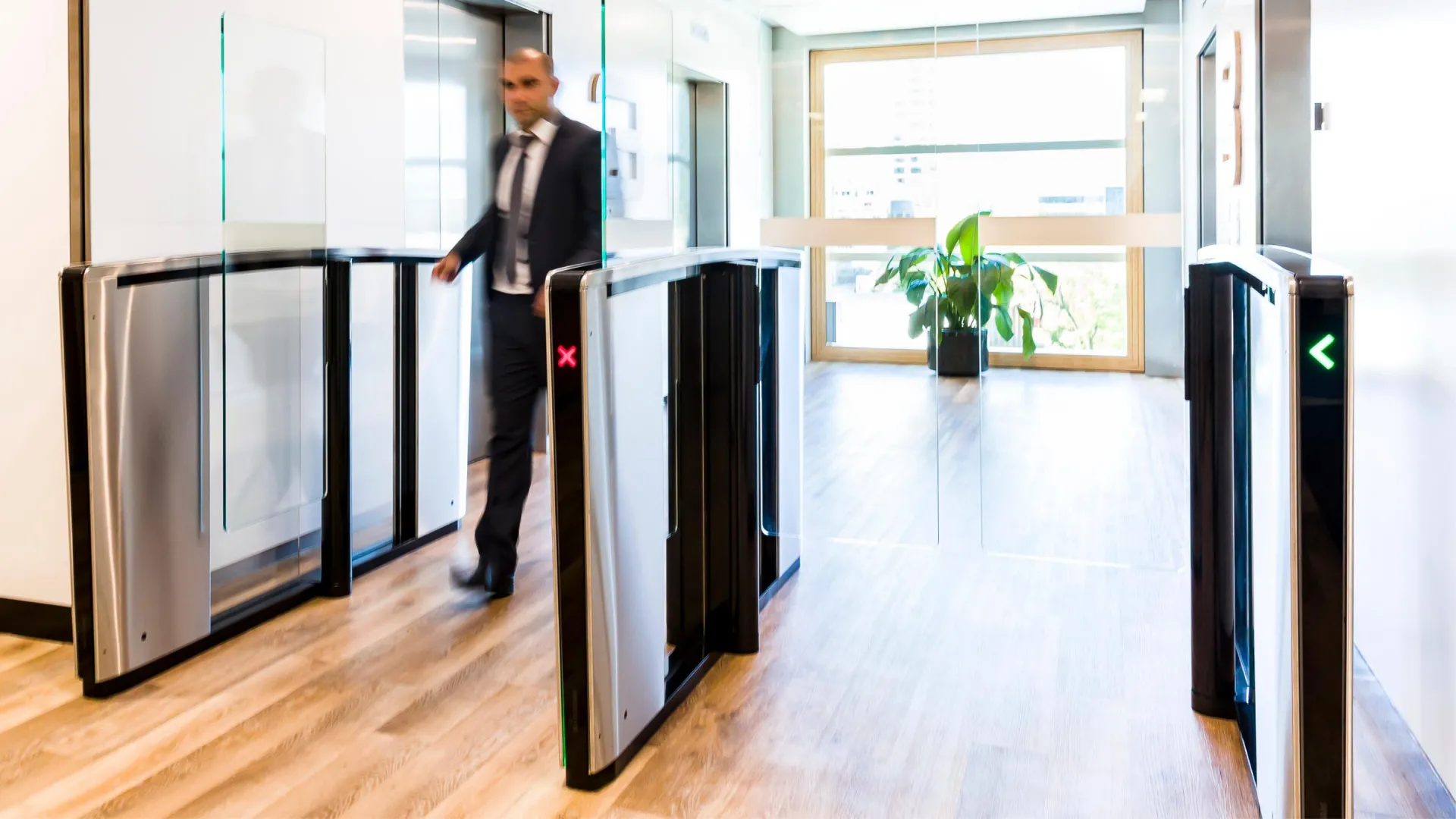

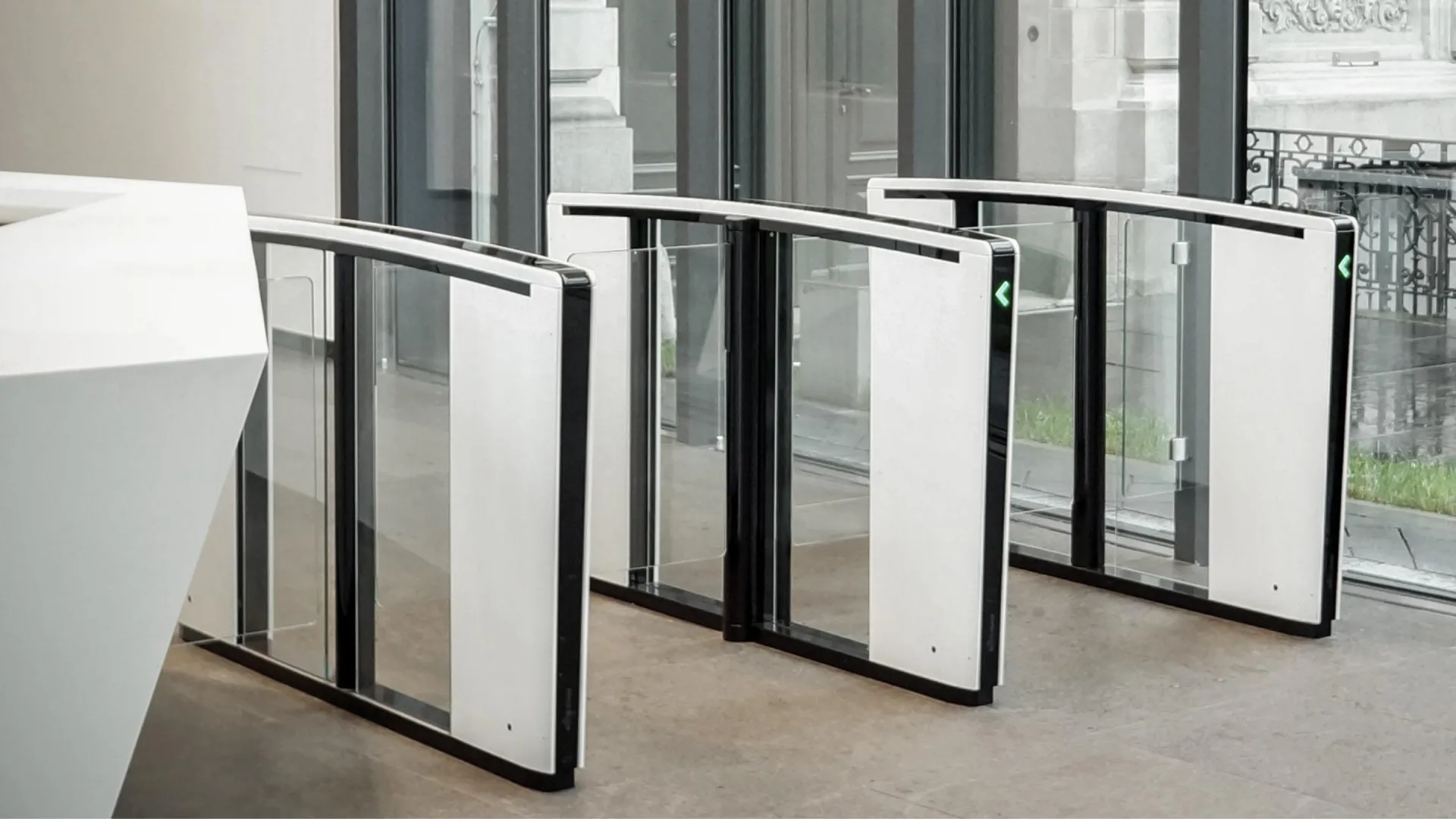

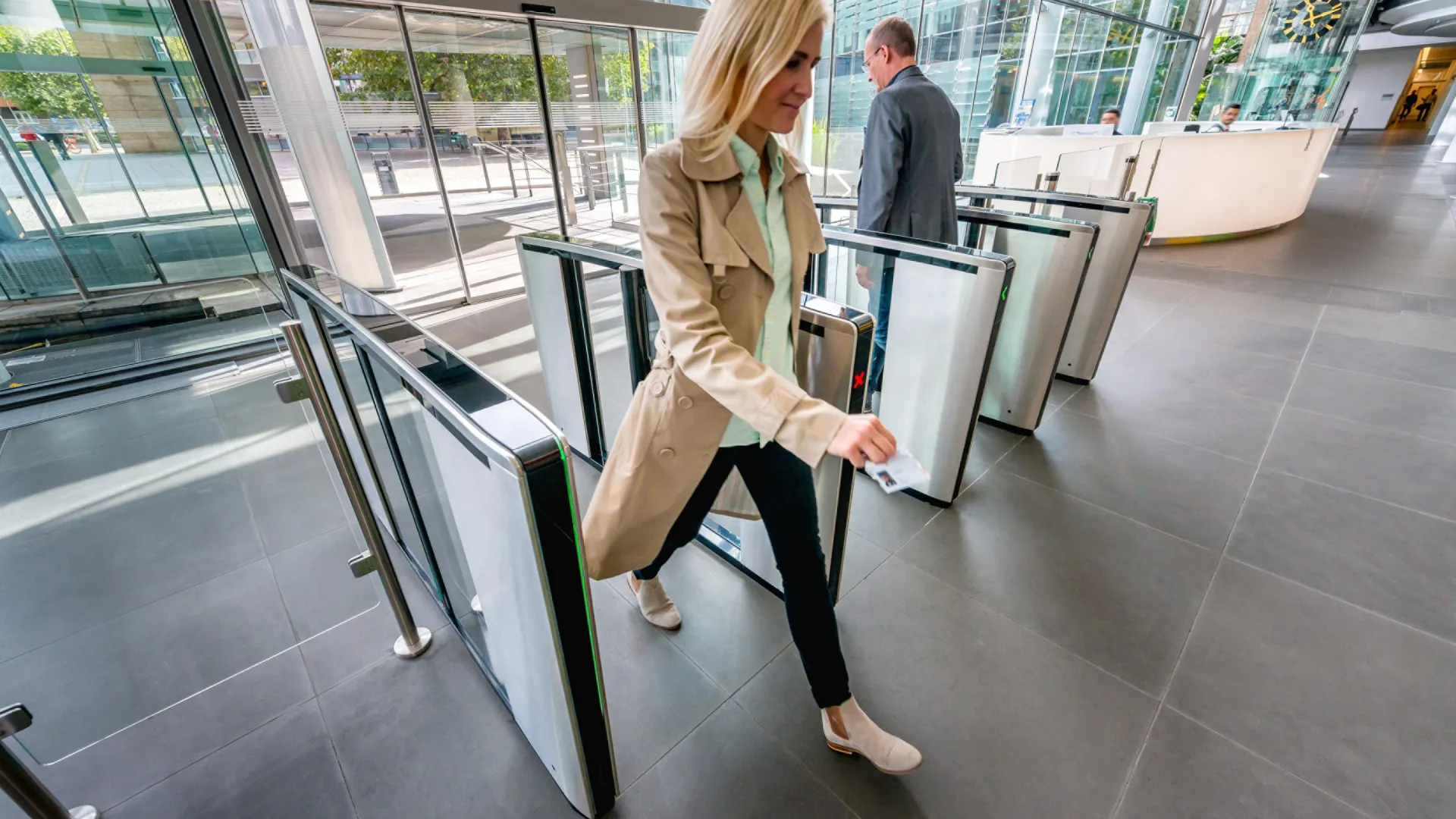

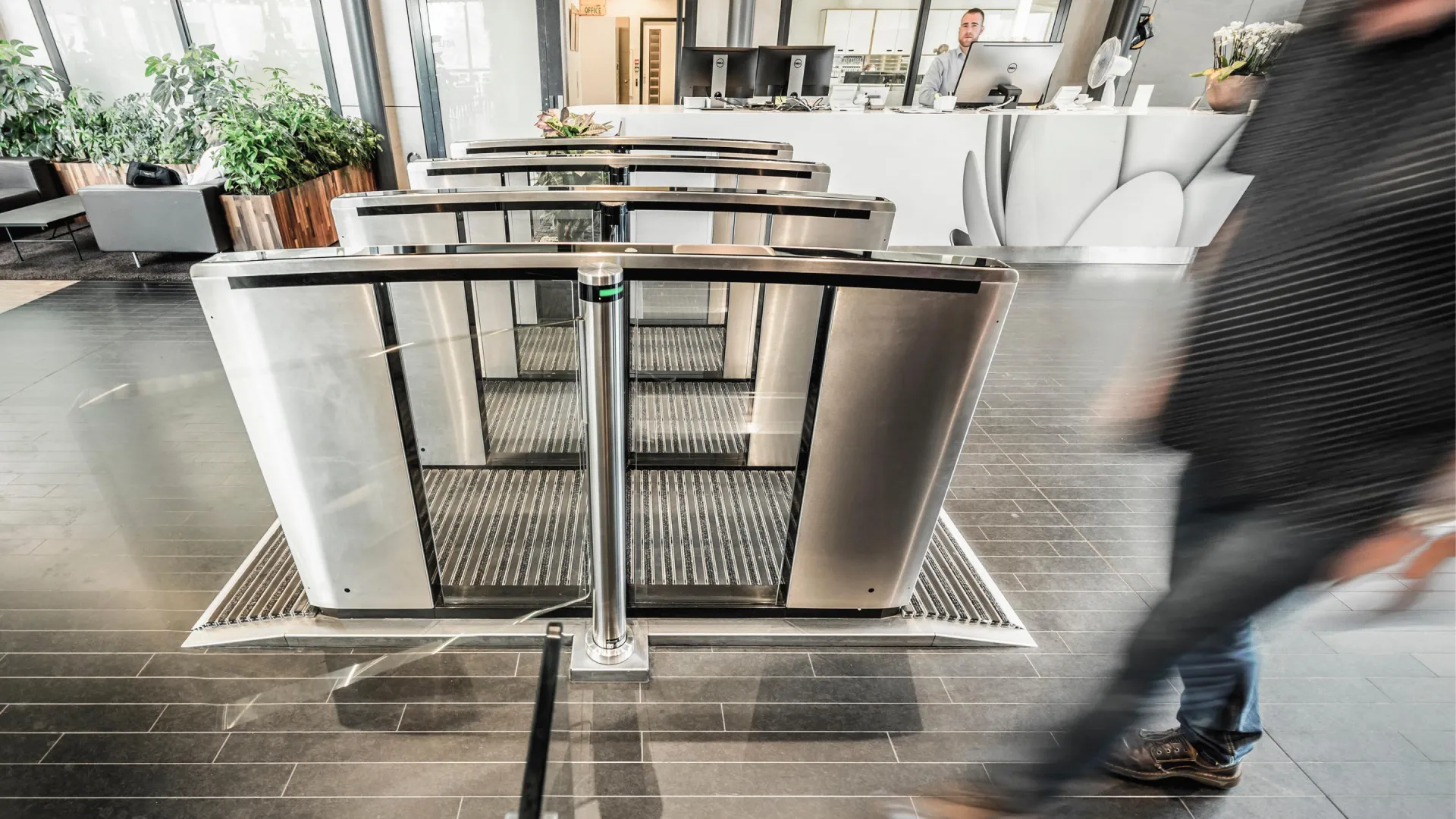

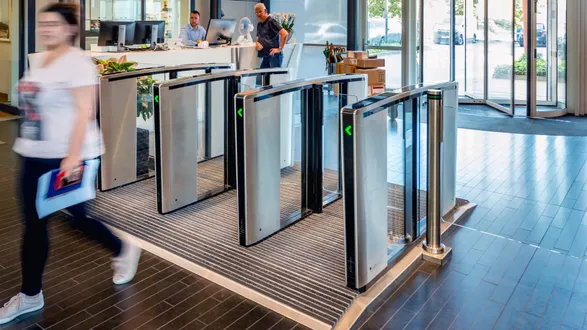

The Lifeline Speedlane Swing can be installed as a single or multi-lane set up and offers:
- Tailgating detection
- Low-energy, “sleep” mode
- Premium quality materials
- Intelligent user guidance
- Intuitive approach detection
- Flexible lane configurations
- Smooth, swinging-motion glass barriers
- Universally understood and proven display symbols
- Slim, V-shaped, tapered cabinets with ergonomic design and small footprint

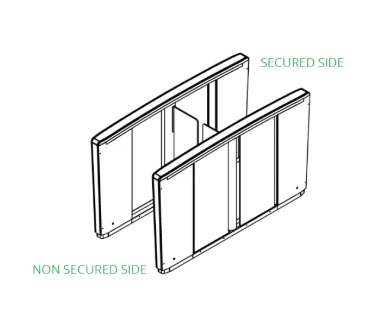

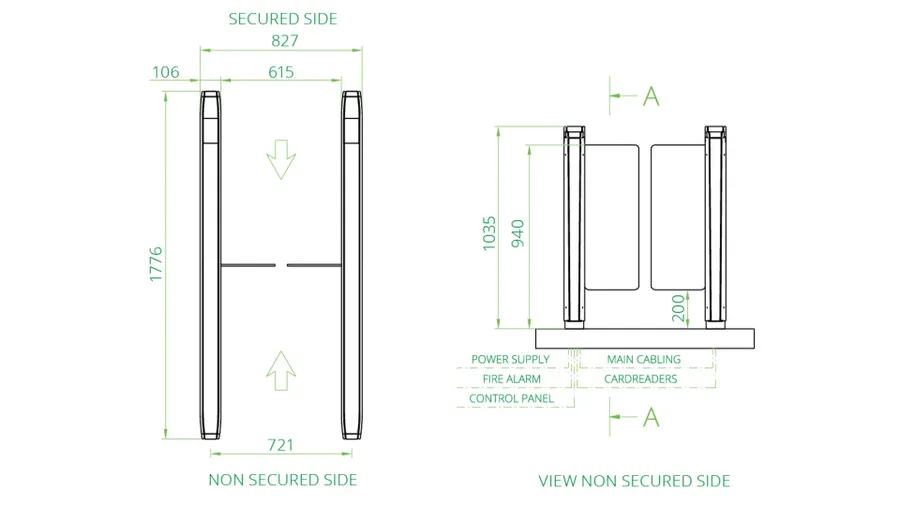

TECHNICAL DRAWINGS

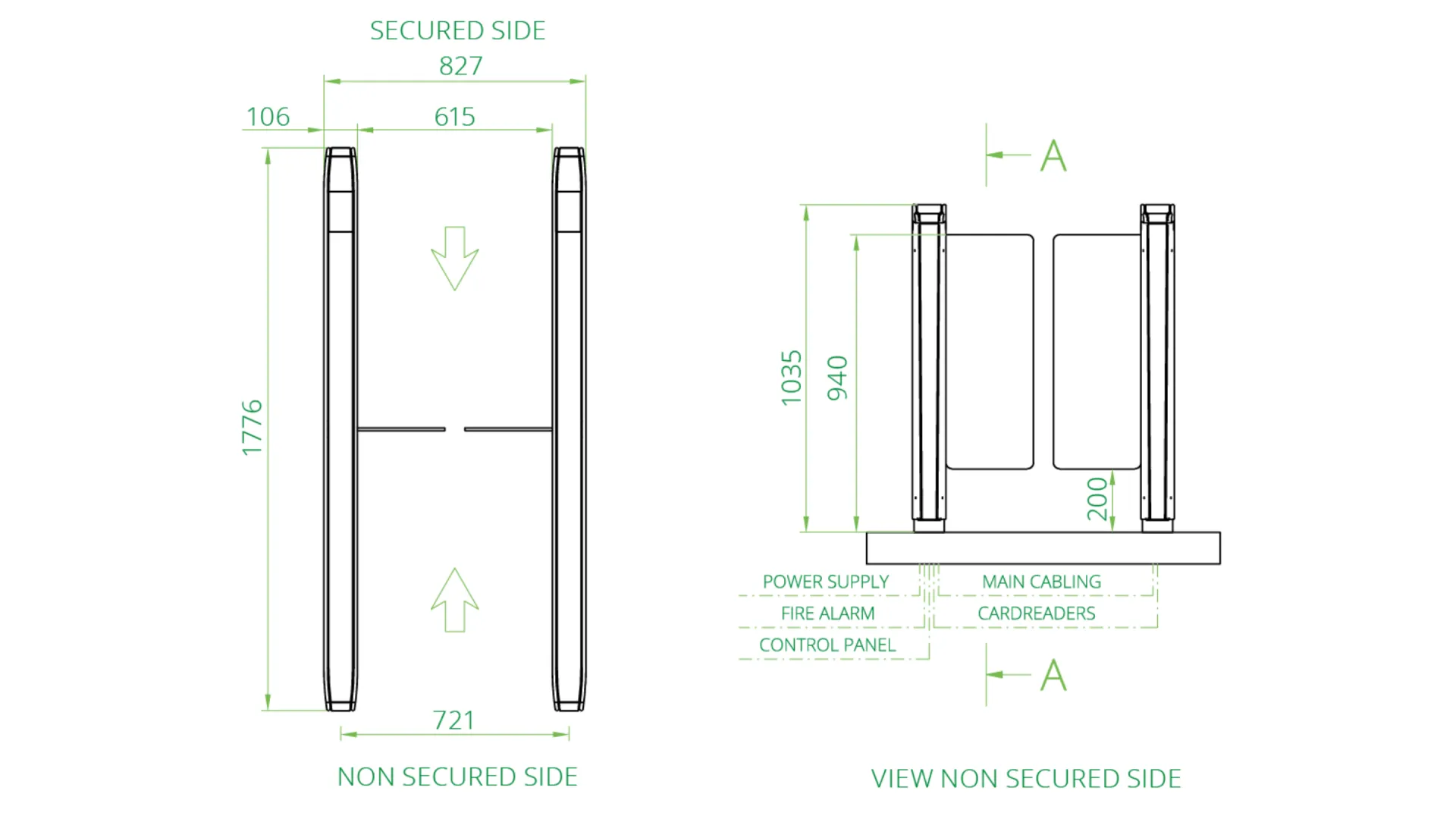

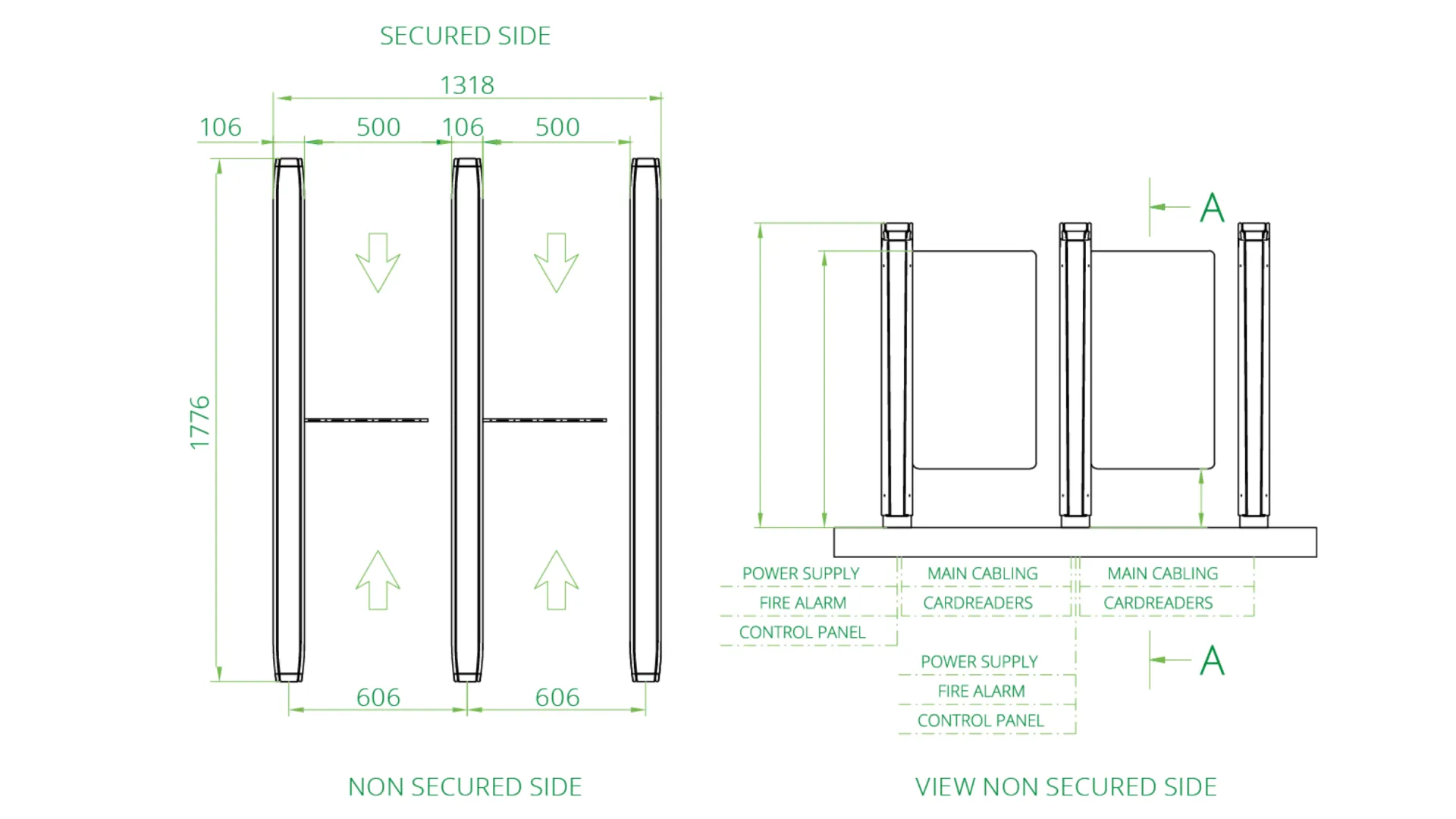

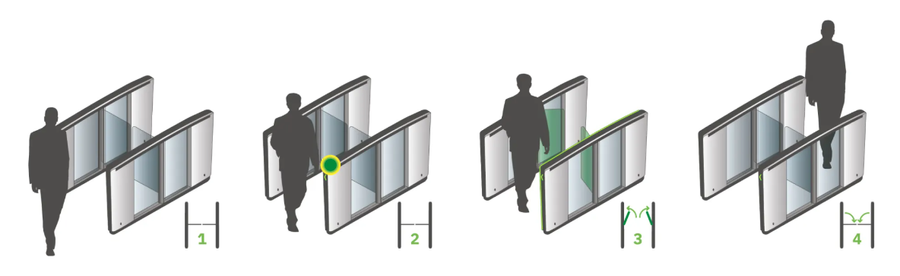

WORKING PRINICIPLE & TECHNICAL DRAWINGS

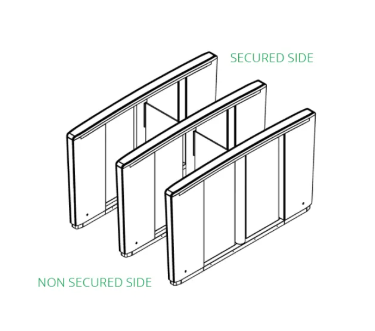

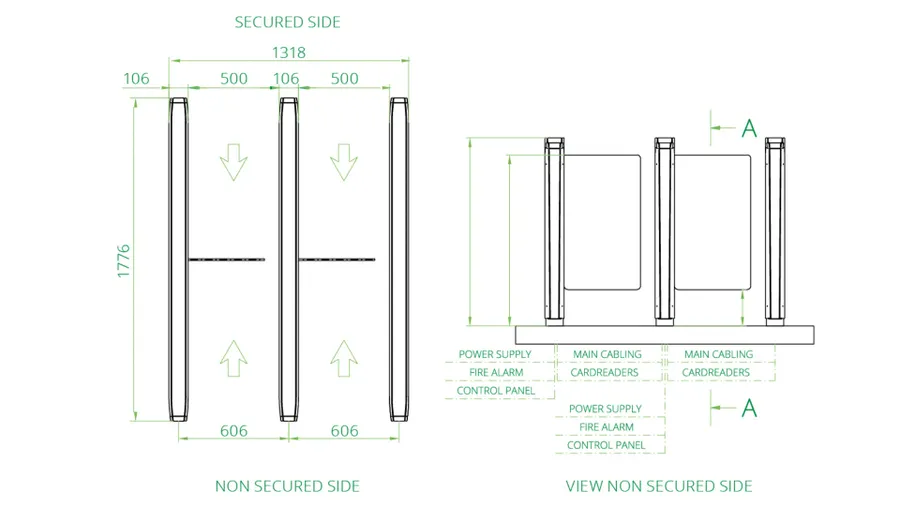

NON SECURED SIDE DRAWINGS
ACCESSORIES
ACCESSORIES FOR THE LIFELINE SPEEDLANE SWING
We care about making sure your entrance suits you perfectly. We offer a variety of flexible options which you can add to your standard entrance - to enhance where you feel the priorities are.

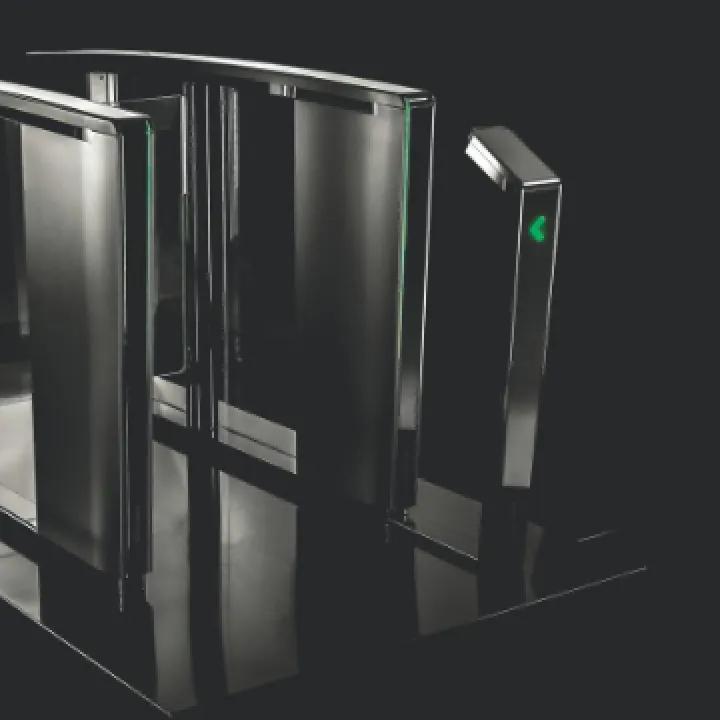

ACCESS CONTROL PEDESTAL MOUNT ACCESSORY - LIFELINE BOOST
A hub for access control system configurations. The lifeline boost acts as a pedestal which allows for higher security to be integrated within the lifeline speedlane swing.
Read more>>>
DESTINATION CONTROL SYSTEM FOR ELEVATORS
The universal elevator destination display is installed as a sleek, integrated screen on or under the top of the speed gate. It will give you a clearly visible signal on which elevator is available. Getting you to your destination faster and in a more secure way.
Read more>>>
LIFELINE SPEEDLANE PORT 4 MINI
Seamless and secure elevator destination control. Boon edam and schindler port technology join forces to present one solution that elegantly combines speed gate security and transit intelligence.
Read more>>>
FACIAL RECOGNITION INTEGRATION
The lifeline speedlane swing can easily be integrated with third-party facial recognition and computer vision technology. Fully integrated facial recognition cameras are becoming a reality and, together, the solution offers a smart combination of security lane and facial recognition device.
Read more>>>

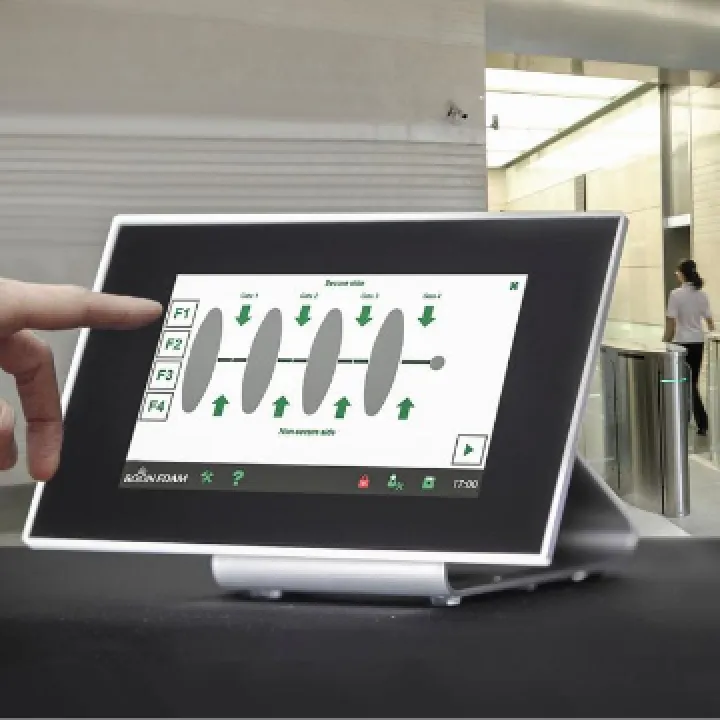

ACCESS CONTROL SYSTEM PANEL - BOONTOUCH
The boontouch access control system panel gives you full remote control over entrance products. Perfect for roles that monitor user access into buildings through receptions.
Read more>>>
