Ecosmart Fire Flex 86RC Fireplaces
FLEX 86RC FIREPLACES
FLEX 86RC FIREPLACES

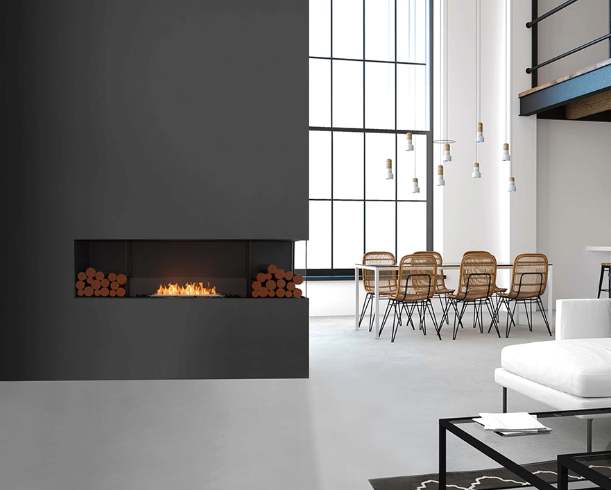

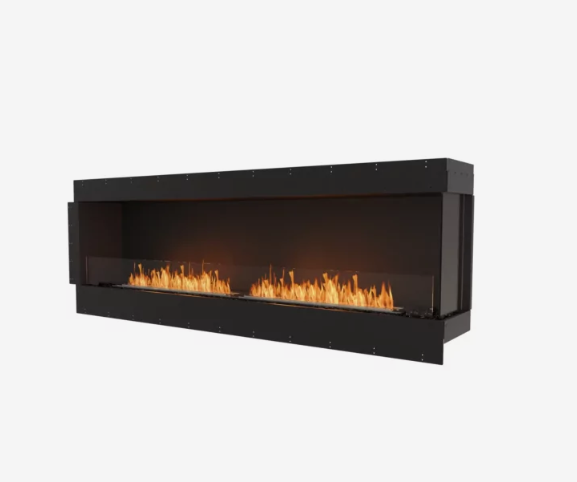

Designed for single room installation, the Right Corner Fireplace Insert features two open sides. The transparent glass on the right corner enables the flame to be viewed from the front and the right corner, providing interior designers, homeowners, architects and builders with the freedom to customise their fire solution to suit a floor plan.
INFORMATION
BRAND
Ecosmart Fire
PRODUCT TYPE
Fireplace
AWARDS
2020 BIMsmith Best Award (USA) and 2018 Attendees Choice Award (USA)
DIMENSIONS MODEL
- Width : 2.331 mm
- Height : 807 mm
- Depth : 365 mm
DIMENSIONS VIEWING AREA
- Width : 2.231 mm
- Height : 502 mm
- Depth : 340 mm
COLLECTION
Flex
WEIGHT
121.7 kg

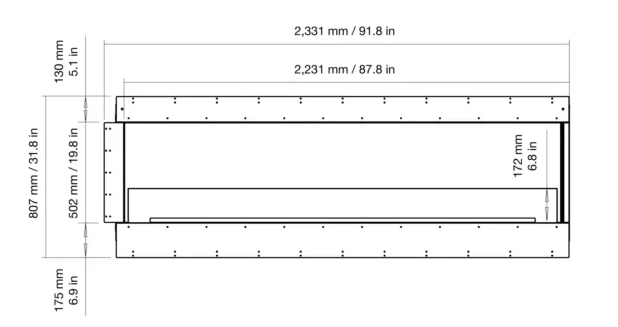

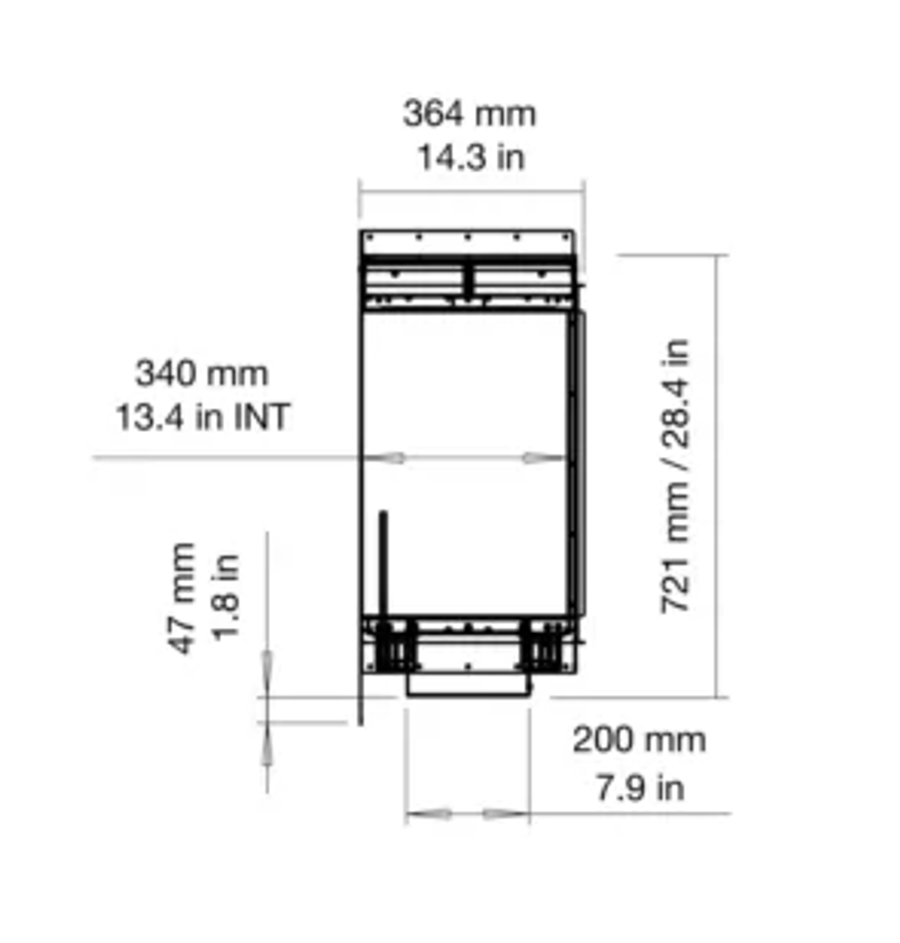

TECHNICAL DRAWINGS
DETAIL
The clean lines and 'all flame' configuration of the Flex 86RC means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.
INDOOR OR OUTDOOR APPLICATION
Powered by clean-burning e-NRG ethanol fuel, Flex 86IL is suitable for indoor or outdoor installation. Ethanol is a sustainable fuel choice made by fermenting plants like sugarcane or corn.
INDUSTRY EXCLUSIVE DECORATIVE BOX
Optional or included box configurations for select firebox lengths. Fill with any non-combustible accessory or choose our optional eye-catching log set available in copper finish.
AVAILABLE IN 12 OPENING SIZES
Flex fireplaces transform any room with a range of sizes to choose from. Elevate your space with the perfect ambiance no matter how big or small.
QUICK AND EASY INSTALLATION
With no need for ventilation or utility connections, integrating a fire feature has never been simpler. Flex installs fast and is ready for the finishing touches in less than an hour.
INCLUDED ACCESSORIES
Each Flex comes with decorative Black Glass Charcoal and integrated fire screen which sits flush behind the frame.
USE
Heating
PRODUCTION
100% Made in Germany
MATERIAL
Mild Steel (Zinc Sealed, High-Temp Powder Coat) Surround; Grade 304 Stainless Steel (Optional Black Ceramic Coating) Ethanol Burner; Toughened Glass Fire Screen
OPTIONAL - LOG SET COPPER
This stainless steel log set adds a beautiful finishing touch to our fire designs.
COLOUR
- Black
- Stainless Steel
APPLICATION
- Indoor
- Outdoor
TRUE ZERO CLEARANCE
Self-contained, zero clearance construction provides unlimited installation freedom and flexibility for builders, architects, interior designers, landscapers and homeowners.
UNMATCHED HEAT EFFICIENCY
Unlike gas fireplaces that lose 30% of heat through vents, Flex’s closed combustion system keeps every BTU in your room. Warmth stays where it belongs—no energy wasted, no chimneys needed.
EFFICIENCY
EFFICIENCY
| BURNER INFORMATION | ALL FLAME | ONE BOX | TWO BOXES |
|---|---|---|---|
| Burner Configuration - Compatible With This Model | XL900 x2 | XL1200 | XL900 |
| Volume Capacity - How Much Fuel | 18 L | 10 L | 9 L |
| Thermal Output - How Much It Heats | 31.65 MJ/h - 9 kW | 16.13 MJ/h - 4 kW | 15.83 MJ/h - 4 kW |
| Burn Time - How Long It Lasts | 8-13 h9 L | 9-14 h10 L | 8-13 h9 L |
| Fuel Consumption - How Long It Lasts | 1.6 L/h | 0.87 L/h | 0.8 L/h |
| Heats On Average - How Much Space It Heats | 120 m² | 65 m² | 60 m² |
| Minimum Room Size - Required For This Config | 220 m³ | 115 m³ | 110 m³ |
ACCESSORIES
XL BAFFLES
Purpose-designed baffle inserts allow you to regulate and further stabilise the flame at the same time as increasing fuel efficiency of the burner.
JERRY CAN 5L
Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system. Enables safe storage and decanting of e-NRG.
FIRE LIGHTER
This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.
LIGHTING ROD
This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.
BOTTLE ADAPTOR
The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
BLACK GLASS CHARCOAL
The Black Glass Charcoal is made from high-quality tempered glass and has been designed to withstand harsh weather and temperatures of up to 1300ºF/700ºC without ever cracking, or losing its colour or shape. Black Glass Charcoal does not emit any toxic fumes, smoke, or ash so it is extremely easy to maintain and clean.
