Cordivari Sofi X Radiator
SOFI X RADIATOR
SOFI X RADIATOR
Sofi® X is the new unit composed of a radiator and a fan coil.
A combined solution that works intelligently thanks to a patented software and mechanics.
Sofi® X delivers high output and great efficiency, bringing together the features and aesthetics of a traditional radiator with the functionality and performance of a fan coil. It is also ideal for low‑temperature systems and extremely compact spaces.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Radiator
COLLECTION
Sofi X
ENVIRONMENT
Indoor
FIXING KIT
Dowels and screws, suitable for use on solid walls or perforated bricks.
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
PACKAGING
The radiator is protected with a recyclable cardboard box.
USE
Heating & Cooling
PRODUCTION
Made in Italy
FEATRES
- SLEEP function
- European warranty
- SX and DX connection
- High power and high efficiency
- Ideal for operation at low temperature
- Management through the Smart Life app
HYDRAULIC CONNECTIONS
G 1/2” M
CLEANING
Easily removable filters, washable or replaceable.
SLEEP FUNCTION
Available in both heating and cooling modes, maximizes thermal and acoustic comfort during nighttime.
CONNECTIVITY
Integrated Wi-Fi module and management through the Smart Life app. Ready for BMS integration through Modbus RTU – KNX protocol.
TECHNICAL DATA
- Class 1.
- By-pass valve supplied as standard.
- Available with either left (SX) or right (DX) connection.
WORKING PRESSURE
Max 5 bar
INLET WATER TEMPERATURE
Max 110 °C

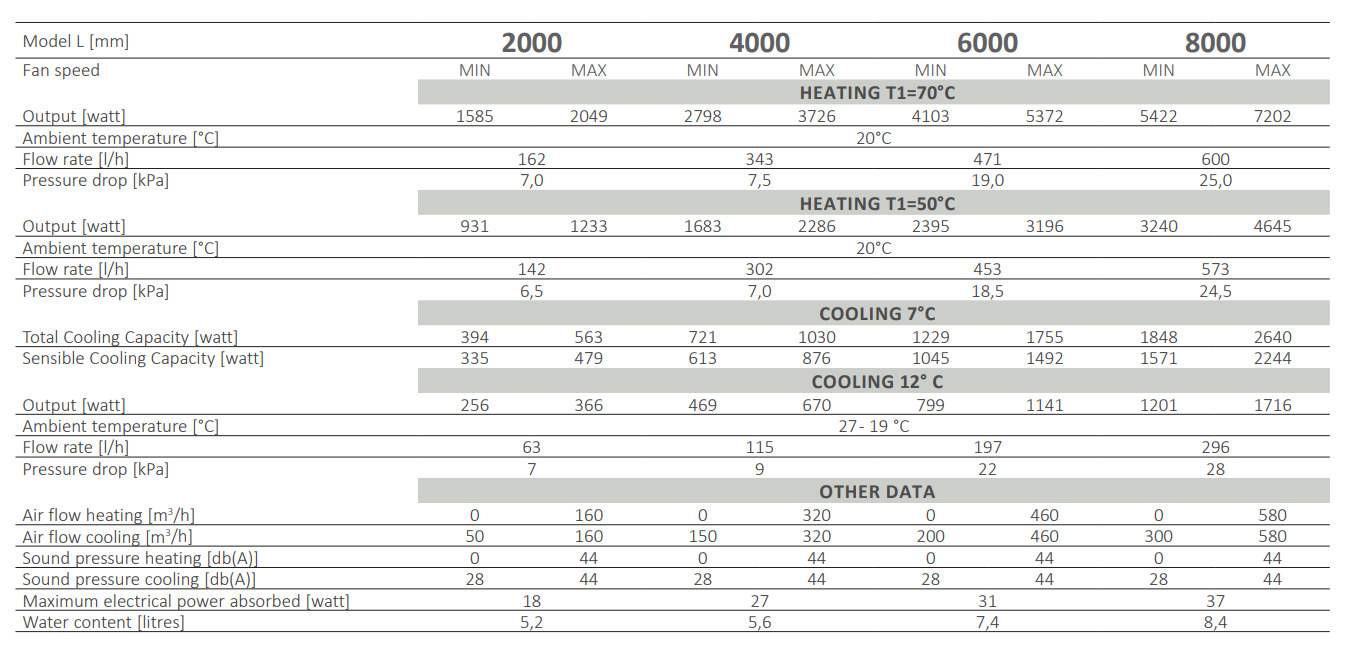

TECHNICAL DETAIL

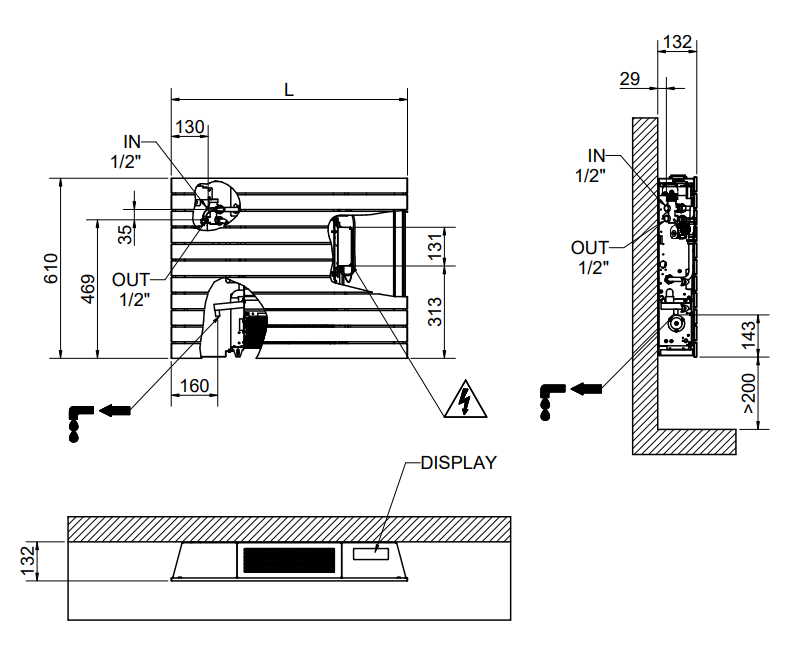

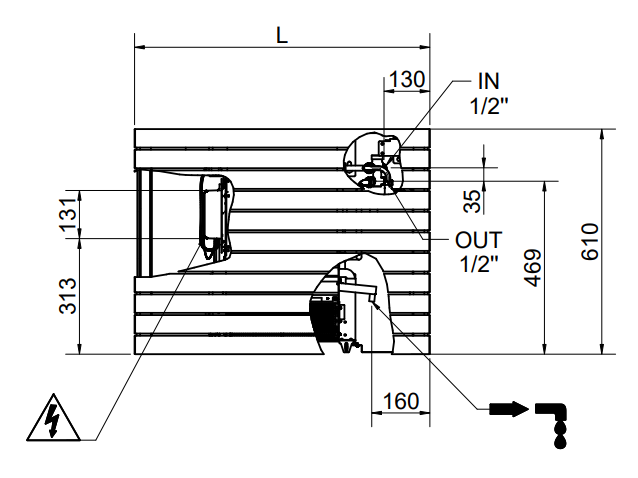

TECHNICAL DRAWINGS
MODELS
