PLUSAR FENCES
PLUSAR FENCES

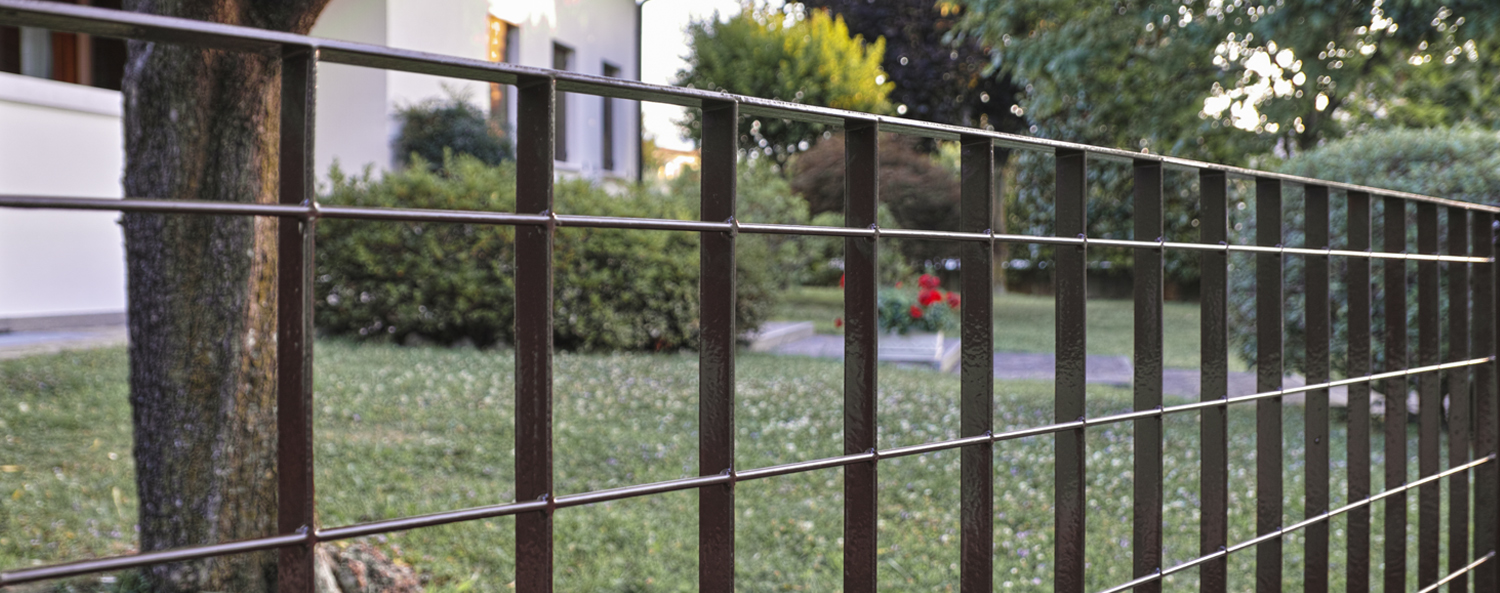

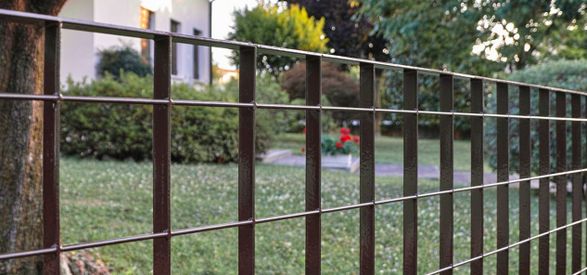

Its wide mesh makes it less invasive and suitable for large areas; try it for your home!

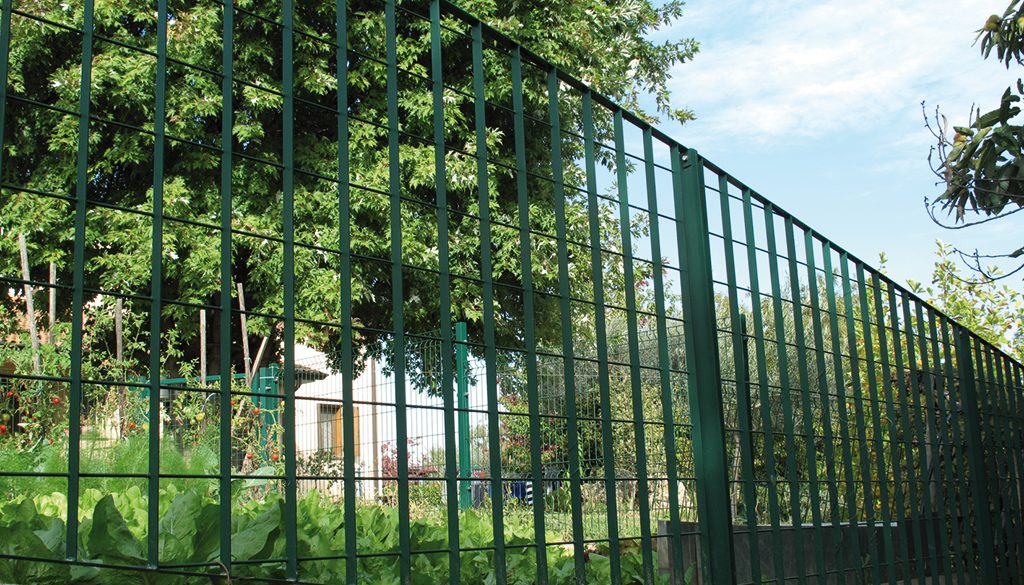

Plusar is a grating fence that is suitable for large areas. Its 124 x 132 mm mesh and 25 x 3 mm bearing bar guarantee an excellent performance, in terms of quality and durability.
Plusar comprises vertical bearing bars with a rectangular cross-section and connecting round cross-beam bars. The upper and lower band – connected via wire welding – ensure a high resistance and long-lasting quality. The Plusar model can be fitted with hinged or sliding single/double-leaf gates.
INFORMATION
BRAND
Baldassar
PRODUCT TYPE
Fences
MATERIAL
S 235 JR (UNI EN 10025:1995) steel
COLLECTION
Plusar
PRODUCTION
Made in Italy
COATING
A polyester resin powder coating – suitable for outdoor use – is applied on the post-processing hot dip-galvanised material.
ENVIRONMENT
Outdoor
DOWNLOADS
↓ Catalogues
↓ Data Sheet
STANDARD SURFACE TREATMENT
Hot dip-galvanised post-processing in accordance with UNI ISO 1461:2009
ITEM SPECIFICATIONS

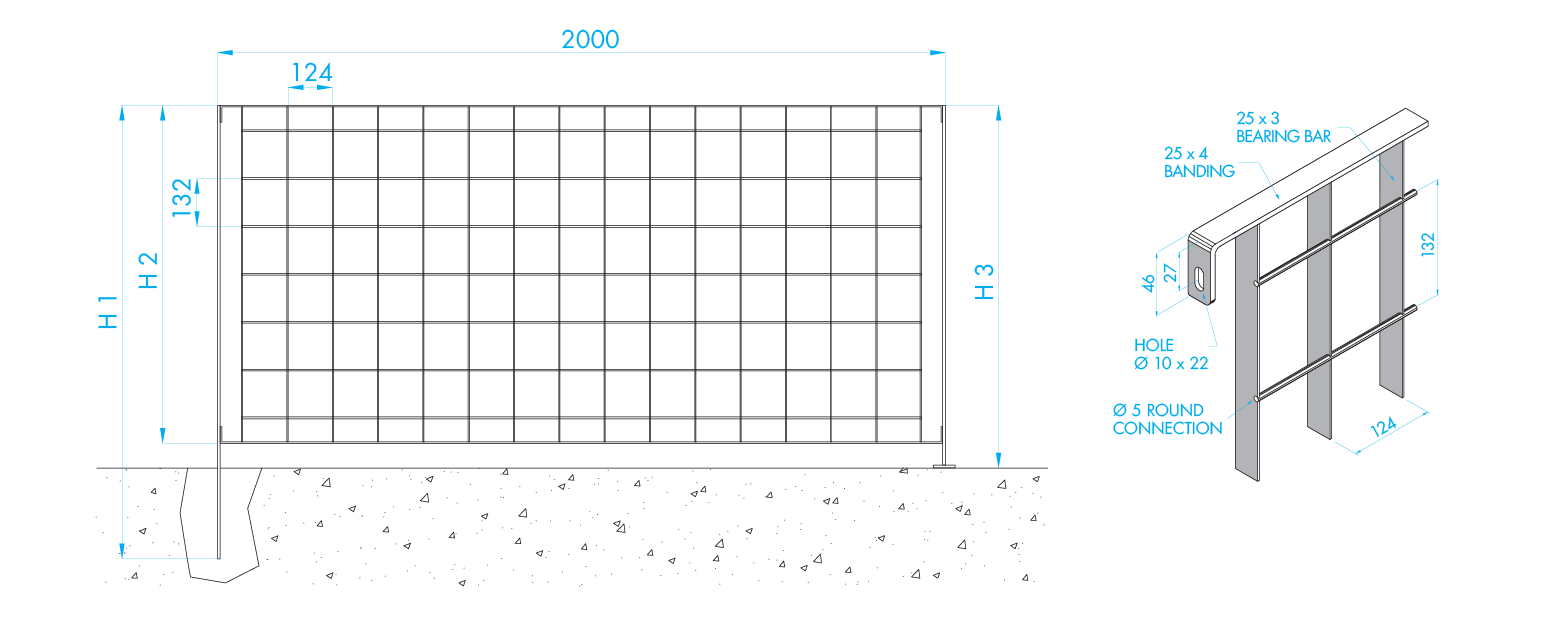

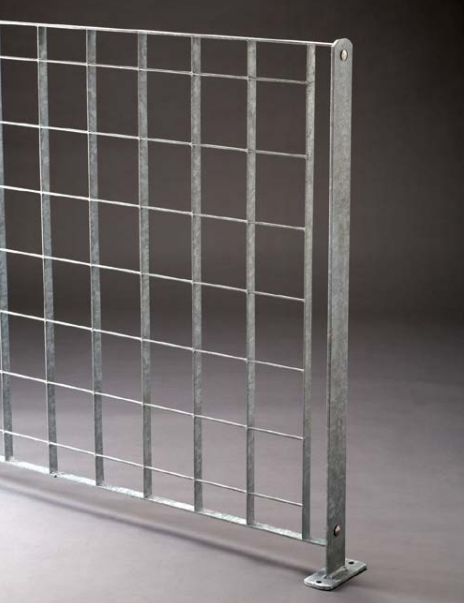

The Baldassar Plusar fence model consists of electro-welded grating panels in S235JR (UNI EN 10025) steel with a 124 x 132 mm mesh, vertical bearing bars with a 25 x 3 mm cross-section, horizontal cross wire with a 5 mm diameter and an upper and lower steel banding bar with a 25 x 4 mm cross-section, manually wire-welded to increase the product’s resistance.
It comes with steel posts comprising a 60 x 7 mm cross-section round top bar, in addition to M8 x 30 stainless steel bolts. All the elements are hot dip-galvanised in accordance with the UNI EN ISO 1461 standard.
TECHNICAL DATA
TECHNICAL DETAIL
| PANEL H2 HEIGHT (MM) | PANEL L=1992 WEIGHT (KG/EACH) | POSTT SECTION (MM) | SCREW-ON POST H3 HEIGHT (MM) | SCREW-ON POST WEIGHT (KG/EACH) | CONCRETE-IN POST H1 HEIGHT (MM) | CONCRETE-IN POST WEIGHT (KG/EACH) |
|---|---|---|---|---|---|---|
| 930 | 1480 | 60 x 7 | 1000 | 4.10 | 1180 | 4.20 |
| 1064 | 14.80 | 60 x 7 | 1130 | 4.50 | 1315 | 4.70 |
| 1200 | 18.10 | 60 x 7 | 1265 | 5.00 | 1450 | 5.20 |
| 1330 | 19.90 | 60 x 7 | 1395 | 5.50 | 1580 | 5.60 |
| 1460 | 21.60 | 60 x 7 | 1525 | 5.90 | 1710 | 6.10 |
| 1724 | 24.40 | 60 x 7 | 1790 | 6.90 | 1970 | 7.00 |
| 1990 | 2.,80 | 60 x 7 | 2055 | 7.80 | 2250 | 8.10 |
COLORS
ALL COLORS
ACCESSORIES
FIXING ELEMENTS
- Bolt (standard) with hex nut
- Round head bolt (optional) with lock nut

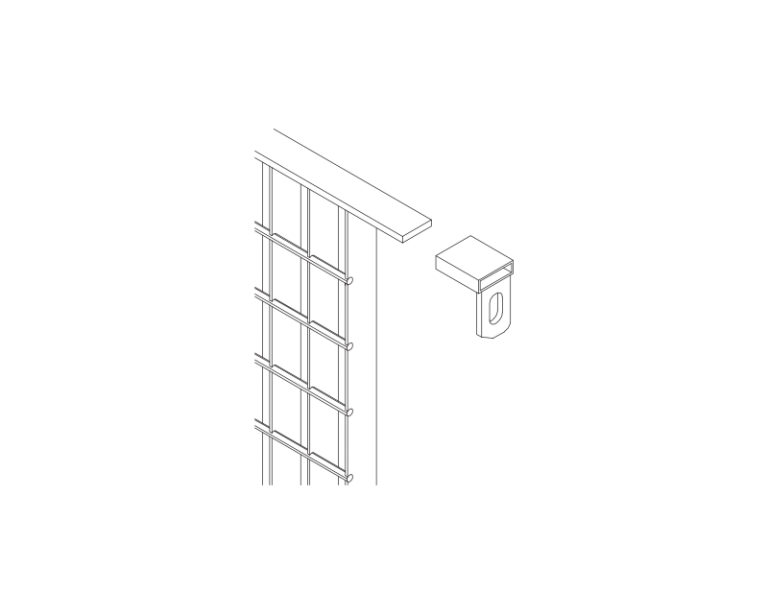

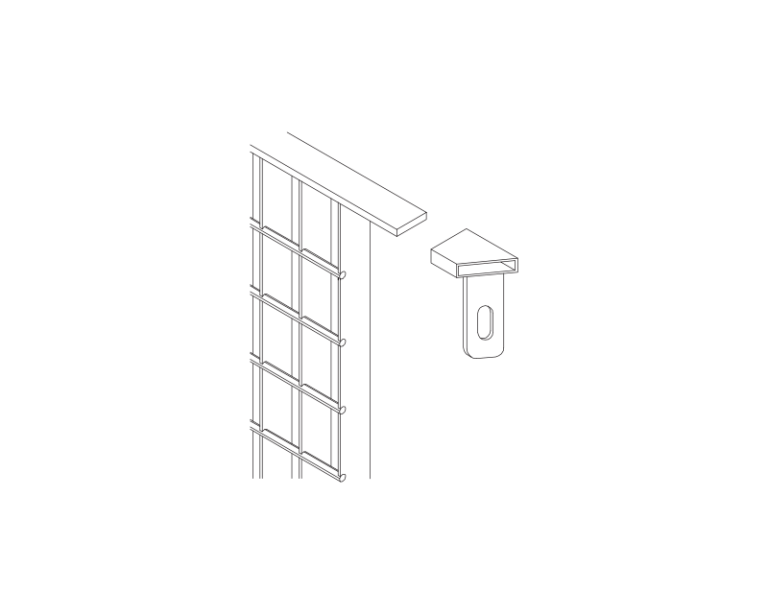

THIRD CLIPS AND FIXING ELEMENTS

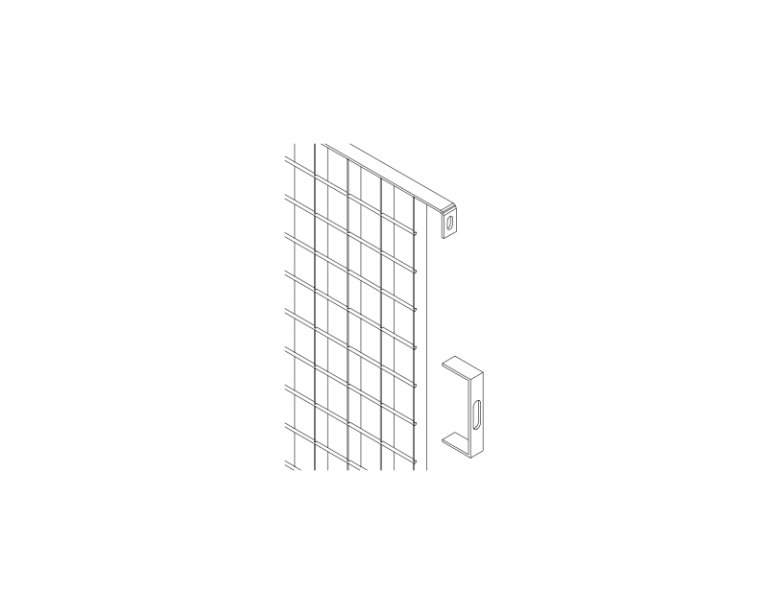

- Third clip to be bolted to the panels.
- Untreated third clip to weld to fence panels over 2000 mm.

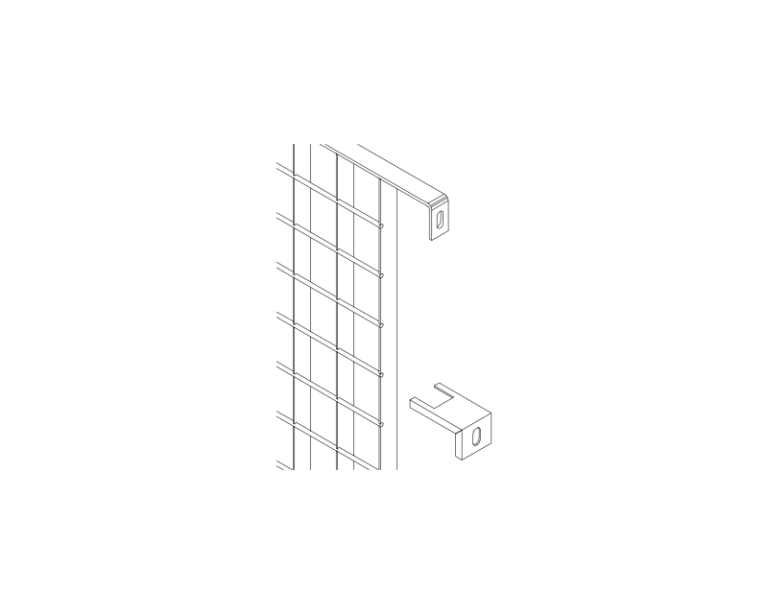

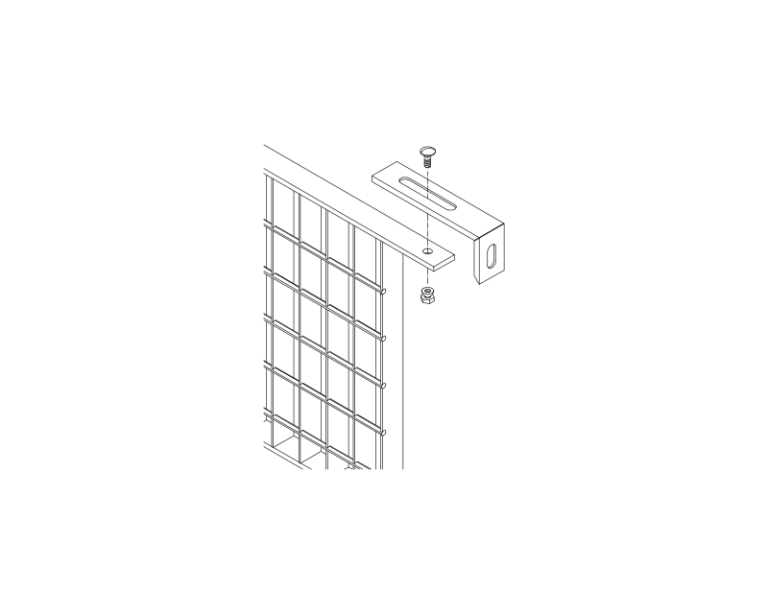

COMPENSATING CLAMPS

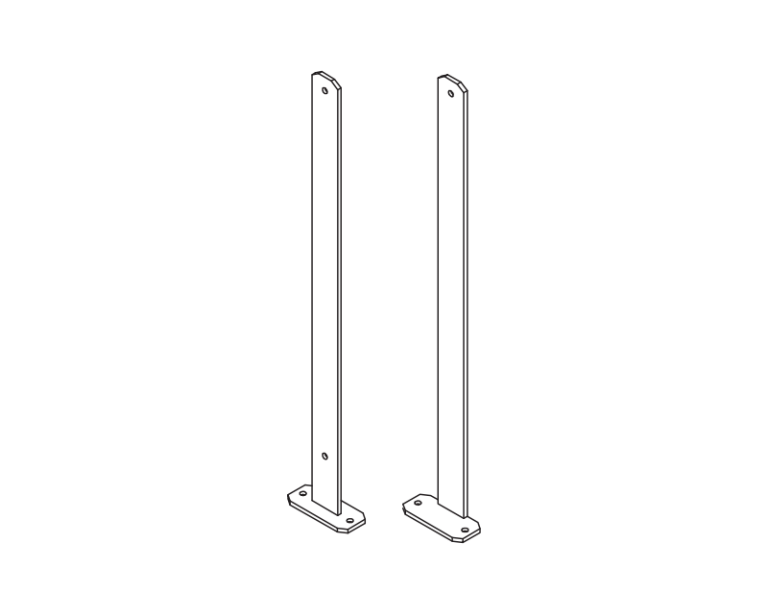

POSTS

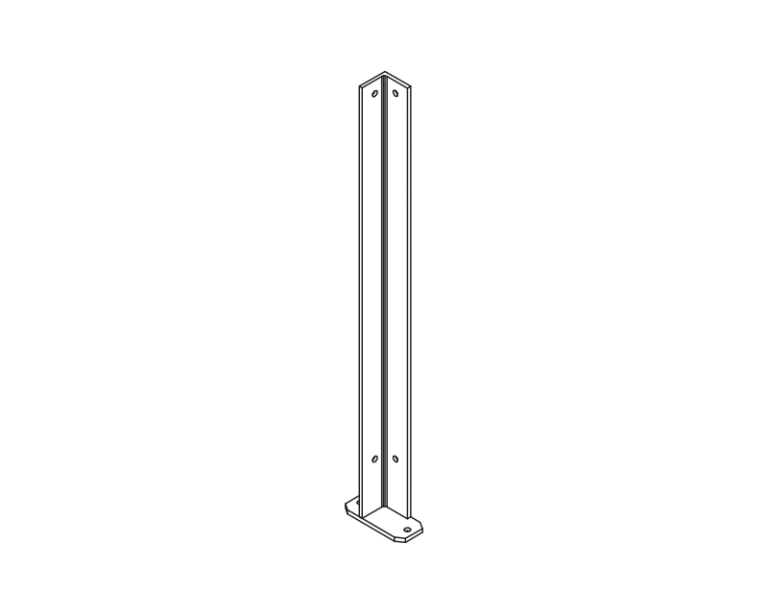

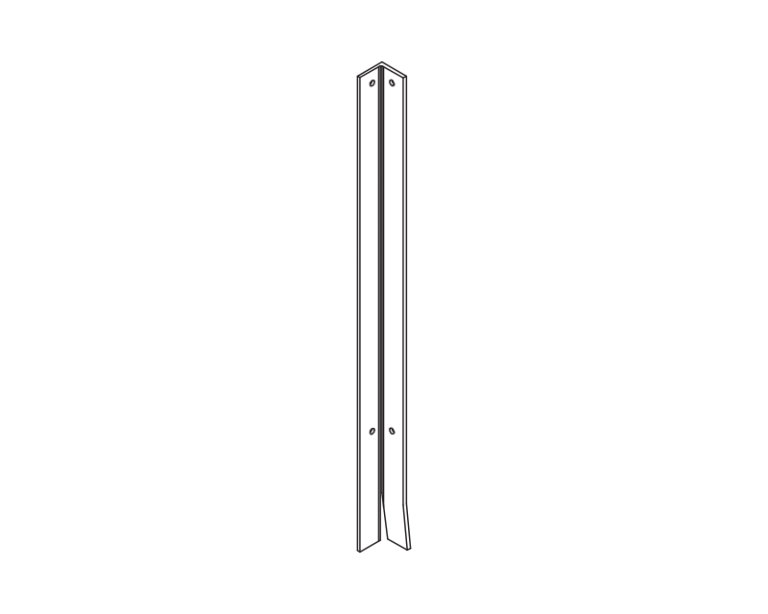

-Screw-on standard and end post with a 60 x 7 mm cross-section. -Screw-on standard corner post with a 60 x 60 x 6 mm cross-section. -Screw-in standard post with a 60 x 7 mm cross-section. -Screw-in standard corner post with a 60 x 60 x 6 mm cross-section.
