ULTRA-COR® BRIDGES
ULTRA-COR® BRIDGES
As the world’s deepest corrugation profile, ULTRA-COR structural plate combines all the advantages of lightweight construction with previously unheard-of strength and durability to create the largest buried metal bridges in the world today.
INFORMATION
MODULAR BRIDGE SYSTEM
Modular Bridge System - Rapid installation results in reduced overall project costs, delays and detours
BRAND
Contech
PRODUCT TYPE
Bridge
STRUCTURE
Buried Bridge Structure - Reduces maintenance costs and lowers life cycle costs as there are no bridge deck or joints at the deck/roadway interface
COLLECTION
ULTRA-COR®
USE
Outdoor
BENEFITS OF ULTRA-COR® SYSTEMS
ULTRA-COR® has an impressive 20” x 9.5” ultra-large corrugation profile that allows it to reach greater spans and withstand the heaviest of loads. ULTRA-COR plate structures are able to reach clear spans of up to 115′, wide enough for six lanes of traffic plus two active transportation lanes.
EASY SITE ADAPTABILITY
Flexible layout options to fit within the right-of-way – curve the structure with a stream or adjust for vertical and horizontal clearance requirements
SPANS OF UP
Spans of up to 115'
ASSEMBLY

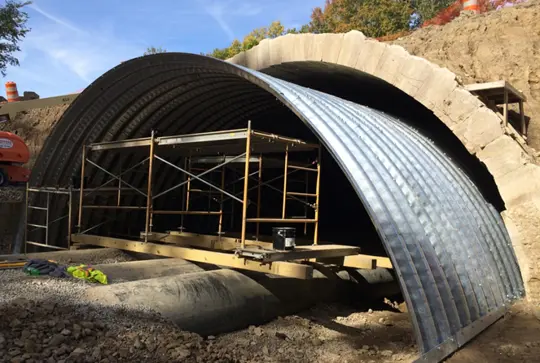

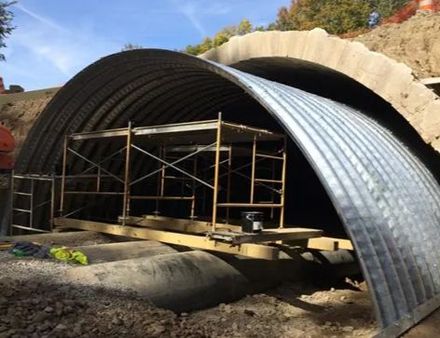

Onsite assembly with fewer bolts
DOWNLOADS
↓ Structures Reference Guide
ADVANTAGES
COST ESTIMATES
We can quickly provide engineer’s cost estimates to assist with your solution selection process.
AGENCY/REGULATORY GUIDANCE
Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.
SOLUTION DEVELOPMENT
Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.
ON-SITE ASSISTANCE
Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
TECHNICAL EXPERTISE
Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.
SITE SPECIFIC DRAWINGS
Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.
APPLICATIONS

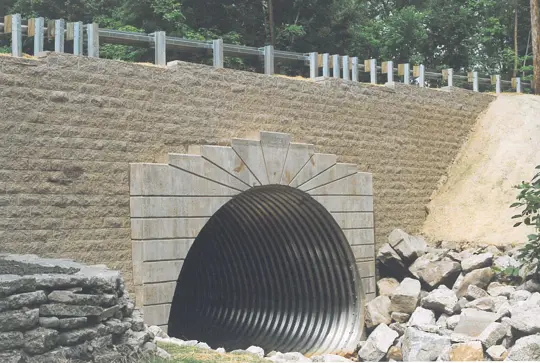

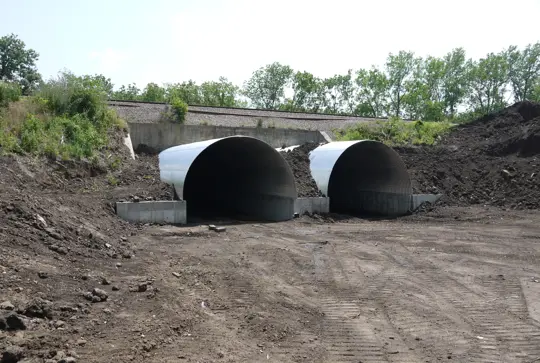

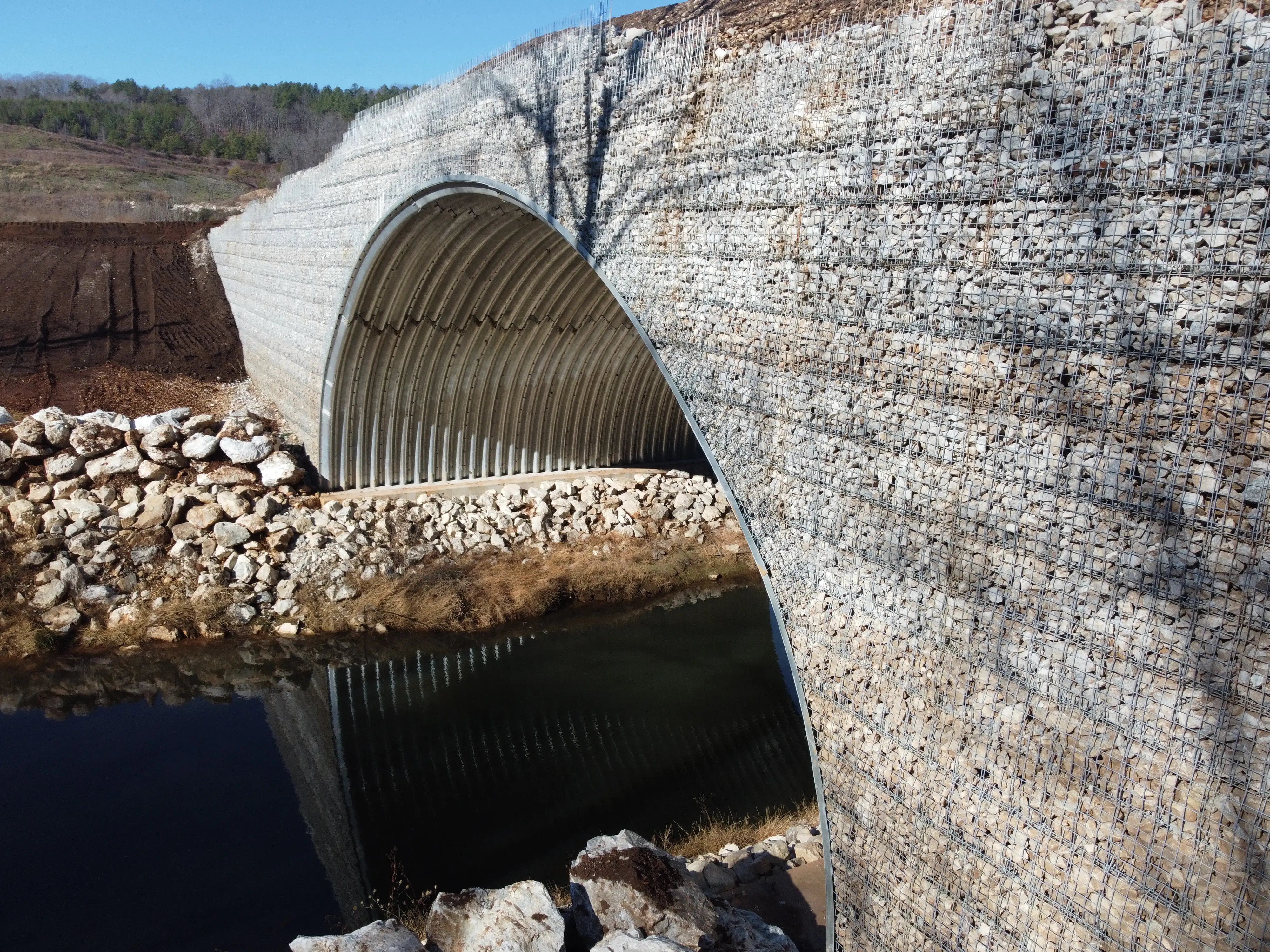

PLATE STRUCTURES FOR CULVERT, CANALS AND ENCLOSURES
Our structural plate products, BridgeCor, MULTI-PLATE, ULTRA-COR, Aluminum Structural Plate and SUPER-SPAN, offer a flexible and strong solution for culverts and enclosing canals and streams.

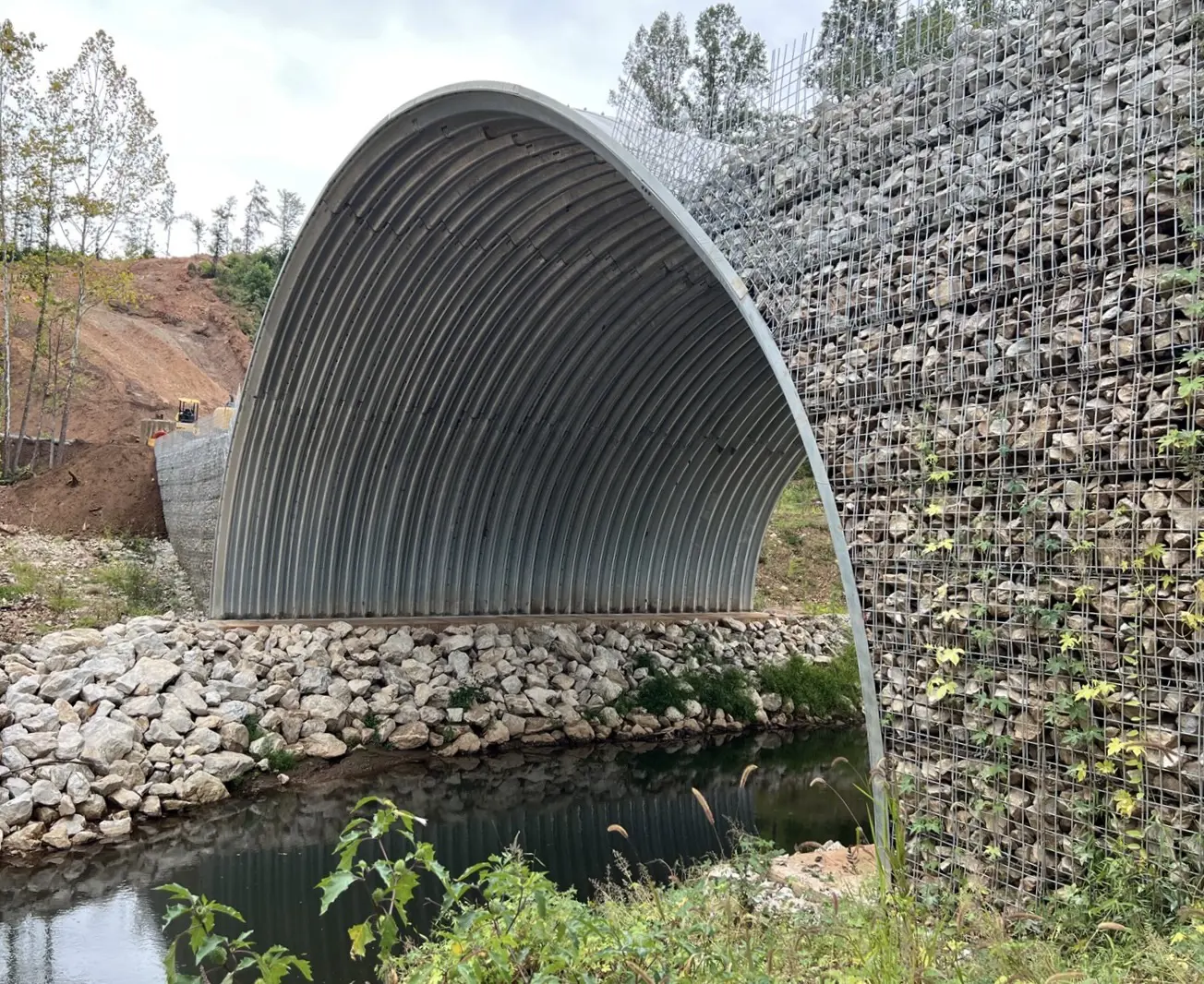

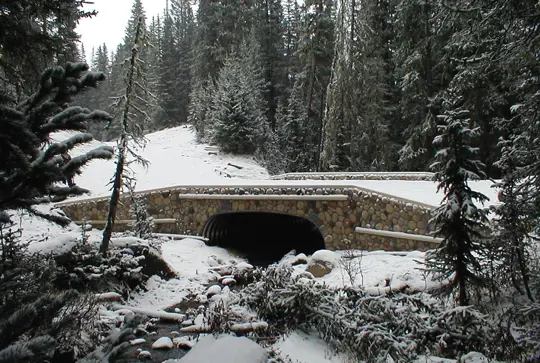

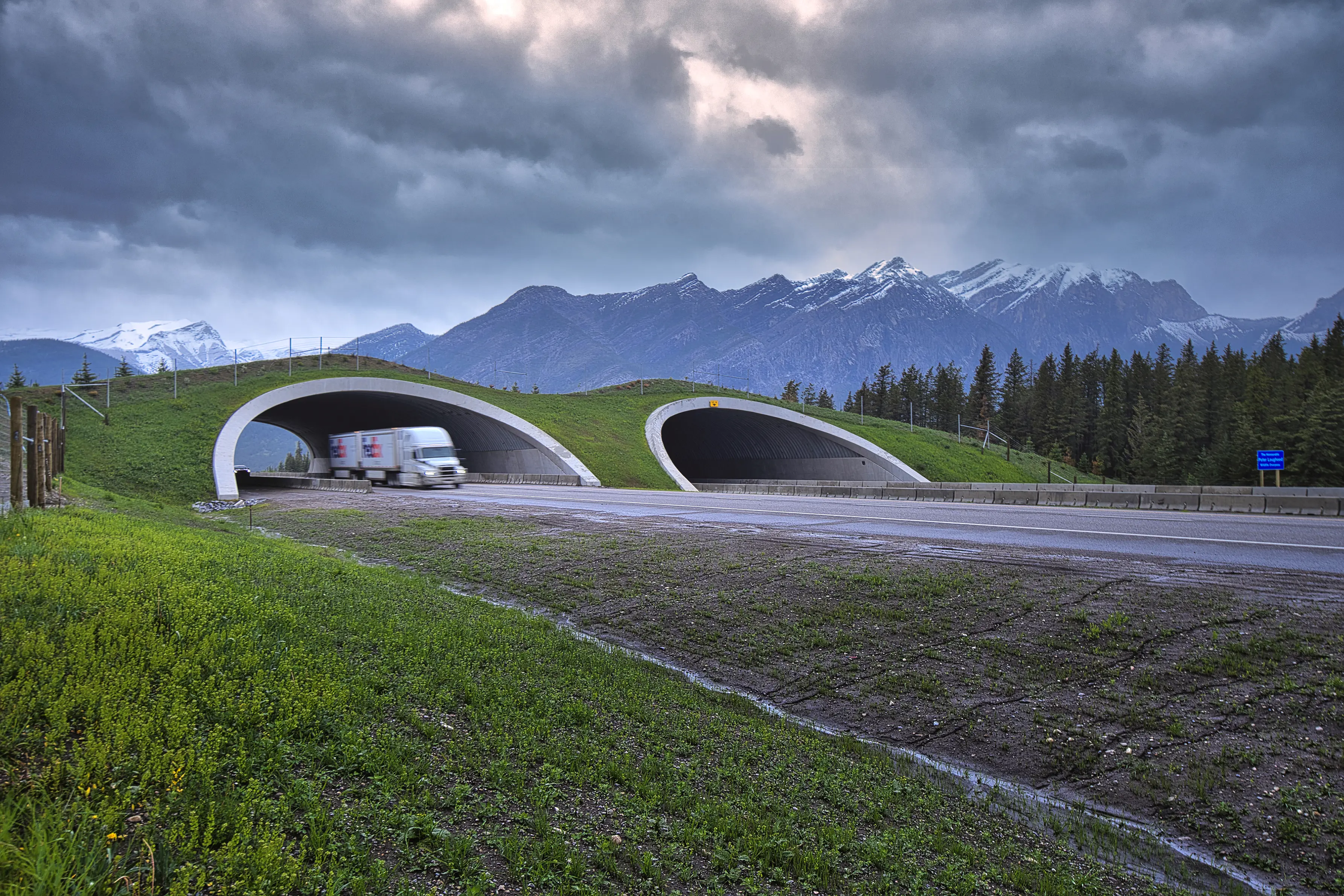

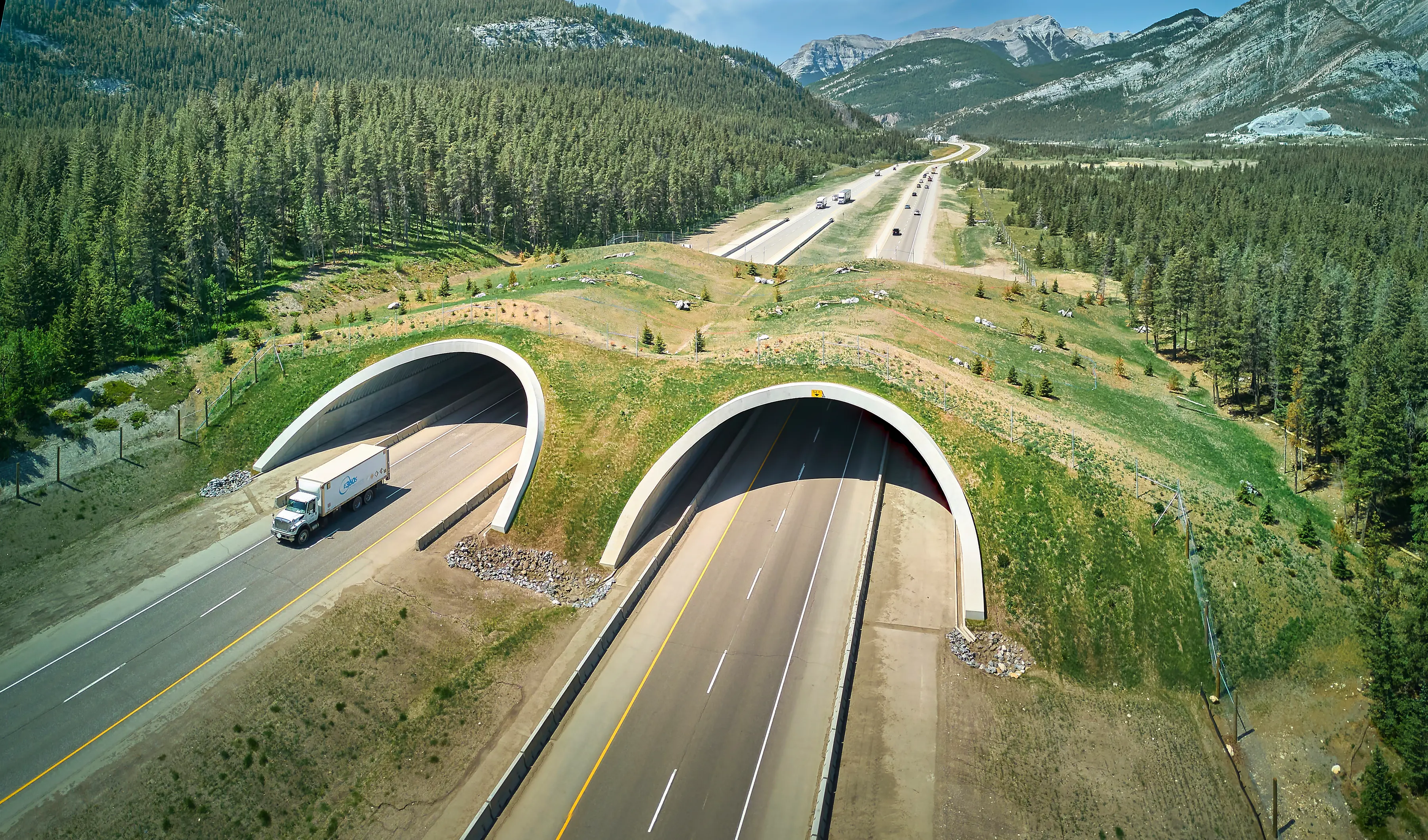

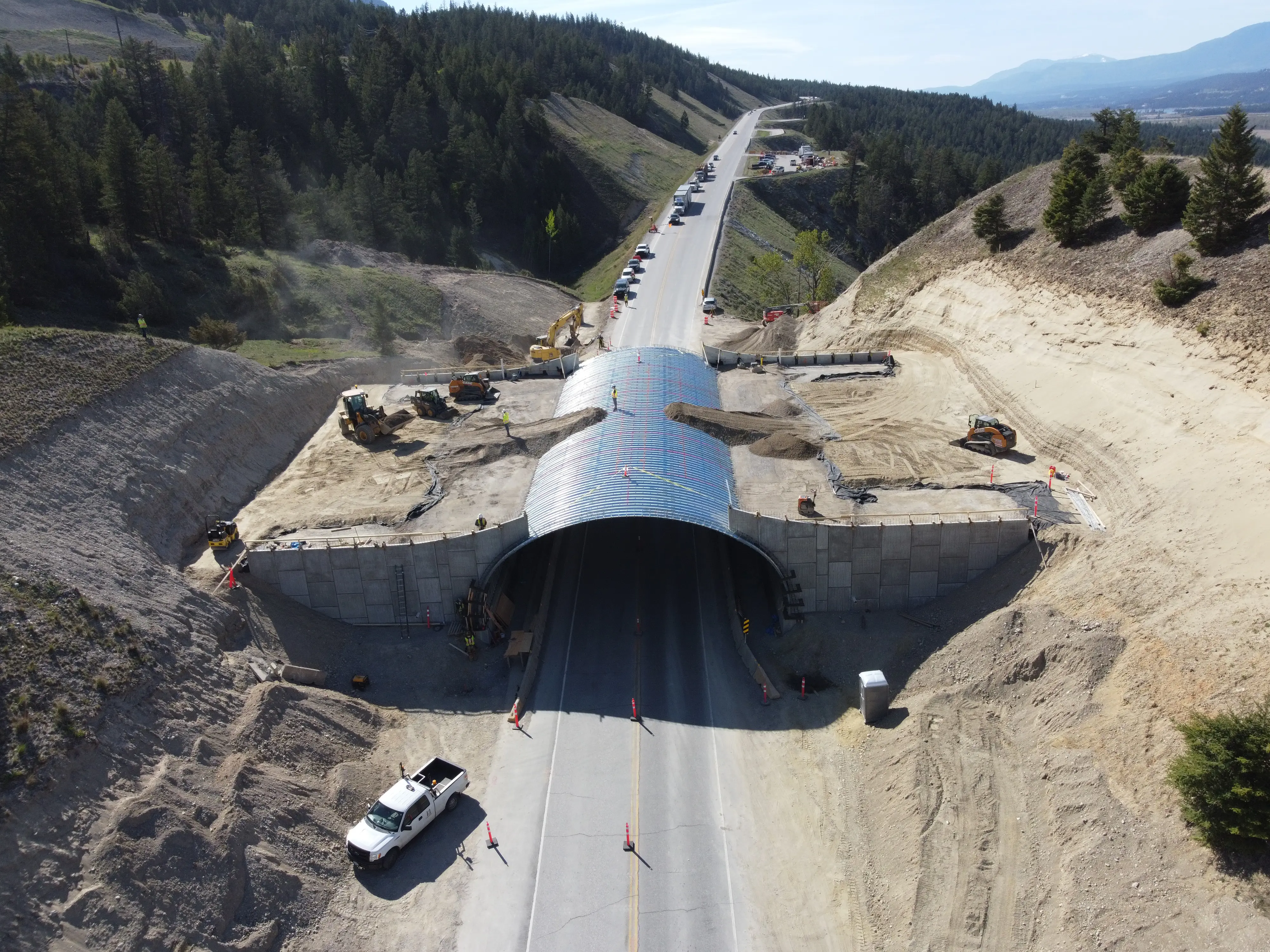

STRUCTURAL PLATE FOR STREAM AND WILDLIFE CROSSINGS
Our Structural Plate products can be used for fish passages and wildlife crossings. The ability of Structural Plate products to span the delineated area reduces the need for permitting and allows for quick installation.

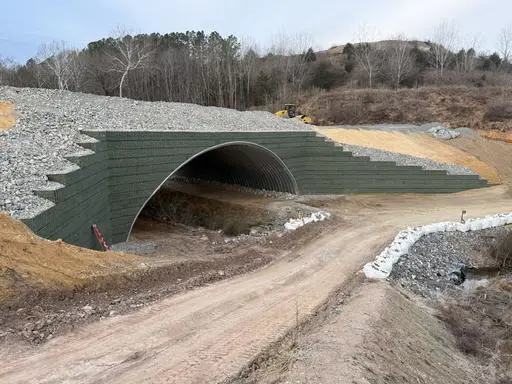

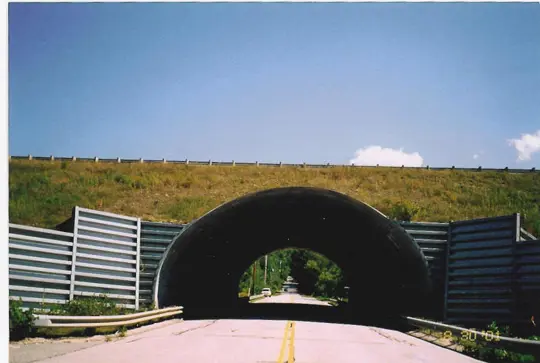

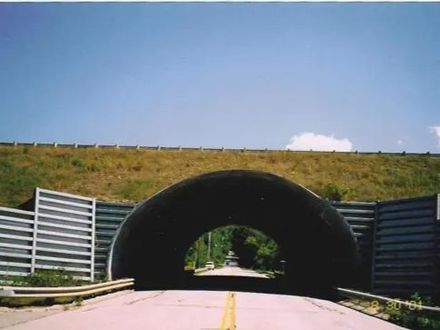

STRUCTURAL PLATE FOR GRADE SEPARATION
Our structural plate systems, including BridgeCor, MULTI-PLATE, Aluminum Structural Plate and SUPER-SPAN, are used frequently throughout the nation's infrastructure because of its light weight, durability and ease of installation. Structures can be pre-assembled on-site and lifted into place or assembled in place without the need for heavy or specialized equipment.

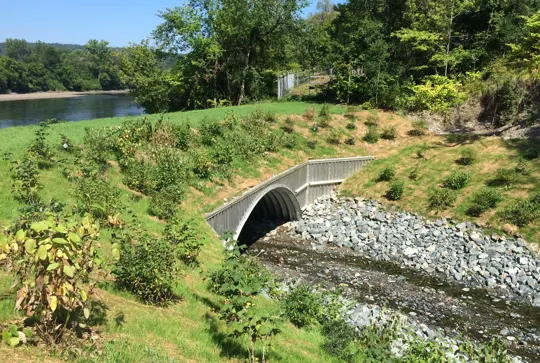

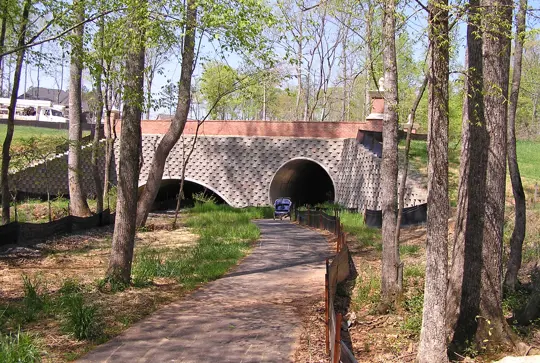

STRUCTURAL PLATE FOR PEDESTRIAN AND RECREATION TRAFFIC LOADS
The many shapes and sizes of structural plate structures, BridgeCor, MULTI-PLATE, Aluminum Structural Plate and SUPER-SPAN, as well as their low cost and ease of installation, make them a mainstay for pedestrian and golf course bridges, overpasses, underpasses, and tunnels.

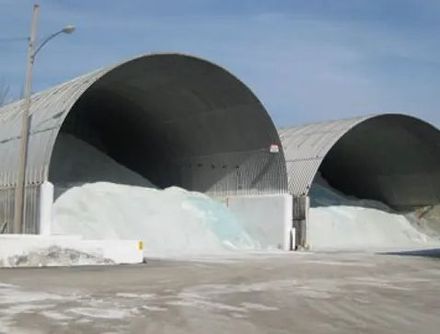

STRUCTURAL PLATE FOR STORAGE STRUCTURES AND AMMO BUNKERS
Consisting of field bolted galvanized steel plates; MULTI-PLATE has a long history of strength, durability and economy. It is arranged and curved to make a variety of shapes, including round, pipe-arch, arch, and ellipse (horizontal and vertical). BridgeCor's advanced profile and variety of shapes is an ideal solution as well.
PLATE BRIDGES FOR BRIDGE REPLACEMENT
Plate structures allow highway agencies and municipalities to dramatically reduce construction time and traffic disruptions when replacing our nation’s aging infrastructure. Plate bridges are ideally suited for emergency bridge replacements.
STRUCTURAL PLATE FOR REHABILITATING BRIDGES
Bridges can be relined by erecting our plate structures inside existing structures. Or, the new plate structure can be erected outside and threaded into existing openings. Our Plate Structures, including Two-Flange Liner Plate, are delivered to the job site unassembled. The plates and ribs are easily bolted together to form various shapes: round, vertical and horizontal ellipse, pipe-arch, underpass and arch.
STRUCTURAL PLATE FOR MINING PORTALS, RAIL TUNNELS AND CONVEYOR ENCLOSURES
Our durable Structural Plate can meet heavy duty demands for industrial or mining applications. MULTI-PLATE round arch shapes are the most widely used structures for aggregate tunnels.
Special features such as hopper openings, conveyor supports, bulkheads, escape laterals and elbows to accommodate grade changes and alignment are readily integrated. Plate structures can also be utilized to extend and improve mine entrances, providing protection from falling rocks and debris.
