CRYSTAL TOURNIKET GLASS REVOLVING DOOR
CRYSTAL TOURNIKET GLASS REVOLVING DOOR

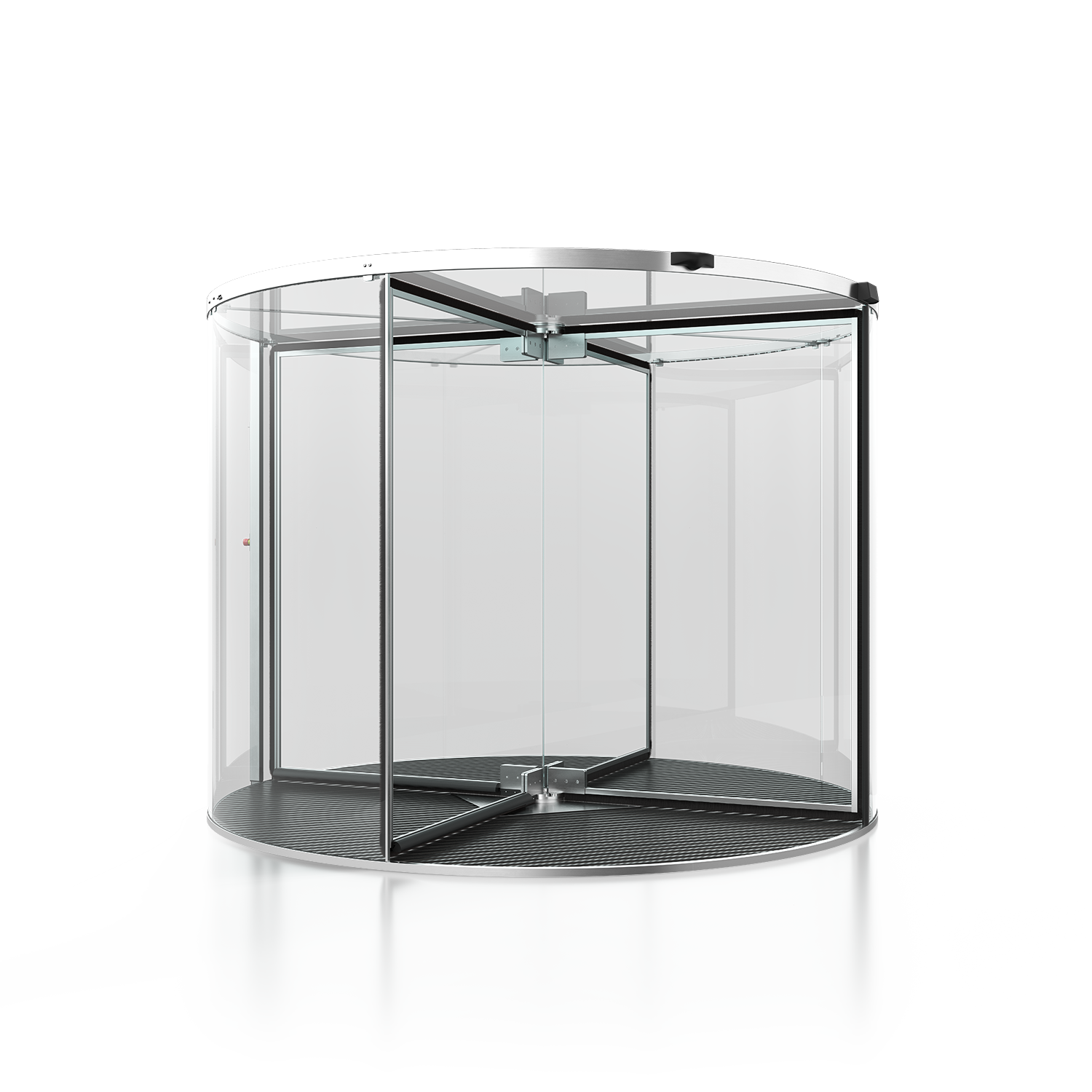

Our Crystal Tourniket is the ultimate eye-catcher. Virtually completely transparent with only a minimal stainless steel frame and patch fittings for maximum strength, it exudes elegance and style.
This revolving door is available with three or four-door wings and as an element of fun or customisation, tinted glass can be used for the door wings and curved walls.
INFORMATION
BRAND
Boon Edam
PRODUCT TYPE
Revolving Door
TECHNOLOGY
- Drive : Automatic drive in floor
- Level Up technology :
BoonAssist low energy drive unit
STANDARD UNIT SIZE
- Width : 3000 mm
- Height : 2200 mm
STANDARD DIMENSIONS
- 4 door wings
- 18mm canopy height
- 2060mm throat opening
SECURITY
- Night locking : Manual locking doorset
- Level Up Security : External or internal shield doors, security lockdown
SAFETY
- Standard : Fire alarm connection, CE basic
- Level Up Safety : BoonAssist speed control, collapsible door set
COMFORT
Level Up comfort : Push-button temporary low speed, voice module, air curtains
AESTHETICS
- Standard finish : Stainless Steel
- Level Up aesthetics : Stainless steel mirror, colour glass options
LEVEL UP HIGH
2100–3000 mm / canopy height 18mm
LEVEL UP WIDE
1600–3000 mm, in increments of 200mm
COLECTION
Crystal
CAPACITY (PER MINUTE IN ONE DIRECTION)
2 x 38
DETAIL
- Handles Moderate Throughput
- Three or Four-wing Configuration
- Automatic Operation for Touchless Entry
- Strong Steel Frame Creating a weightless Impression
THE ALL-GLASS REVOLVING DOOR

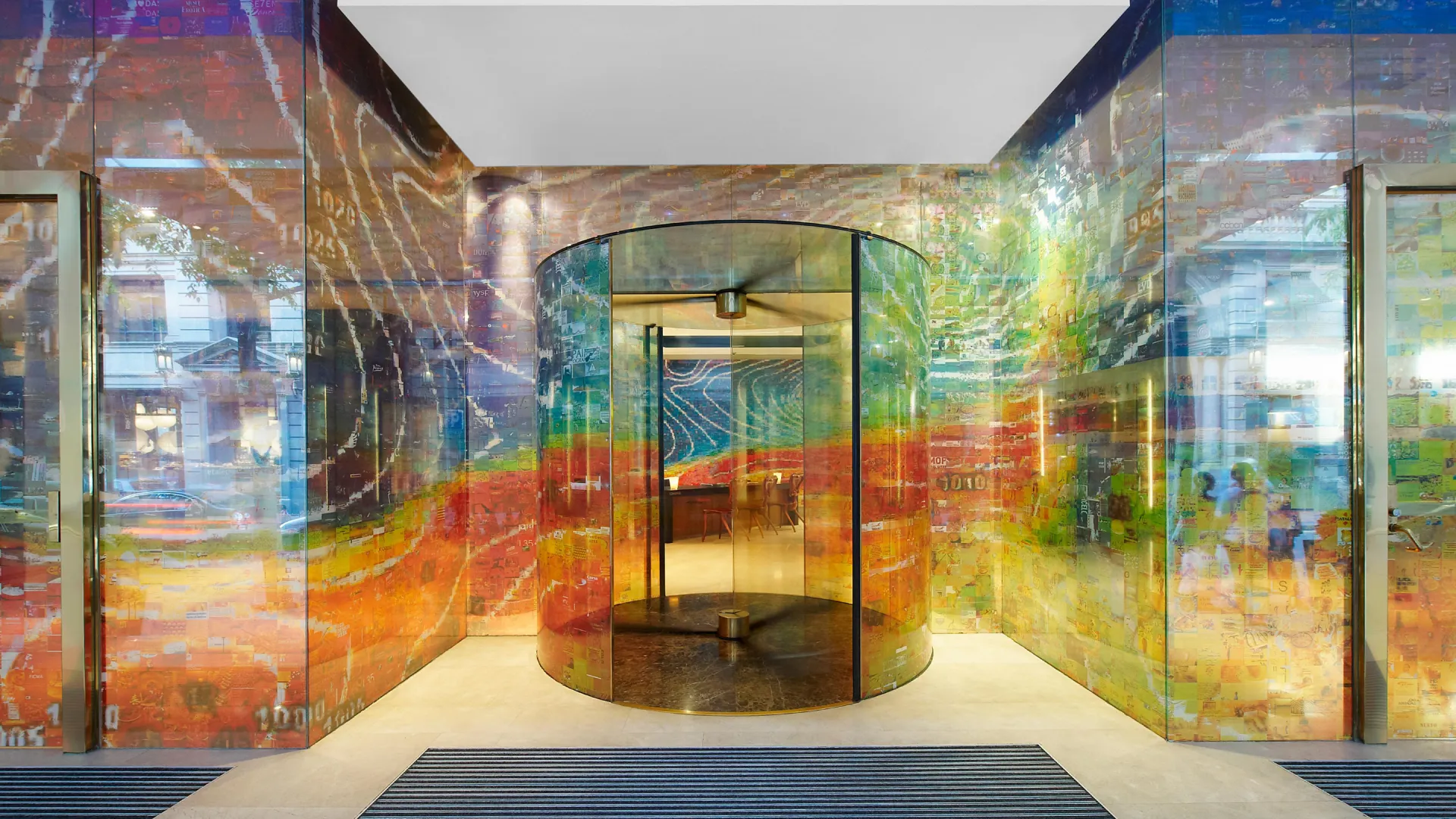

The Crystal Tourniket can be finished in completely clear glass, but coloured glass is also available. With a variety of options available, we can work with you to ensure the Crystal Tourniket all-glass revolving door meets all your requirements.

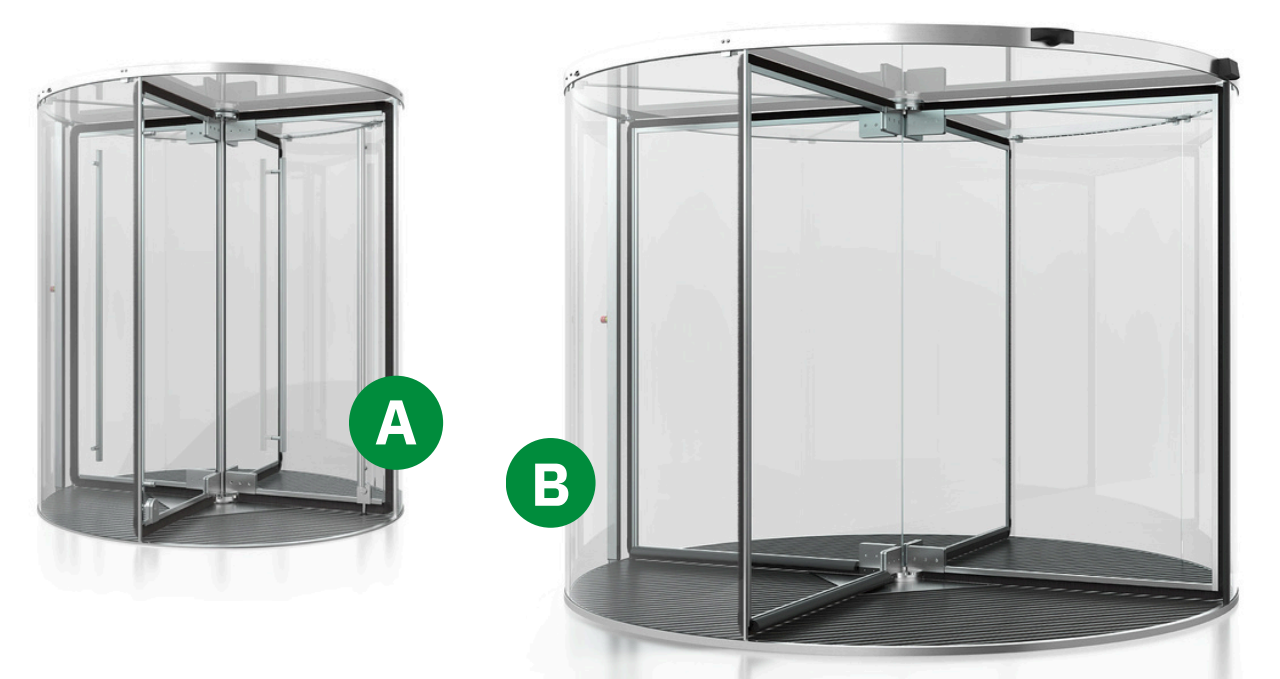

Choose a collapsible door set to ensure the entrance is suitable as an emergency exit* and choose three or four-door wings depending on the number of visitors you expect on a daily basis and whether they bring a briefcase or large luggage.
Our revolving doors are available in a wide variety of heights and widths with different canopy heights and heights under canopy, ensuring that many design wishes can be solved with one of our standardised products.
If your design falls outside the options that are available, our sales managers and engineers will work with you to create a safe and sustainable entrance that meets all requirements.
TECHNICAL DRAWINGS

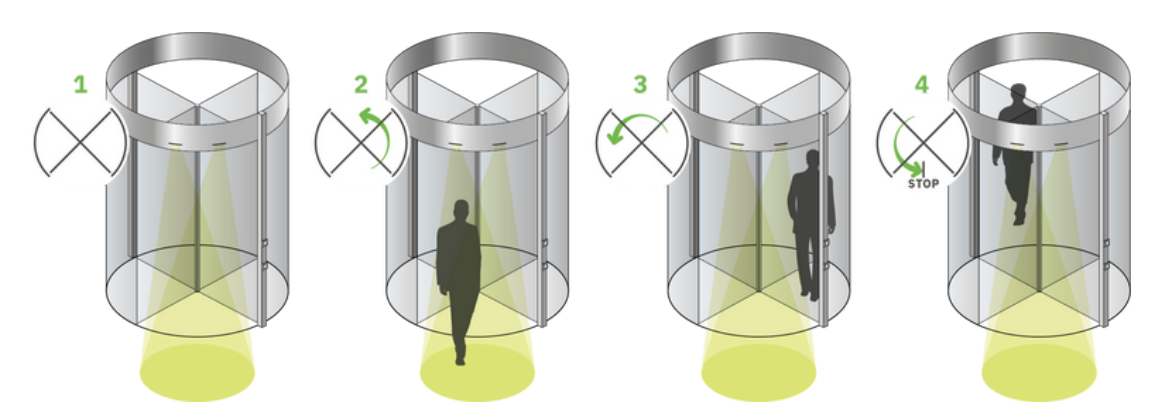

WORKING PRINCIPLE - REVOLVING MODE

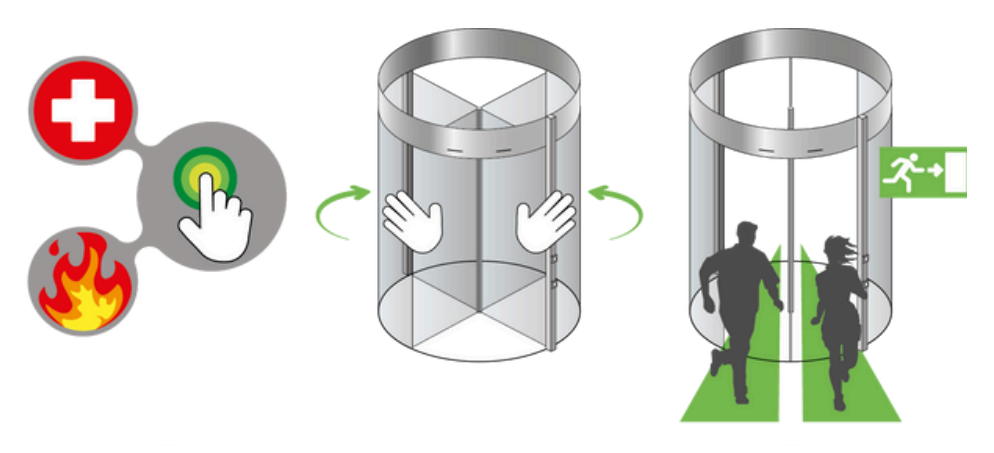

WORKING PRINCIPLE - COLLAPSIBLE DOOR SET
SUSTAINABLE SOLUTION
A SUSTAINABLE SOLUTION
Revolving doors are the most energy-efficient entrance solutions available today. The always open, always closed principle of a revolving door ensures that the conditioned inside air and the unconditioned outside air remain separated, preventing draught, dust and noise from coming into the building.
As less energy is required to maintain the conditioned climate inside the building, revolving doors help reduce the carbon footprint of a building and save both energy and cost.
The same effect can be reached by installing a draught lobby but for draught lobbies with conventional sliding or swinging doors to be truly effective, the entrance and exit doors of the lobby can never be open at the same time. This means that users are often required to wait in the draught lobby for the next door to open, causing frustration and a feeling of being unwelcome. The advantage of revolving doors is that they save energy while facilitating a continuous flow of people.
SAFETY AND SECURITY
PUTTING PRIORITY ON SAFETY AND SECURITY
Security in an entry has two different aspects: the security of the building and the safety of its users. The Crystal Tourniket complies with the strictest safety regulations.

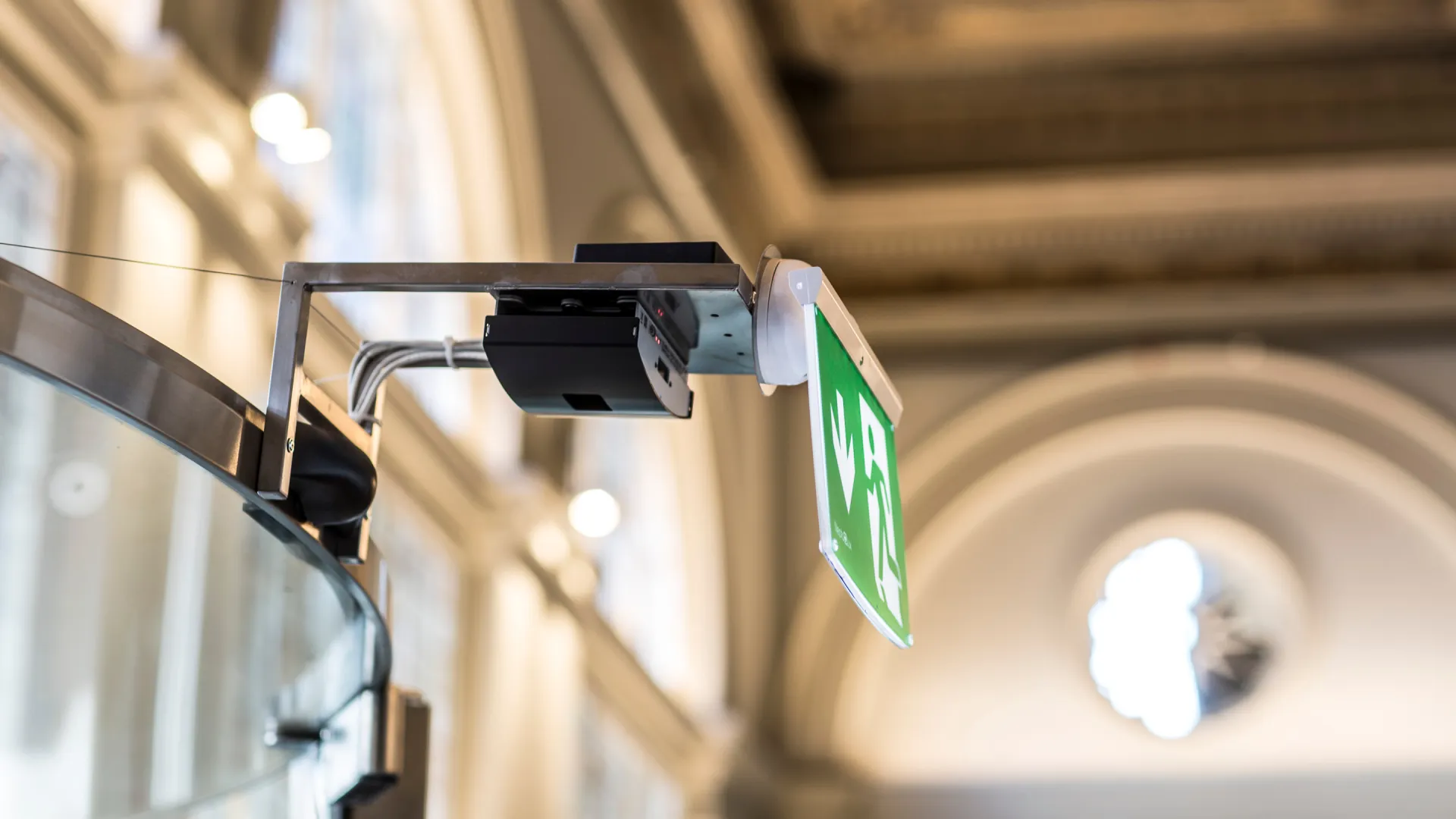

Safety Sensors in the door wings and in the frame ensure that the door responds to users and objects, minimising, or even preventing, impact with the user. The door behaviour can be customised to suit your building’s requirements.
Such requirements could be based on your priority for safety or throughput taking into account various user groups ranging from professionally trained users to locations where people with special needs form a large part of the user profile such as children and elderly people.
WE OFFER THE FOLLOWING ADDITIONAL SECURITY MEASURES
- Security lockdown
- Access control options
- Manual door set locks
- External night-locking doors
WE OFFER THE FOLLOWING ADDITIONAL SAFETY MEASURES
- Accessibility buttons
- CE plus package
- Visual signage on the door wings and curved walls to ensure the accessibility of our doors for all user groups.
- The front entrance to a public building should also include security options. Our revolving door security options allow for an added layer of protection.
ACCESSORIES
ACCESSORIES FOR THE TOURNEX
We care about making sure your entrance suits you perfectly. We offer a variety of flexible options which you can add to your standard entrance - to enhance where you feel the priorities are.
PROTECTION PACKAGES
Choose the right protection package and reinforce your door. Protection packages are for everyone who wants to protect their property. However, not everyone needs the same level of protection. That is why you can choose from a range of door reinforcement solutions.
AIR CURTAINS
High-rise buildings were one of the first to utilise revolving doors due to the immense pressure caused by air rushing through the building. The air pressure resulted in difficulties for the users with opening swing doors.
ACCESS CONTROL INTEGRATION
An available upgrade option with Remote Locking allows after-hours access through the revolving door via an input from an access control system (provided by others).
