ENGINEERED GLULAM BEAMS
ENGINEERED GLULAM BEAMS
By combining premium MM masterline beams with our timber engineering expertise and precision CNC machining services for assembly joints, we can create perfect tailor-made engineered glulam solutions.
Glued laminated timber offers unique product features and myriad application options. Using precision CNC machining for assembly joints together with our long-standing technical expertise, Mayr-Melnhof Holz can offer the best solutions for the design and manufacture of special shapes and versatile structural building elements, whatever your project requires.

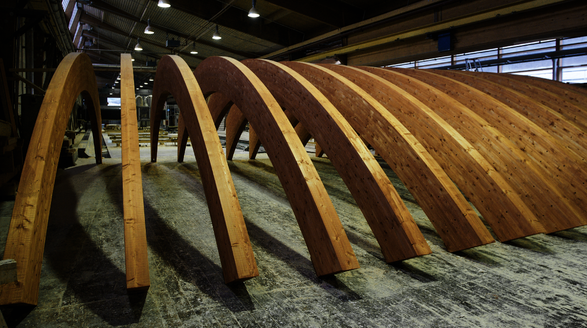

The possibility to combine a variety of high-quality straight, tapered, or curved glulam beams opens up virtually endless design options.
MM masterline is the international quality brand for glulam beams from the Mayr-Melnhof Holz Group. MM masterline eingineered glulam is precisely manufactured and finished on state-of-the-art CNC machining stations. The high degree of prefabrication means fast, low-dust installation at the construction site.
Engineered from individually strength-graded lamellas, planed & parallel-glued, these glulam elements offer a convincing solution to applications where high load-bearing capacity, outstanding dimensional stability, cost efficiency as well as design versatility are needed.
INFORMATION
QUALITY
MM masterline engineered glulam is subject to rigorous quality control during production and, like all Mayr-Melnhof Holz timber construction products, is PEFC-certified. As a natural, regrowing building material that stores CO2, the use of engineered glulam makes an important contribution to active climate protection.
BRAND
Mayr-Melnhof Holz
PRODUCT TYPE
Floor And Wall Beams
SHAPES
- Straight
- Cambered

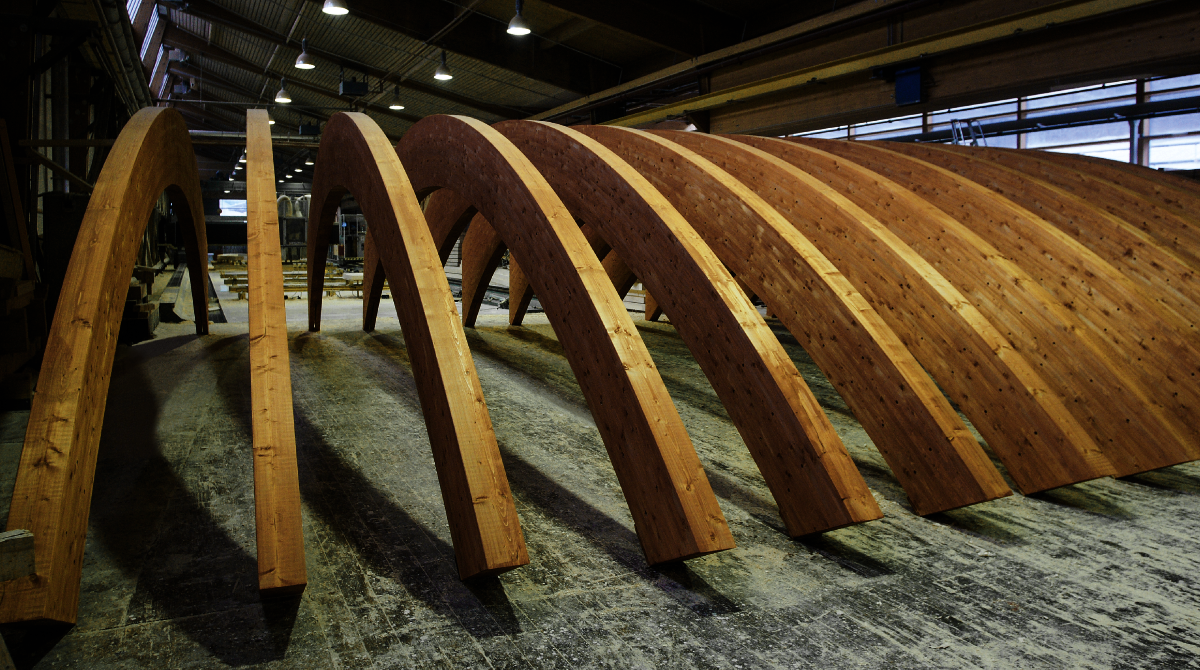

- Curved
- Round column (diameter 12 cm - 24 cm)
BUILDING COMPONENTS - AREAS OF APPLICATION
- Roof structures
- Roof trusses
- Beams
- Ceilings
- Supports, columns and structural framing
- Solid wood walls, wall cladding and façades
- Architectural custom solutions & special designs
WOOD SPECIES
Spruce (Picea Abies), larch (Larix)
SURFACE
Planed on 4 sides, chamfered
STRENGTH CLASS
- GL24c
- GL24h
- GL28c
- GL28h
- GL30c
- GL30h
- GL32 upon request
DENSITY
Approx. 430 kg/m³ (spruce) / depending on strength class
MOISTURE CONTENT
12 % (± 2 %)
FIRE CLASS
D-s2, d0
GLUING
MUF, EN 301-I-90-GP-0,3-S (melamine resin, bright glue joint, waterproof)
USAGE CLASS
NKL 1+2, NKL 3 upon request
PRODUCT STANDARD
EN 14080:2013
QUALITY
visual (VI), non-visual (NVI)
WIDTH
6 cm - 28 cm (warehouse cross-section up to 20 cm)
HEIGHT
10 cm - 220 cm
TYPES OF BUILDINGS - AREAS OF APPLICATION
- Warehouses and exhibition halls
- Commercial, office and industrial buildings

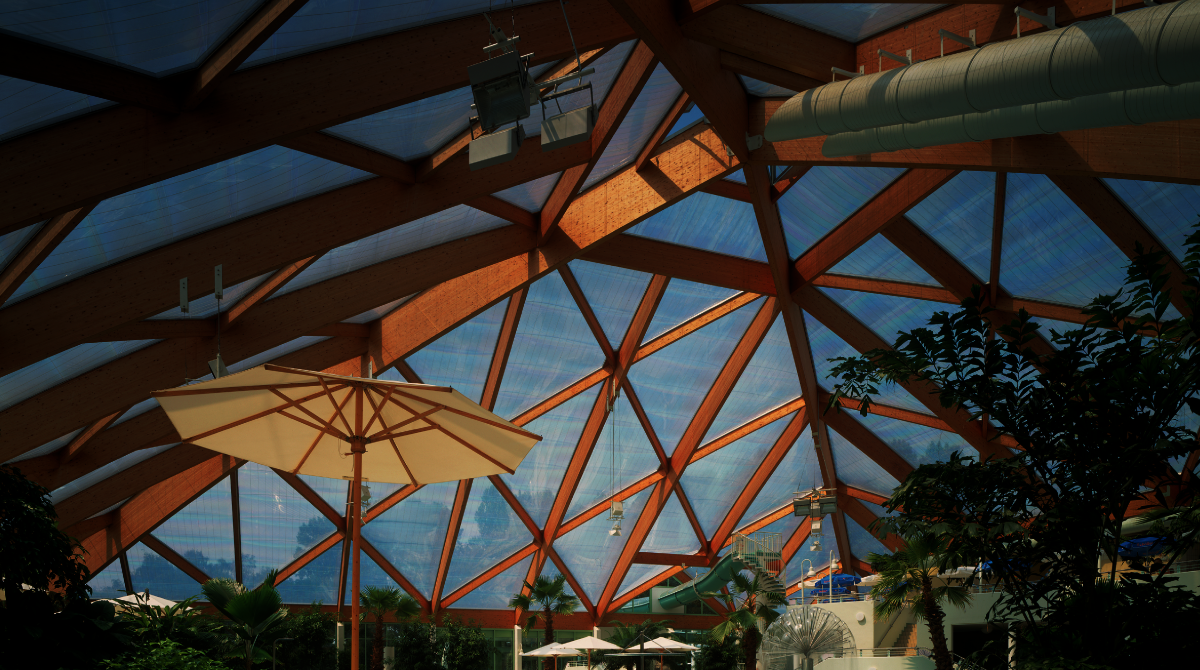

- Leisure facilities such as sports centres and pools
- Churches and religious buildings
- Touristic buildings such as hotels and restaurants
- Single and multiple family homes
- Community buildings such as kindergartens, schools and nursing homes
PRODUCT RANGE
ENGINEERED GLULAM
- Fish belly beams

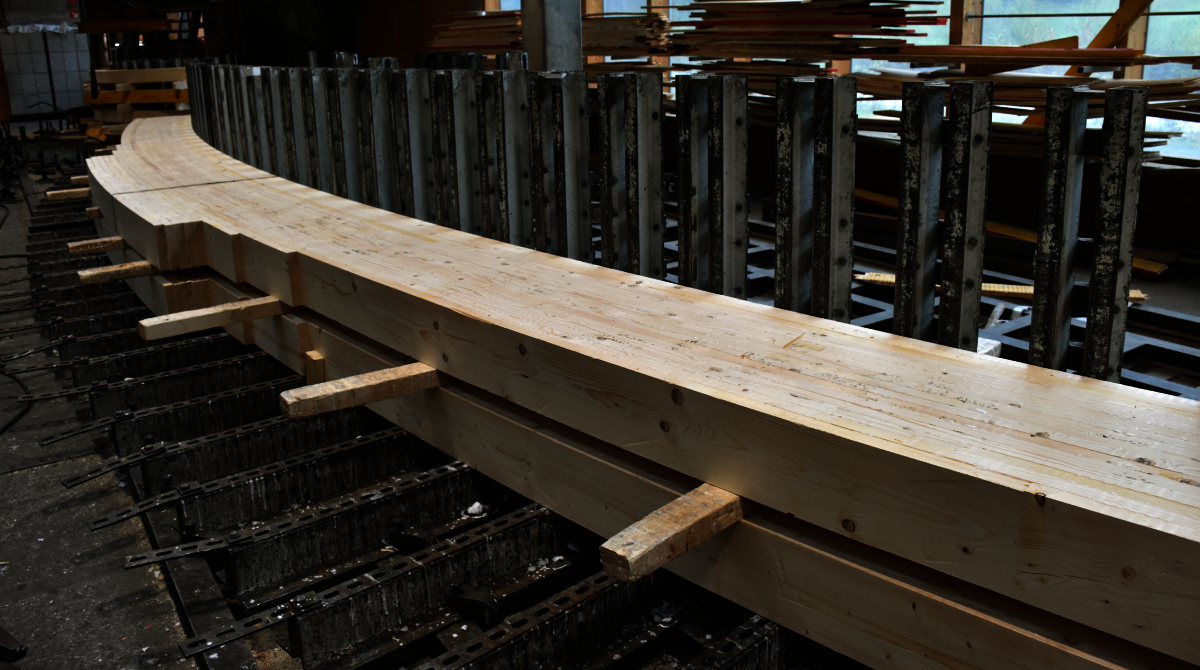

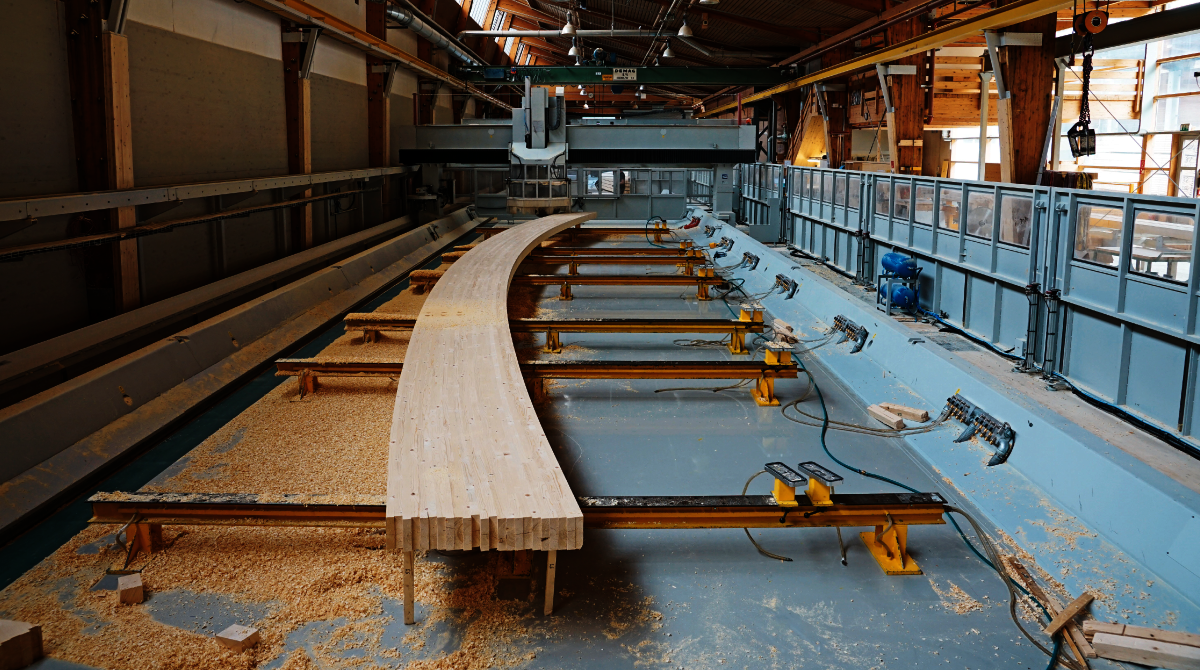

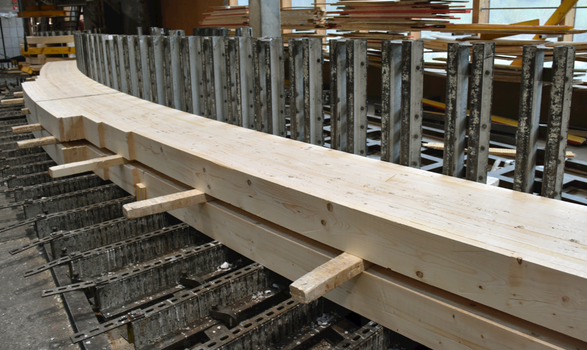

- Parallel curved components

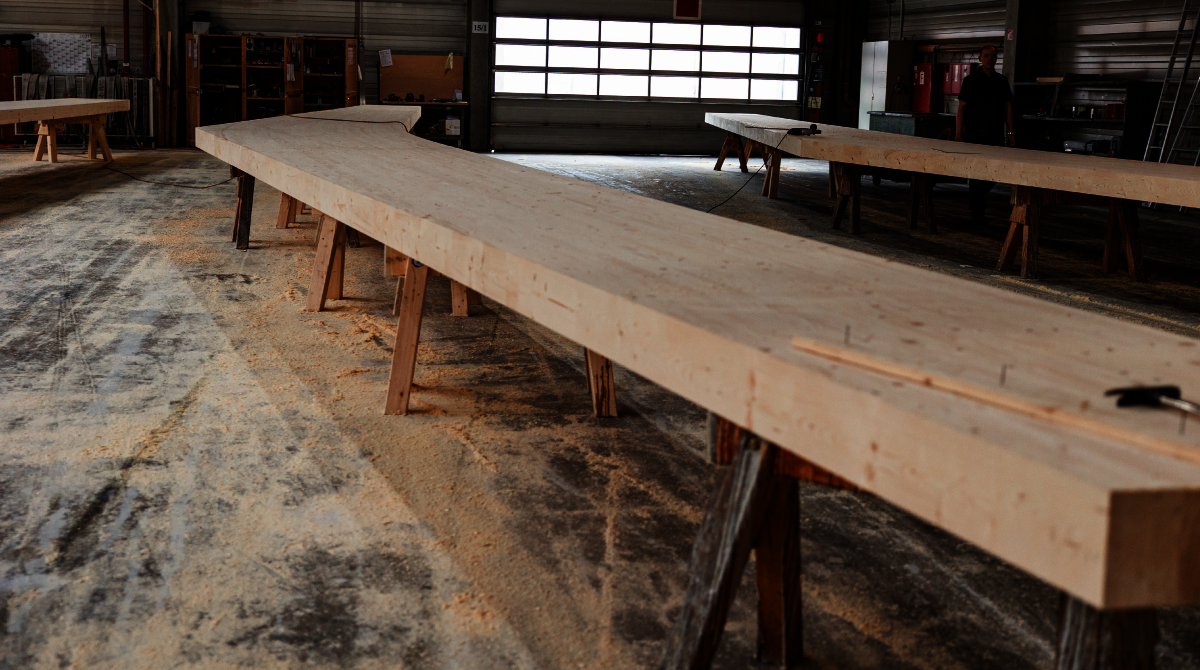

- Freely designed special shapes
- Cambered components
- Straight components without press adjustment taller than 80 cm and longer than 18 m
- Pent and saddle roof beams with straight lower boom, stepped bonding or with curved or cambered lower boom
CNC MACHINING SERVICES & FINISHING FOR MOUNTING
- Lettering
- Rounding
- Slits
- Channels
- Mitre cuts
- Dovetails
- Drilled holes
- Chamfers
- Angle and bevel cuts
ADDITIONAL SERVICES UPON REQUEST
- Pre-installation in the factory
- Production based on customer specifications
- Just-in-time delivery of numbered and packaged building components
- Technical advice - preliminary structural advice and static pre-dimensioning
- Static calculations, as well as production and site planning, can be arranged in-house or with selected project partners

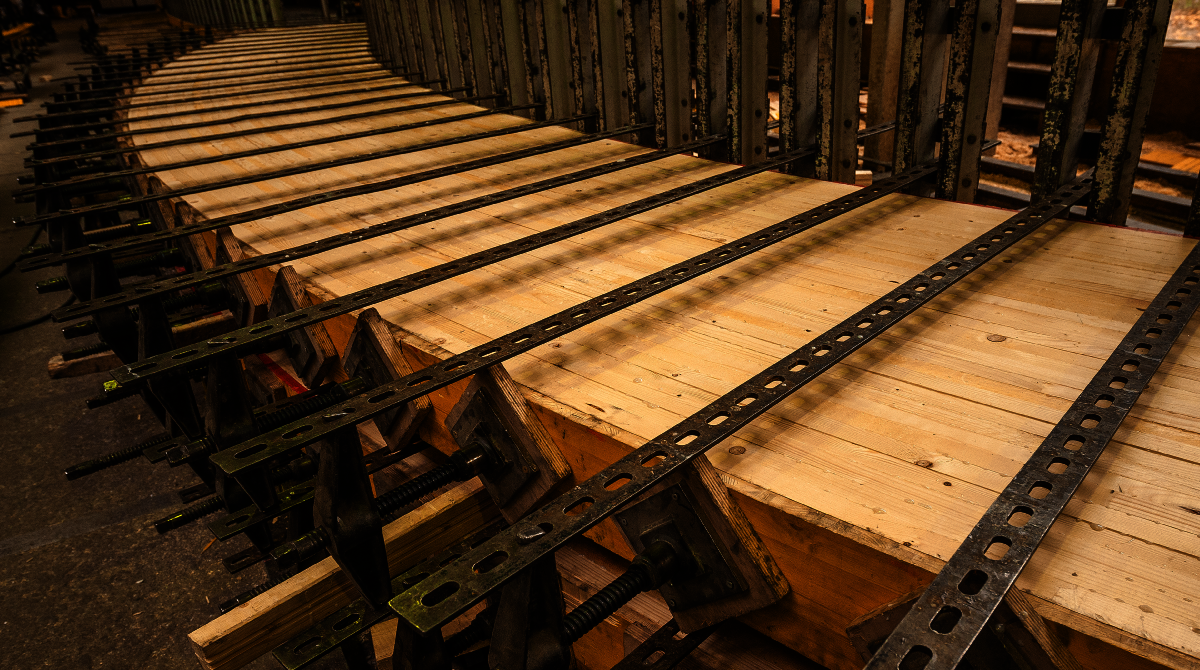

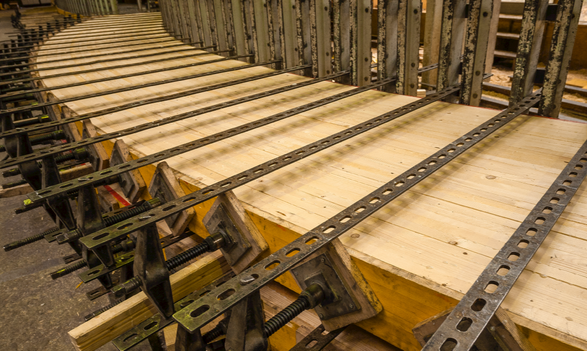

BLOCK BONDING & COMPOSITE ELEMEN
For component widths exceeding 28 cm
UNIVERSAL FINGER-JOINTED CONNECTIONS
For angled beam shapes
SCREWED PRESSURE BONDING
Finned and (hollow) boxed elements for
- Large spans with low material use
- Integrating building technology components in the factory
- Flat load-bearing structures with or without factory sealing
- Auniform wooden panel ceiling view with invisible support structure
MM MASTERLINE ENGINEERED GLULAM
As part of our MM complete by Hüttemann service we can, if desired, act as project managers for your entire building project – from building permit to turnkey handover.
SPECIAL COMPONENTS
MAYR-MELNHOF HOLZ: LOGISTICS SERVICES FOR MM MASTERLINE SPECIAL COMPONENTS
We work with a network of experienced transport and logistics service providers. We use digitised platforms for fast communication with our transport service providers.
DOCUMENTS & FORMALITIES
Together with our logistics partners, we will provide you with professional documentation to enable you to conclude all your export, import, and customs formalities without problems.
DELIVERY TO CONSTRUCTION SITES
- We offer just-in-time deliveries to our glued laminated timber construction sites.
- Deliveries are always made with the most suitable vehicles with modern equipment:
- Hydraulically steered semi-trailers for special loads
- Self-tracking semi-trailers for tight access situations
- Special overlength transports as per requirements
Beams systems
MM MASTERLINE: BEAMS SYSTEMS
fingerjointed frame corners
with curved frame corners
external post-tensioning
with external post-tensioning
