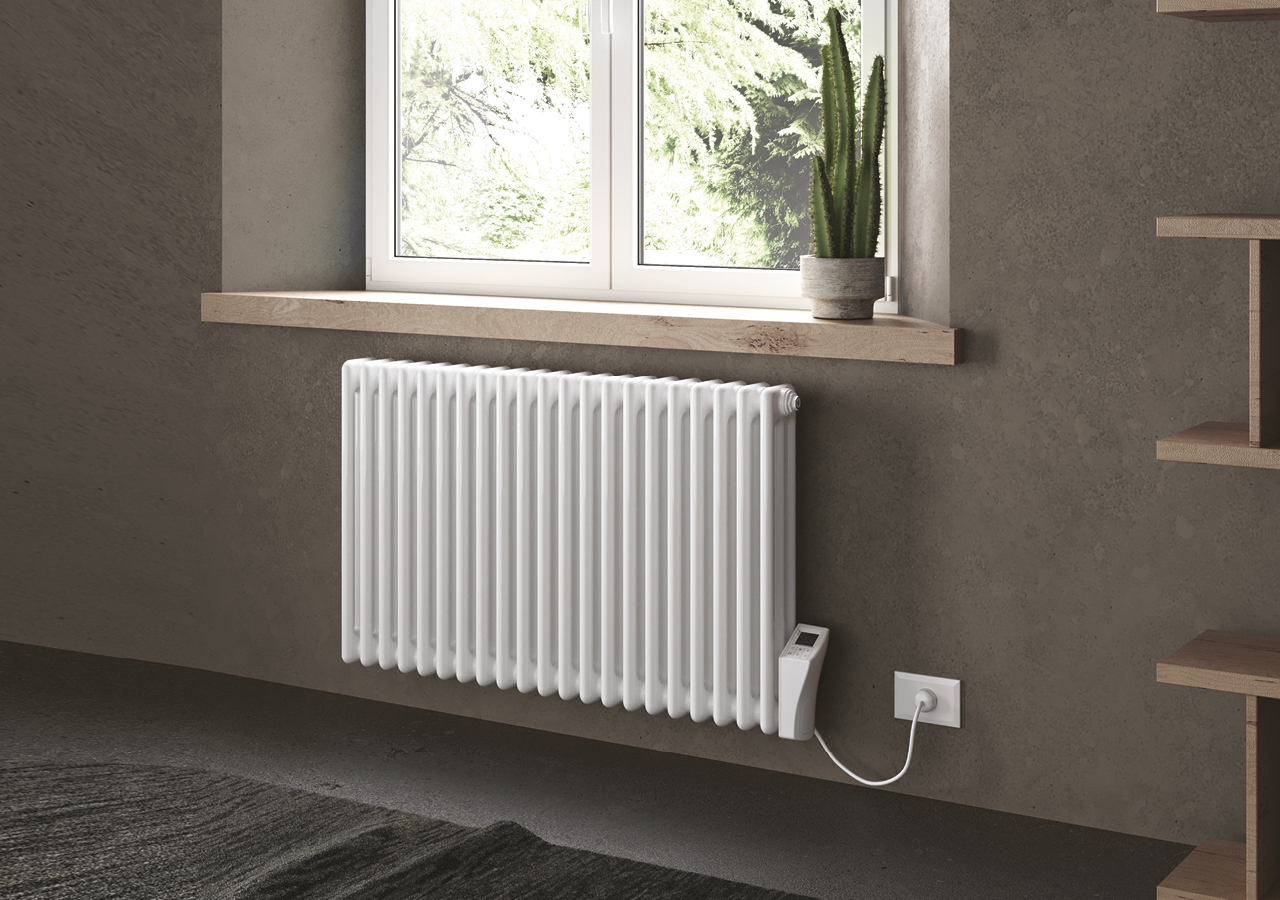

Cordivari Ardesia Electric Electric Tubular Radiator
ARDESIA ELECTRIC ELECTRIC TUBULAR RADIATOR
ARDESIA ELECTRIC ELECTRIC TUBULAR RADIATOR
High thermal yields, ease of cleaning and flexibility of use are the hallmarks of the Ardesia® tubular, heating elements with a traditional design that furnish any living trend with style.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Radiator
COLLECTION
Ardesia
PRODUCTION
Made in Italy

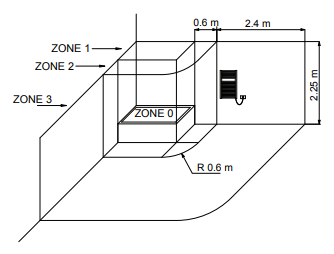

HOW TO PLACE ELECTRIC RADIATORS
The national rules on installing electrical equipment in the bathroom must be scrupulously respected. The electric radiators must be always installed outside zone 1 and 2. In particular the electric switch and control elements must be mandatorily located in zone 3, in order that no electrical control center is accessible to a anyone using the shower or bath.
PACKAGING
The radiator is protected by recyclable carton box. User notice included.
USE
Heating
WARRANTY
5 Years
FIXING KIT
Universal rapid safety kit and user notice included. The kit is certified from TÜV in compliance with VDI 6036 – class 3.
CERTIFICATES
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
MATERIAL
- Heat transfer fluid.
- Moulded heads in mild steel.
- Electro-welded mild steel tubes ø 25 mm.
DESIGN
Traditional
PAINT
Ecological epoxy powder
TECHNOLOGY
The production of ardesia® tubular is carried out with the most modern construction technologies, through robotic production lines and highly specialized welding processes to guarantee perfect execution, absolute cleanliness and reliability over the years. The painting is performed exclusively with the use of ecological epoxy powder paints through a process of 12 distinct phases to ensure excellent results that last over the years and an unmatched brilliance.
FEATURES
- Steel
- Heating
- Ease of Cleaning
- High thermal yields
- Electrical Functioning

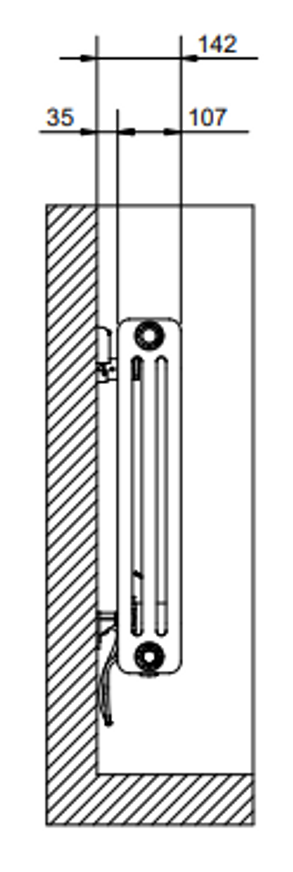

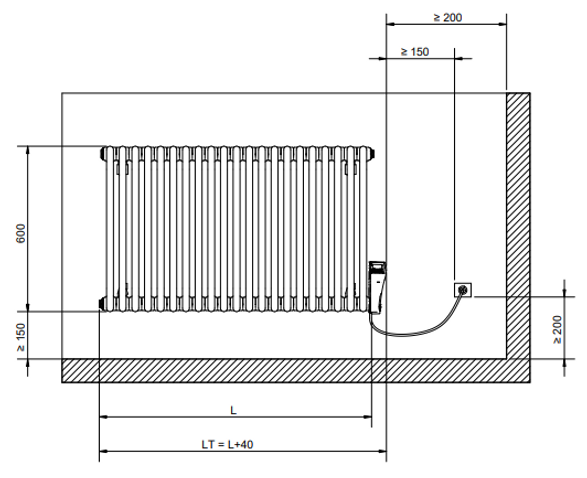

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
TECHNICAL DATA
| HEIGHT | WIDTH L | ELEMENTS | COLUMNS | ART. NR. | OUTPUT | WEIGHT |
|---|---|---|---|---|---|---|
| (mm) | L(mm) | N° | N° | R01 White | [Watt] | [Kg] |
| 600 | 338 | 7 | 3 | 3586706100001 | 400 | 16 |
| 600 | 384 | 8 | 3 | 3586706100002 | 500 | 18 |
| 600 | 568 | 12 | 3 | 3586706100003 | 750 | 27 |
| 600 | 614 | 13 | 3 | 358670610004 | 900 | 30 |
| 600 | 706 | 15 | 3 | 358670610005 | 1000 | 34 |
| 600 | 798 | 17 | 3 | 358670610006 | 1200 | 39 |
| 600 | 982 | 21 | 3 | 3586706100007 | 1500 | 48 |
| 600 | 1120 | 24 | 3 | 358670610008 | 2000 | 55 |
