SPIN SHOWER ENCLOSURES
SPIN SHOWER ENCLOSURES
Spin is a programme of minimalistic shower enclosures. It is characterized by pivoting doors and especially thin profiles for a very light overall design.
The purity of its seamless LINE is based on the maximum essentiality and emphasized by the highest attention to detail.
No visible screws, minimalstic fittings, dedicated gaskets, handles and hinges are integrated with the utmost discretion and contribute to the extraordinary elegance of the shower enclosure spin.
INFORMATION
BRAND
Makro
PRODUCT TYPE
Shower Enclosures
PRODUCTION
Made in Italy
INCLUDED

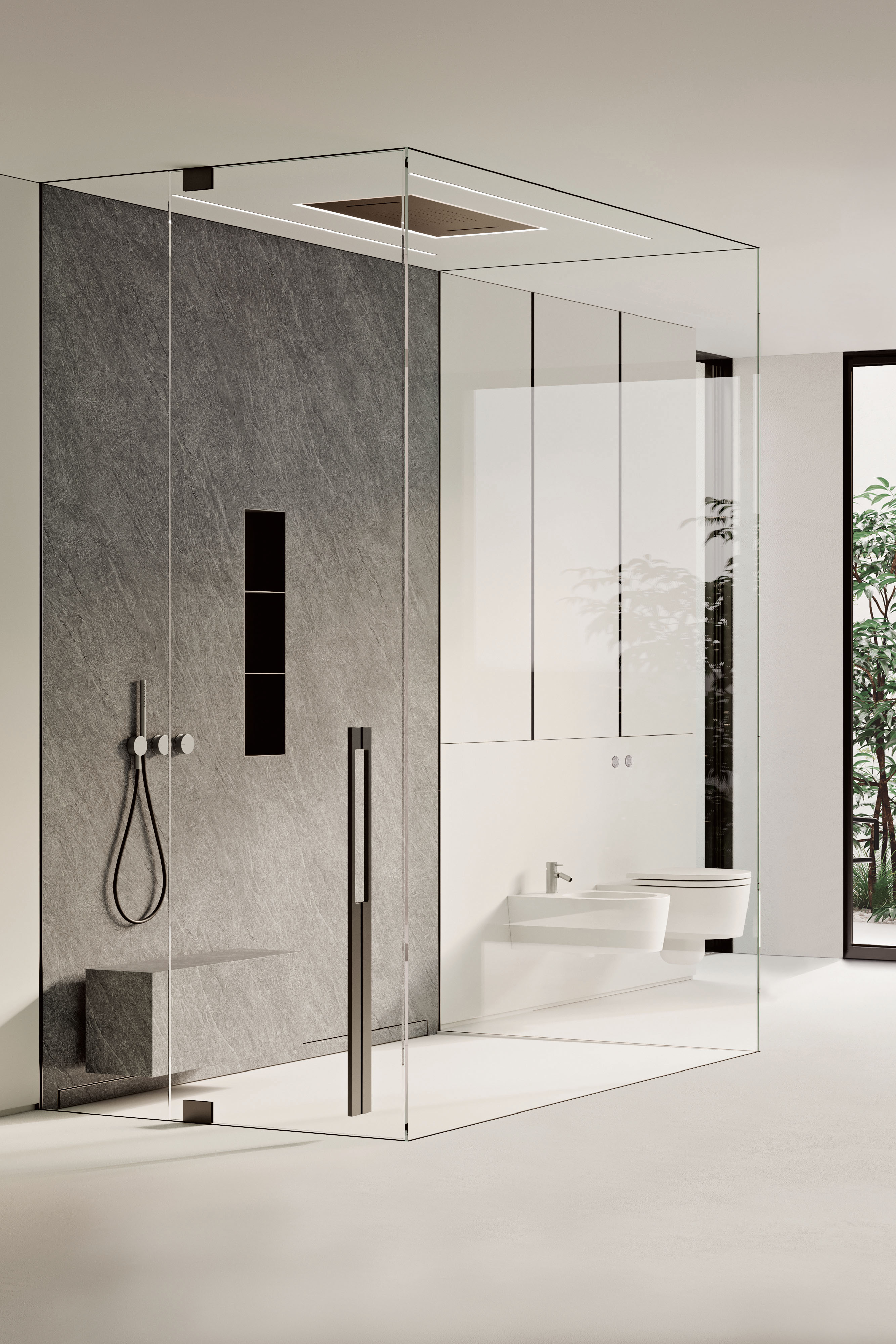

Floor-to-ceiling Glasses
COLLECTION
Spin
ENVIRONMENT
Indoor
TECHNICAL SOLUTIONS
This programme with its wide range of typologies, provides highly aesthetic and reliable technical solutions for specific projects including floor-to-ceiling glasses and wall-integrated profiles.

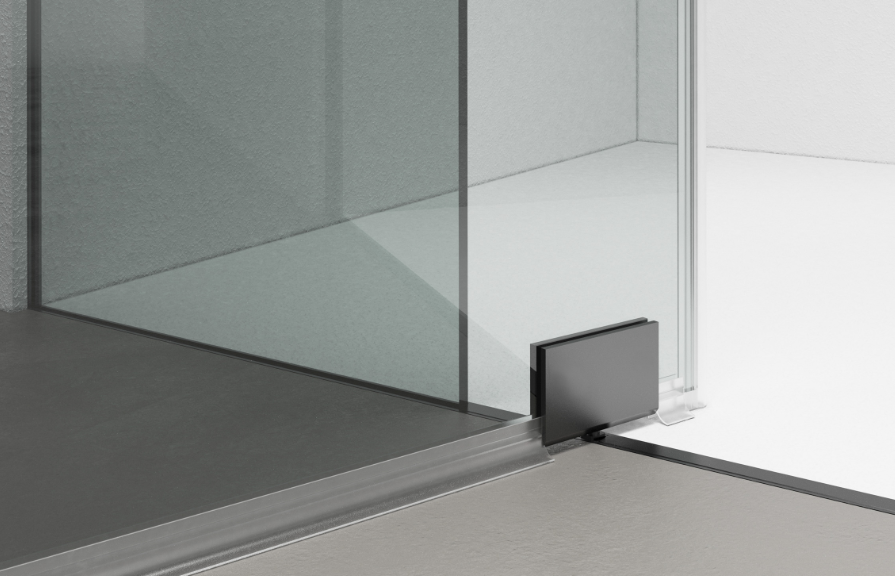

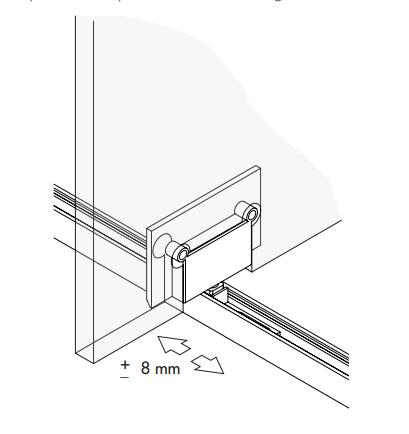

ADJUSTABLE HINGE
Hinges, equipped with a spin mechanism, include a dedicated fitting integrated in the lower and upper profile. This fitting allows a 8 mm horizontal movement which helps adjustement and compensation of possible mistakes during the door installation.
PARTS

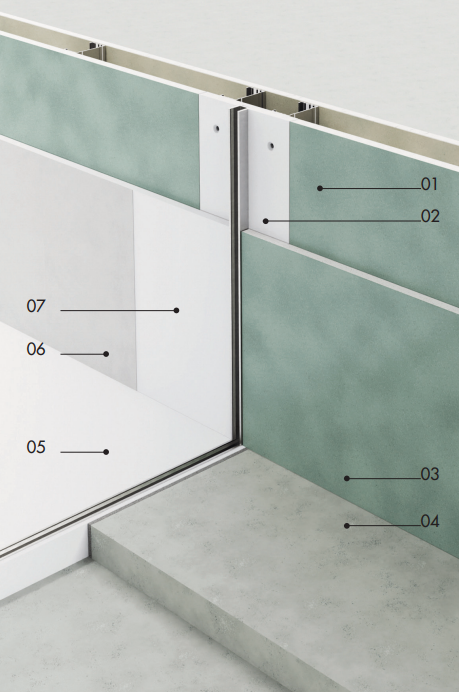

- 01 : 1st Plasterboard plate
- 02 : TechnoPVC + integrated profile
- 03 : 2nd Plasterboard plate
- 04 : Screed
- 05 : Shower system Elements series
- 06 : Resin - cement
- 07 : TechnoPVC slab

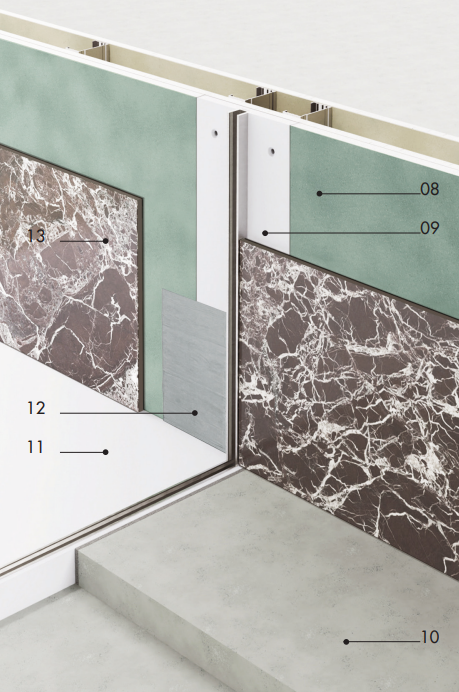

- 08 : 2nd Plasterboard plate
- 09 : TechnoPVC + integrated profile
- 10 : Screed
- 11 : Shower system Elements series
- 12 : Butyl tape
- 13 : Tiles

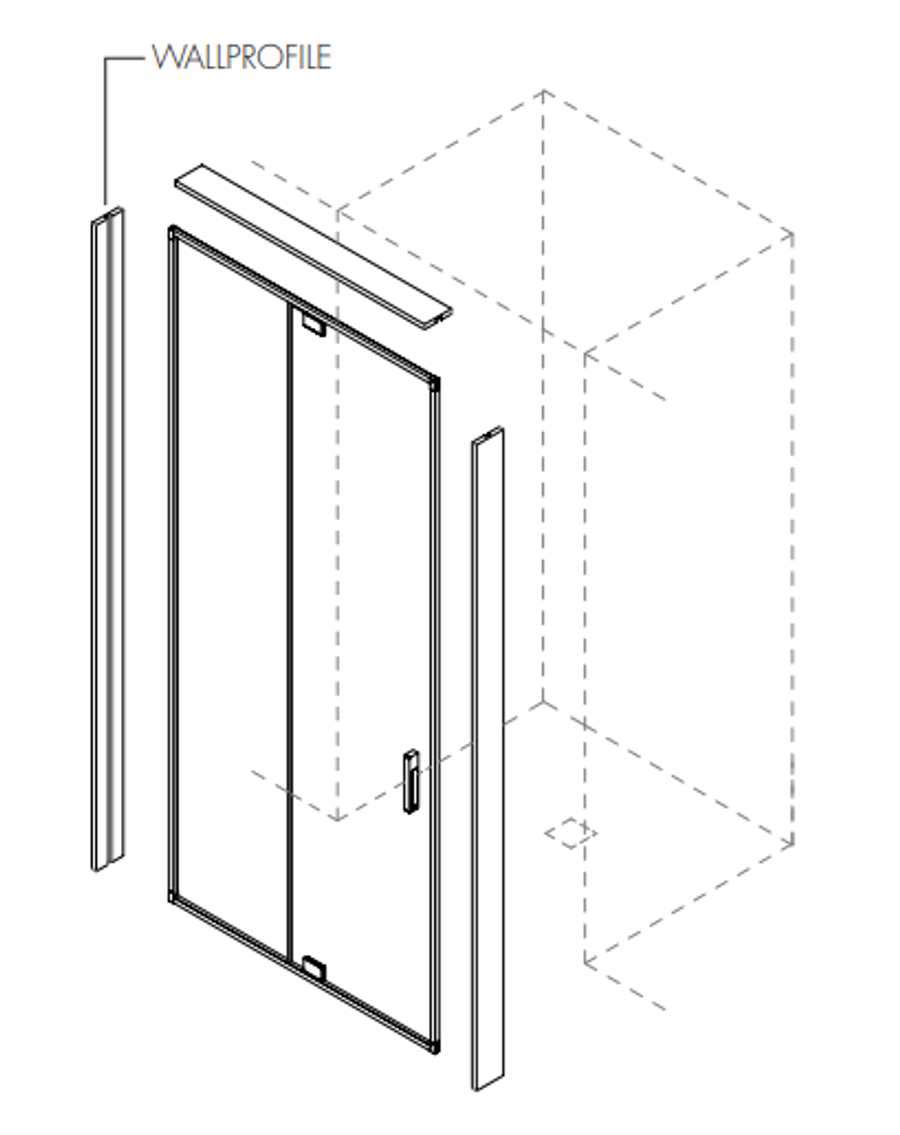

INTEGRATED SYSTEM
Spin-pro is conceived for shower enclosures with profiles flush to the wall and is always combined with profilwall, I.E. A dedicated technopvc profile. This system guarantees complete watertightness in the connections to the wall and can be adjusted to resin-based cladding, ceramic tiles, mosaic or marble. It can be made to measure according to any typology of the spin shower enclosure up to 270 cm hight.
DIMENSIONS

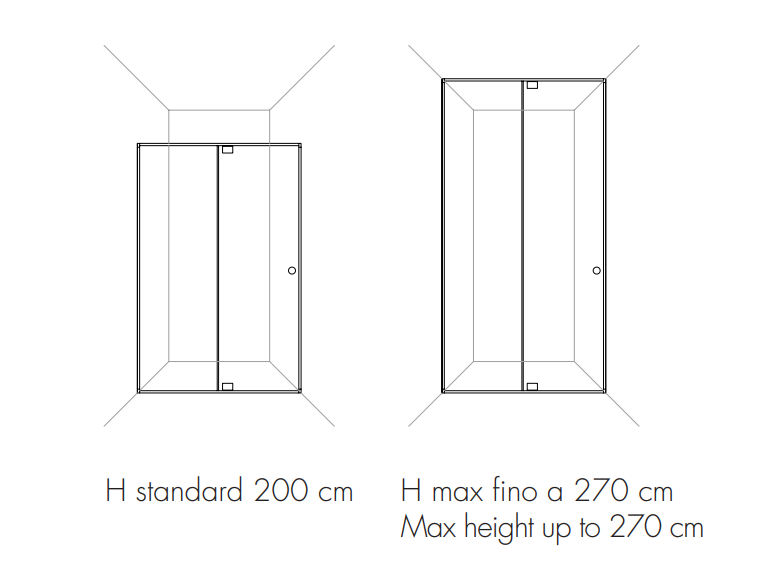

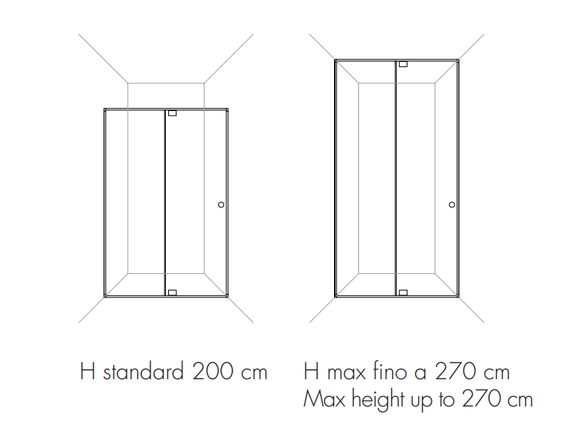

- The shower enclosure comes is 200 cm as the standard height and up to 270cm for the full-height version.
- The door can be made to measure up to 80 cm width. The opening is in both directions thanks to a dedicated snap-in hinge for a smooth movement, with soft opening and firm closing based on a retrieval system.

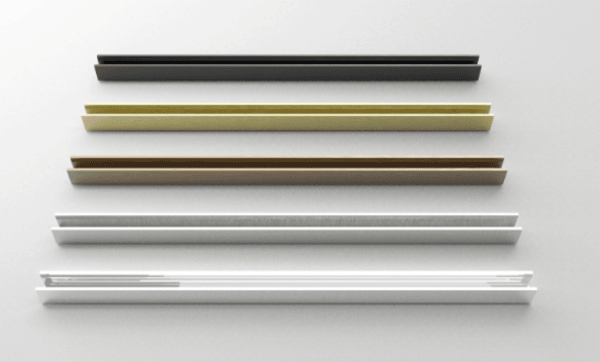

- Any component, from the corner fittings, to covers and gaskets has the same detail and design as the 18x20 mm perimeter profile. To compensate any possible wall uneveness, additional 10 mm profiles can be supplied and they perfectly integrate with the basic profile.
VERSIONS

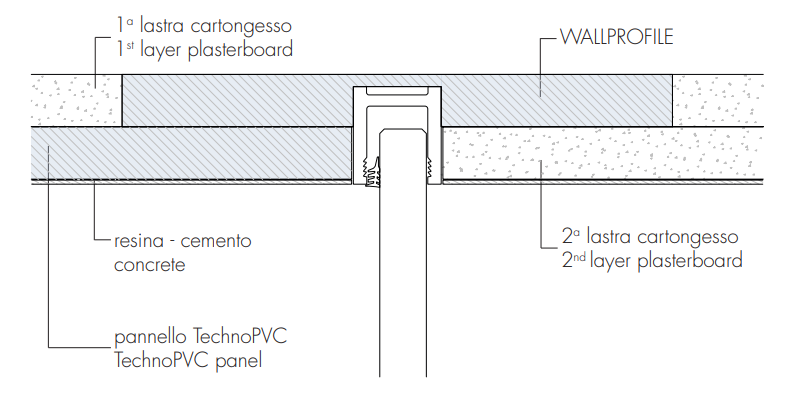

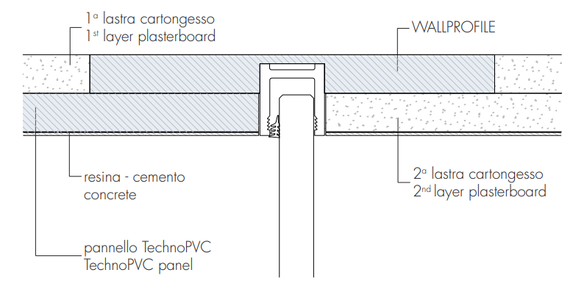

RESIN VERSION

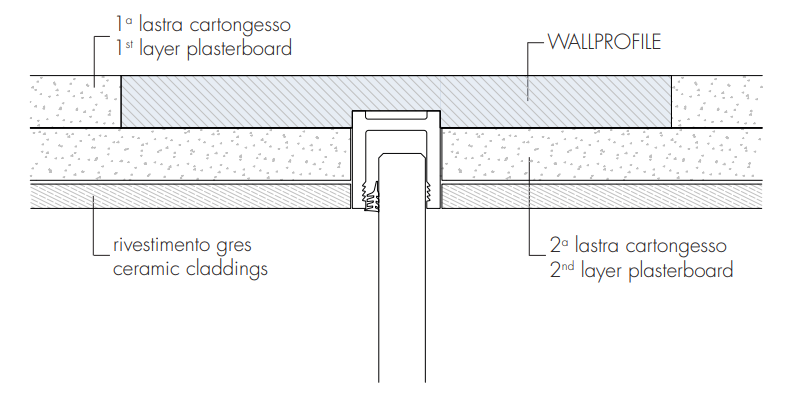

CERAMIC VERSION
