STELLEN KITCHEN TAB
STELLEN KITCHEN TAB
1-Handle Touchless Kitchen Faucet
The Stellen kitchen collection combines sleek, simple lines and contemporary curves to create a modern faucet designed to meet today’s demand for popular urban and Euro designs.
FEATURES
FETAURES
-React Touchless Technology -Low Battery -3-Function Spray Head -AccuDock -Forward Only Handle -Ultra-Seal -Manual -MultiMount -Pfast Connect Kitchen -Pforever Seal® -Plug In -SmartStop -TiteSeal® Deckplate
INFORMATION
BRAND
Pfister Faucets
PRODUCT TYPE
Kitchen Taps
CALGREEN
Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent
MODEL

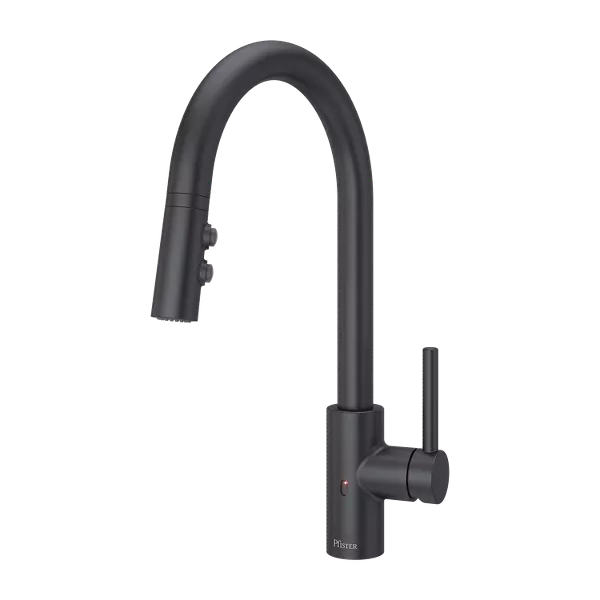

- Matte Black : LG529-ESAB

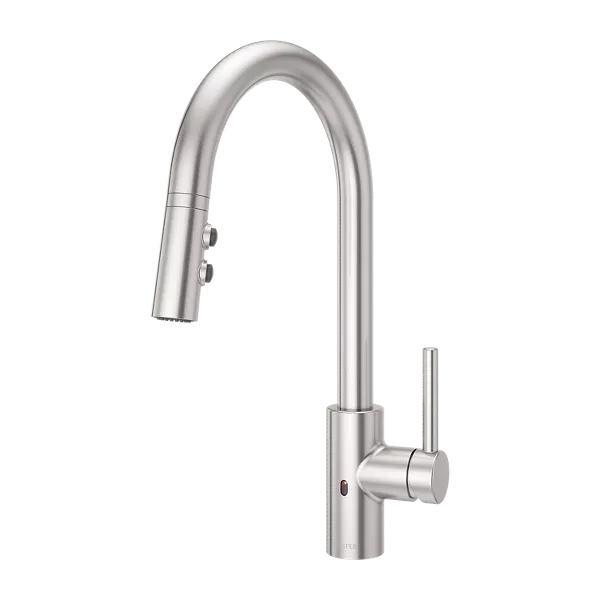

- Stainless Steel : LG529-ESAS

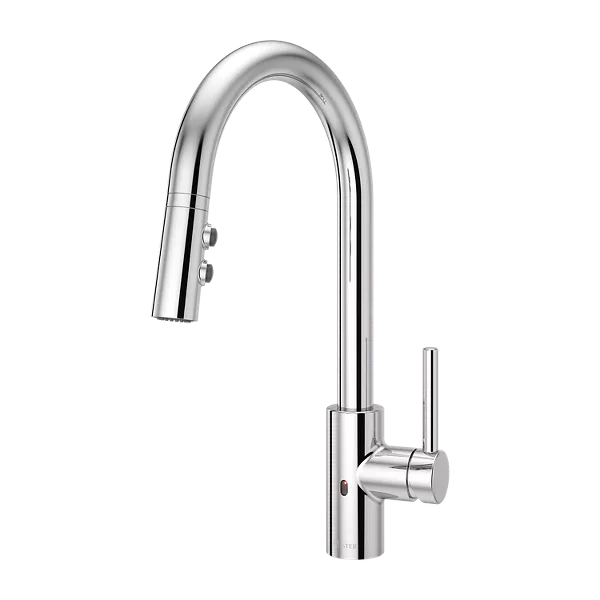

- Polished Chrome : LG529-ESAC

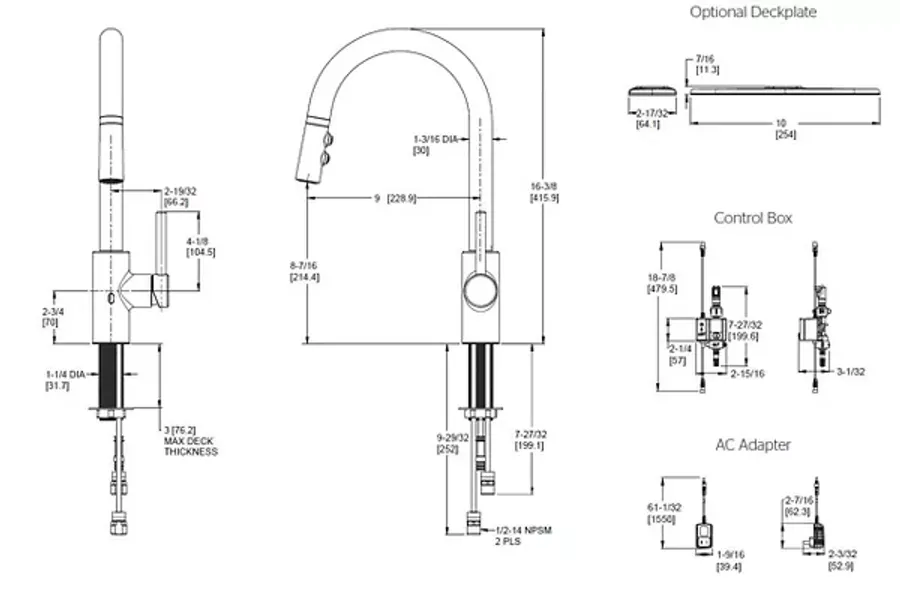

TECHNICAL DRAWINGS
GPM FLOW RATE
1.8
# OF HANDLES
1
TOTAL SPOUT HEIGHT
16-3/8
DECK TO AERATOR HEIGHT
8-7/16
DECKPLATE INCLUDED
Yes
MAX DECK THICKNESS
3
LOW BATTERY INDICATOR
Low Battery Indicator - The LED light on the sensor will slowly pulse 4 times after each sensor activation to give you a gentle reminder that it is time to replace your batteries
CODE COMPLIANCE
- CEC Certified
- ADA Compliant
- NSF/ANSI/CAN 61: Q≤1
- IAPMO Certified to ASME A112.18.1/CSA B125.1
DESIGN
Elegant forward handle design underscores ergonomic function and helps where space behind the faucet is limited
TECHNOLOGY
React Technology - Simply guide your hand or an object within 3” in front of the motion sensor to turn the water on or off
SPRAY FUNCTIONS
Pause Control, Spray, Stream
PULL-OUT/DOWN HOSE LENGTH
71
ELECTRONIC MODE
Manual Override is available to bypass the electronic mode and use with standard handle operation.
SUPPLY LINES
Pfast Connect™ technology securely connects water supply lines with a quick click
FAUCET ARC TYPE
High-Arc
SOAP DISPENSER
No
SMARTSTOP
SmartStop - Automatically shuts off the faucet with approximately 3 minutes of inactivity to conserve water and provide a helping hand
DOCKING SYSTEM
Advanced spray head docking system ensures a secure, tight connection to the faucet spout
ACCESSIBILITY
Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
CONVENIENTLY
Pull-Down sprayhead, select from 3 water settings conveniently in the palm of your hand
CONFIGURATIONS
- 1-Hole
- 3-Hole
DECORATIVE
Includes decorative deckplate
ADVANCE
Pforever Seal™—advanced ceramic disc valve technology with a never leak guarantee
SPOUT
High arc spout for added clearance and reach
PRODUCT COMPLIES
Product complies with NSF/ANSI/CAN 61: Q?1 Certified and conforms with lead content requirements for “lead-free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act.
FINISHES
DETAIL

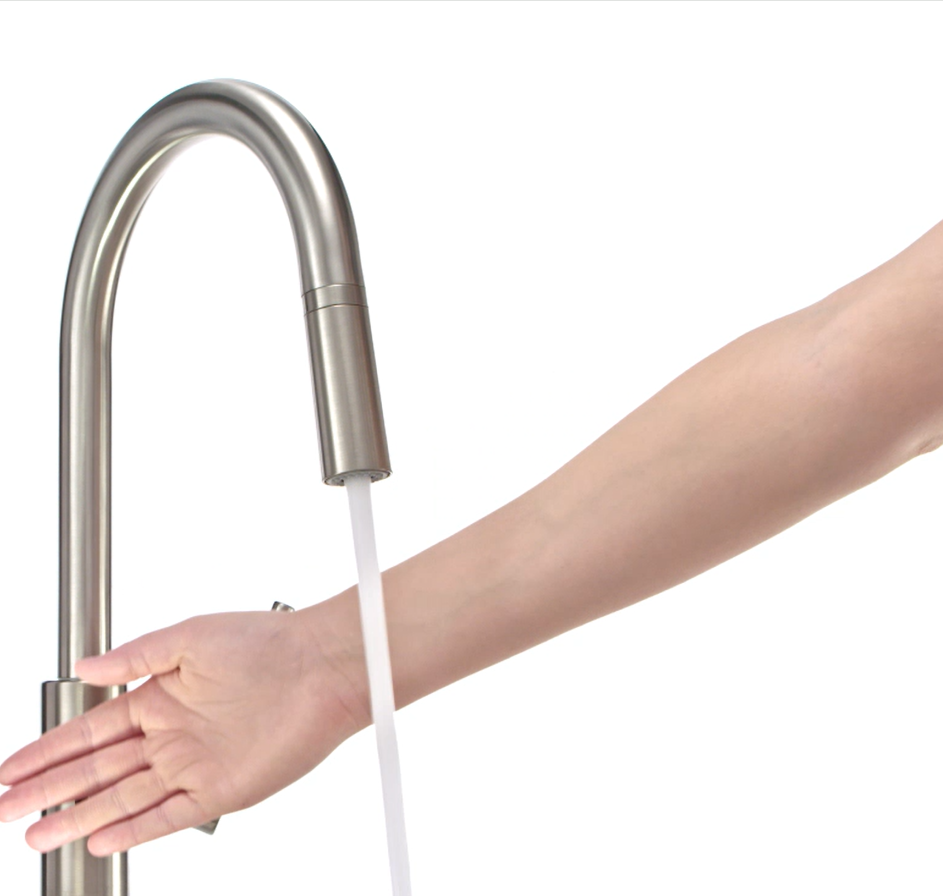

TOUCHLESS ACTIVATION
Keep your hands to yourself.
Simply guide your hand or an object within 3" in front of the motion sensor to turn the water on or off.

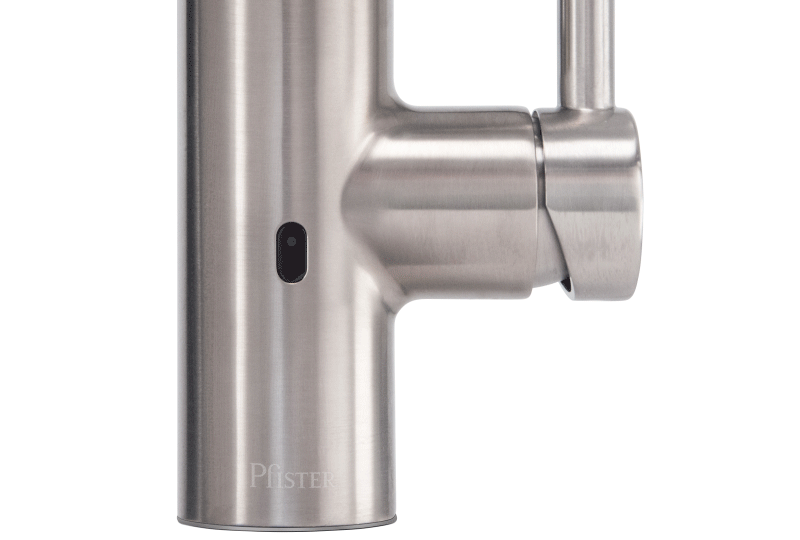

LOW BATTERY INDICATOR
A good communicator.
The LED light on the sensor will slowly pulse four times after each activation to give you a gentle reminder that its time to replace your batteries.

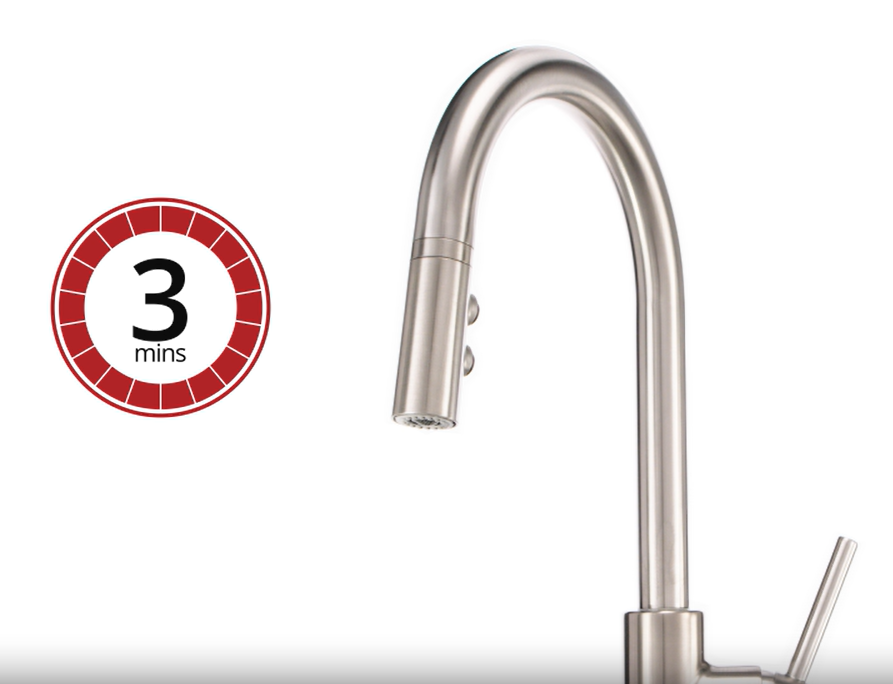

SMART STOP
Worry free performance.
When things get hectic in the kitchen, SmartStop ™ automatically shuts off the faucet after 3 minutes of inactivity to conserve water.
ACCUDOCK™
Secure, tight connection every time.
AccuDock™ is an advanced docking technology which ensures that the pull-down spray head stays firmly in place when docked. Powerful, spring-loaded arms inside of the spout are designed to grip the spray head and hold it in place for reliable performance with every use.
