Condor Risk Free Safe Scaffolding
RISK FREE SAFE SCAFFOLDING
RISK FREE SAFE SCAFFOLDING
The risk free system is a frame scaffolding system. Qualified staff can carry out assembly and dismantling operations safely also without fall protection devices – that is its mainly feature.
INFORMATION
BRAND
Condor
PRODUCT TYPE
Scaffolding
FRAME SIZE
- Width : 105 cm
- Height : 200 cm
- Tube : ø 48.3x2.9 mm
FRONT FRAME SIZE
- Tube : ø 26.9x2.0 mm
- Width : 75/ 105/ 150/ 180/ 200/ 250 cm
LEDGER SIZE
- Tube : ø 26.9x2.0mm / 33x2.0mm
- Width : 75/ 105/ 150/ 180/ 200/ 250 cm
DIAGONAL BRACE SIZE
- Tube : ø 26.9x2.3mm / 33x2.0mm
- Width : 265/ 220/ 202/ 178/ 144/ 125 cm
COLLECTION
Risk
DOWNLOADS
↓ Catalog
↓ Data sheet
USE
Outdoor
RAPIDITY

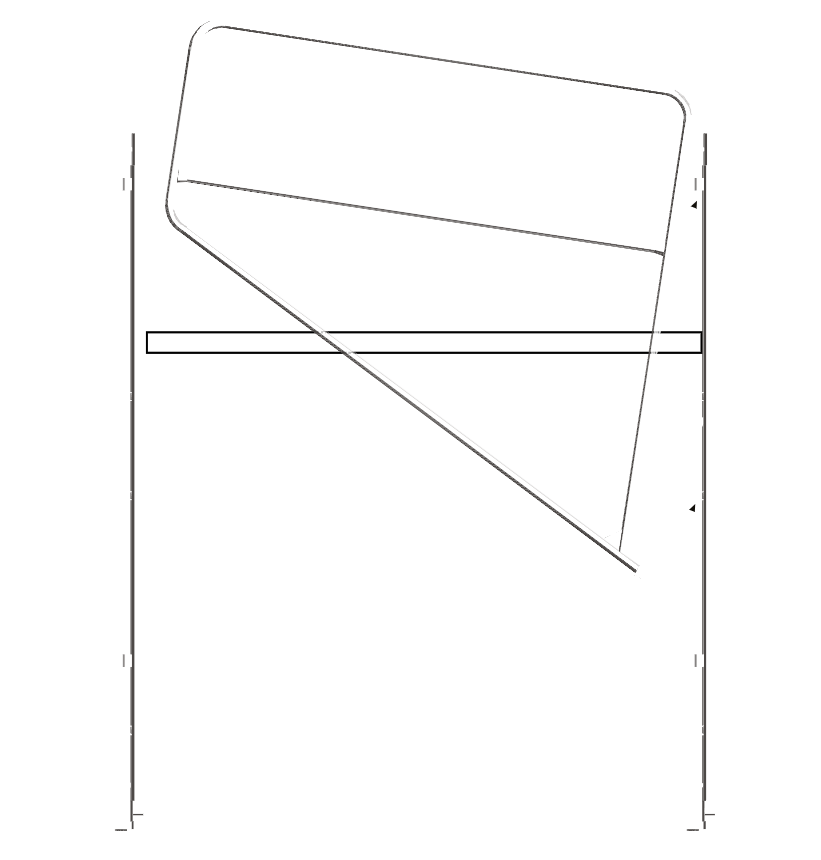

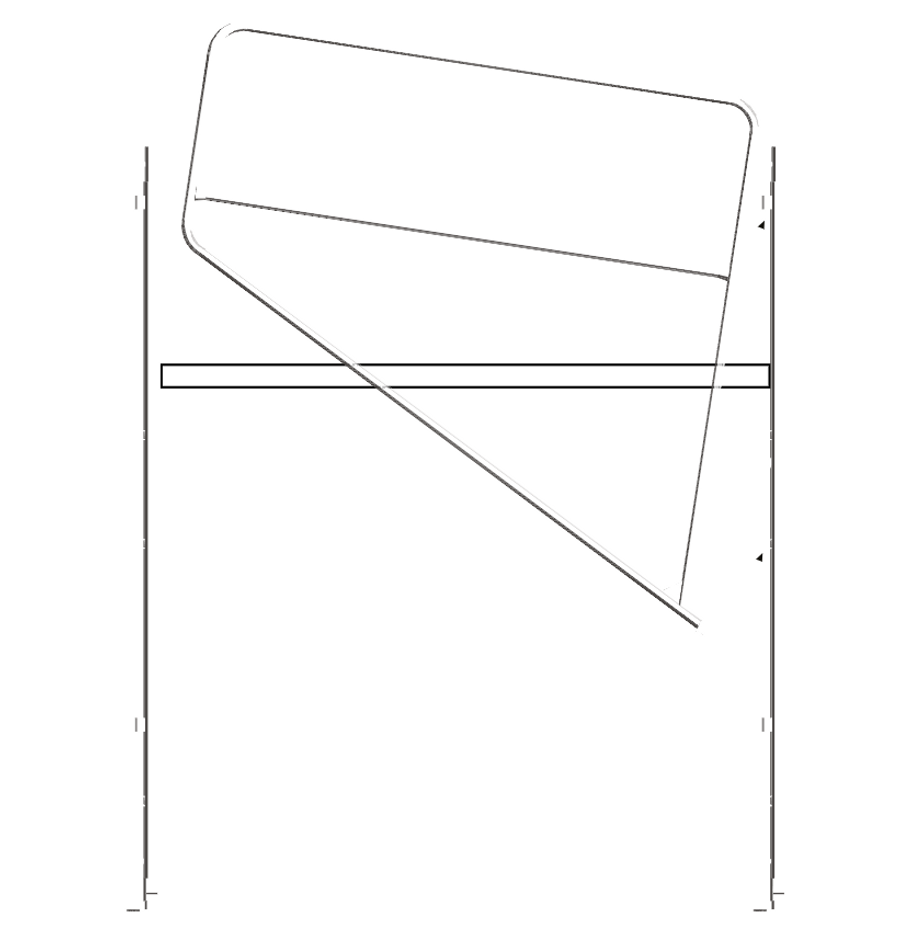

Safe frame with only three frame connection points
ERGONOMICS
Allows the operator to lift the frame 63 cm from the decking level
SAFETY
With the safe frame there is no need of using personal protective equipment with a safety lanyard
PRODUCTION
Made in Italy
VERSATILITY
Possibility to safely assemble with safe frame or with ledgers and diagonals
COMPONENTS
SYSTEM COMPONENTS

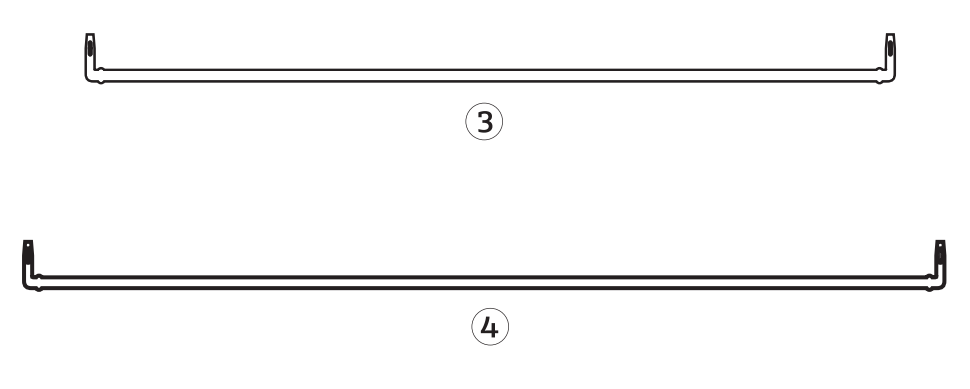

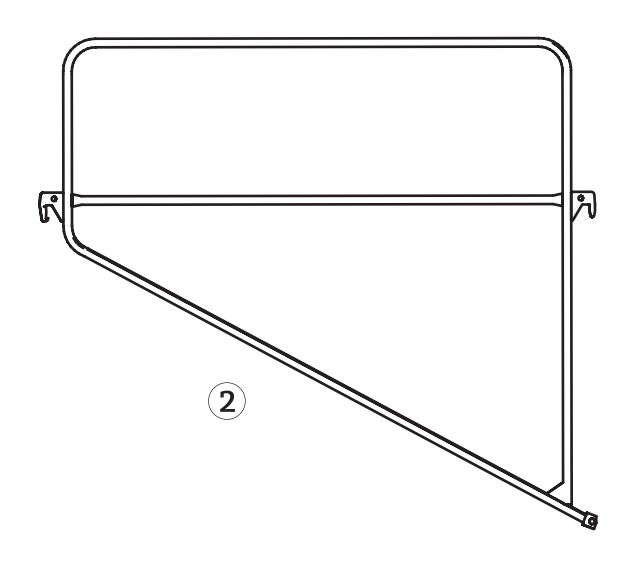

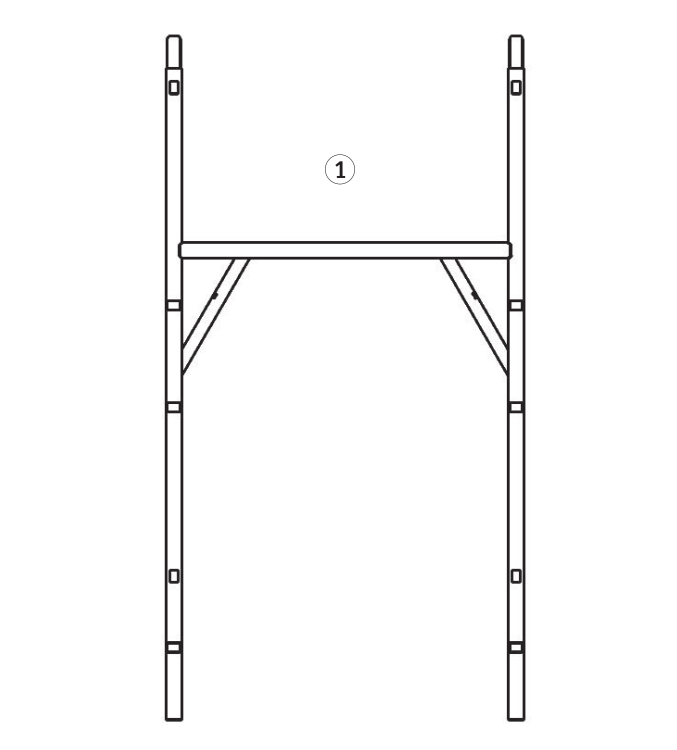

- 1. Frame - 2. Front Frame - 3. Ledger - 4. Diagonal brace
SYSTEM
THE SYSTEM
Contrary to other types of scaffolding, RISK FREE system is a collective protection system even in the assembling phase. According to the regulation in force, this is a preferable protection system compared with other personal protection systems, since it perfectly complies with the principle of risk elimination and, if elimination is not possible, the reduction to minimum risks with reference to knowledge acquired from technical progress.
ELEMENT
Risk free scaffolding is completed by several elements which allow to easily satisfying all the needs of the construction site.
PRTECTION
Therefore, RISK FREE scaffolding does not require the personal protection system with a “safety lifeline” (besides adequate shoes, gloves, helmet, clothing, etc.), since the face frame is assembled in the lower floor, so that the staff is already protected when accessing the upper floor.
