Mm-holz Duo & Trio Beams
DUO & TRIO BEAMS
DUO & TRIO BEAMS
Dimensionally stable, dry and good-looking.
MM vistaline duo & trio beams are solid wood components for high design requirements.

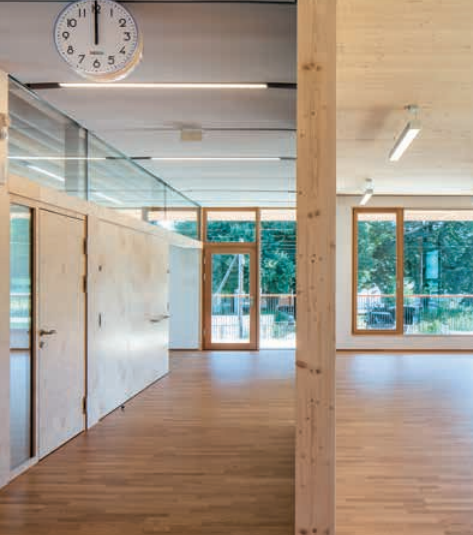

MM vistaline duo and trio beams are rectangular-shaped glued lamella beams without visible glue joints on both sides, used mainly for visible quality applications in residential and office buildings.
Duo and trio beams in non-visible quality are ideal for use in premium timber frame and closed panel construction as they are – contrary to usual construction timber – not subject to twist.
INFORMATION
BRAND
Mayr-Melnhof Holz
PRODUCT TYPE
Floor And Wall Beams
COLLECTION
Duo & trio
WOOD SPECIES
Spruce (Picea Abies)
STRENGTH CLASS
GL24h, C24
GLUING
MUF, EN 301-I-90-GP-0,3-S (melamine resin, bright glue joint, waterproof)
WOOD SPECIES
- Spruce (Picea abies)
- Larch (Larix
MM VISTALINE: AREAS OF APPLICATION

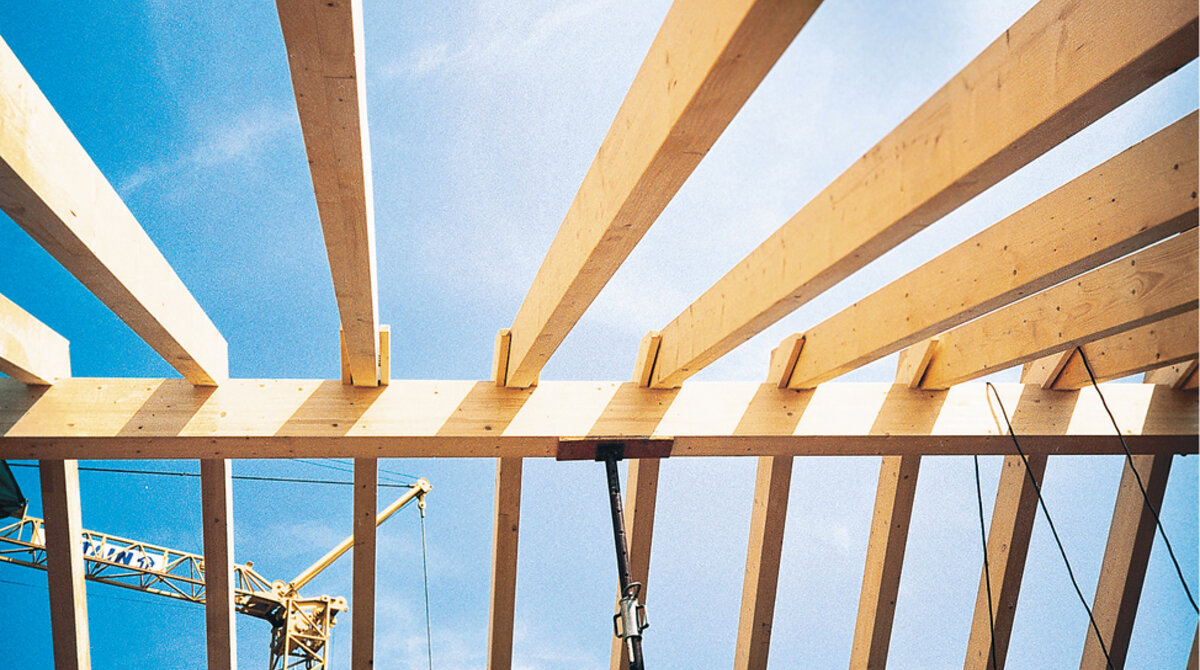

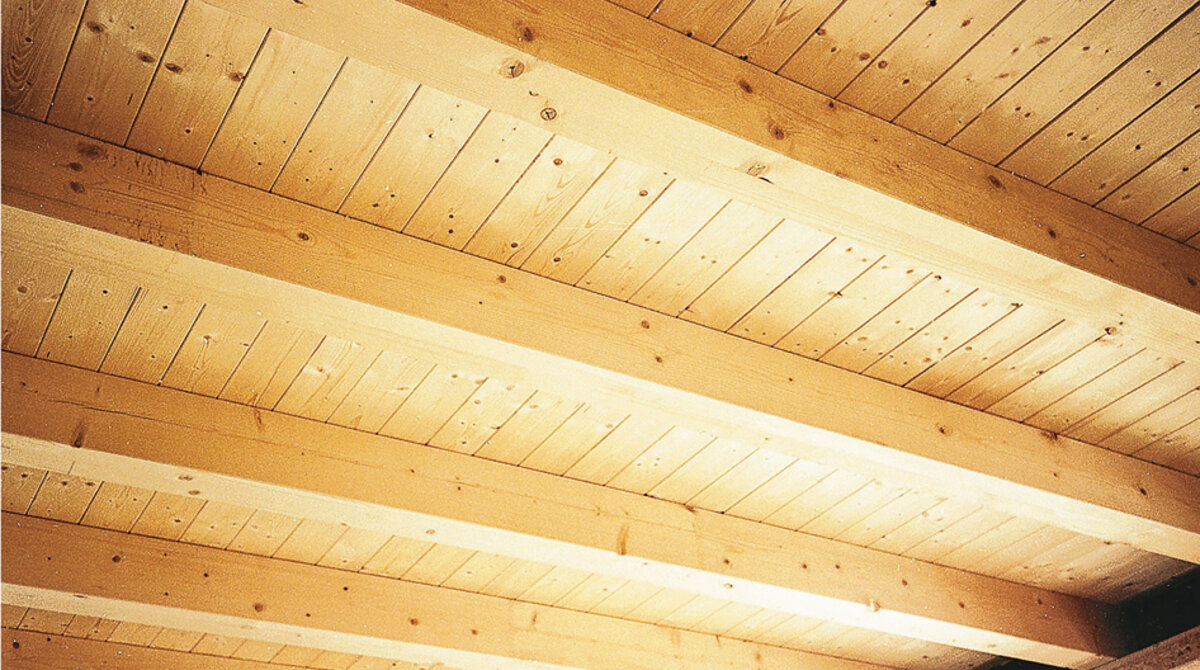

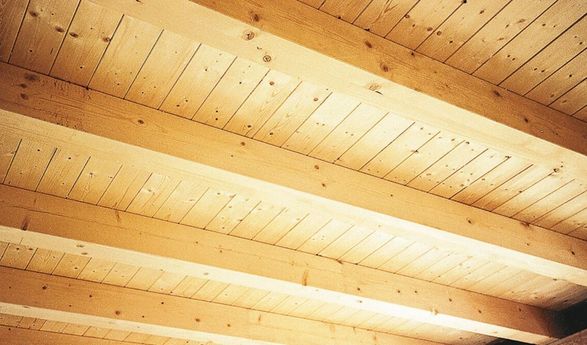

- Ceiling beams

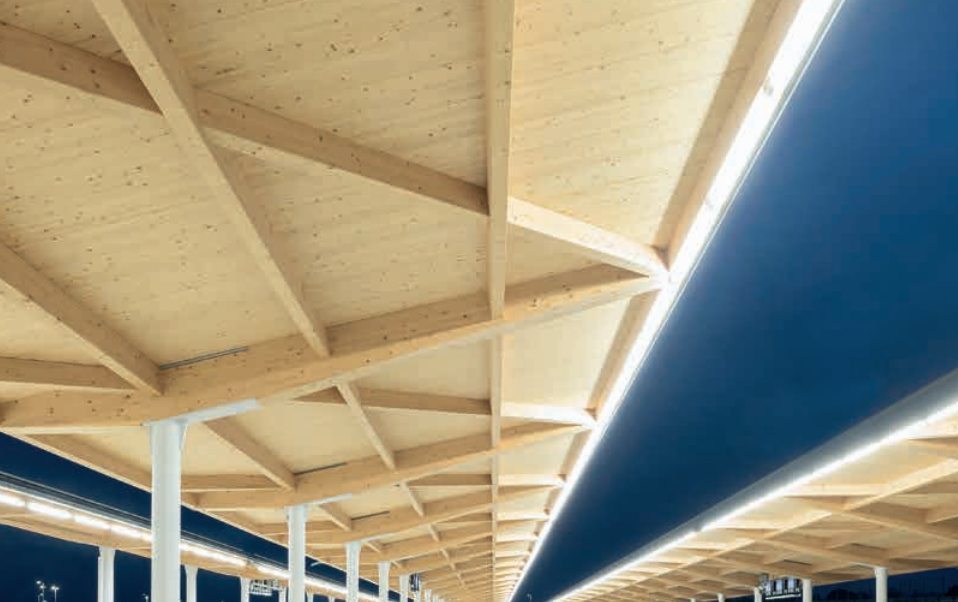

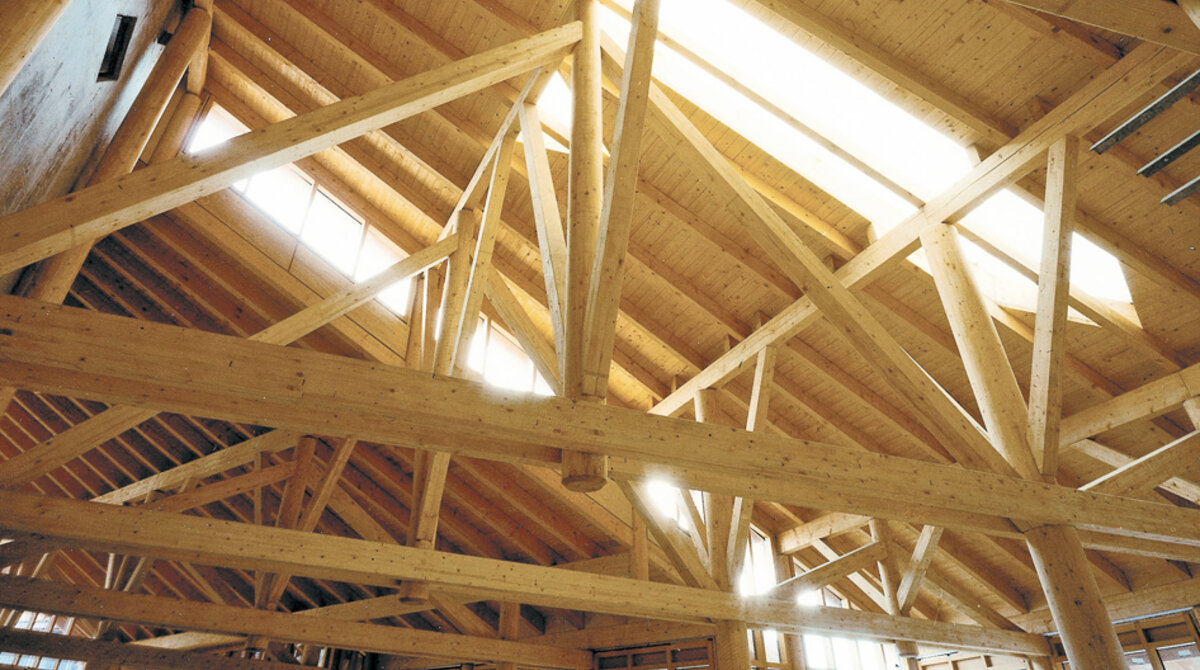

- Roof structures
- Mullion and transom structures
- Timber frame and closed panel constructions
FEATURES
Duo & trio beams consist of two to four specially selected (heart-free) lamellas, vertically glued. Careful drying of the individual lamellas and strength grading to industry norms are fundamental to the excellent product features of MM vistaline.
OISTURE CONTENT
12 % (± 2 %)
DENSITY
Approx. 430 kg/m³
DIMENSION
- Width : DUO 8 cm - 16 cm, TRIO 12 cm - 24 cm
- Height : DUO 8 cm - 24 cm, TRIO 12 cm - 24 cm
- Length : 12 m and 13.5 m as standard (up to 18 m upon request)
MM VISTALINE
MM vistaline duo and trio beams are subject to rigorous quality control and, like all Mayr-Melnhof Holz timber construction products, are PEFC-certified. As a natural, regrowing building material that stores CO2, using MM vistaline makes an important contribution to active climate protection .
SURFACE
Planed on 4 sides, chamfered
QUALITY
visible (VI)
PRODUCT STANDARD
EN 14080:2013
MM VISTALINE: BENEFITS
- High load-bearing capacity with an impressive strength to weight ratio
- Excellent dimensional and shape stability
- Weatherproof gluing, with light-coloured melamin glue joints
- No visible glue joints on vertical faces
- Manufactured from exclusively heart-free lamellas
- Precision CNC machining for assembly joints or individual project requirements
SERVICE CLASS
SC 1+2
MFIRE CLASS
D-s2, d0
MAYR-MELNHOF HOLZ: LOGISTICS SERVICES
SEA
- Loading into shipping containers is possible at all sites.
- With trusted logistics partnerss we are able to offer fast and reliable container shipments worldwide.
- Subject inducement we can offer breakbulk shipments from the Adriatic, Baltic and North Seas.
- With our own port terminal in Koper, Slovenia, we have regular chartered services to southern Mediterranean ports & beyond.
ROAD
- Long-standing stable business relationships with a large number of logistics service providers in Europe.
- We use digital platforms for fast communication with our transport service providers.
RAIL
- All Mayr-Melnhof Holz sawmills in Leoben (AT) & Paskov (CZ) as well as our timber processing plants in Gaishorn (AT) & Wismar (DE) are directly connected to national railway networks.
- We use both private & public rail service providers to transport goods in an environmentally friendly manner.
DOCUMENTATION
Together with our logistics partners we will provide you with professional documentation to enable you to cover all your export, import, and customs formalities without problems.
DELIVERY TO CONSTRUCTION SITES
Just-in-time deliveries to our cross-laminated and glulam construction sites. A full range of modern transport solutions is offered as necessary :
- All-wheel drive trucks
- Narrow-access self-steering trailers
- Hydraulically steered trailers
- Covered loads up to 3,5 m wide
- Loads up to 52 m length
- Trailers with on-board forklifts
- Edscha sliding roof trailers for vertical access
- Solo vehicles with up to 10 m loading length for inner-city areas
