Sergeferrari Flexlight 402 Translucent & Ht
FLEXLIGHT 402 TRANSLUCENT & HT
FLEXLIGHT 402 TRANSLUCENT & HT
Flexlight 402: lightweight translucent membrane for modular structures
INFORMATION
BRAND
Sergeferrari
PRODUCT TYPE
Solar Shading
TENSILE STRENGTH (WARP/WEFT) EN ISO 1421
- 230/220 daN/5 cm
- 517/495 lbs/2 in
MAIN ADVANTAGES
- Easy to weld
- Compliant with worldwide fire standards
- Exceptional dimensional stability due to Précontraint® technology
- Good ratio of weight and mechanical resistance for standard applications
COLLECTION
Flexlight
COATING
High performance PVC
TEAR STRENGTH (WARP/WEFT) DIN 53.363
- 20/20 daN
- 45/45 lbs
YARN TYPE
PES High tenacity
YARN TREATMENT
No treatment
PRÉCONTRAINT® TECHNOLOGY
Dimensional stability and smooth surface finish
COLORS
- Ultra white (402-1399)
- White (402-8145)
AN EXCELLENT WEIGHT-TO-STRENGTH RATIO
Flexlight 402 stands out with key technical features that make it a benchmark solution for modular and temporary projects:
- Certified safety
- Easy to weld
- Bluish-white shade for a premium look
FLAME RETARDANCY
B-s2,d0/EN 13501-
ENVIRONMENTAL PROPERTIES
2.67 kg CO2 eq./m²
FINISH
Lacquer both sides
ADHESION EN ISO 2411
10/10 daN/5 cm ( 22/22 lbs/2 in)
LENGTH OF ROLLS
- Rolls : 50 lm ( 54.68 yd)
- Jumbo rolls : 350 lm (382.76 yd)
EXTREME WORKING TEMPERATURES
- 30°C/+70°C
- 22°F/+158°F - In static position internal tes
AN EXCELLENT CHOICE FOR TEMPORARY STRUCTURES
Flexlight 402 is ideal for indoor environments requiring natural light, rapid deployment, and excellent mechanical performance. Lightweight, stable, and compliant with international fire standards, it is perfectly suited for event structures or as an inner layer for large halls.
A HIGH-PERFORMANCE SOLUTION FOR YOUR TEMPORARY EVENT STRUCTURES
Flexlight 402 is a composite technical membrane available in translucent or highly translucent (HT) versions, ideal for temporary aluminum structures. It can be used as an outer membrane or as an inner liner. Thanks to Précontraint® technology, it guarantees excellent dimensional stability, high mechanical strength, and very good weldability, while complying with international fire standards. Available in large widths, it combines ease of installation with long-lasting durability.
WEIGHT EN ISO 2286-2
520 g/m² ( 15.3 oz/yd. sq)
ELONGATION UNDER LOAD (WARP/WEFT)
<1 % / <1 %
SYSTEM OF MANAGEMENT
- Quality : ISO 9001
- Environment : ISO 14001
- Energy : ISO 50001
WIDTH
267 cm ( 105.1 in)
LIGHTWEIGHT
Lightweight and resistant
APPLICATIONS

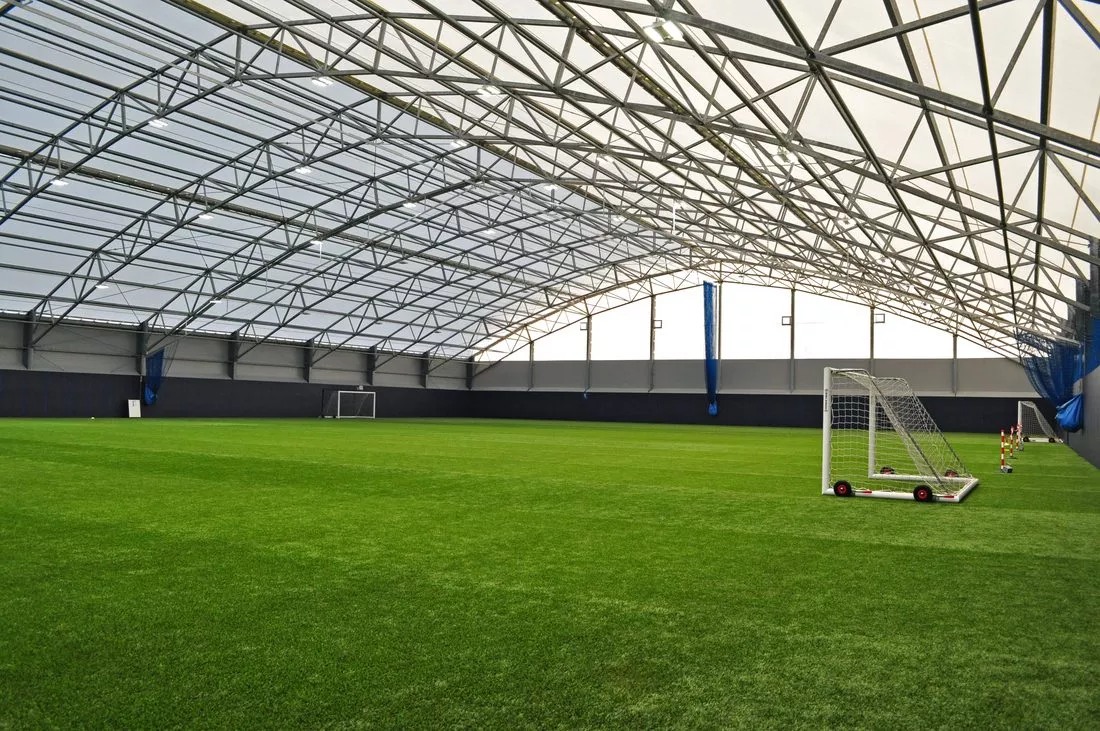

- Sports halls & Arenas
- Transportation Infrastructure
- Retail Stores and Shopping Centers
ADVANTAGES
CERTIFICATIONS AND QUALITY SYSTEM
Flexlight 402 is part of a commitment to quality, safety, and environmental performance, supported by internationally recognized certifications:
- Low carbon footprint
- Compliant with international fire standards
- Warranty, documentation, and technical support available on request
TOLERANCE
+/-5% tolerance
