Ecosmart Fire Heritage Grate 50 Fireplace
HERITAGE GRATE 50 FIREPLACE
HERITAGE GRATE 50 FIREPLACE
The Heritage Grate Series was born from a desire to combine the warmth and charm of a traditional fireplace with the demands of
modern living.
INFORMATION
BRAND
Ecosmart Fire
PRODUCT TYPE
Fireplace
BURNER CONFIGURATION
XL900
COLLECTION
Heritage
APPLICATION
Indoor
MATERIAL
- Mild Steel (Zinc Sealed
- High-Temp Powder Coat) Surround

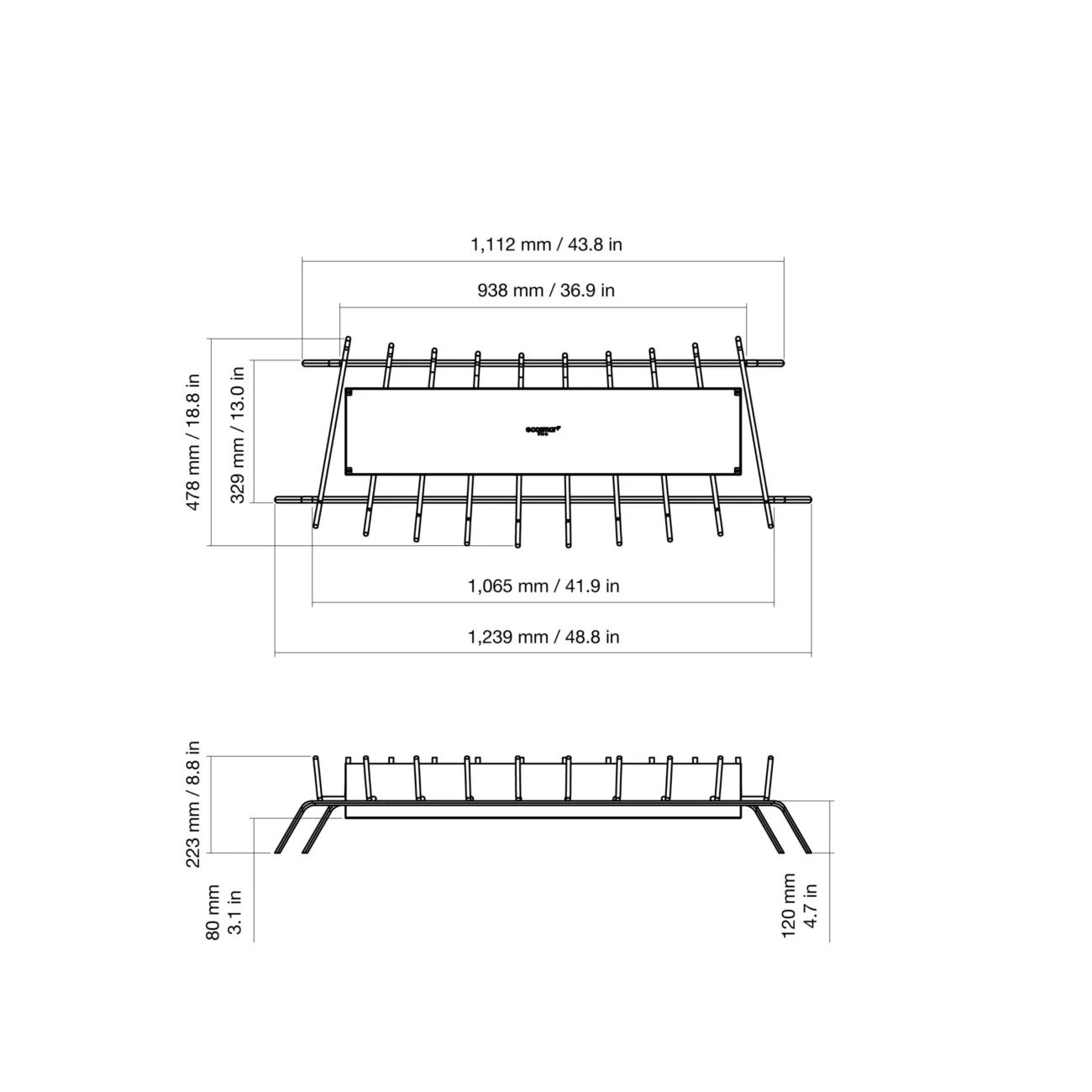

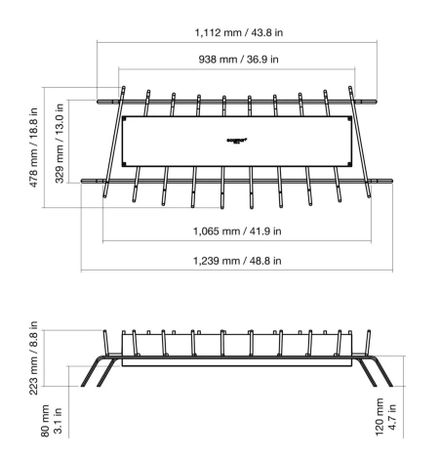

DIMENSIONS MODEL
- Width : 478 mm
- Height : 233 mm
- Length : 1.239 mm
USE
Heating
WEIGHT
25.1 kg
THERMAL OUTPUT
15.83 MJ/h - 4 kW
BURN TIME
8-13 h
HEATS ON AVERAGE
60 m²
AVAILABLE IN TWO SIZES
The Heritage Grate Series is available in two sizes: the smaller Heritage Grate 25, featuring the square BK5 Burner, and the larger Heritage Grate 50, featuring with the linear XL900 Burner.
VOLUME CAPACITY
9 L
PRODUCTION
100% Made in Germany
COLORS
- Model : Graphite
- Burner : Stainless Steel
MINIMUM ROOM SIZE
110 m³
FUEL CONSUMPTION
0.8 L/h
DETAIL

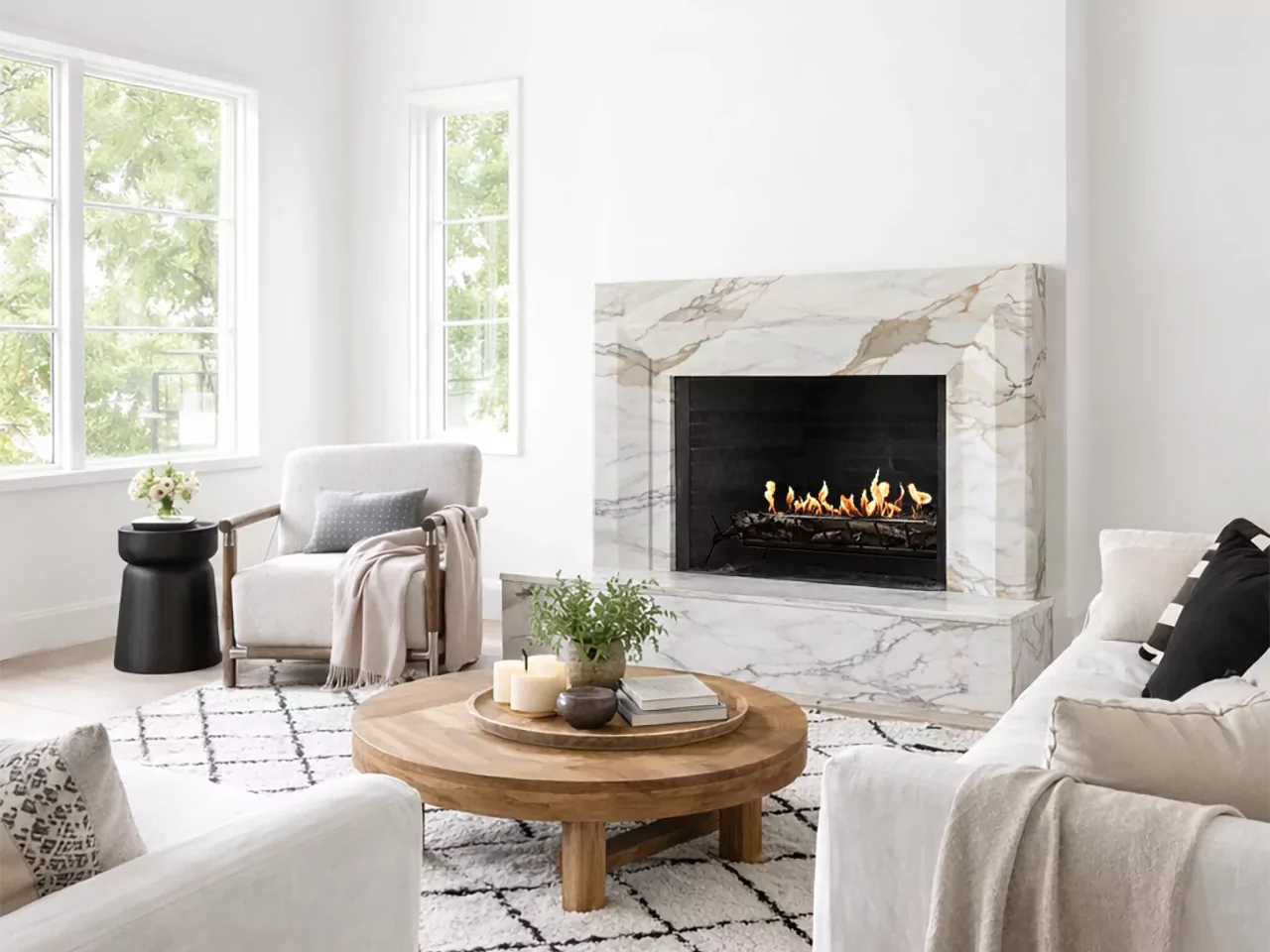

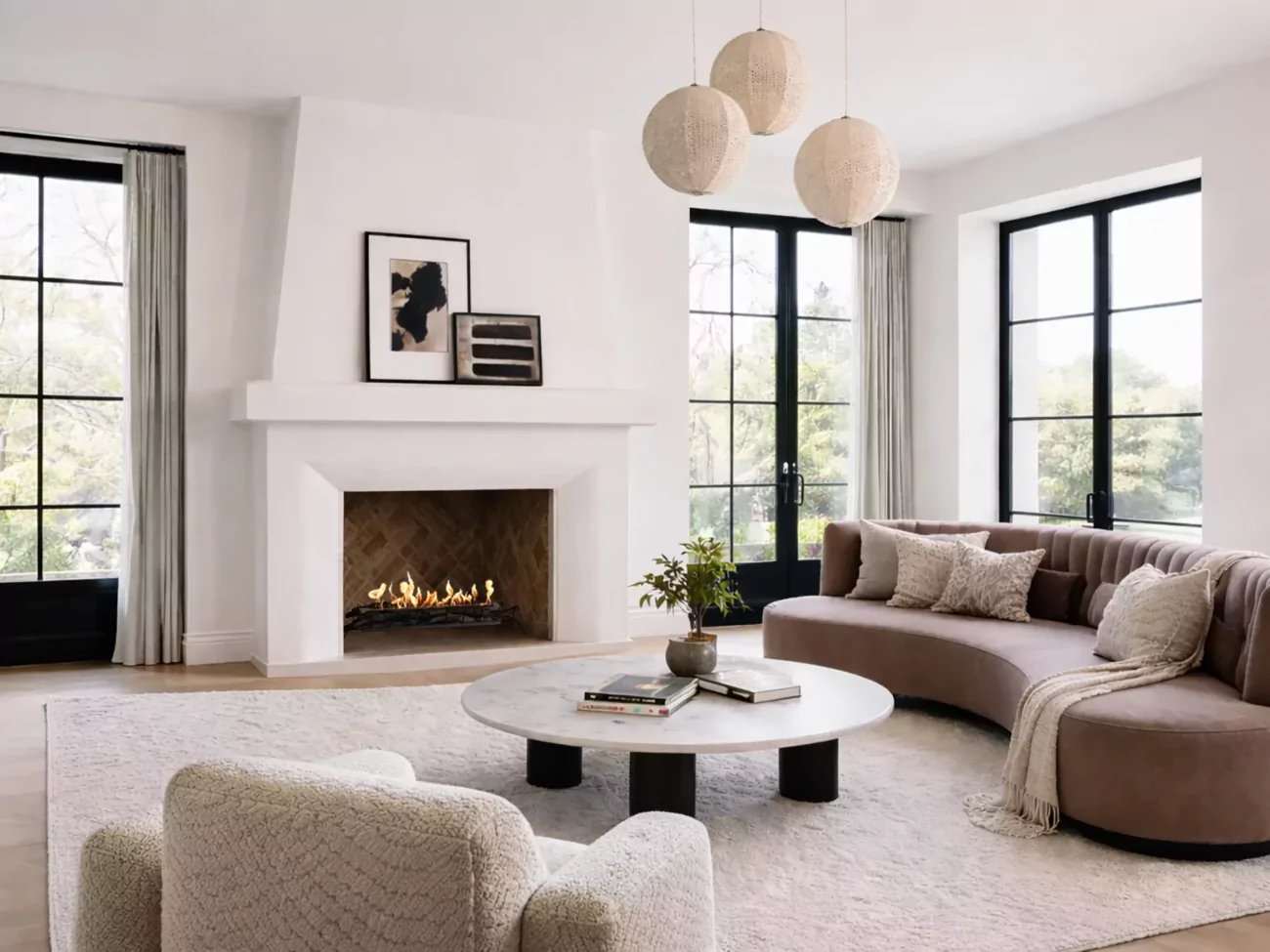

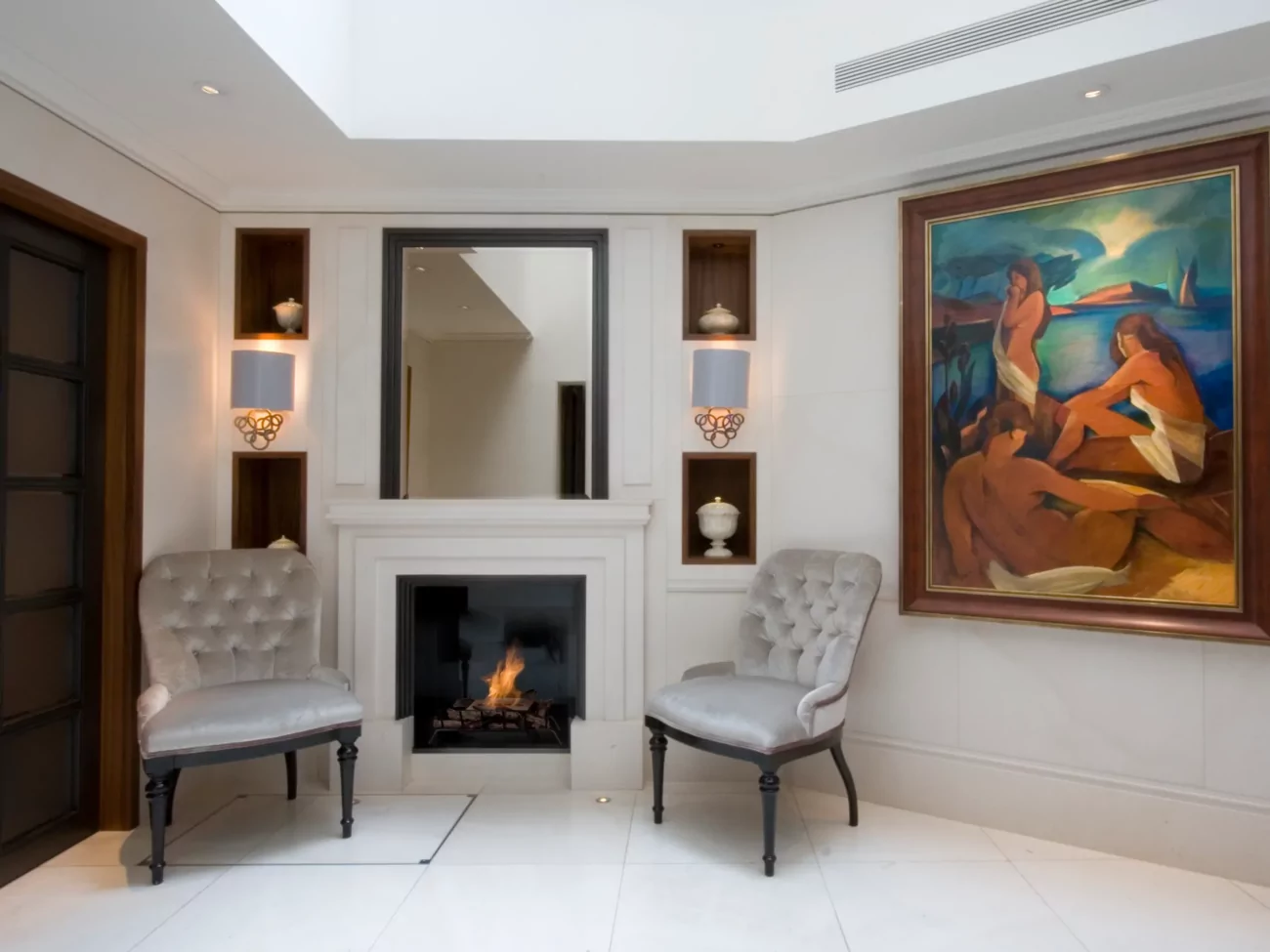

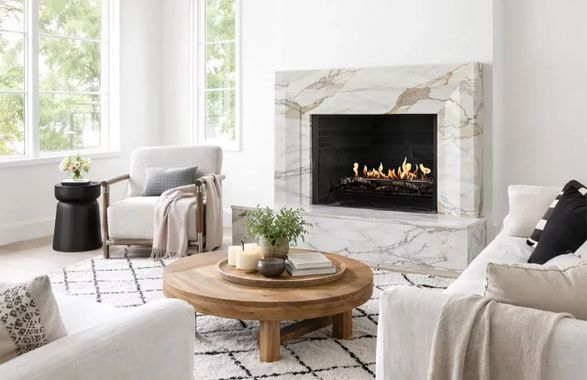

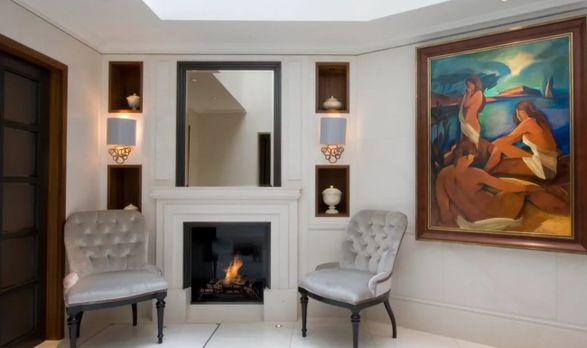

CONVERT AN EXISTING FIREPLACE IN MINUTES
Transforming an existing wood burning fire into a clean burning bioethanol fireplace is easy. Simply install the grate on a level platform and fill it with liquid bioethanol. Then sit back and relax.
NO FLUE, NO CHIMNEY, NO VENT
Fuelled by clean-burning e-NRG bioethanol, our burners produce a beautiful orange flame without any smoke, soot or ash.
LOW MAINTENANCE
Bioethanol Fireplaces don’t leave any carbon residue, so they are incredibly easy to keep clean. Just wipe them down with a damp cloth every now and then.
INSTALLATION
Install only after all gas connections or pipe lines have been disconnected and made safe by an appropriately qualified and licensed professional.
WARM YOUR HOME, NOT THE PLANET
Burning bioethanol fuel doesn’t produce any smoke, so you can use an EcoSmart smokeless fireplace grate with or without an operational chimney. As traditional wood burning fireplaces lose a lot of heat through the chimney, we recommend sealing off the chimney to increase efficiency. You can do this by closing the dampener or blocking off the chimney with a metal plate.
TRADITIONAL AESTHETIC

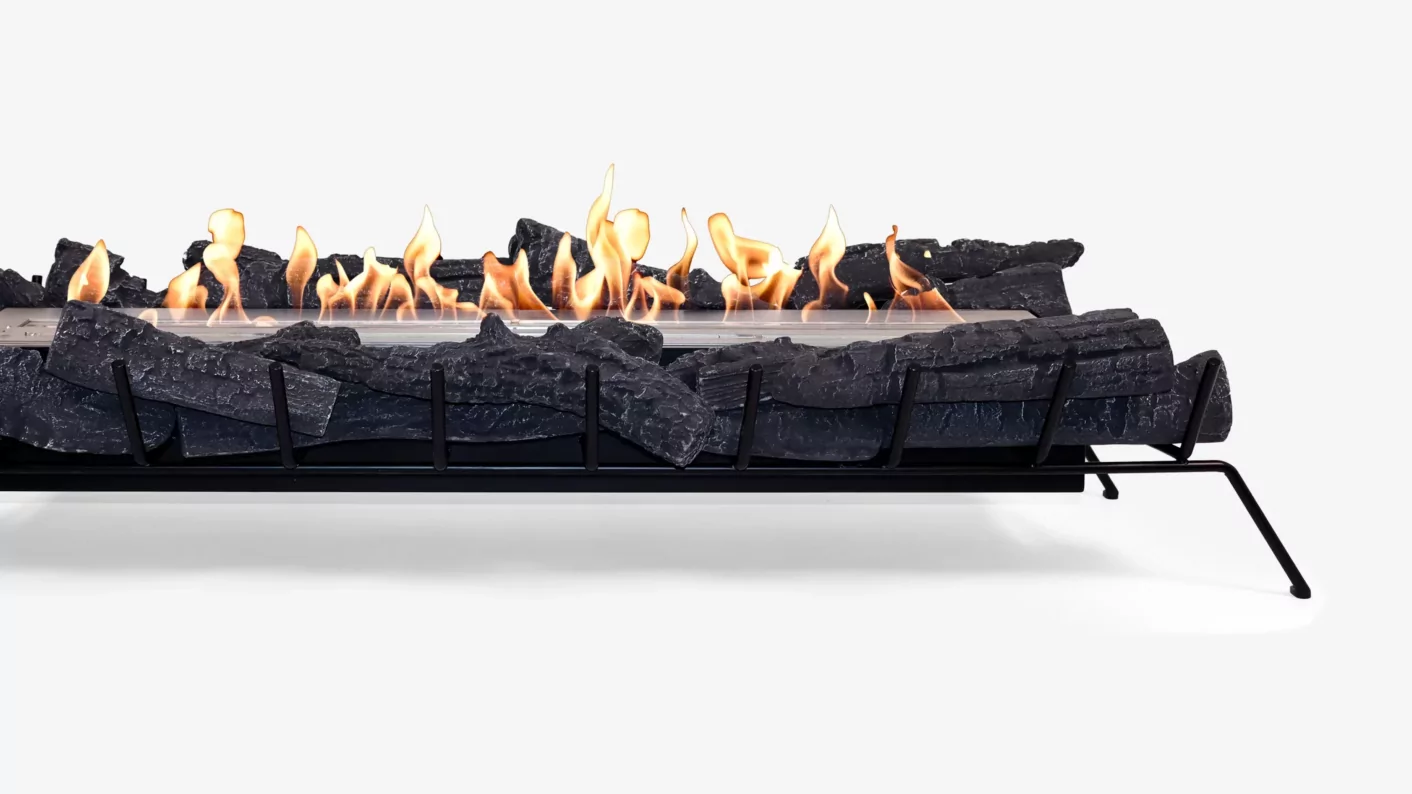

Heritage Grates are crafted from 1.2mm SECC steel with a high-temperature black powder coating. The ceramic fire-rated wood logs, combined with the iron grate design, create a timeless and classic fireplace appearance.
ACCESSORIES
JERRY CAN 5L
Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system. Enables safe storage and decanting of e-NRG.
FIRE LIGHTER
This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.
LIGHTING ROD
This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.
BOTTLE ADAPTOR
The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
OPTIONAL

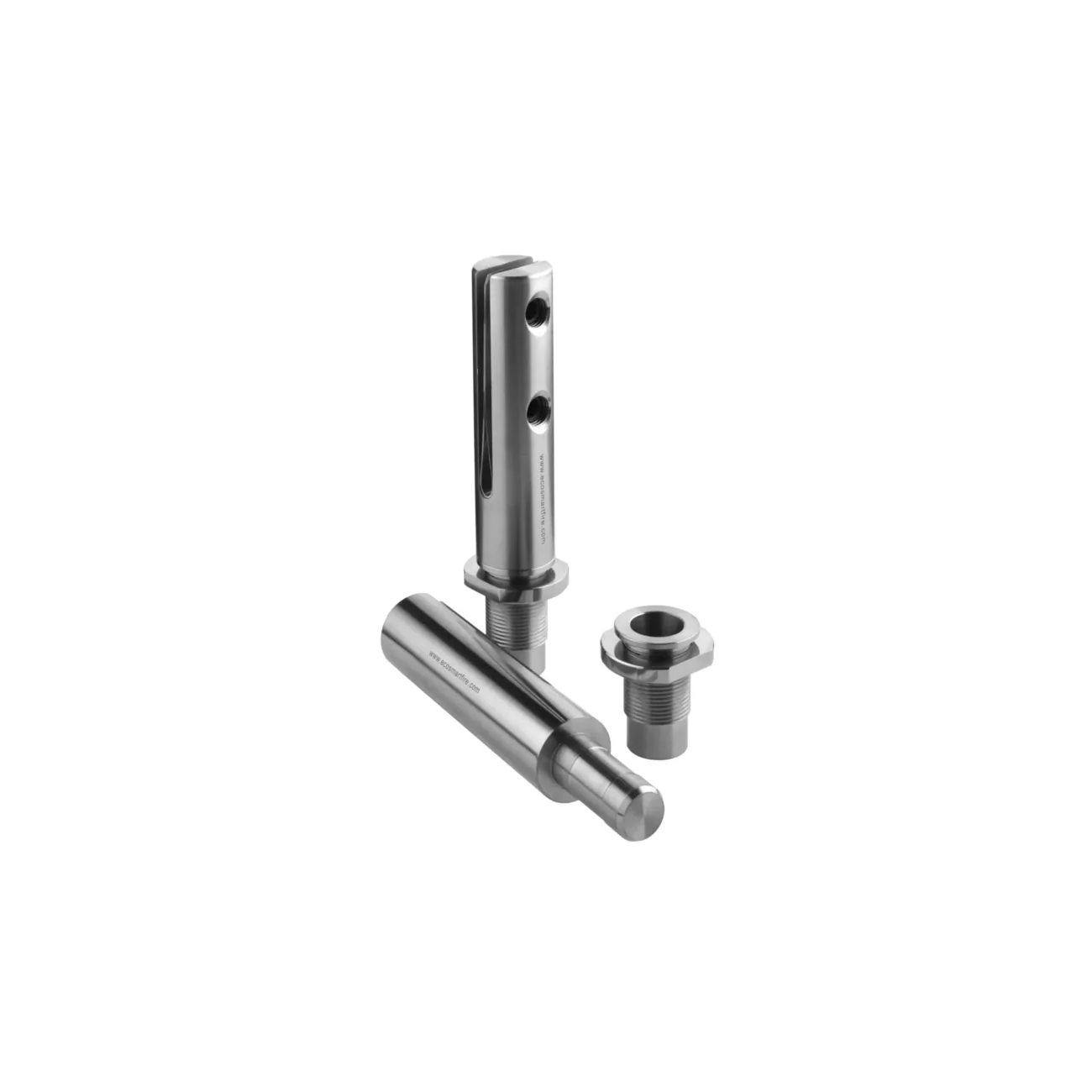

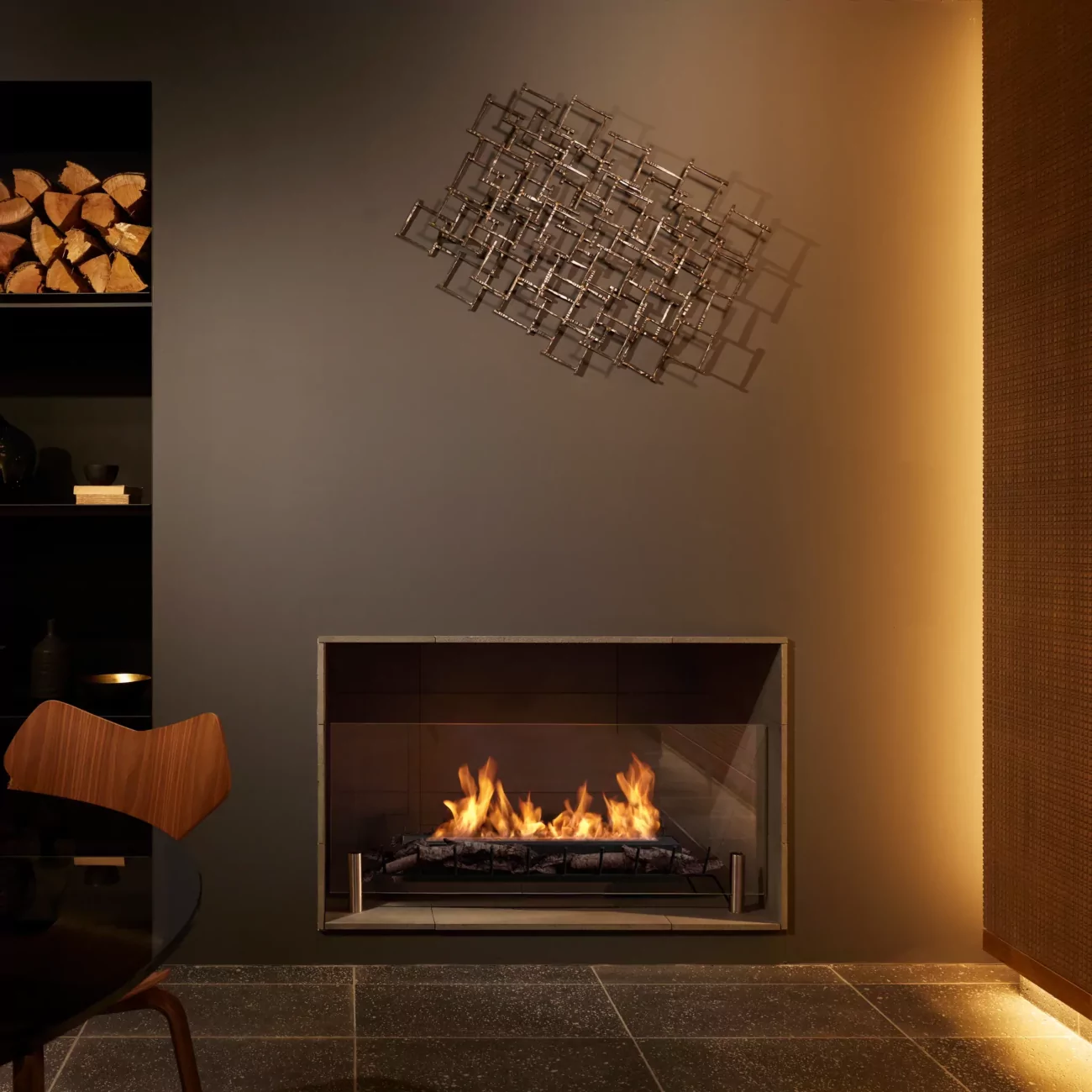

TWIN FEET FIXINGS
Unique glass fixing system
The Twin Feet Fixings were created to improve safety around open fireplaces. Designed to lock a glass fire screen into position, these stainless steel feet provide permanent stability, and at the same time allow for easy removal for refueling and maintenance. This unique glass fixing system ensures that the screen cannot be knocked down by children and pets as well as ensuring safety in public places such as bars and restaurants.

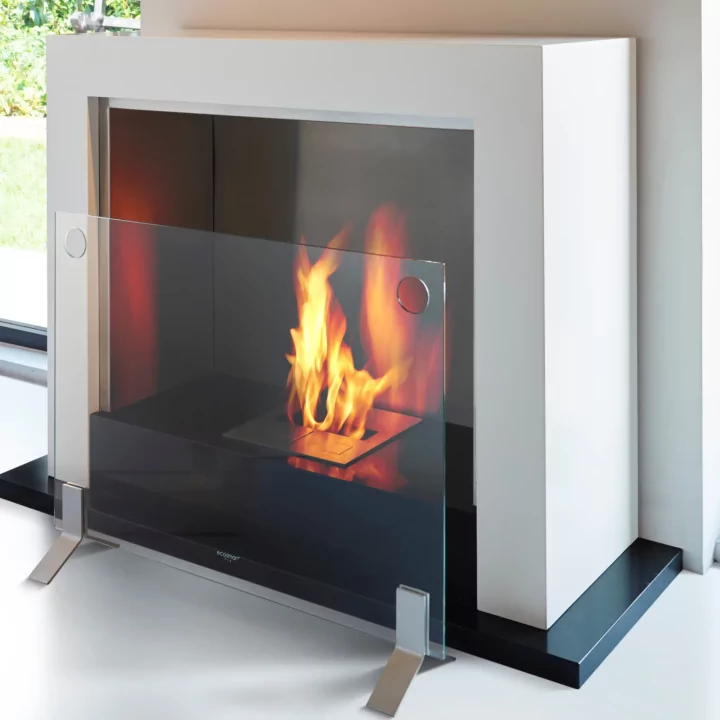

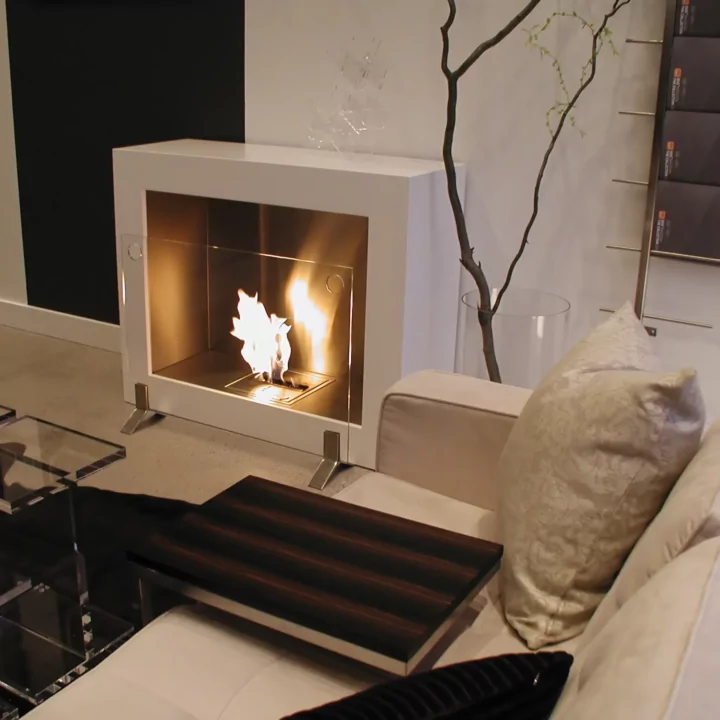

PLASMA FIRE SCREEN
Freestanding flat panel of glass
provides stability to the flame
The Plasma Fire Screen features two handles positioned on either side. The Plasma is supported by simple stainless steel feet that are clamped to the base of the pane of glass, elevating the screen as if floating while providing enhanced stability.
TEMPERED FOR SAFETY
This toughened glass is impact-resistant and designed to shatter into small, blunt fragments for maximum user protection in luxury outdoor environments.
CRYSTAL-CLEAR VISIBILITY
With ultra-low iron content, offering an unobstructed view of the flame that enhances the elegance and ambiance of high-end fire table settings.
REFINED EDGE DETAILING
Superior clarity blend seamlessly with EcoSmart’s minimalist fire table designs, elevating visual appeal without compromising functionality or safety.
