ACOUSTI-CLEAR® MOVABLE GLASS WALL SYSTEMS
ACOUSTI-CLEAR® MOVABLE GLASS WALL SYSTEMS
At Modernfold, we offer innovation in space management and room design with our Acousti-Clear® product line.
Offering ultra-sleek, contemporary aesthetics of aluminum and glass, this partition wall also features highly desired sound separation technology up to 51 STC.
INFORMATION
BRAND
Modernfold
PRODUCT TYPE
Movable Walls
MATERIAL
- Glass
- Aluminium
ACOUSTICS - STC
- 50 STC Solid
- 51 & 45 STC Glass
DESIGN
The Acousti-Clear® product family harmonizes, allowing multiple Acousti-Clear® products to be utilized within the same space. The design options are robust with custom finishes, horizontal mullions, RAL powder coating, privacy, and egress options.
TRACK OPTIONS
- Acousti-Clear® Motorized : G330
- Acousti-Clear® Automatic : G330, #17G
COLLECTION
Acousti-clear®
PRODUCTION
Made in USA
PANEL INTERCONNECTION
Convex/concave aluminum profiles with sealing lips for combined friction and positive interlock
PANEL TYPES
- Fixed Panel with L, T and X Posts Glass Pivot Door
- Intermediate Panel, Intermediate Panels with L, T and X Post Pass Door
PANELS
Glass Wall Panels
CONSTRUCTION
Double-Skin Glazing Tempered Glass
SURFACE FINISHES
Clear Anodized, Satin Stainless Anodized, Powder Coat White or Black, Powder Coat STD RAL
MODELS
ACOUSTI-CLEAR® MOTORIZED

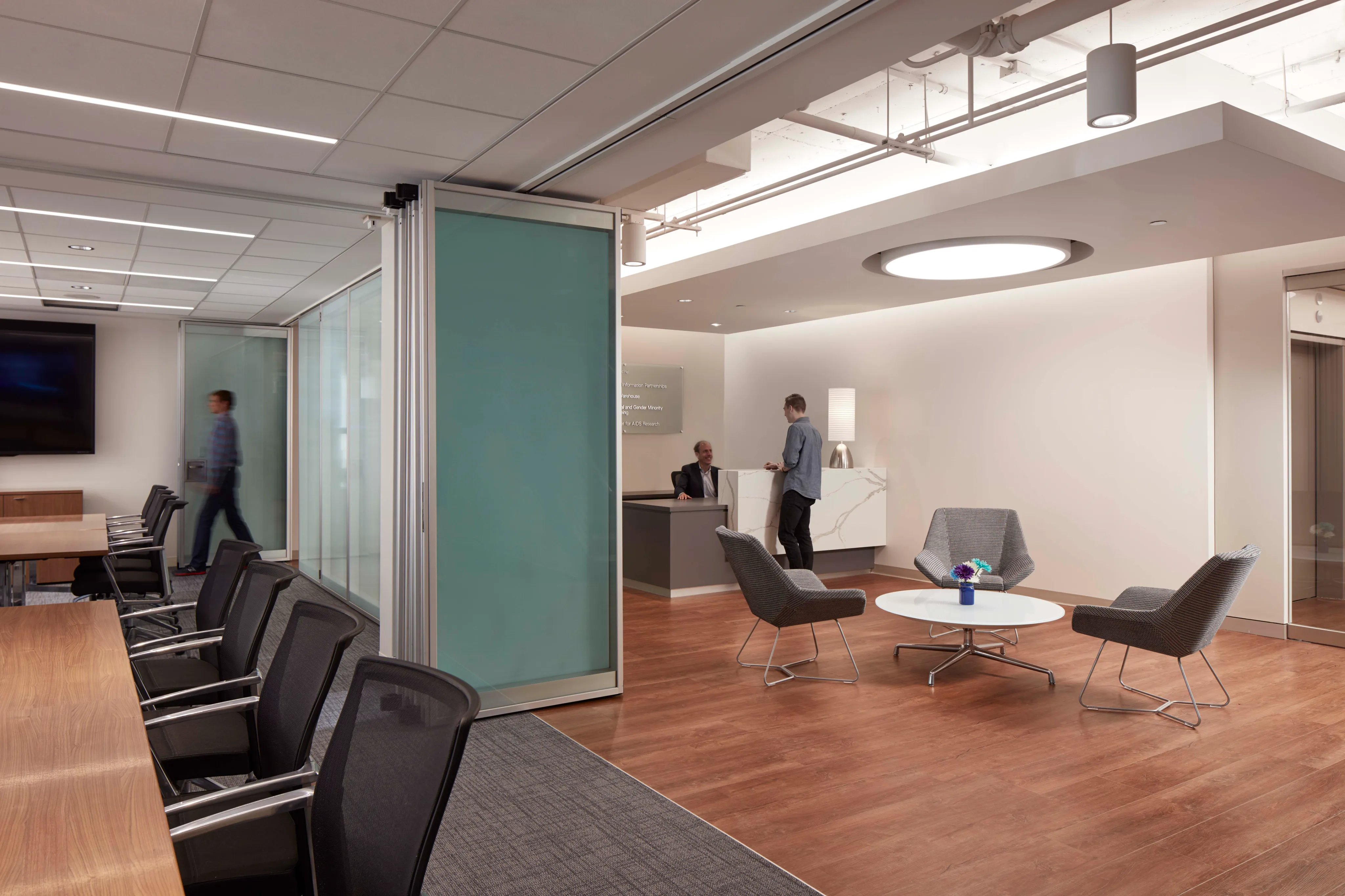

Acousti-Clear® Motorized glass walls eliminate any and all set-up concerns with it's innovative ComforTronic® motorized seal system. Once the single panel is pushed into place, motorized top and bottom seals activate. This results in a motorized glass wall that always provides a constant and perfect seal. Maximize acoustics with the Acousti-Clear® motorized system.
ACOUSTI-CLEAR® AUTOMATIC
For the cost-conscious, Acousti-Clear® Automatic partitions feature Modernfold’s innovative seal system. It automatically sets both top and bottom seals by advancing each panel forward into the adjoining panel. This automatic partition technology makes installation easy, with no cranks to turn or buttons to push.
ACOUSTI-CLEAR® DEMOUNTABLE
Acousti-Clear® Demountable glass walls provide highly desired flexibility. With a fully demountable glass room divider, they can be moved or configured in virtually any set-up or configuration imaginable. Movable glass walls simplify organizing your office space and offer endless setup possibilities.
TECHNOCAL DATA
TECHNOCAL DATA
| ACOUSTI-CLEAR® OPERABLE PARTITIONS | ACOUSTI-CLEAR® MOTORIZED | ACOUSTI-CLEAR® AUTOMATIC | ACOUSTI-CLEAR® DEMOUNTABLE |
|---|---|---|---|
| Operation | Individual Panel Motorized | Individual Panel Automatic, Paired Panel Automatic | Fixed Panel |
| Top/Bottom Seals | ComforTronic (motorized controlled extension and retraction of top and bottom seals) | Automatic Seals 7/8" (23 mm) Top & Bottom Clearance x/- 3/8" (10 mm) Operating Range | Manual Crank Activated Top & Bottom Seal System |
| Panel Thickness - Nominal | 4" (100 mm) | 4" (100 mm) | 4" (100 mm) |
| Maximum Height | 12'0" (3658 mm) | 12'0" (3658 mm) | 12'0" (3658 mm) |
| Maximum Panel Width | 24" to 48" (610 mm to 1219 mm) | 28" to 48" (711 mm to 1219 mm) | 12" to 48" (305 mm to 1219 mm) |
| Hanging Weight (lbs/sq.ft.) | 10 to 11.5 lb./sqft | 10 to 11.5 lb./sqft | 10 to 11.5 lb./sqft |
| Min Frame Profile Width | Horizontal: 4.6875" (119 mm) | Horizontal: 4.6875" (119 mm) | Horizontal: 4.6875" (119 mm) |
| Closure Method | Glass Pivot Door, Solid Expandable Panel, AWA | Glass Pivot Door, Solid Expandable Panel | Adjustable Jamb |
| Options | Glass Pass Door, MorphGlas™, Motorized Privacy Shade by Draper, Horizontal Mullions, Door Hardware, Protector Series Line-of-Sight Deployment System | Glass Pass Door, Horizontal Mullions, Door Hardware | Horizontal Mullions, Door Hardware |
