Bette Bettecaro 35 mm, Same Shank Length Shower Trays
BETTECARO 35 MM, SAME SHANK LENGTH SHOWER TRAYS
BETTECARO 35 MM, SAME SHANK LENGTH SHOWER TRAYS
The BetteCaro shower tray is ideal for the small bathroom. Its space-saving exterior shape is perfect for a wide range of design options.
information
SHAPE
Pentagonal
BRAND
Bette
PRODUCT TYPE
Shower trays
FEATURES
Glazed Titanium - Steel
PRODUCTION
Made in Germany
CORNER RADIUS
10 mm
INSTALLATION TYPE
- Corner
- Flush to floor
- Above the floor
ITEM NUMBER
- 800 x 800 x 35 mm : 5319
- 900 x 900 x 35 mm : 7189
- 1000 x 1000 x 35 mm : 7219
WEIGHT
- 800 x 800 x 35 mm : 14.1 kg
- 900 x 900 x 35 mm : 16.6 kg
- 1000 x 1000 x 35 mm : 21.4 kg
BETTE WASTE DIAMETER
90 mm
RIM HEIGHT
30 mm
WARRENTY
30 Years
QUALITY
Sustainable Quality
SCOPE OF DELIVERY
Including noise-reducing pads.
ENVIRONMENT
Indoor
TECHNICAL DATA

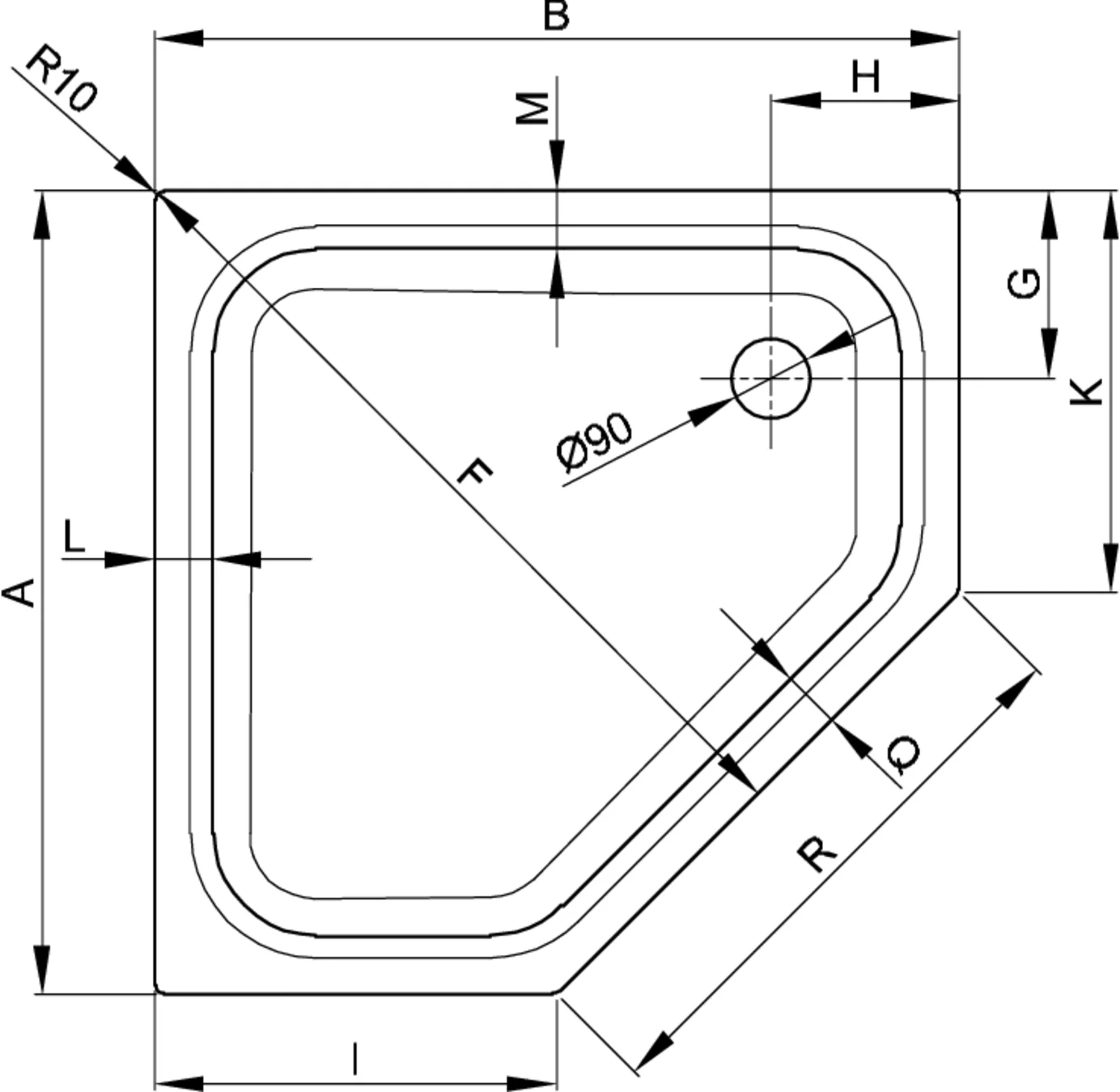

TECHNICAL DRAWING
DIMENSIONS IN DETAIL
| SELECTED DIMENSION | A | B | C | D | F | G | I | J | K | L | M | Q | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 800 x 800 x 35 mm | 800 | 800 | 35 | 50 | 813 | 210 | 210 | 350 | 350 | 65 | 65 | 60 | 636 |
| 900 x 900 x 35 mm | 900 | 900 | 35 | 50 | 955 | 210 | 210 | 450 | 450 | 65 | 65 | 60 | 636 |
| 1000 x 1000 x 35 mm | 1000 | 1000 | 35 | 50 | 1061 | 210 | 210 | 500 | 500 | 70 | 70 | 60 | 707 |
COLORS
GLOSSY COLOURS
- White, glossy, 000 - Starwhite, glossy, 287 - Pergamon, glossy, 001 - Manhattan, glossy, 002 - Manhattan, glossy, 003 - Black, glossy, 056 - Midnight, glossy, 790 - Salvia, glossy, 307 - Curry, glossy, 040 -Azalee, glossy, 130 -Elfenbein, glossy, 014 -Soft cream, glossy, 020 -Natura, glossy, 038 -Caramel, glossy, 046 -Kaschmir, glossy, 090 -Carneol, glossy, 096 -Ruby red, glossy, 057 -Bali Brown, glossy, 065 -Pearl, glossy, 053 -Reflet Grau, glossy, 044 -Ägäis, glossy, 009 -Capri, glossy, 015 -Key West, glossy, 031 -Bermuda Blue, glossy, 023 - Calypso, glossy, 011 -Kaspischgrün, glossy, 112 -Evergreen, glossy, 115 -Moss Green, glossy, 016
MATT COLOURS
-Snow, matt, 440 -Edelweiß, matt, 004 -Cream, matt, 441 -Beige, matt, 422 -Jasmin, matt, 006 -Flax, matt, 423 -Sand, matt, 424 -Silver, matt, 410 -Dust, matt, 413 -Flanell, matt, 008 -Quartz, matt, 412 -Stone, matt, 416 -Cashmere, matt, 415 -Hazel, matt, 417 -Greige, matt, 425 -Graphite, matt, 404 -Slate, matt, 402 -Smoke, matt, 403 -Anthracite, matt, 401 -Ebony, matt, 035 -Raven, matt, 400 -Blue Satin, matt, 418 -Magnolia, matt, 077 -Chantoung, matt, 646 -Anemone 77, matt, 086 -Ebano, matt, 434 -Taupe, matt, 438 -Cacao, matt, 439 -Graphit, matt, 074 -Chinchilla, matt, 029 -Montblanc 756, matt, 140 -Crocus, matt, 043 -Flint, matt, 414
