Duravit Architec Alcove Bathtub Alcove
ARCHITEC ALCOVE BATHTUB ALCOVE
ARCHITEC ALCOVE BATHTUB ALCOVE
Designed by Frank Huster

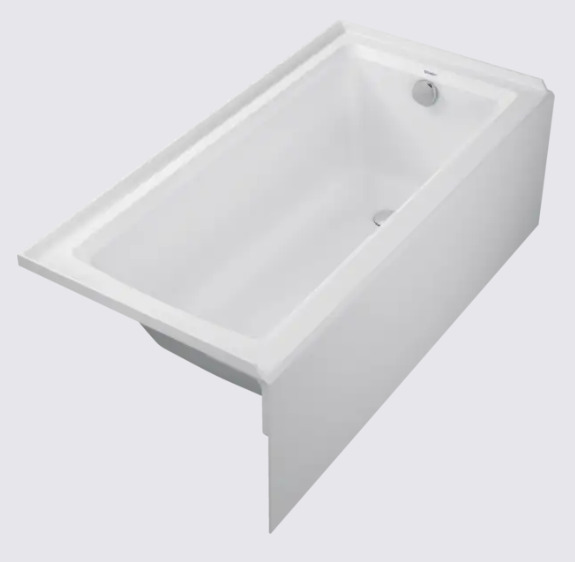

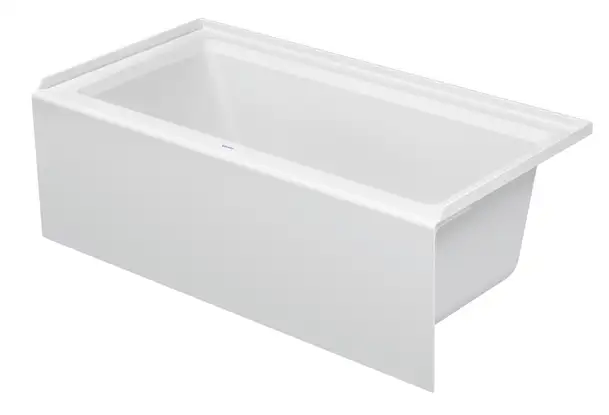

Duravit Architec Alcove Bathtub, Rectangular
DESIGNER
FRANK HUSTER
Frank Huster, born in 1939, studied architecture and interior design in Stuttgart.
In his office together with Peter Hübner, he developed, among other things, toys made of cardboard, folded plate constructions and cardboard paravents for the Munich Olympics from 1970 to 1978.
In his own architecture and development firm, he focused on prefabricated construction systems made of steel and plastic, then on prefabricated bathroom pods, sustainable product concepts and barrier-free construction.
As part of his professorship at the Wiesbaden University of Applied Sciences, Department of Design, he gave lectures on construction-related design and technical development from 1985 to 2006.
In 1993, Frank Huster designed the still successful and constantly expanding Architec ceramics program for public and semi-public areas for Duravit. The floor-level Duraplan shower tray program followed in 2009.
INFORMATION
BRAND
Duravit
PRODUCT TYPE
Battub
MODEL
#700355000000090
COLLECTION
Architec
SPECIFICATIONS
- Height : 18 1/2 "
- Width / Length : 60 "
- Depth/width : 30 "
- Height with Support : 0 "
- Min. Height with Feet : 19 1/4 "
- Internal Depth : 18 7/8 "
- Height of water level : 14 3/4 "
OVERFLOW
Yes
OVERFLOW POSITION
Foot end
CUPC LISTED
Yes
DRAIN ORIENTATION
Right
INCLUDES SUPPORT FRAME
Yes
PANEL INCLUDED
Seamless acrylic panel
ARTICLE WEIGHT
85.98 lb
PACKAGING TYPE
Single-packed
NUMBER OF BACKRESTS
1
CAPACITY GAL
29 gal
SHAPE
Rectangular
DETAIL
- With overflow
- Features a seamless acrylic panel, as if from a single cast
- Sanitary acrylic made of shock- and impact-resistant plastic with a pleasantly warm, smooth and pore-free surface
MATERIAL
Sanitary acrylic
INSTALLATION TYPE
Alcove

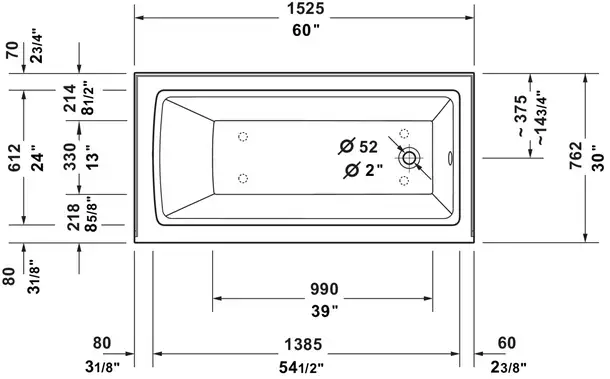

TECHNICAL DRAWINGS
