Cordivari Gloria 22 Wide Towel Warmer
GLORIA 22 WIDE TOWEL WARMER
GLORIA 22 WIDE TOWEL WARMER
The quality of construction, the cleanliness of the welds and the excellent painting process guarantee high reliability. The design of the thermal circuit guarantees very high outputs.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Towel Warmer
CONNECTION
n° 2 x 1/2” G - 1 x 1/2” G
COLLECTION
Gloria
ENVIRONMENT
Indoor
MATERIAL
-Ø 30 mm collectors in painted mild steel. -Ø 22 mm horizontal heating elements in painted mild steel.
USE
Heating
PRODUCTION
Made in Italy
SHADES
Gloria 22 wide can be customized in over 80 colours, including glossy, opaque and mattery shades.
CERTIFICATES
PRESSURE
Max. 8 bar
TEMPERATURE
Max. 110°C
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
PACKAGING
- User notice included.
- Cardboard angular and profiles protected by a recyclable film in polyethylene.
DOWNLOADS
↓ Technical Sheet
↓ 3D Drawings & BIM
↓ Environmental declarations EPD-PEP
↓ Certificates & Declarations of Conformity
FIXING KIT
-The fixing kit is compliant with VDI 6036 norm, class 4. -Brackets, hex key, airvent, dowels and screws suitable for use on solid walls or perforated bricks, assembly instructions.
WARRANTY
5 Years
FUNCTIONING
Hot Water

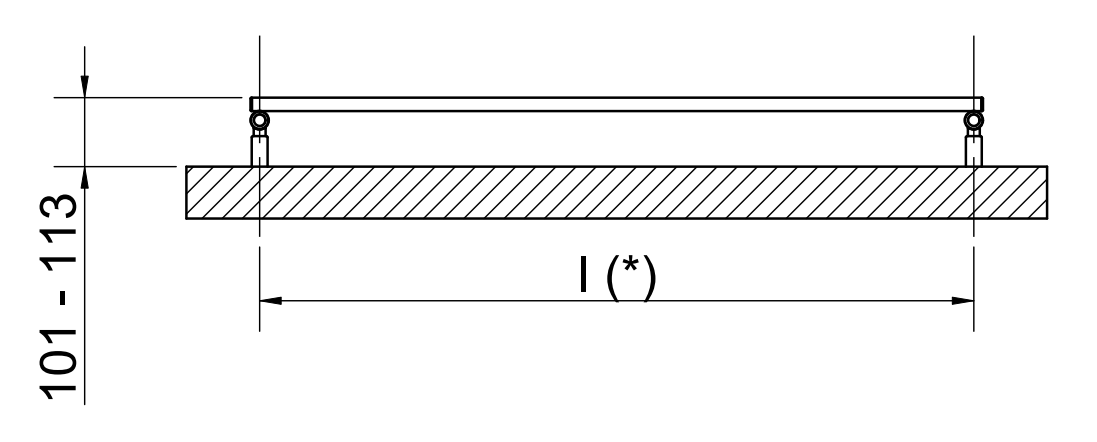

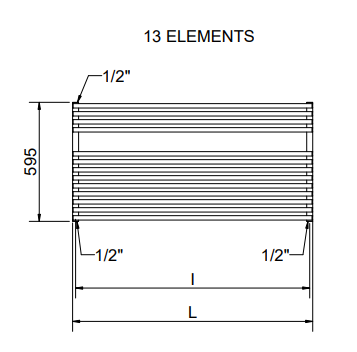

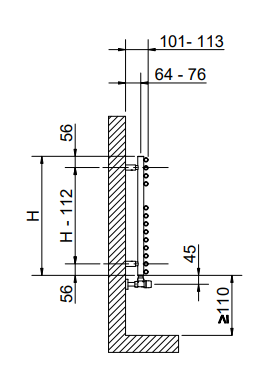

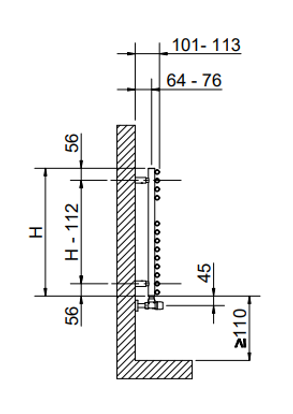

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
TECHNICAL DATA
| HEIGHT | WIDTH L | PIPE CENTRES | ART. NR | DRY WEIGHT | SURFACE | WATER CONTENT | THERMAL OUTPUT Δt=50°C | THERMAL OUTPUT Δt=30°C | EXP | DUAL ENERGY KIT |
|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | I (mm) | R01 White | (Kg) | (m²) | (lt) | (Watt) | (Watt) | n | [Watt] |
| 395 | 1200 | 1170 | 3551666100001 | 6.7 | 0.73 | 3.5 | 488 | 268 | 1.1717 | 400 |
| 395 | 1400 | 1370 | 3551666100003 | 7.7 | 0.85 | 3.8 | 565 | 308 | 1.1860 | 400 |
| 595 | 1200 | 1170 | 3551666100002 | 10.8 | 1.9 | 5.3 | 788 | 425 | 1.2070 | 700 |
| 595 | 1400 | 1370 | 3551666100004 | 12.4 | 1.37 | 6.2 | 911 | 495 | 1.1954 | 700 |
