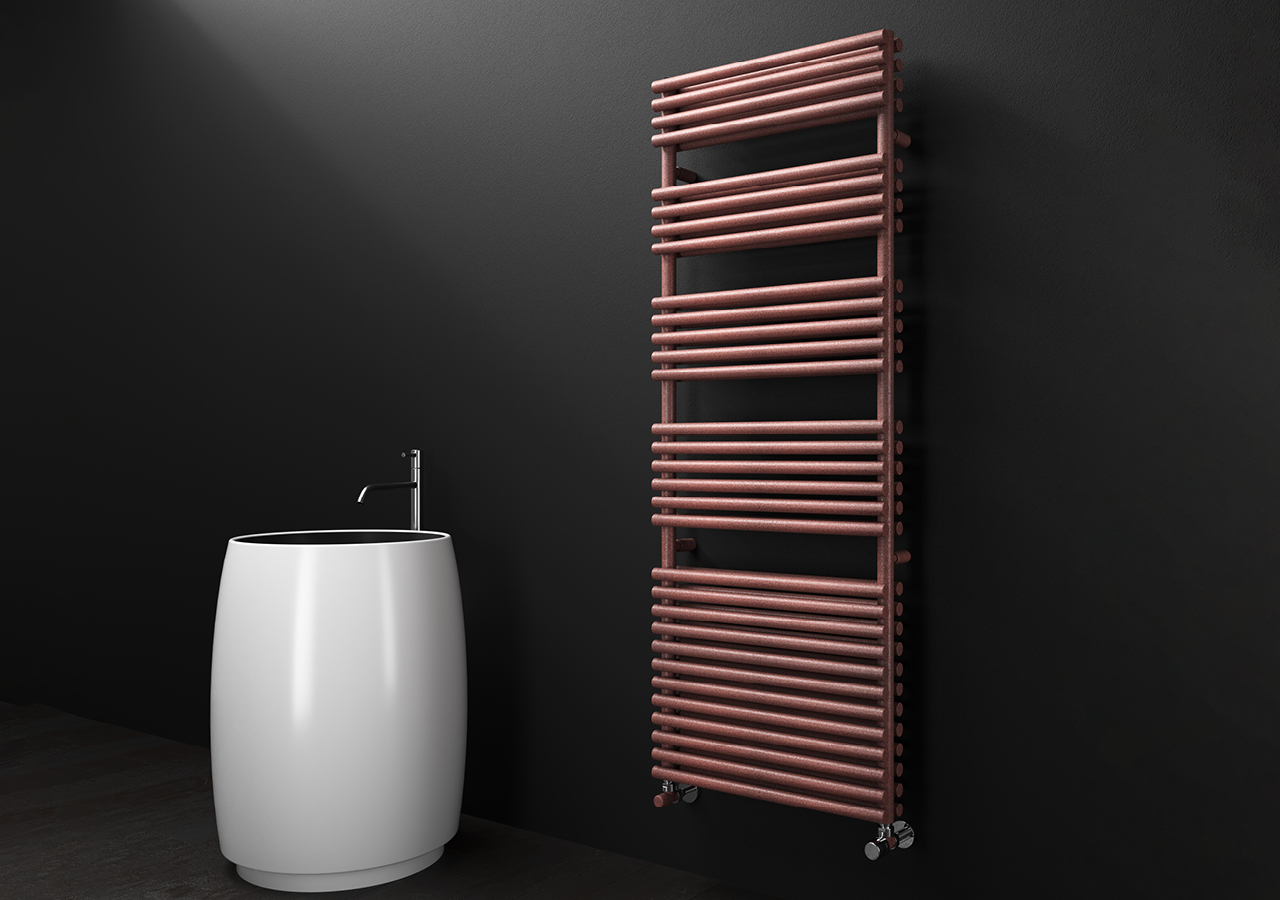

Cordivari Lucy 25 Plus Radiators
LUCY 25 PLUS RADIATORS
LUCY 25 PLUS RADIATORS
The quality of construction, the cleanliness of the welds and the excellent painting process guarantee high reliability. The design of the thermal circuit guarantees very high outputs.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Radiator
MATERIAL

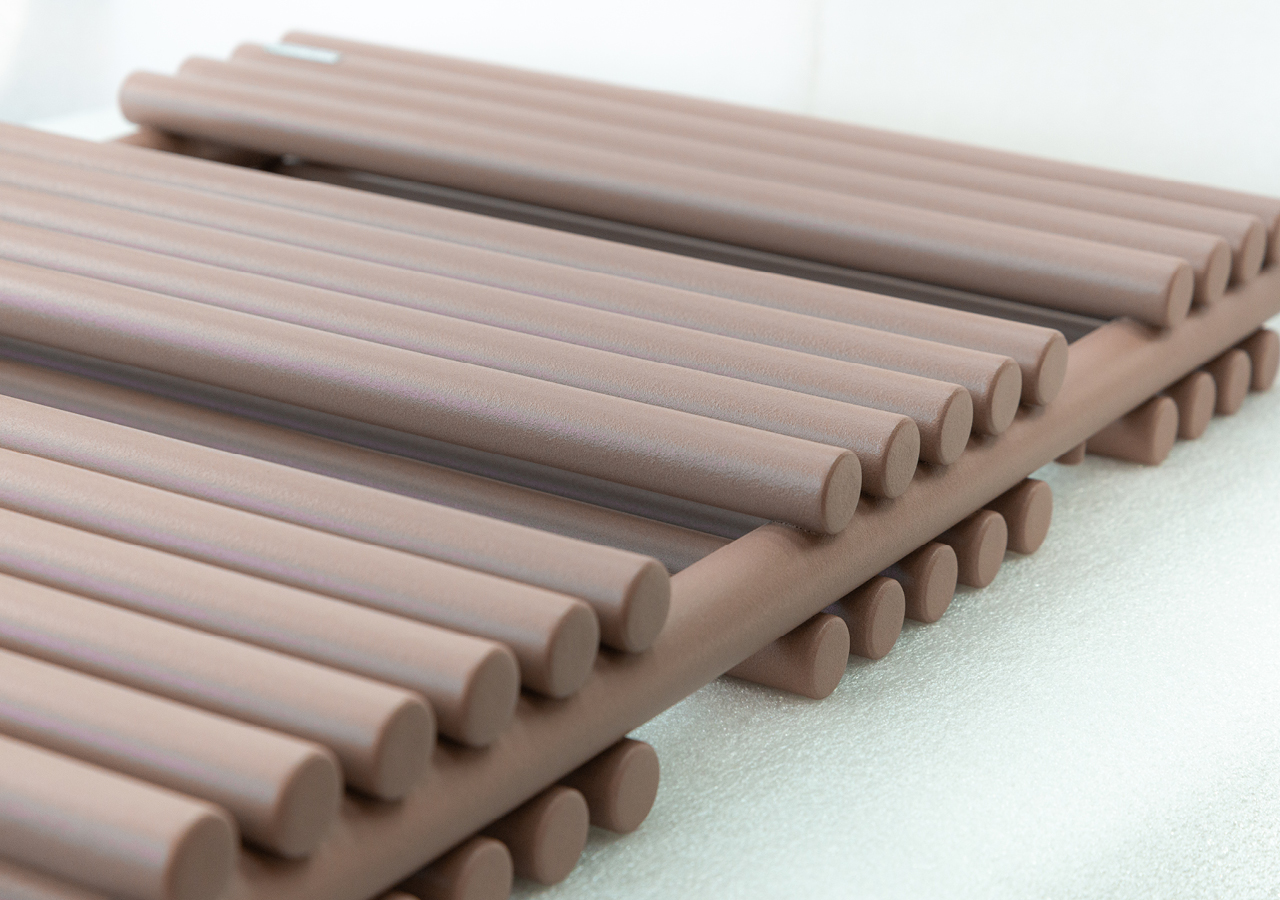

- Ø 30 mm collectors in painted mild steel.
- Ø 25 mm double horizontal heating elements in painted mild steel.
QUALITY
LUCY 25 PLUS can be customized in over 80 colours, including glossy, opaque and mattery shades.
FIXING KIT
- The fixing kit is compliant with VDI 6036 norm, class 4.
- Brackets, hex key, airvent, dowels and screws suitable for use on solid walls or perforated bricks, assembly instructions.
COLLECTION
Lucy
PRODUCTION
Made in Italy
WARRANTY
5 Years
USE
Heating
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
FEATURES
- P. max: 8 bar
- T. max: 110°C
AVAILABLE FUNCTIONS
- Hot water
- Dual energy
ENVIRONMENT
Indoor
DIMENSIONS
600X1886 mm
PACKAGING
Cardboard angular and profiles protected by a recyclable film in polyethylene. User notice included.
FUNCTIONING
Hot Water
CONNECTIONS
n° 2 x 1/2” G - 1 x 1/2” G
FINISH
With epoxy polyester powders with DIN 55900-1,-2 certified process

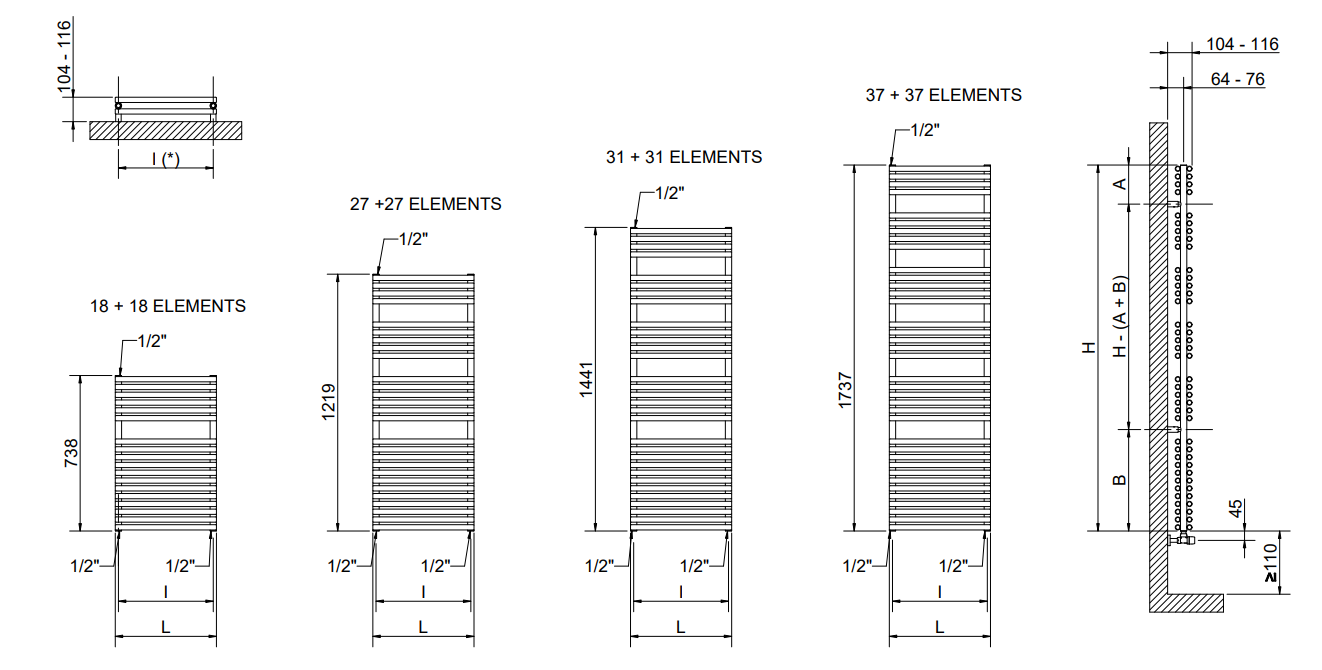

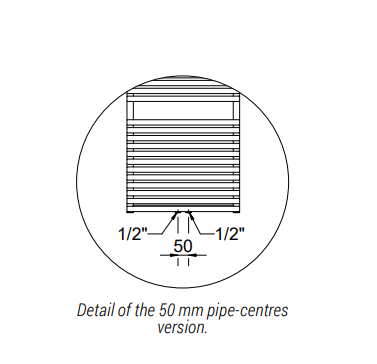

TECHNICAL DRAWINGS
MANUFACTURING
Produced in an ISO 14001 certified plant in Italy. Components come from Europe. Raw materials and their transport to the production site, various production phases of the finished product, and waste treatment were considered.
OUTPUT (W)
1041 (Δt=50°C)
REFERENCE PRODUCT CATEGORY
Hot water radiators
SUBCATEGORY
Passive devices - Static hot water radiator
DISTRIBUTION
Product and packaging delivery: 1500 km by truck
USAGE
The hot water radiator or towel radiator does not require any maintenance or care during the use phase. Additionally, once installed, no energy consumption is expected.
INSTALLATION
The product does not require any special installation procedure as it is manually performed by a professional with portable tools and does not require energy. This phase includes the end-of-life treatment of the packaging according to the PSR-0011-ed2.0 EN-2023 06 06 standards.
PRODUCT MASS (INCLUDING PACKAGING)
23,381 kg
PACKAGING MASS
2,079 kg

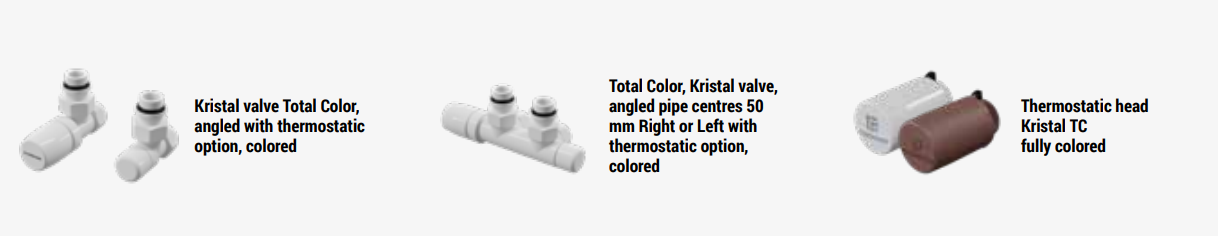

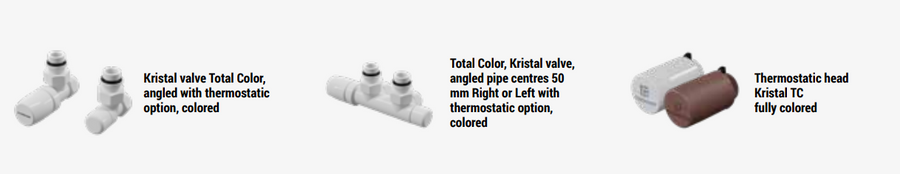

AVAILABLE ACCESSORIES
