Ecosmart Fire heritage 42ss Fireplace
HERITAGE 42SS FIREPLACE
HERITAGE 42SS FIREPLACE
The Heritage Firebox Series reimagines the classic hearth for modern homes, blending timeless aesthetics with innovative technology. Builders gain a streamlined, future-ready solution that installs effortlessly and exceeds emerging standards - all while homeowners bask in the timeless ambiance of a perfectly reimagined flame.
FEATURES
VERSATILE APPLICATION
Can be installed in various locations, including high-rise buildings, without traditional fireplace constraints. Perfect for compact living spaces and small room application.
NO GAS, NO FLUE, NO ELECTRICITY
Our ethanol burners are self-contained and require no gas or electrical utility connections - speeding up installation. There’s no need for a chimney to vent harmful gases, as burning liquid e-NRG bioethanol does not produce any harmful emissions or smoke.
ECO-FRIENDLY HOME AMENITY
Meets growing consumer demand for sustainable living solutions.
AUTHENTIC TRADITIONAL AESTHETIC
Formulated for use in ventless ethanol fireplaces, e-NRG Fire-rated wood logs and iron grate design create a classic fireplace look.
INFORMATION
BRAND
Ecosmart Fire
PRODUCT TYPE
Fireplace
COLLECTION
Heritage 42SS
PRODUCTION
100% Made in Germany
APPLICATION
- Indoor
- Outdoor
HEATS ON AVERAGE (HOW MUCH SPACE IT HEATS )
35 m²
WEIGHT
57.4 kg
THERMAL OUTPUT (HOW MUCH HEAT IT CREATES)
13.72 MJ/h - 4 kW
FUEL CONSUMPTION (HOW MUCH FUEL IT CONSUMES ON MAX)
0.64 L/h
BURNER CONFIGURATION (URNER CONFIGURATIONCOMPATIBLE WITH THIS MODEL)
BK5
VOLUME CAPACITY (HOW MUCH FUEL)
5 L

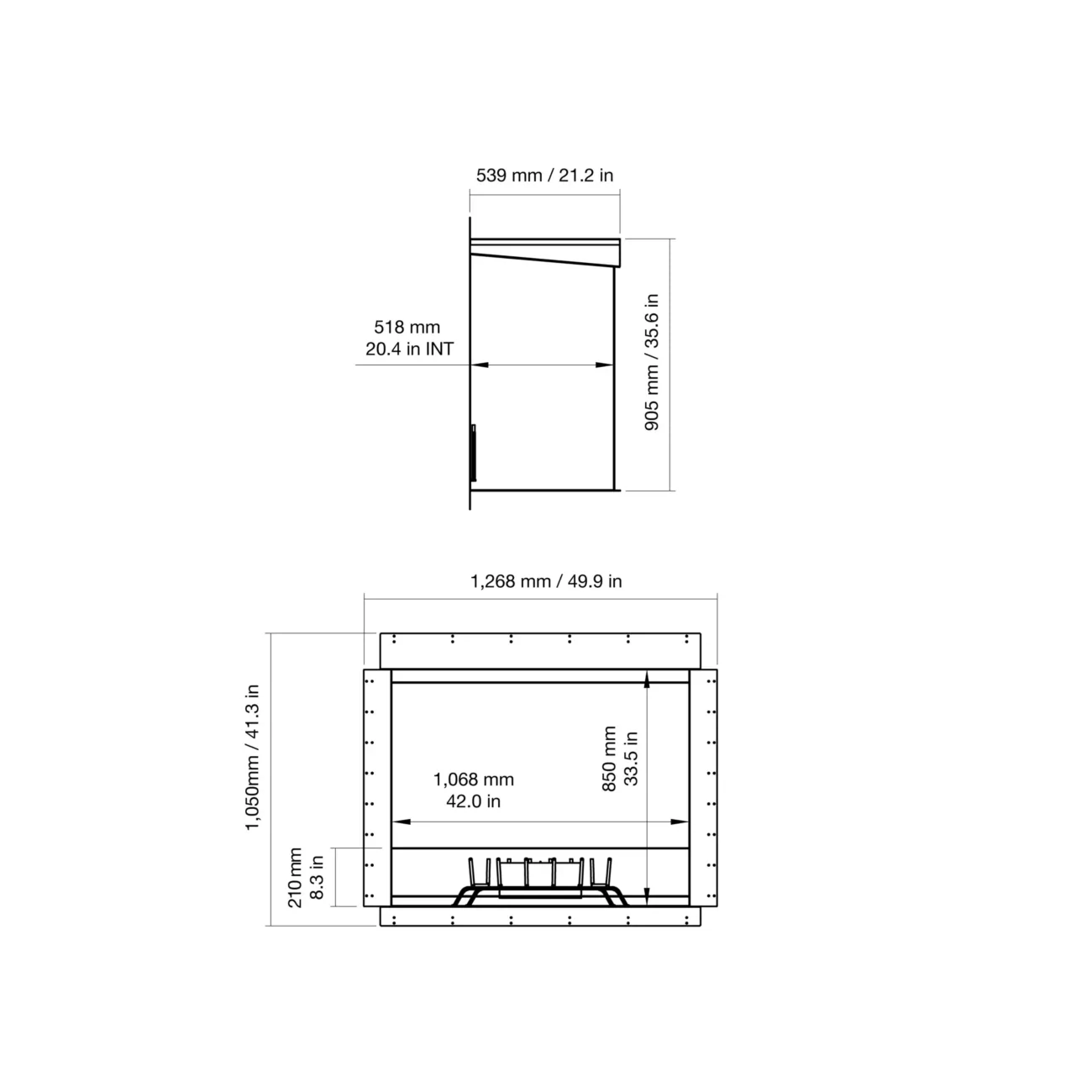

DIMENSIONS
- Width : 1.268 mm
- Height : 1.053 mm
- Depth : 539 mm
COLOUR
- Burner : Stainless Steel
- Model : Black
MINIMUM ROOM SIZE (REQUIRED FOR THIS BURNER)
70 m³
MATERIAL
Mild Steel (Zinc Sealed, High-Temp Powder Coat) Surround; 1.2mm SECC Steel Grate Tray; 10mm SECC Steel Grate Bars; Grade 304 Stainless Steel Burner; Toughened Glass Fire Screen
APPLICATION
Homes
BURN TIME (HOW LONG IT LASTS)
7-11 h5 L
EFFICIENCY
EFFICIENCY
| BURNER INFORMATION | ALL FLAME | BOX LEFT/RIGHT |
|---|---|---|
| Burner Configuration - Compatible With This Model | XL900 | XL500 |
| Volume Capacity - How Much Fuel | 9 L | 5 L |
| Thermal Output - How Much It Heats | 15.83 MJ/h - 4 kW | 12.06 MJ/h - 3 kW |
| Burn Time - How Long It Lasts | 8-13 h 9 L | 10-13 h 5 L |
| Fuel Consumption - How Long It Lasts | 0.8 L/h | 0.5 L/h |
| Heats On Average - How Much Space It Heats | 60 m² | 40 m² |
| Minimum Room Size - Required For This Config | 110 m³ | 80 m³ |
ACCESSORIES
GLASS FIRE SCREEN
Paired with a glass fire screen, to stabilises the flame in windy conditions.
GRATE INSERT
Crafted from 1.2mm SECC steel with hi-temp powder coating, our fireplace grates offer enduring strength and style.
JERRY CAN 5L
Safety features include automatic stop flow, fast flow rate, locking thumb button control, and self-venting system. Enables safe storage and decanting of e-NRG.
FIRE LIGHTER
This refillable butane lighter supports the safe ignition of the lighting rod. The length of the lighter further enhances the management of the lighting process.
LIGHTING ROD
This operational accessory enables you to safely adjust the slider position of the Burner at any time. It is also used for the ignition and extinguishing procedures.
BOTTLE ADAPTOR
The adaptor connects the safety spout from the Jerry Can straight onto the e-NRG bottle making fuelling the fire quicker and easier.
