Faraone Linea - 3 Maxi Canopy
LINEA - 3 MAXI CANOPY
LINEA - 3 MAXI CANOPY

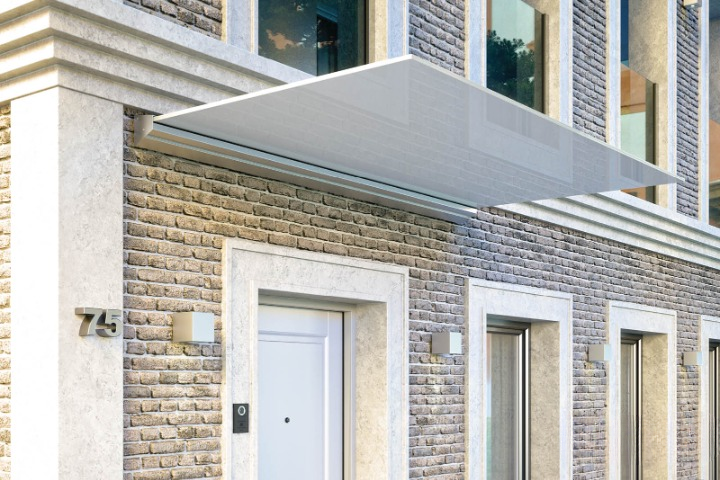

The glass canopy that combines innovation, safety, and design.
INFORMATION
BRAND
Faraone
PRODUCT TYPE
Canopy
COLLECTION
Linea
MATERIAL
Glass
EFFECTS
New lighting effects
for your entrance
STRUCTURE
Extruded aluminium profile, resistant to weathering and corrosion, ensuring durability and structural stability.

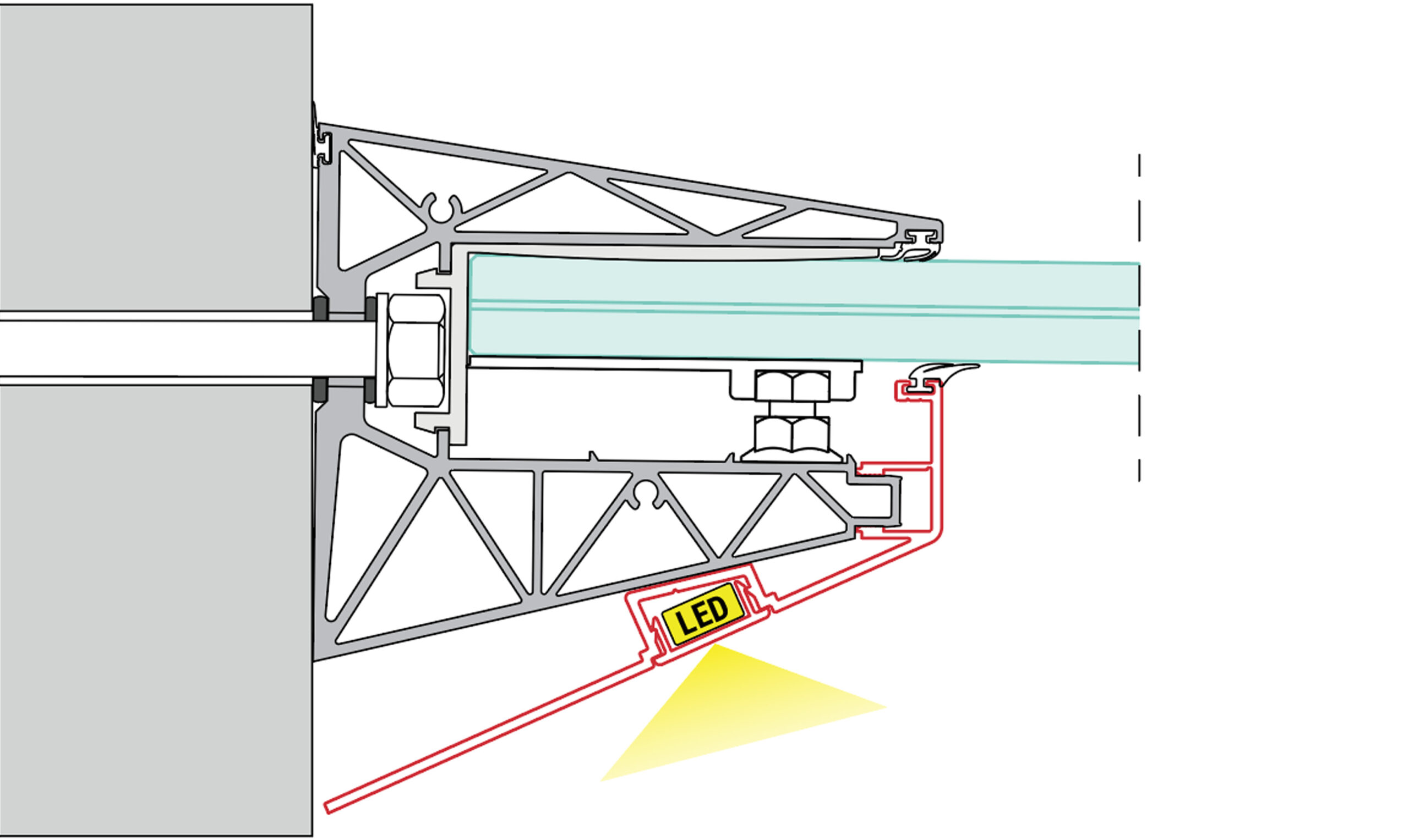

SYSTEM
The system is designed to provide uniform and continuous lighting at the bottom of the canopy, with an exclusive profile to house the LEDs
AVAILABLE FINISHES
4
LIGHTING
At Bottom
PRODUCTION
Made in Italy
ENVIRONMENT
Outdoor
FINISHES
- 2000 colori RAL
- Silver satin anodised
- White RAL 9010 matt
- Black RAL 9005 matt
PROJECTION
The 160 cm of projection is ideal for solutions that require a large projection, offering protection against rain and snow or serving as a sunshade (opaque plastic or coloured glass).

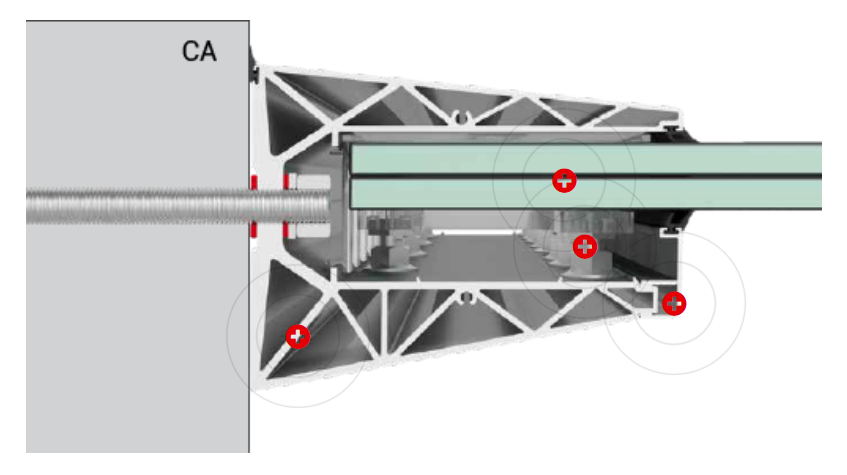

SAFETY SYSTEM

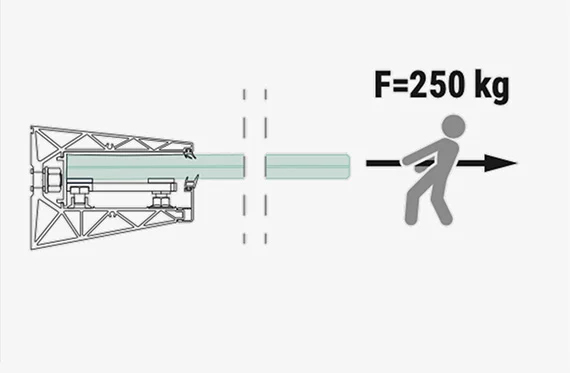

New anti pull out safety system

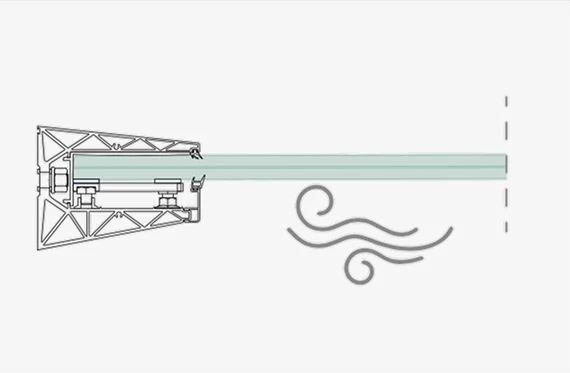

- The tested and innovative wind safety system.
- No machining or notches in the glass (cost reduction).
LIGHTING
Bottom of the canopy
TYPE OF LIGHT
LED

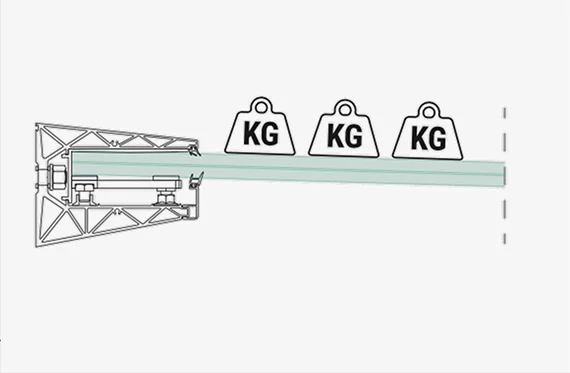

LOAD CAPACITY
TYPE OF GLASS
GLASS
Tempered safety glass with polished edges for optimal safety.

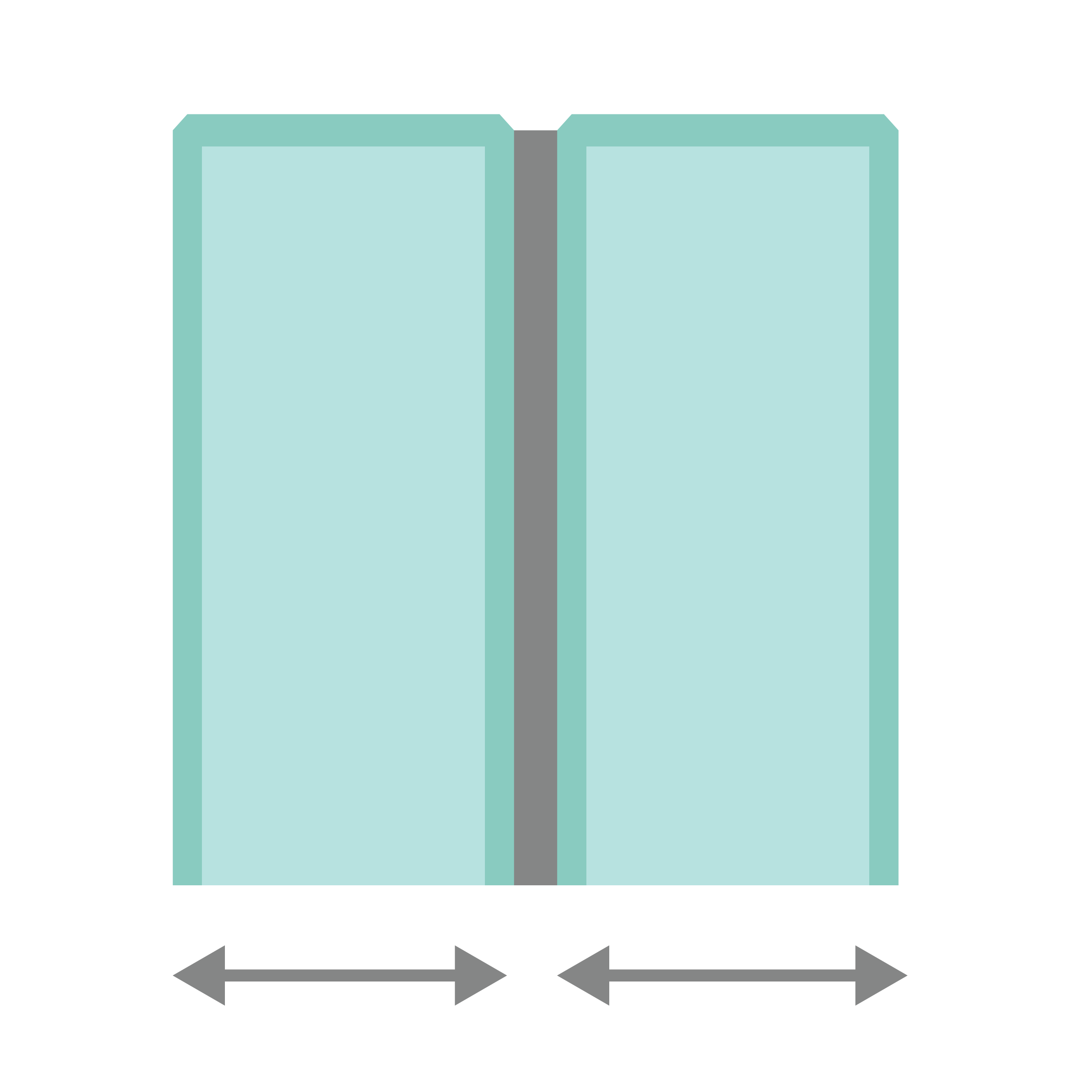

10+10+1.52 LAMINATED TEMPERED GLASS
Rigid plastic interlayer type 2 (SG type, X-LAB, ABAR), with a projection up to 150 cm.
12+12+1.52 LAMINATED TEMPERED GLASS
Rigid plastic interlayer type 2 (SG type, X-LAB, ABAR), with a projection up to 160 cm.
PERFORMANCE VALUES
LABORATORY TEST LINEA MAXI 3
-Fastening excluded -Laminated tempered glass with rigid plastic from family 2 (type SG, X-LAB, ABAR)
| GLASS INDICATED (RIGID PLASTIC INTERLAYER) | SNOW LOAD (KG/M2) | WIND LOAD (KG/M2) | PULL OUT (KG) |
|---|---|---|---|
| 10(T)+10(T) SG 1000X1200 mm | 850 | 450 | 250 |
| 10(T)+10(T) SG 1000X1500 mm | 700 | 450 | 250 |
| 12(T)+12(T) SG 1000X1200 mm | 1000 | 450 | 250 |
| 12(T)+12(T) SG 1000X1500 mm | 850 | 400 | 250 |
| 12(T)+12(T) SG 1000X1600 mm | 600 | 350 | 250 |
