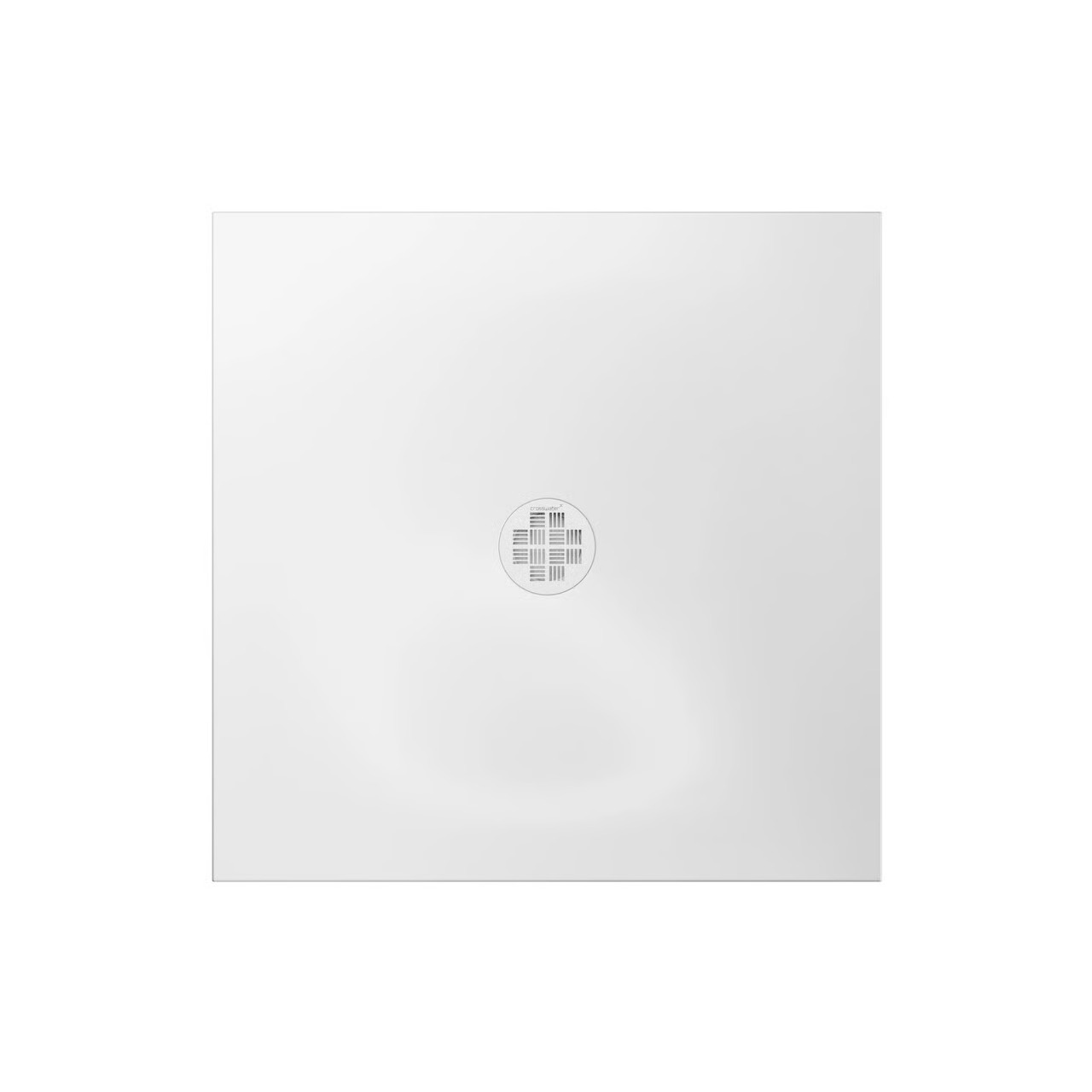

Crosswater Creo Square Shower Tray
CREO SQUARE SHOWER TRAY
CREO SQUARE SHOWER TRAY
No shower enclosure is complete without a shower tray. Complement your modern bathroom design with the latest in shower tray technology and design.
Crafted from engineered stone and hand finished to perfection, the Creo Shower Tray offers exceptional impact resistance, outstanding thermal shock properties and natural sound insulation; an extraordinary delight for the senses from the first step in, to the last step out.
INFORMATION
BRAND
Crosswater
PRODUCT TYPE
Shower Tray
PRODUCT CODE
- CRS800X800W
- CRS900X900W
BAR CODE
- 5056553419047 (800x800 mm)
- 5056553419030 (900x900 mm)
ANTI-SLIP CLASS
Class A DIN 51097
COLLECTION
Creo
DRYING AREA
No
STANDARDS
EN 14527:2016+A1:2018
WASTE LOCATION
Center
FINISH APPLICATION
- Gelcoat
- Nanocoat
DESIGN
The Creo portfolio offers a range of shapes and sizes to fit any modern bathroom design.
DETAIL
- Colourfast and stain resistant finish
- Made from 100% recyclable Dolomite engineered stone
- Conforms to Class A anti-slip standards under DIN 51097
- Offers excellent thermal shock properties and natural sound insulation
- Features a 25mm low profile design, providing a sleek and contemporary look
COLOR
Gloss White (RAL 9016)
WASTE INCLUDED
No
PRIMARY MATERIAL
Engineered Stone
INSTALL TYPE
Floor Mounted
WARRANTY DETAIL
Lifetime
PRODUCTION
Made in United Kingdom
USE
Bathroom
PRODUCT WEIGHT
- 21.85kg (800x800mm)
- 27.31kg (900x900mm)
WASTE SHAPE
Circular
WASTE HOLE DIAMETER
90 mm
WASTE WATER FLOW RATE LPM
30 lpm
OUTER EDGE DIMENSION - TRAYS
60 mm
TOLERANCE
- Tray plane tolerance : +2/-2 mm
- Tray width tolerance : +5/0 mm
- Tray length tolerance : +5/0 mm
- Tray height tolerance : +2/-2 mm
- Tray waste hole tolerance : +1/-1 mm
TREAT YOUR FEET
The Creo Shower Tray provides an extra layer of relaxation to your shower experience. Warm and smooth to the touch, the tray is colourfast and stain resistant to day-to-day chemicals making it the perfect addition to your modern bathroom. Featuring a central drainage system with almost invisible gullies and a high-flow waste, no shallow pools of water can form on your shower floor, allowing your feet to have a serene experience every time.
RISER KIT INCLUDED
No
RISER KIT COMPATIBLE
Yes
EXPECT EXCELLENCE FROM EVERY CREO SHOWER TRAY
-Made from 100% recyclable Dolomite engineered stone in a factory with over 40 years' experience working with this material -Dolomite is an extremely durable material, giving the shower tray exceptional impact resistance and outstanding thermal shock properties -Natural sound insulation -Class A anti-slip performance tested to industry standards
-Coated with a permanent Nano coat, ensuring the surface is non-porous and antibacterial -Colourfast and stain resistant to day-to-day chemicals -A shower tray made from Dolomite requires considerably less energy to produce than alternative materials - Produced in a factory that uses 100% solar energy Every shower tray is hand finished to ensure high-quality perfectionvery shower tray is hand finished to ensure high-quality perfection

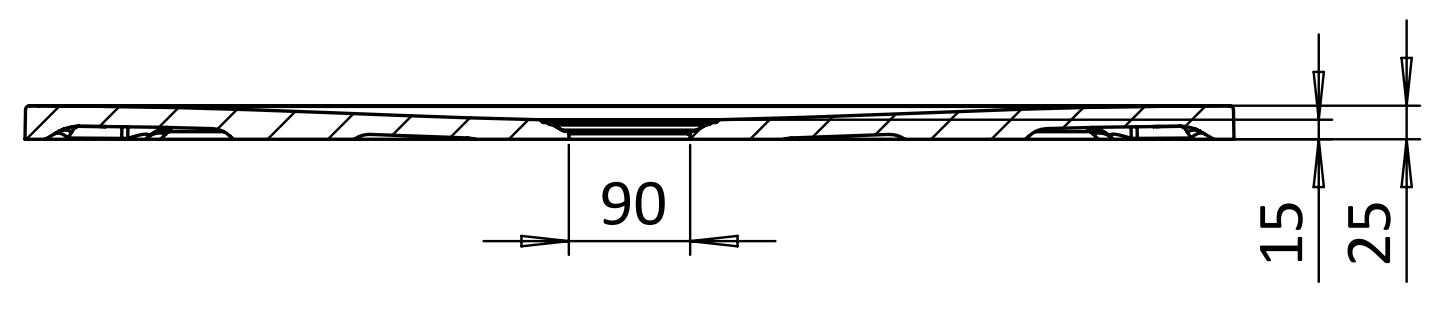

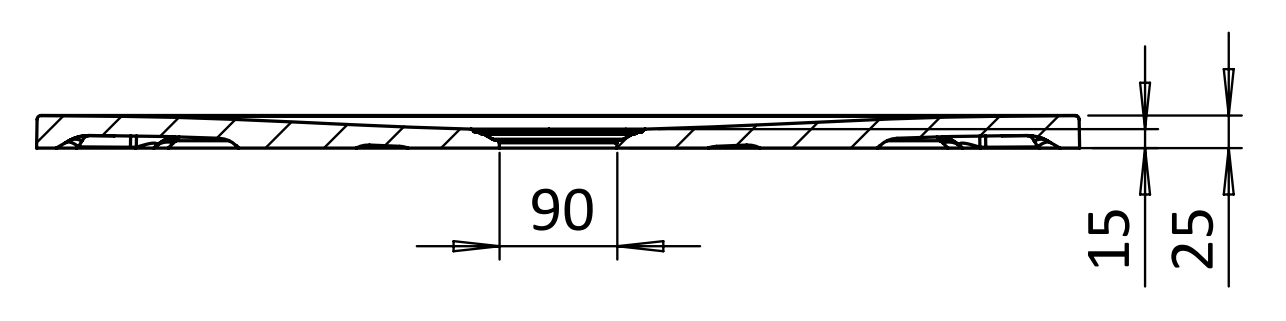

DIMENSIONS

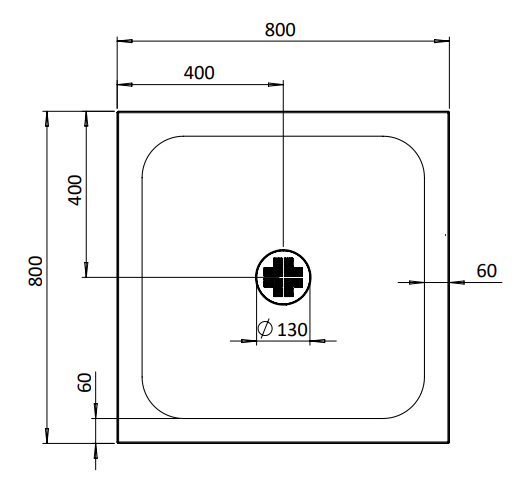

DIMENSIONS - 1 (800x800mm)
-Width : 800 mm -Height : 25 mm -Length : 800 mm

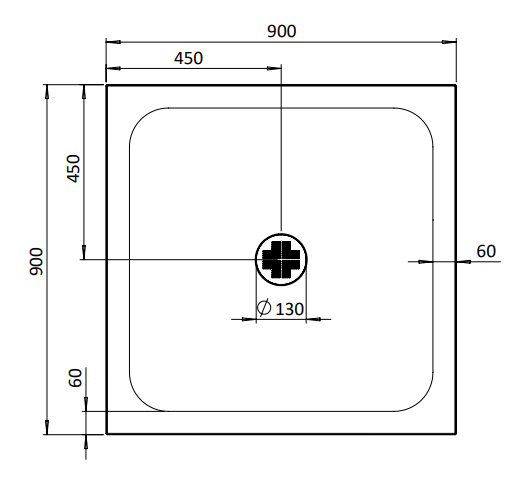

DIMENSIONS - 2 (900x900 MM)
-Width : 900 mm -Height : 25 mm -Length : 900 mm
