SCHINDLER 5000 TRACTION ELEVATOR LIFT
SCHINDLER 5000 TRACTION ELEVATOR LIFT
A leading energy-efficient MRL in North America
Designed for comfort and fit for the future, the Schindler 5000 offers more solutions, curated design options, and advanced connectivity—all while requiring less building space.
INFORMATION
BRAND
Schindler
PRODUCT TYPE
Elevator Lift
APPLICATION
Service & Passenger
PRODUCTION
Made in United States
INTERIOR
Spectrum of styles, colors, and options
SPEED
- 150 fpm
- 200 fpm
- 350 fpm
MAX. STOPS
21
CAPACITY
2.100 - 5.000 lbs. AIA
DRIVE SYSTEM
Regenerative Drive Standard
MAX. TRAVEL HEIGHT
170'
CAB HEIGHTS
- 7’-9”
- 9’, 10’
DOOR HEIGHTS
- 7"
- 8"
- 9"
DOOR WIDTHS
- 36”
- 42”
- 48”
- 54”
GROUP SIZE
Up to 4 cars
MATERIAL
Steel & Glass
AN AWARD-WINNING SOLUTION
The Schindler 5000 takes our proven MRL technology to new levels. It offers taller cars, larger entrances, greater load capacities, and faster travel speeds, with all the features you expect today while anticipating the demands of tomorrow.
OPTIMIZE
OPTIMIZE YOUR BUILDING’S POTENTIAL
Schindler 5000’s machine room-less design means less space is required for components, freeing up valuable space in your building.

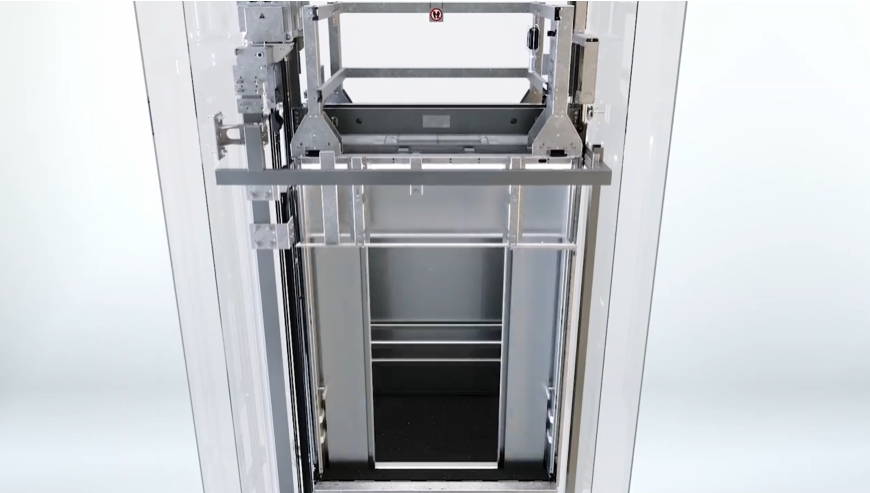

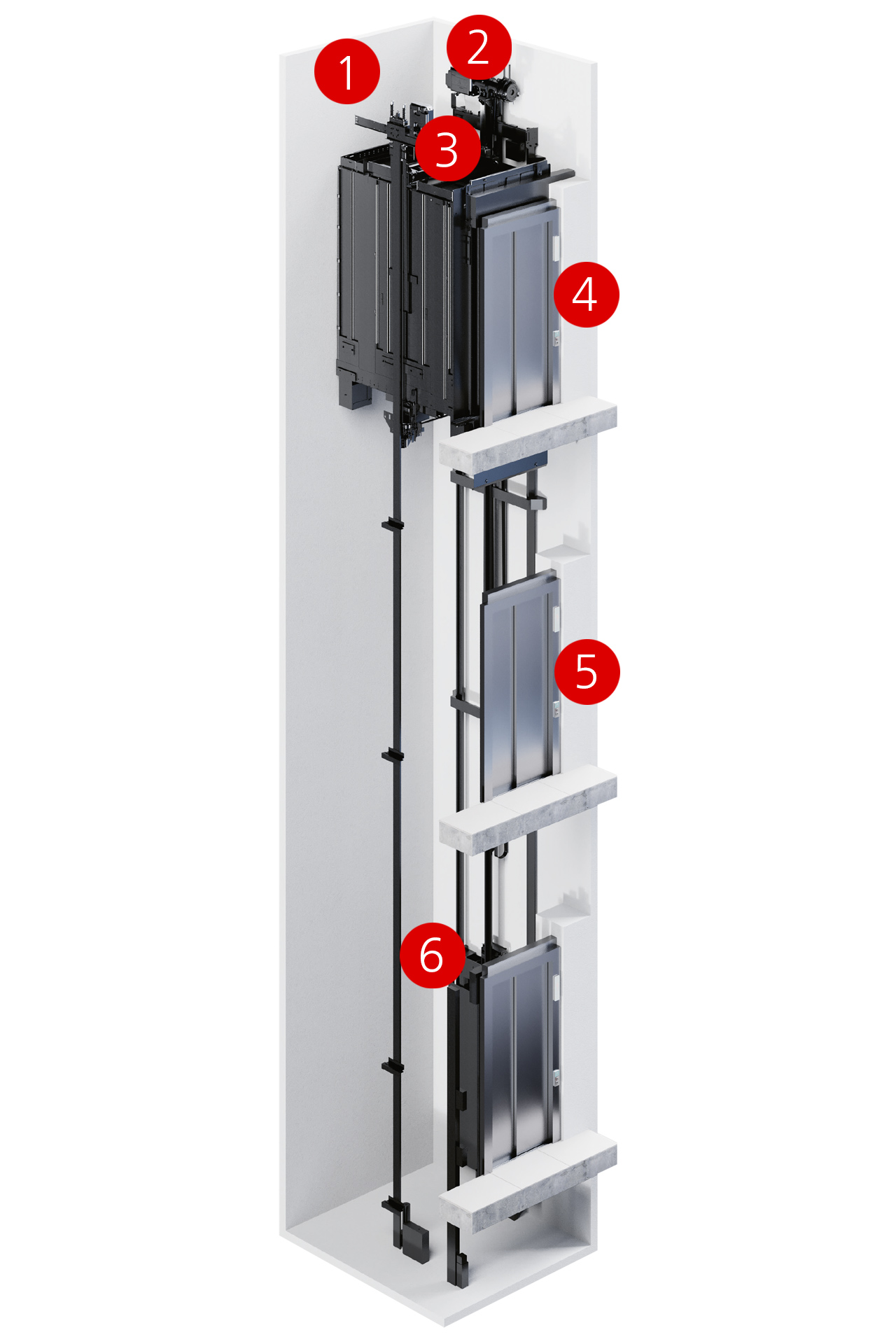

1. MACHINE ROOM-LESS DESIGN
Schindler 5000 saves valuable building space by combining the compact gearless machine, drive, and control equipment in the hoistway.

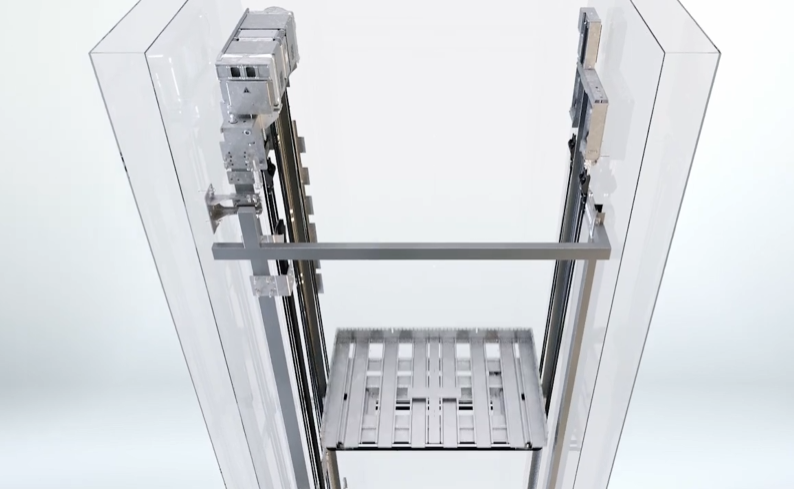

2. SMALLER MOTOR AND TRACTION SHEAVES
Schindler’s Suspension Traction Media (STM) provide a quieter, smoother ride and does not require any oil or lubricant. STM save shaft space due to the smaller motor and traction sheaves, 70% smaller than traditional systems. For passengers that means a smooth, quiet ride, while building owners enjoy increased reliability and efficiency.
3. REGENERATIVE DRIVES
Schindler 5000 elevators come standard with our innovative, regenerative drive system optimized to reduce travel energy up to 30% compared to conventional technology.
4. BUILT-IN INSPECTION AND TEST PANEL
Our Door Frame Cabinet (DFC) consolidates the controls, inspection and test panel, transfer switch, the connectivity hub, and electrical disconnects into one easy-to-access assembly. In addition, we've given you the flexibility to place the DFC on nearly any floor of the building.
5. DIGITALLY ENABLED
The Schindler 5000 elevator is fully digitally enabled for our Schindler Ahead portfolio of services, which allows you to connect to a range of digital options for reliable vertical mobility.
6. EFFICIENT DESIGN
From its reduced pit depths to its minimal hoistway overhead requirements, the Schindler 5000 is efficiently designed to prioritize space savings.
DESIGN OPTIONS
UNLEASH YOUR CREATIVE VISION
Exceptional design isn’t just visually appealing; it evokes emotions and cultivates a positive atmosphere. Schindler 5000 offers a carefully curated selection of contemporary colors and materials. We empower you with the freedom to personalize your elevator according to your unique ideas.

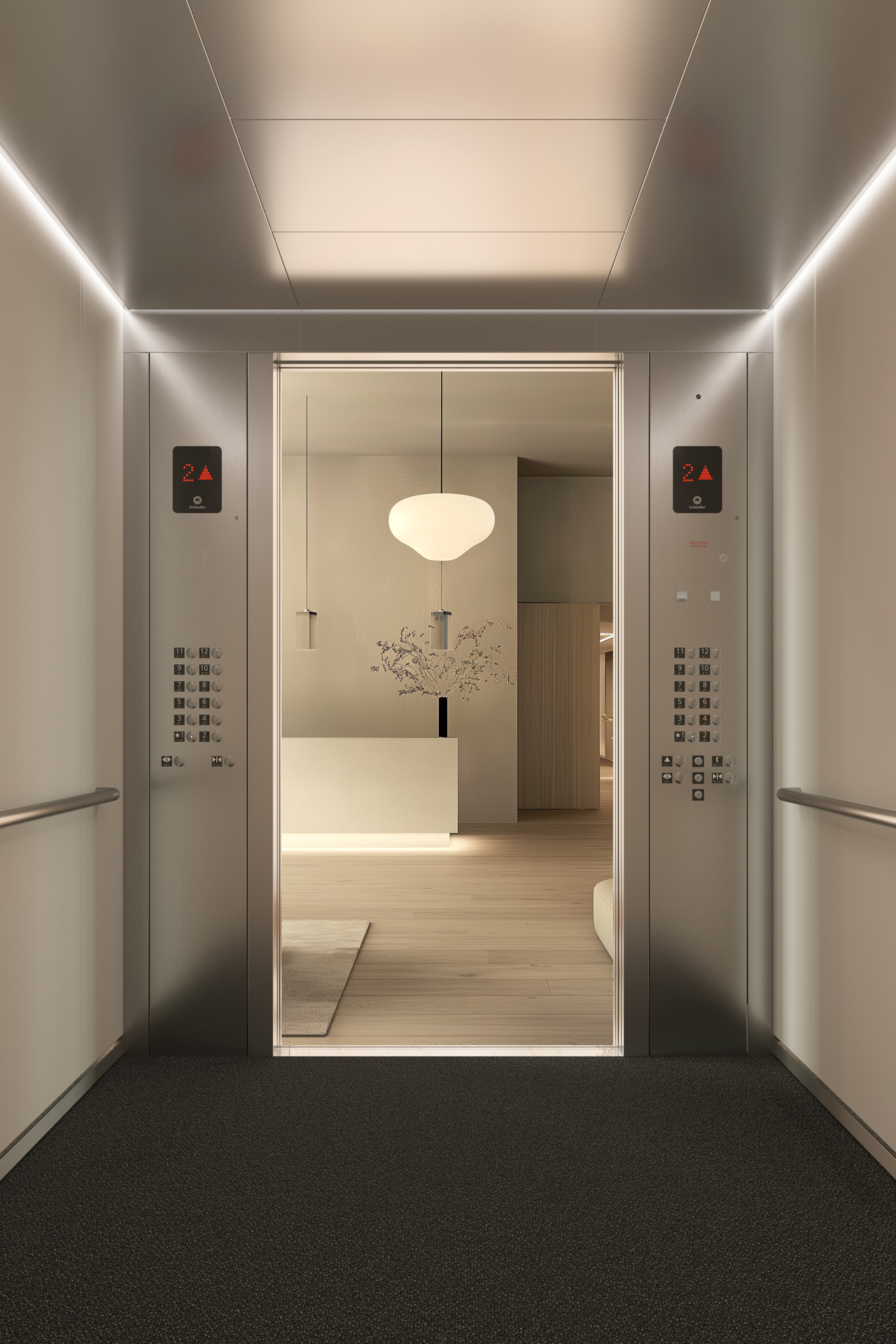

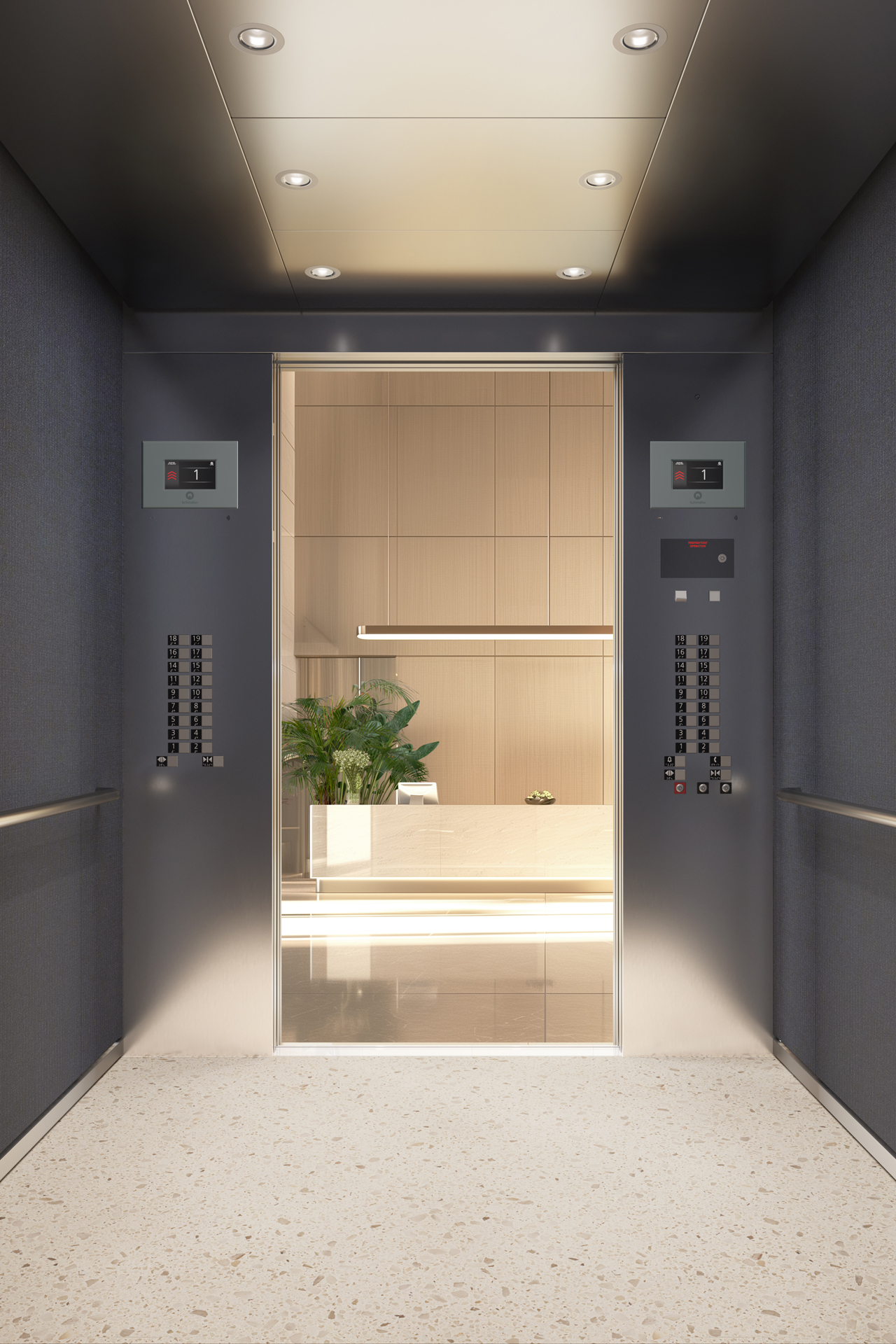

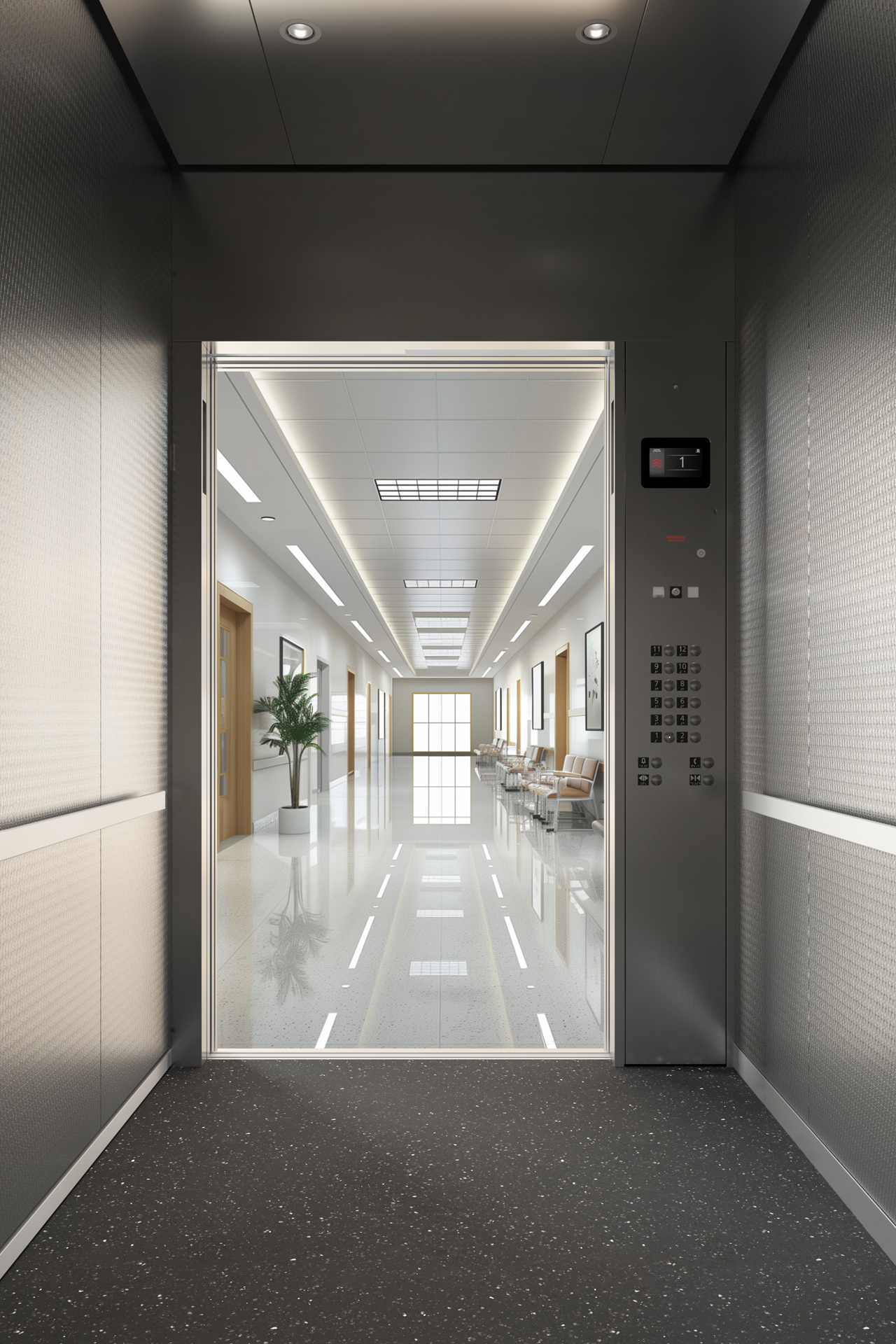

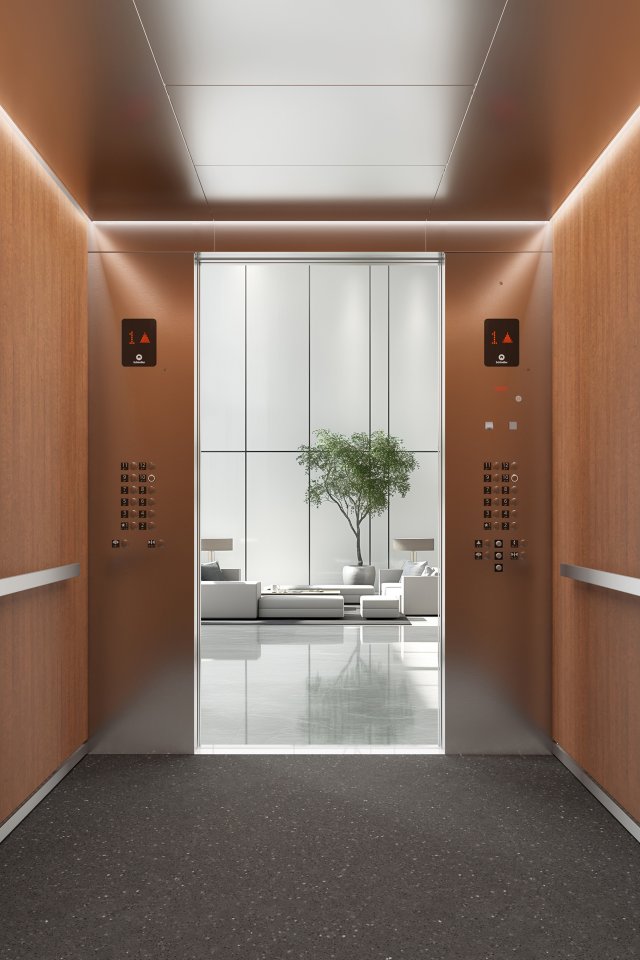

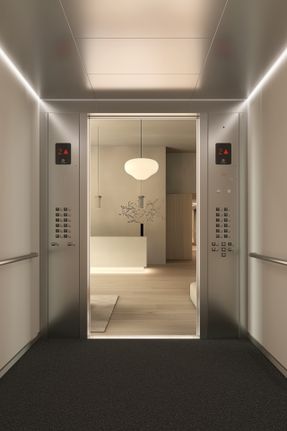

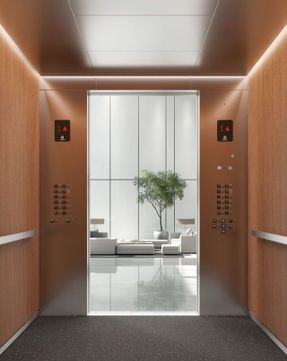

VERSATILE DESIGN OPTIONS
The Schindler 5000 comes standard with stylish stainless-steel fixtures and tempered safety glass accents. Round out your elevator design with a look and feel that suits your building decor with elegant metal options, or timeless woodgrain, textured, and solid laminates.
DETAIL
FUTURE-READY DESIGN
Our vision goes beyond transporting passengers; it focuses on providing smart solutions for architects, general contractors, building owners, and passengers. The Schindler 5000 is readily enabled for advanced options like Schindler Ahead, Schindler SafeCall, and more.
EFFICIENT, ECOLOGICAL PERFORMANCE
The Schindler 5000 includes smart solutions like regenerative drives, permanent magnet gearless machines that save energy, LED lighting, and automatic sleep mode so you only use power when you need it.
MINIMIZED BUILDING INTERFACES
The Schindler 5000 smartly minimizes building interfaces with its streamlined components such as the Door Frame Cabinet (DFC), which reduces field coordination and the elevator's building footprint.
OPTIMIZED SCHEDULE AND INSTALLATION
Through ordering, delivery, and installation, our efficient methods help projects stay on track. The elevator is delivered just in time when the building is ready for the installation. The install is quick, and no cranes or scaffolding are required.
