Cordivari Rosy Mirror Living Radiator

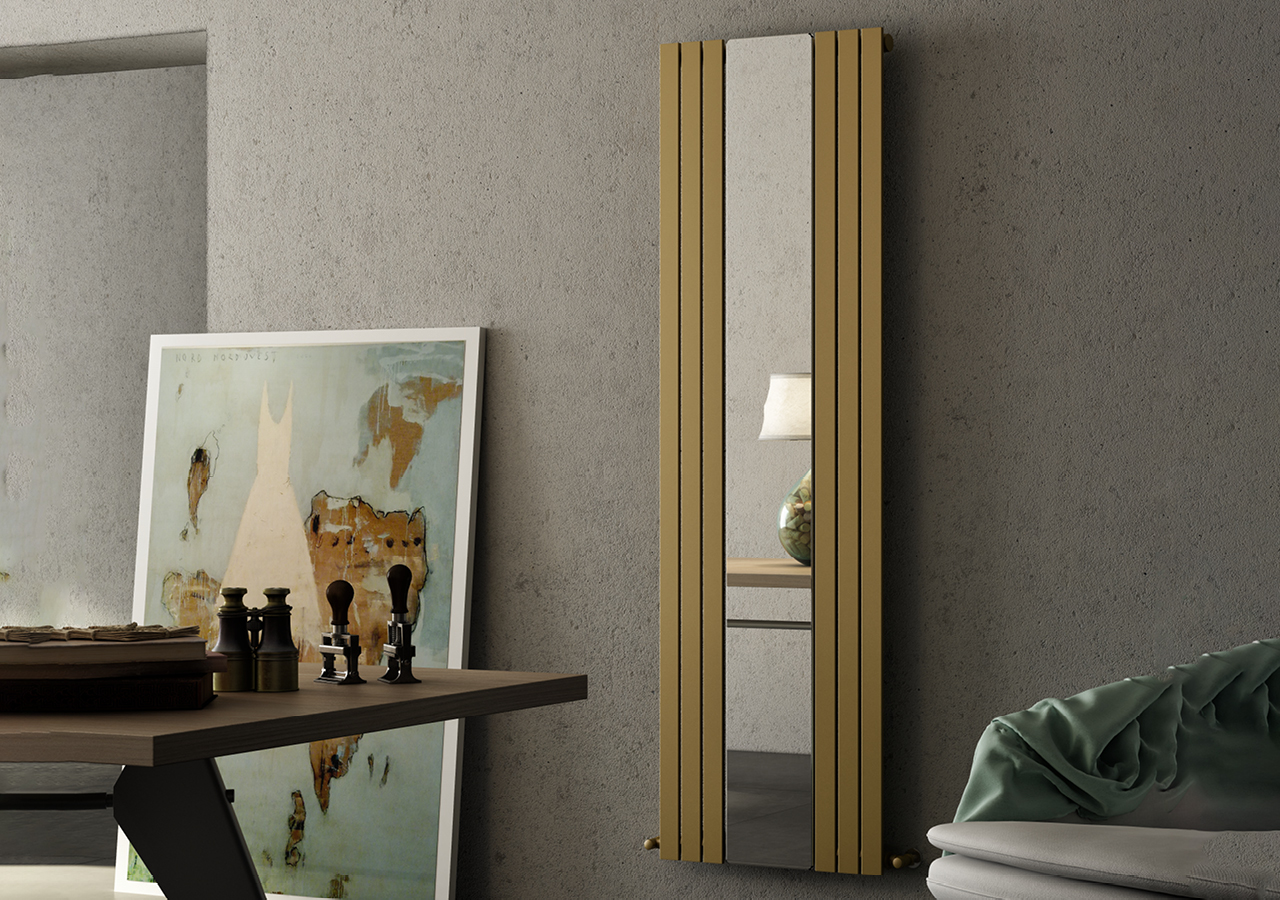

ROSY MIRROR LIVING RADIATOR
ROSY MIRROR LIVING RADIATOR
The quality of construction, the cleanliness of the welds and the excellent painting process guarantee high reliability. The design of the thermal circuit guarantees very high outputs.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Radiator
CONNECTION
n° 2 x 1/2” G - 1 x 1/8” G
COLLECTION
Rosy
ENVIRONMENT
Indoor
MATERIAL
-Mirror -Ø 38 mm horizontal collectors in painted mild steel. -50×10 mm vertical heating elements in painted mild steel.
USE
Heating
PRODUCTION
Made in Italy
PRESSURE
Max. 5 bar
TEMPERATURE
Max. 110°C
SHADES
Rosy mirror can be customized in over 80 colours, including glossy, opaque and mattery shades.
FIXING KIT
Brackets, hex key, airvent, dowels and screws suitable for use on solid walls or perforated bricks, assembly instructions.
SPECIAL CONNECTIONS
Always specify the kind of connection needed when ordering. Bidirectional pipe connection not available.
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
PACKAGING
- User notice included.
- The radiator is delivered in a wooden crate.
WARRANTY
5 Years
FUNCTIONING
Hot Water

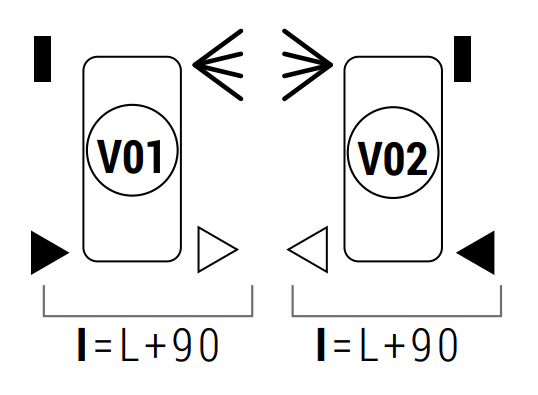

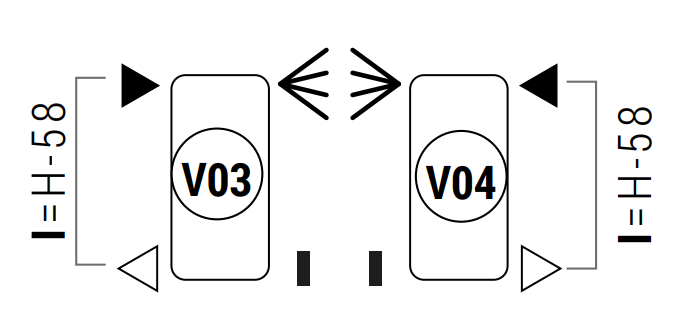

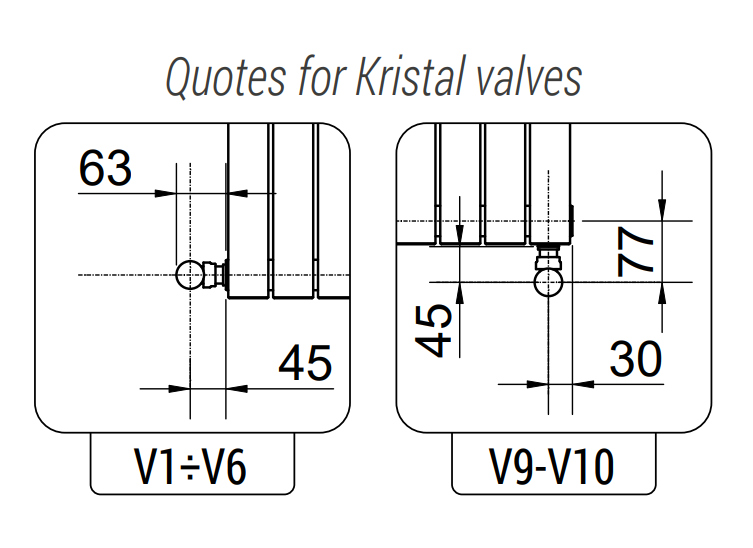

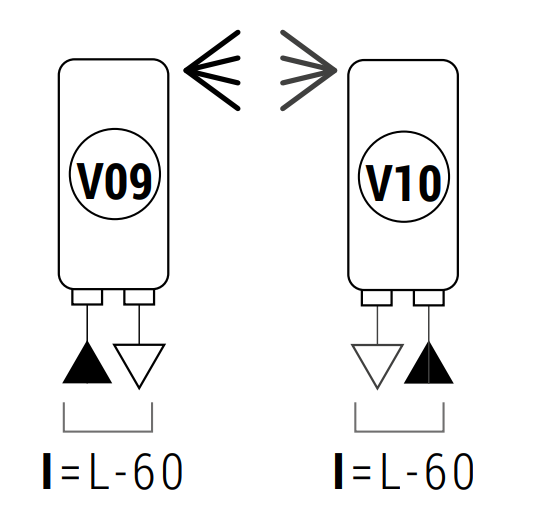

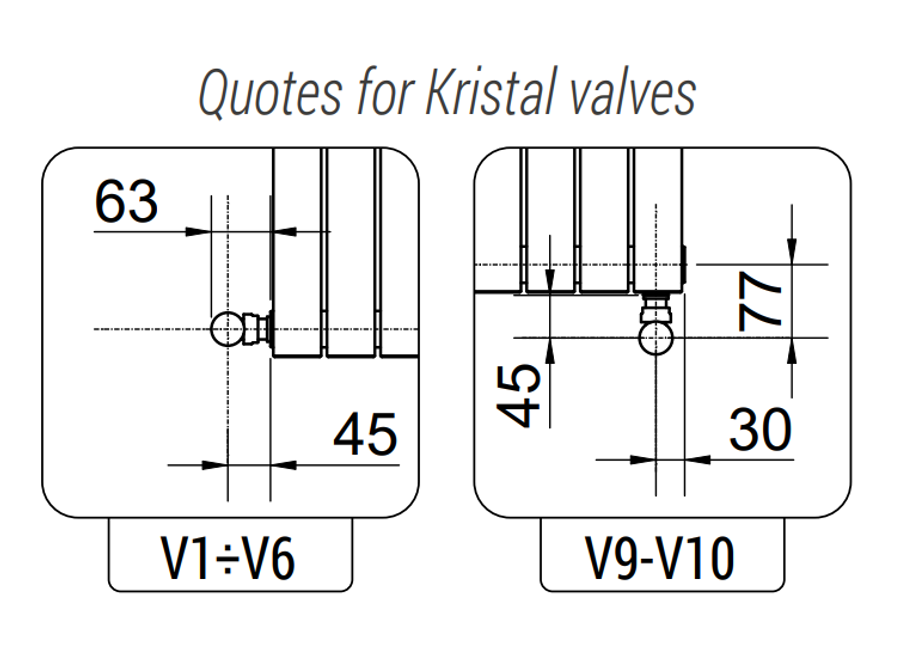

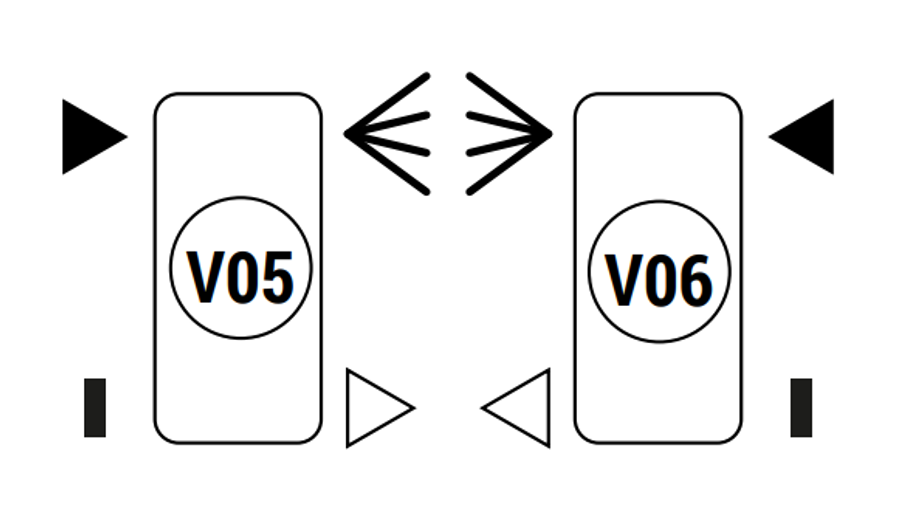

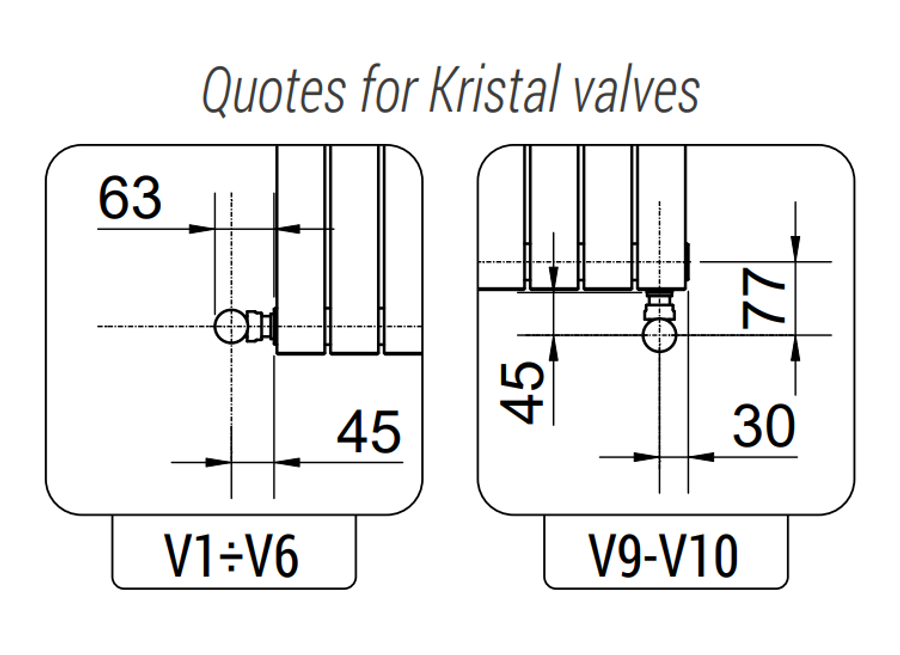

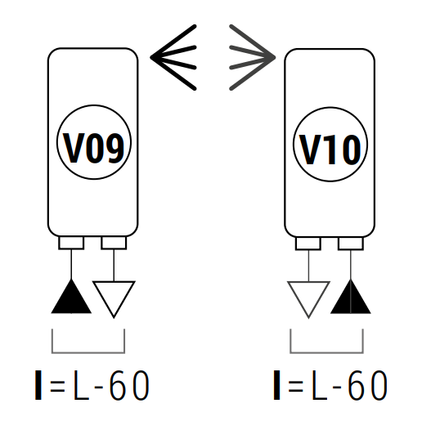

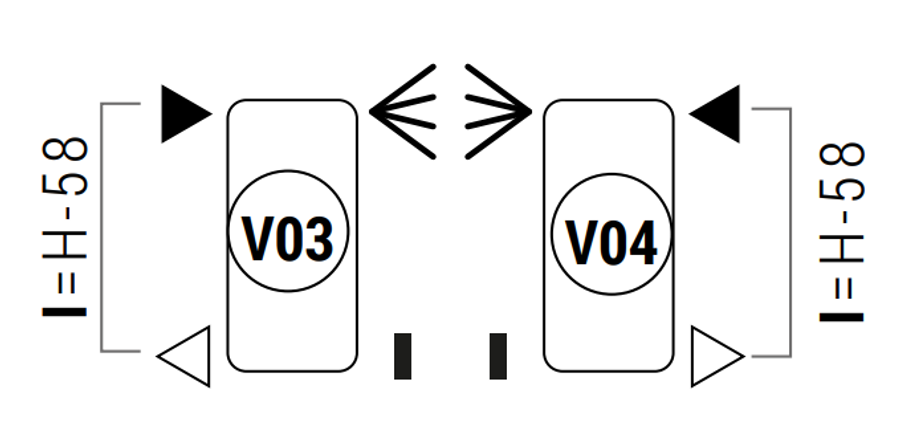

STANDARD CONNECTIONS
TECHNICAL DATA
| HEIGHT | WIDTH L | PIPE CENTRES | MIRROR | MIRROR | MIRROR | DRY WEIGHT | SURFACE | WATER CONTENT | THERMAL OUTPUT Δt=50°C | THERMAL OUTPUT Δt=30°C | THERMAL OUTPUT EXPONENT |
|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (mm) | I (mm) | Central | Lateral On The Right | Lateral On The Left | (Kg) | (m²) | (lt) | (Watt) | (Watt) | n |
| 1800 | 560 | 1742 | MC50 | MD50 | MS50 | 22.4 | 1.43 | 5 | 684 | 355 | 1.2840 |
| 2000 | 560 | 1942 | MC50 | MD50 | MS50 | 24.6 | 1.57 | 5.5 | 756 | 391 | 1.2826 |

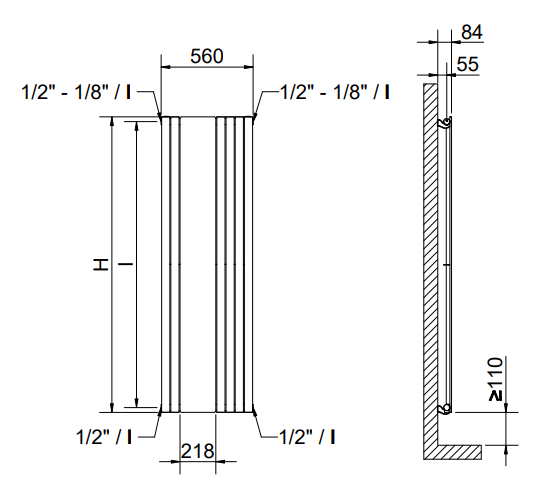

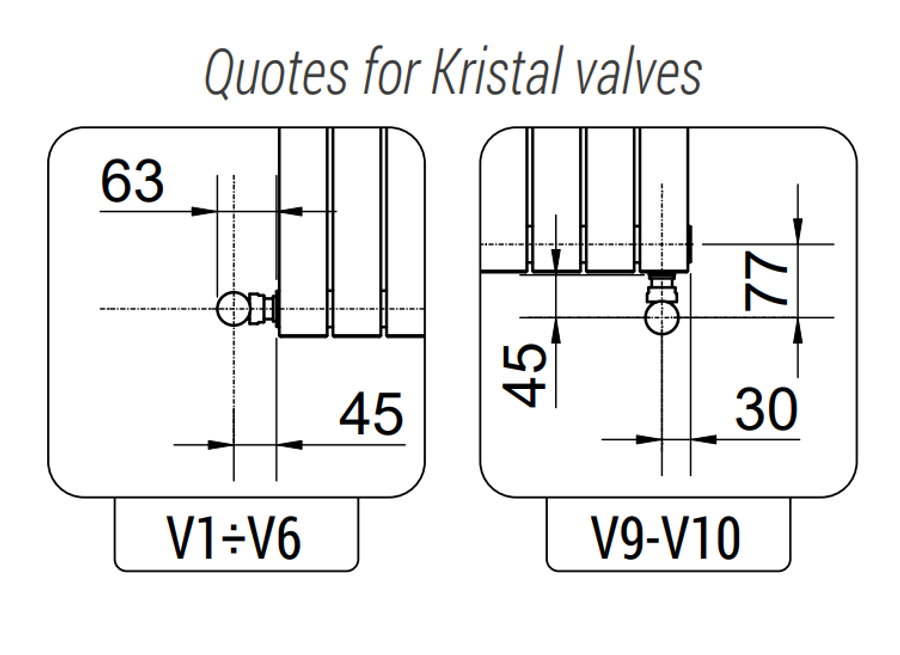

TECHNICAL DRAWINGS

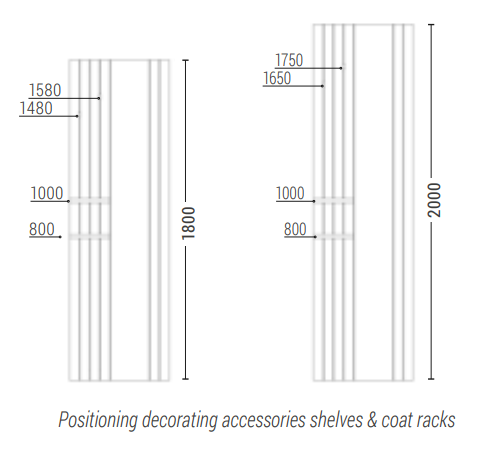

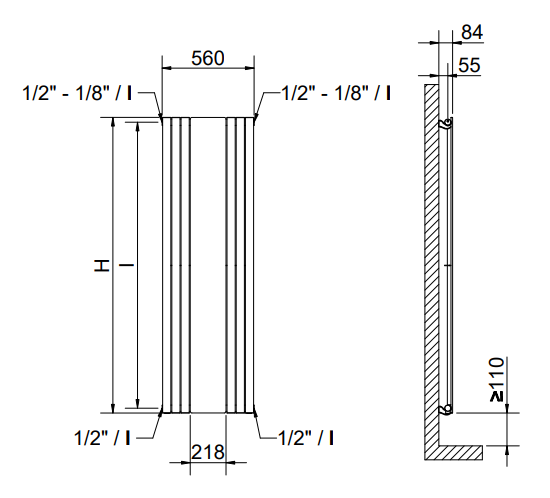

VERSION WITH CENTRAL MIRROR - MC50

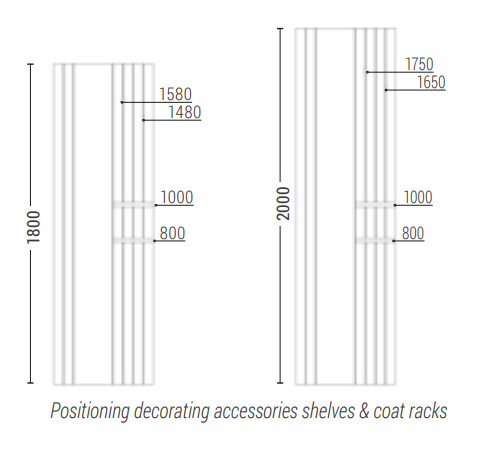

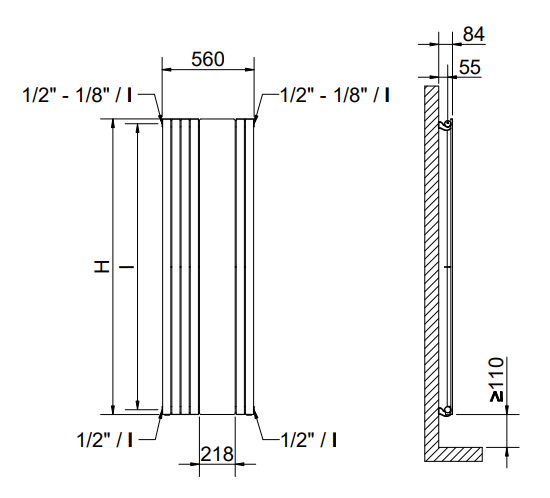

VERSION WITH MIRROR ON THE RIGHT SIDE - MD50

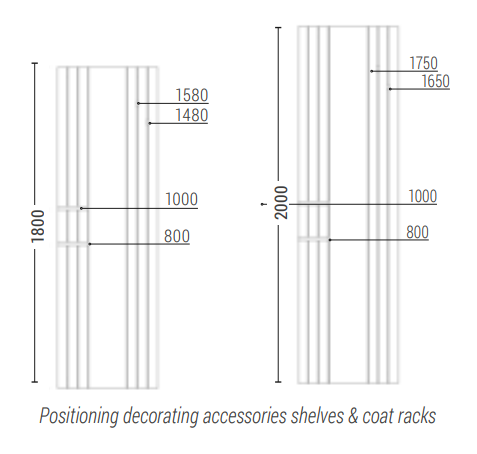

VERSION WITH MIRROR ON THE RIGHT SIDE - MS50
