Tenax Ce 4 Protection Net
CE 4 PROTECTION NET
CE 4 PROTECTION NET
Extruded rockfall protection net, made of HDPE, 11x10 mm mesh, weight 1200 g/m², thickness 6 mm

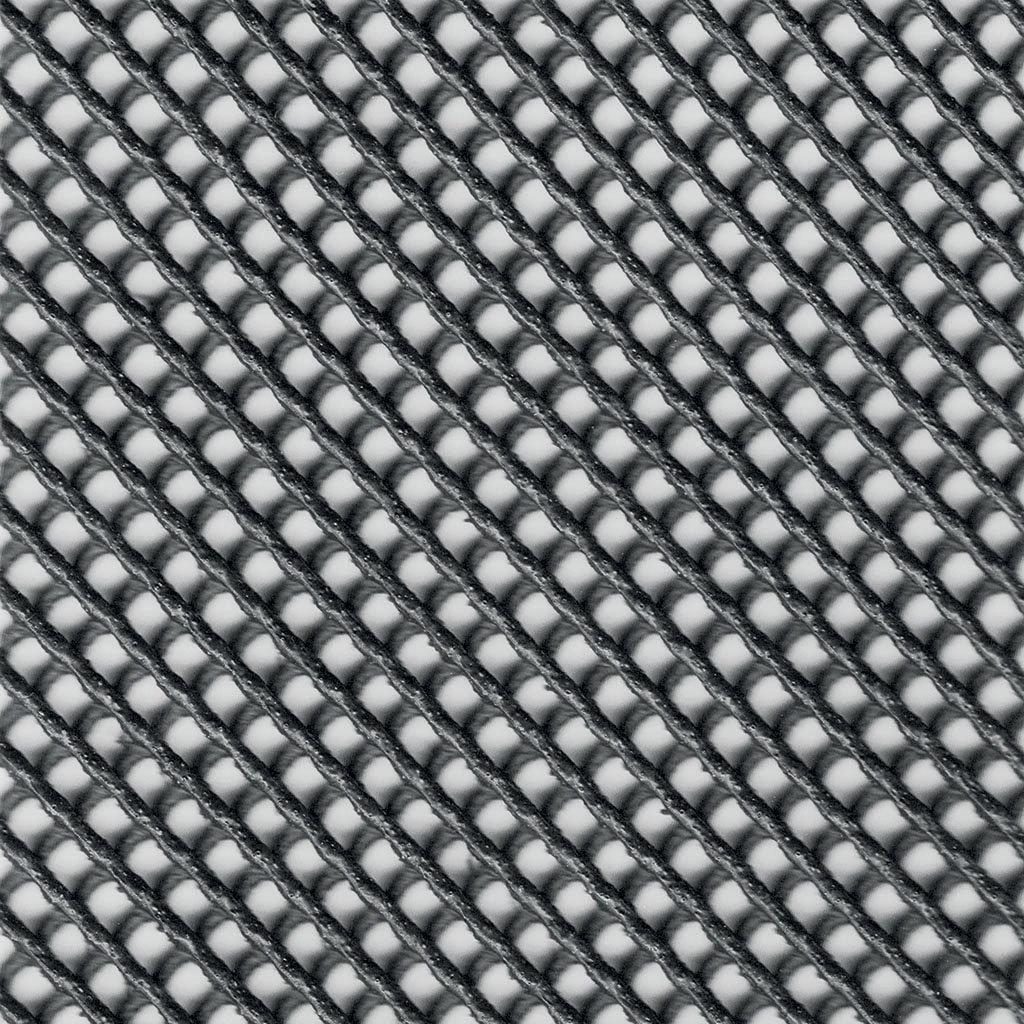

Extruded high-density polyethylene (HDPE) foam mesh with a three-dimensional structure composed of overlapping and intersecting series of parallel wires.
INFORMATION
BRAND
Tenax
PRODUCT TYPE
Protection Net
STRUCTURE
Thanks to its structure, it provides effective protection for pipes against possible damage during transport, installation, and backfilling
MATERIAL
Made of high-density polyethylene (HDPE)
COLOR
Black
COLLECTION
CE 4
BENEFITS
- Lightweight, flexible, and moldable
- Total chemical and biological inertia
WEIGHT
1200 g/m²
THICKNESS
6 mm
RESISTANCE
High resistance to compression, traction, and tearing
FEATURES
Three-dimensional structure
EFFICACY
High protective efficacy
APPLICATIONS

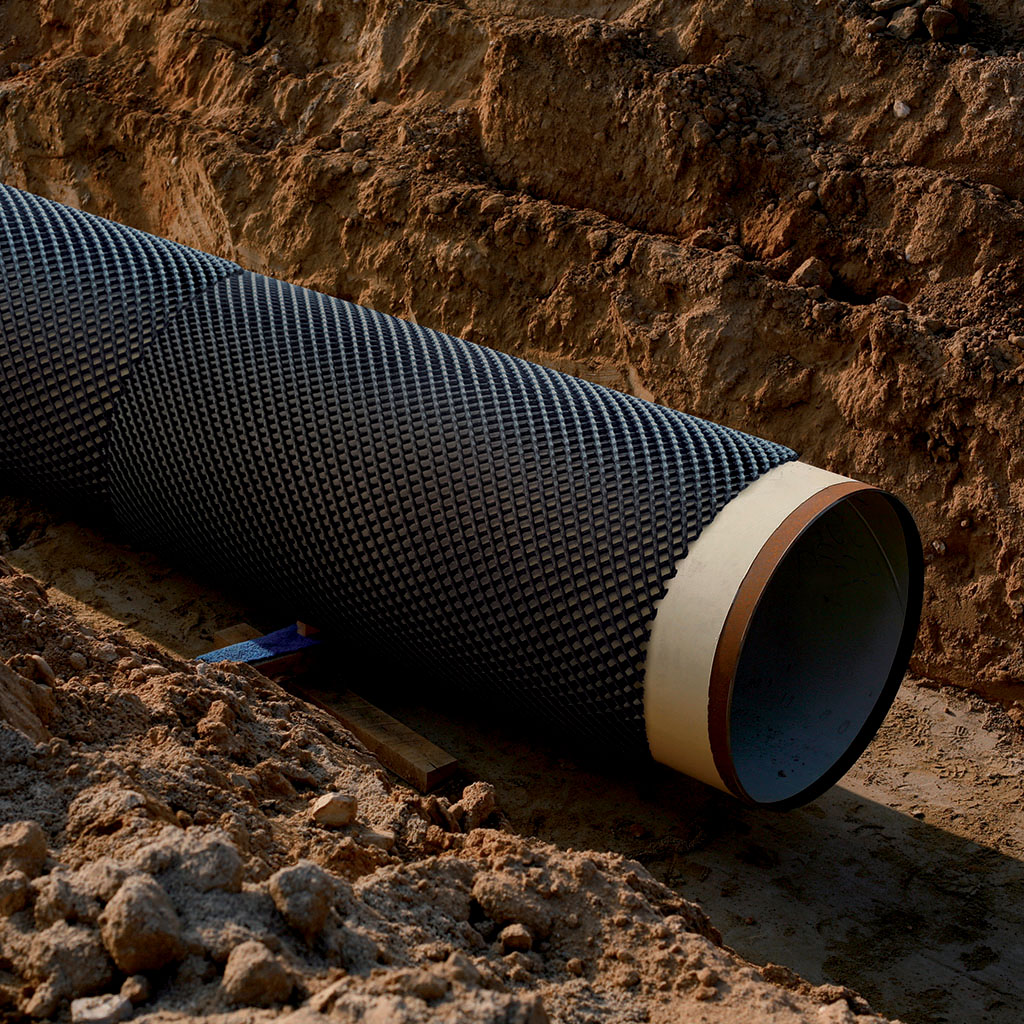

Mechanical protection of underground pipes and their anti-corrosion coating from possible damage during transport, installation, and backfilling.
SUITABLE
Suitable for pipes of any size
PROTECTION
High protection
MEASURES
| CODE | DIMENSIONS (M) | COLOR | EAN CODE | CONF/UDV | UDV |
|---|---|---|---|---|---|
| 80004059 | 1 X 20 | Black | 8002929014498 | 1 | Roll |
| 80004289 | 1.5 X 20 | Black | 8002929014559 | 1 | Roll |
INSTALLATION

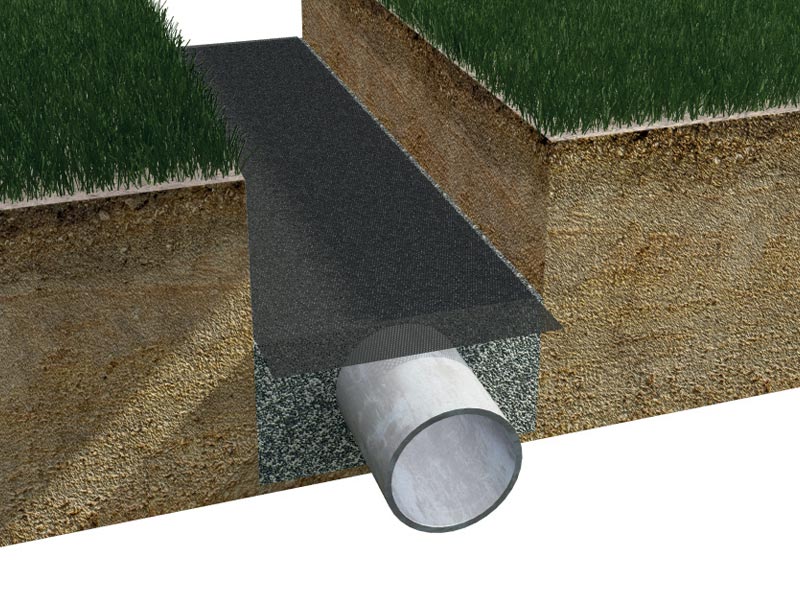

INSTALLATION AS "CAPPING"
- 1 : Unroll the roll parallel to the pipe to be protected, which has already been laid in the trench.
- 2 : Lay the mesh so that it completely covers the top of the pipe.
- 3 : Proceed with backfilling

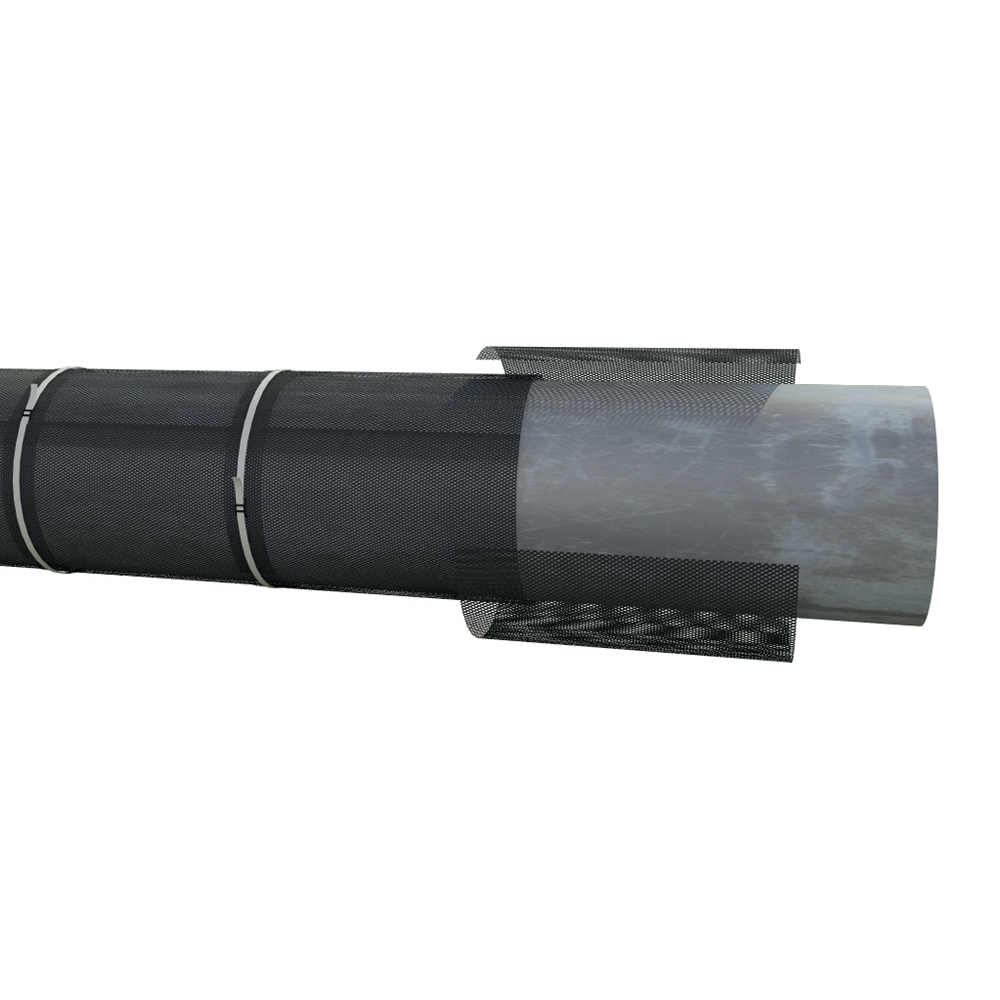

INSTALLATION FOR PIPES WITH LARGE CIRCUMFERENCE
- 1 : Cut the mesh into pieces approximately 15 cm larger than the circumference of the pipe.
- 2 : Wrap the pipe with the mesh, overlapping it by about 15 cm with the previously applied mesh.
- 3 : Secure the net with plastic or heat-sealed strapping

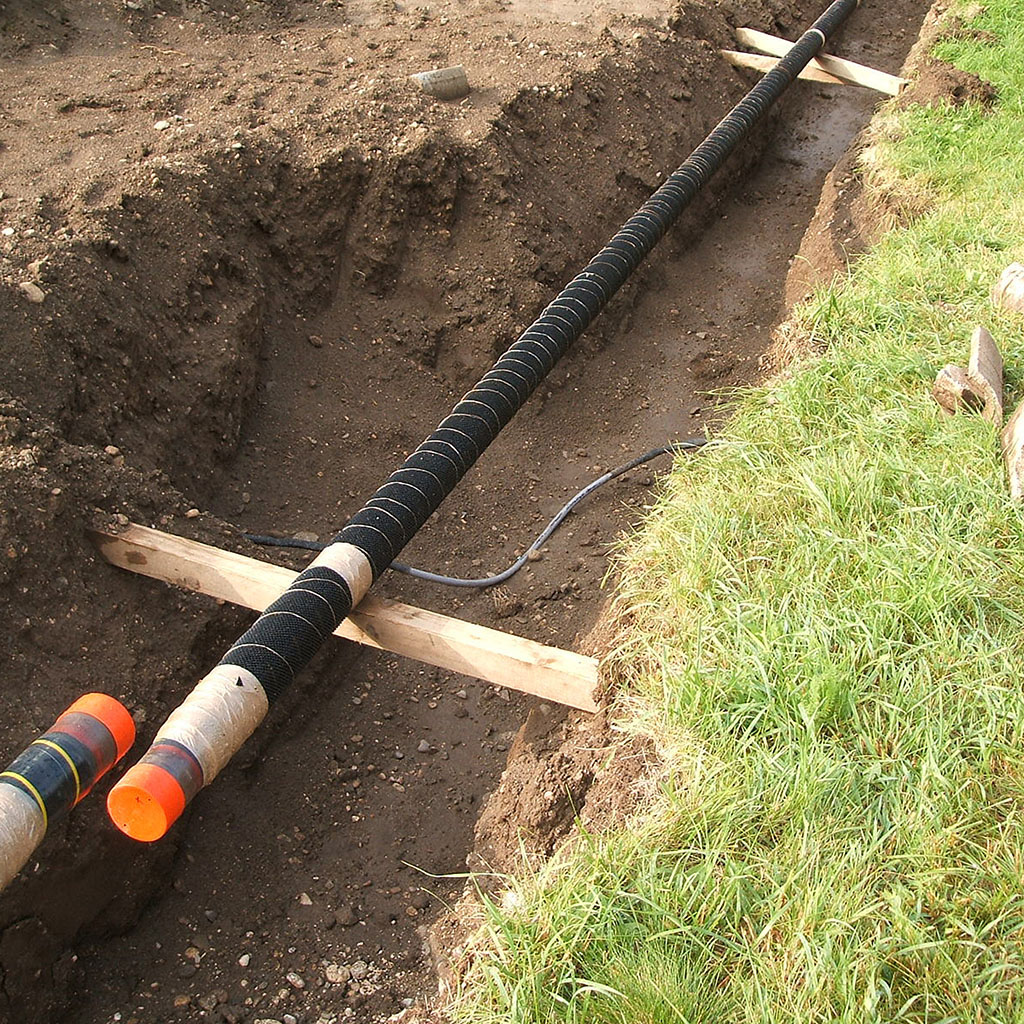

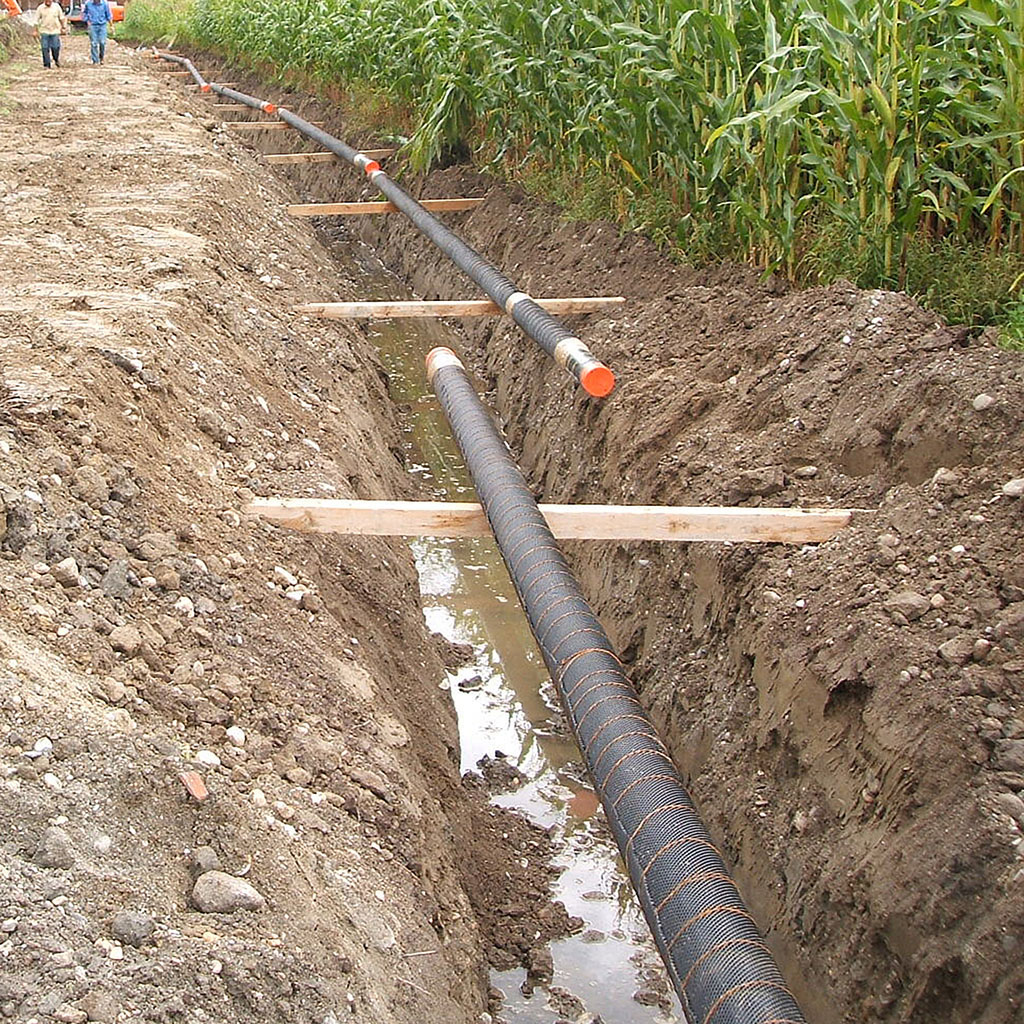

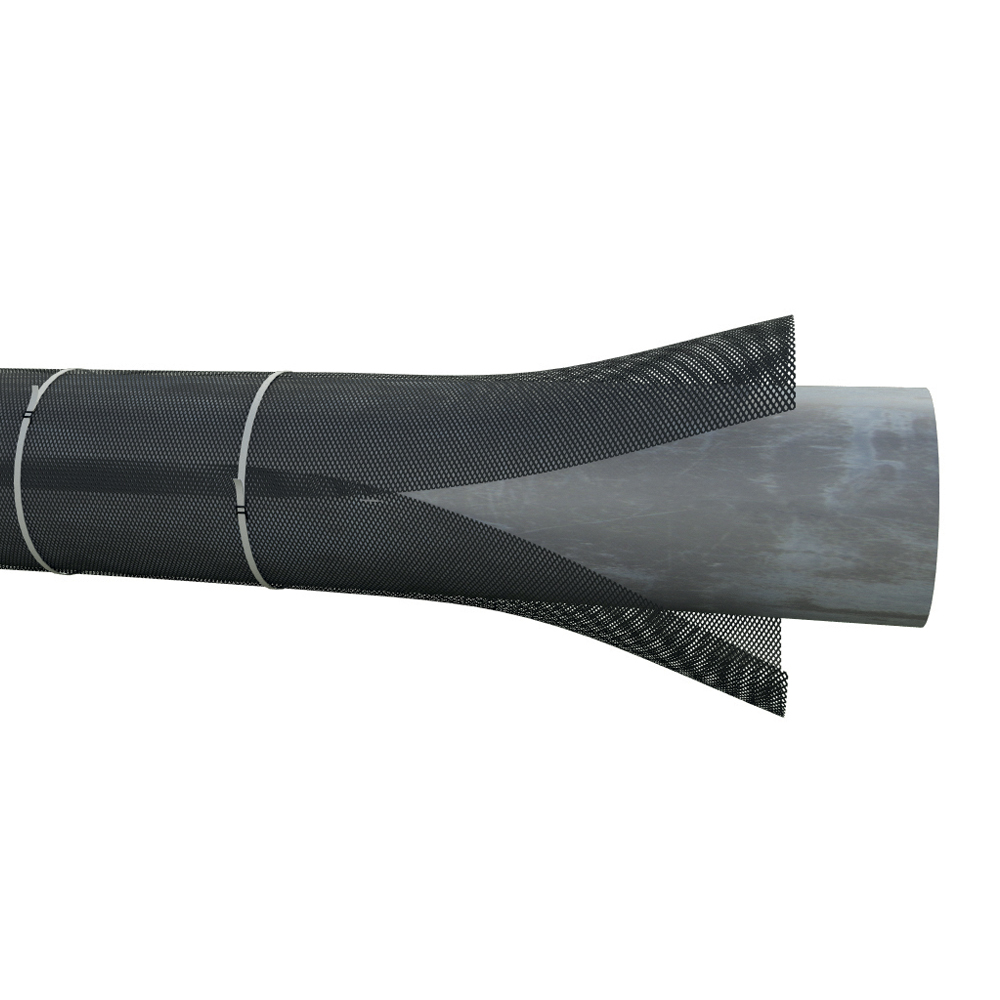

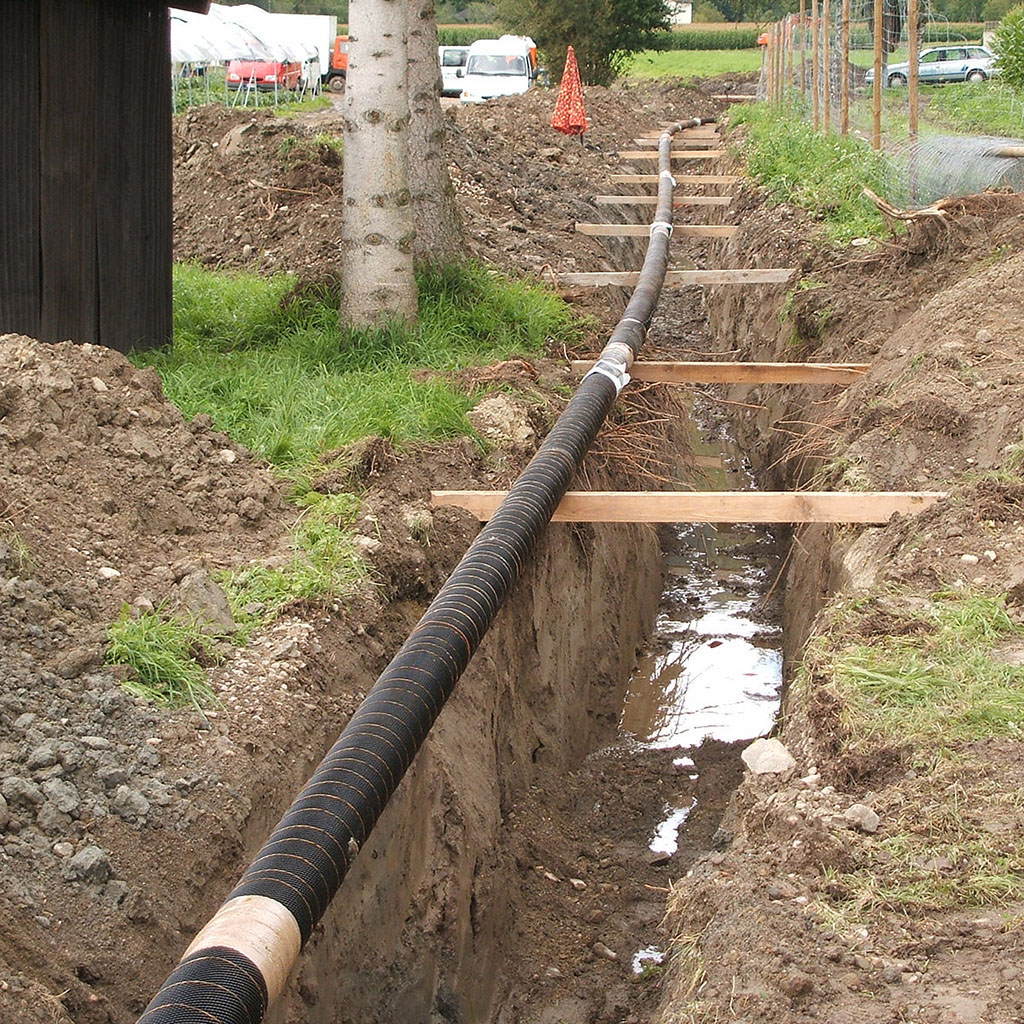

INSTALLATION FOR PIPES WITH REDUCED CIRCUMFERENCE
- 1 : Unroll and unfold the roll parallel to the pipe to be protected.
- 2 : Position the net under the pipe
- 3 : Wrap the pipe with the mesh, overlapping the edges by about 15 cm.
- 4 : Secure the net with plastic or heat-sealed strapping
