NPS® TRUSS BEAM
NPS® TRUSS BEAM
NPS® Truss are steel trusses for a steel-concrete composite solution. When used with prestressed slabs, they do not require additional formwork. They provide integrated fire resistance.
- Technical Material
- Technical tools
- Certifications and authorisations
INFORMATION
PRODUCTION
Made in Italy
COLLECTION
Truss
BRAND
Tecnostrutture
PRODUCT TYPE
Beam
AREAS OF APPLICATION
NPS® Truss beams provide high fire resistance and fire protection characteristics.
Common application areas include:
- Residential
- Structural aesthetics
- Culture and education
PERFORMANCE SLIM-SYSTEM
NPS® New Performance Slim-System is a complete and flexible modular system developed by Tecnostrutture. It consists of composite steel-concrete beams and columns, made from up to 93% recycled steel and equipped with an Environmental Product Declaration based on Life Cycle Assessment per kg of product.
NPS® OFFERS
- Fast and easy assembly
- CE marked structural elements EN 1090-1
- One supplier for all structural elements of the building
- Slim sections
- Seismic resistance
- Integrated fire resistance
- Reduced load on foundations

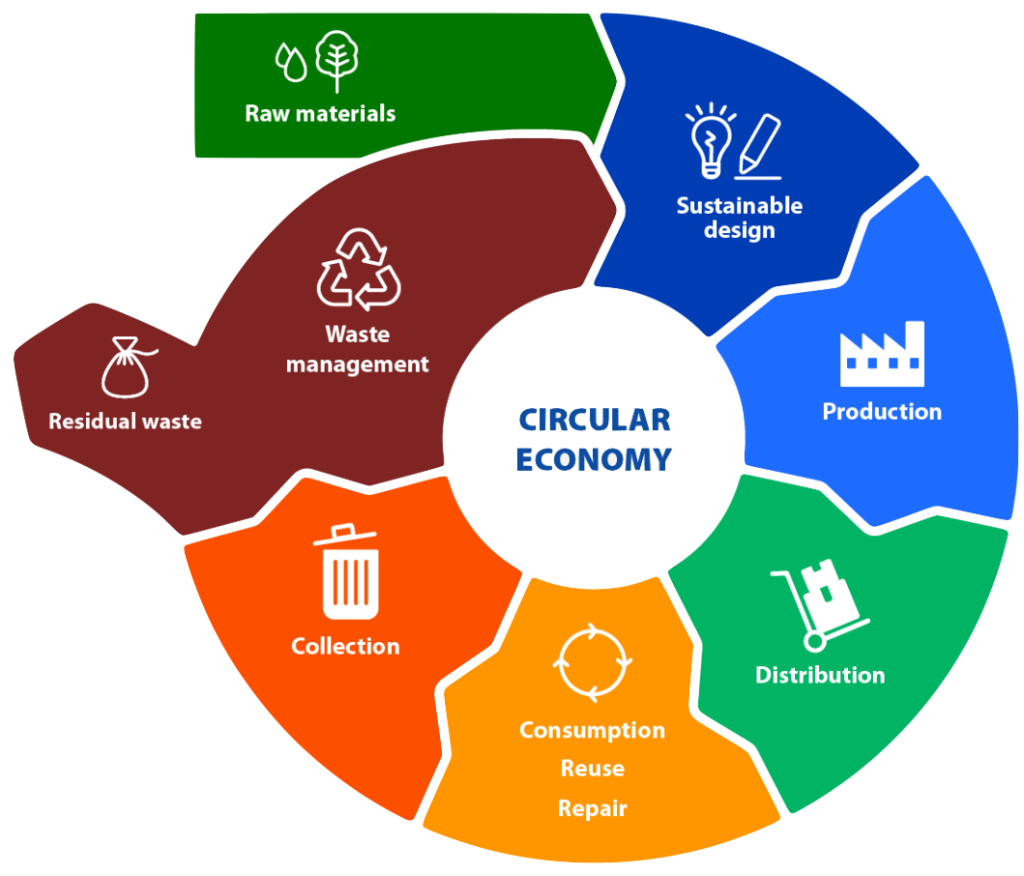

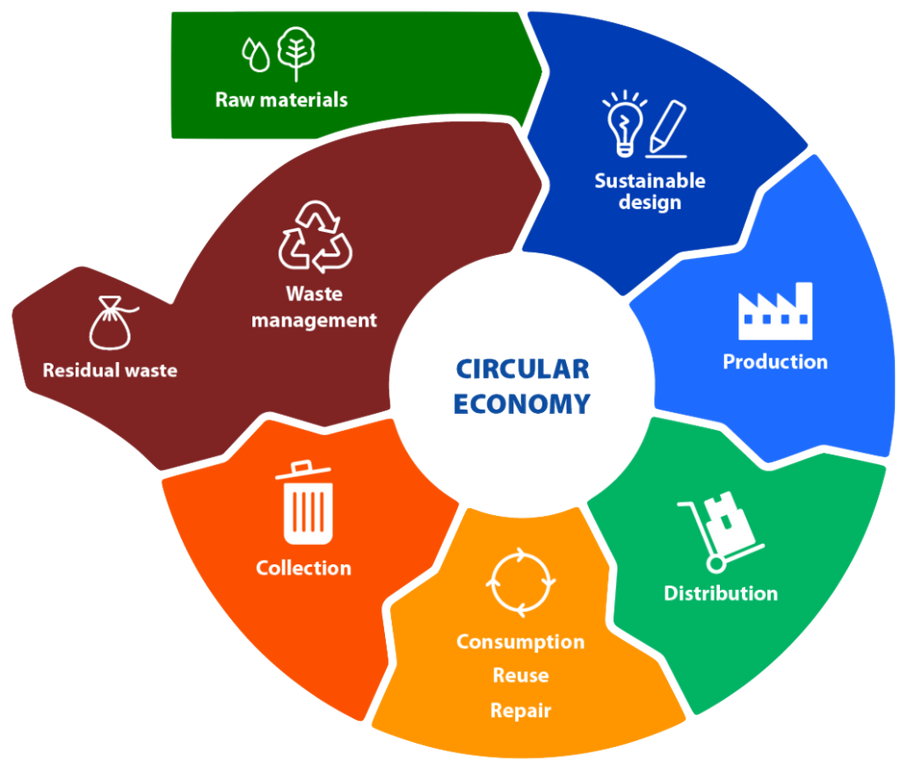

THE NPS® SYSTEM LIFE CYCLE
NPS® System contributes to reducing environmental impact throughout the life cycle and to obtaining LEED and DGNB credits. Produced in the factory, the elements are assembled on site in total self-supporting manner, eliminating the need for temporary formwork and shoring, thus speeding up construction time. After concrete casting, NPS® results in a composite structure with characteristics that comply with the performance levels required by the Eurocodes and Italian NTC 2018.
REFERENCES

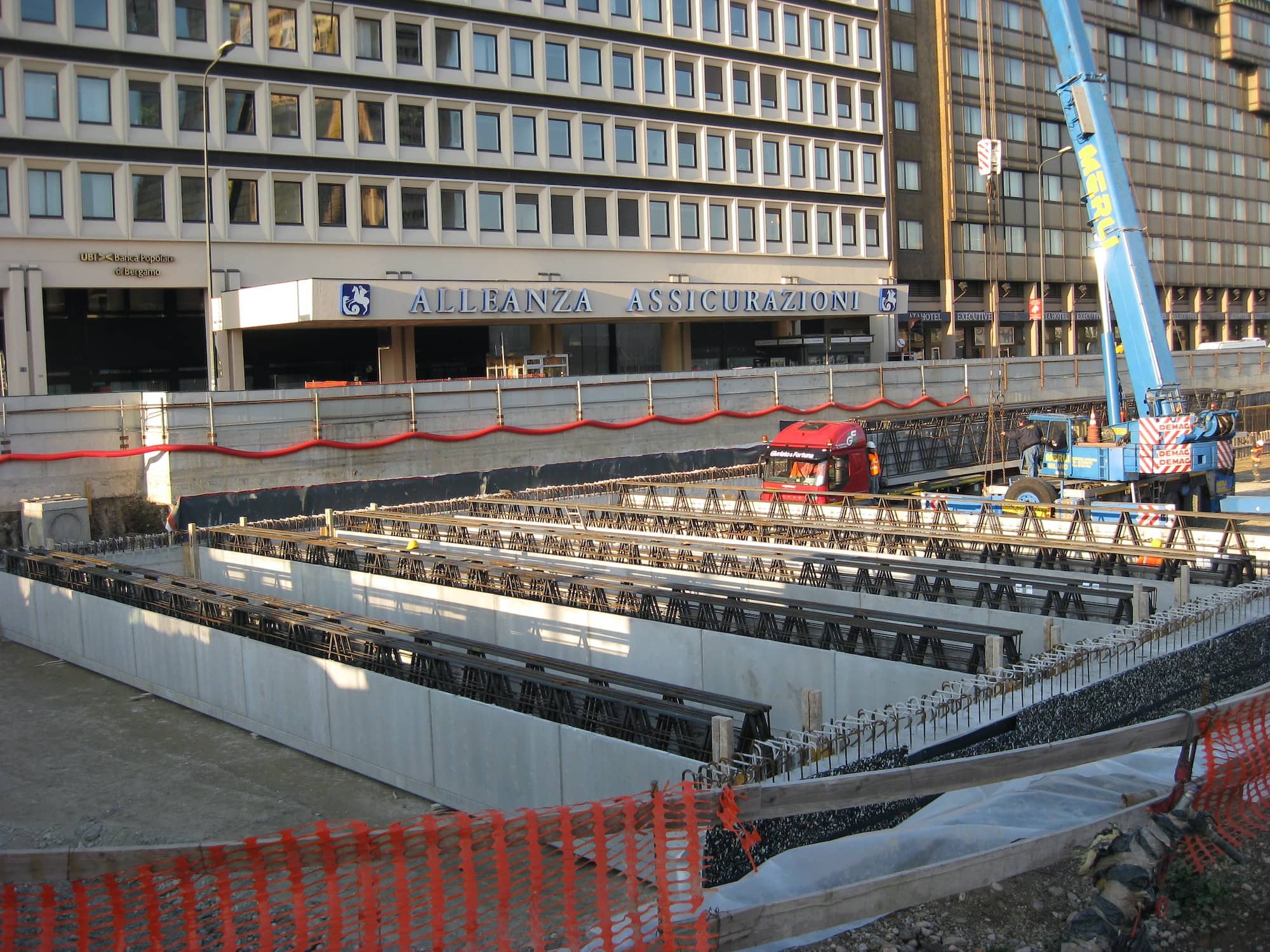

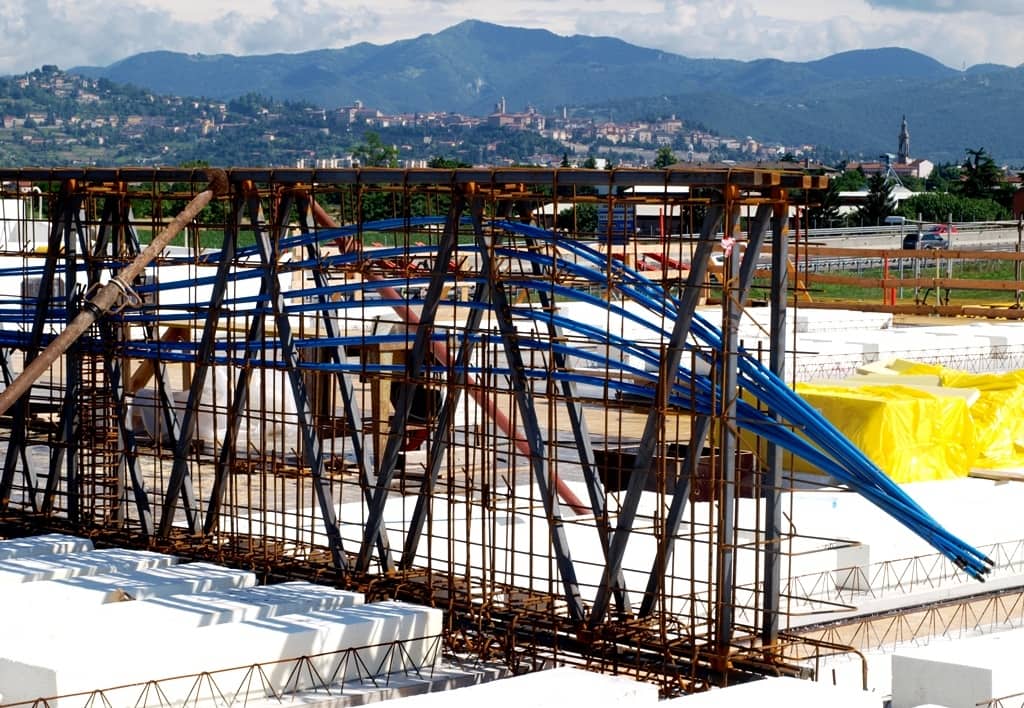

- For decades, NPS® Truss beams have been successfully used in numerous projects, from residential buildings to schools, from car parks to infrastructure.
- The reason? Structures with integrated fire and earthquake resistance, speed and high construction flexibility. In addition, the general designer can count on Tecnostrutture’s engineering support for more efficient and simpler construction.
ADVANTAGES
- Certified product
- Slim sections
- Lightweight solution
- Speed of construction
- Design and technical support from Tecnostrutture technicians
- Ideal with precast slabs, without the need for additional formwork
- The beam is designed with integrated fire-resistance up to the level required by the customer, thanks to additional reinforcement inside its section
ASSEMBLY

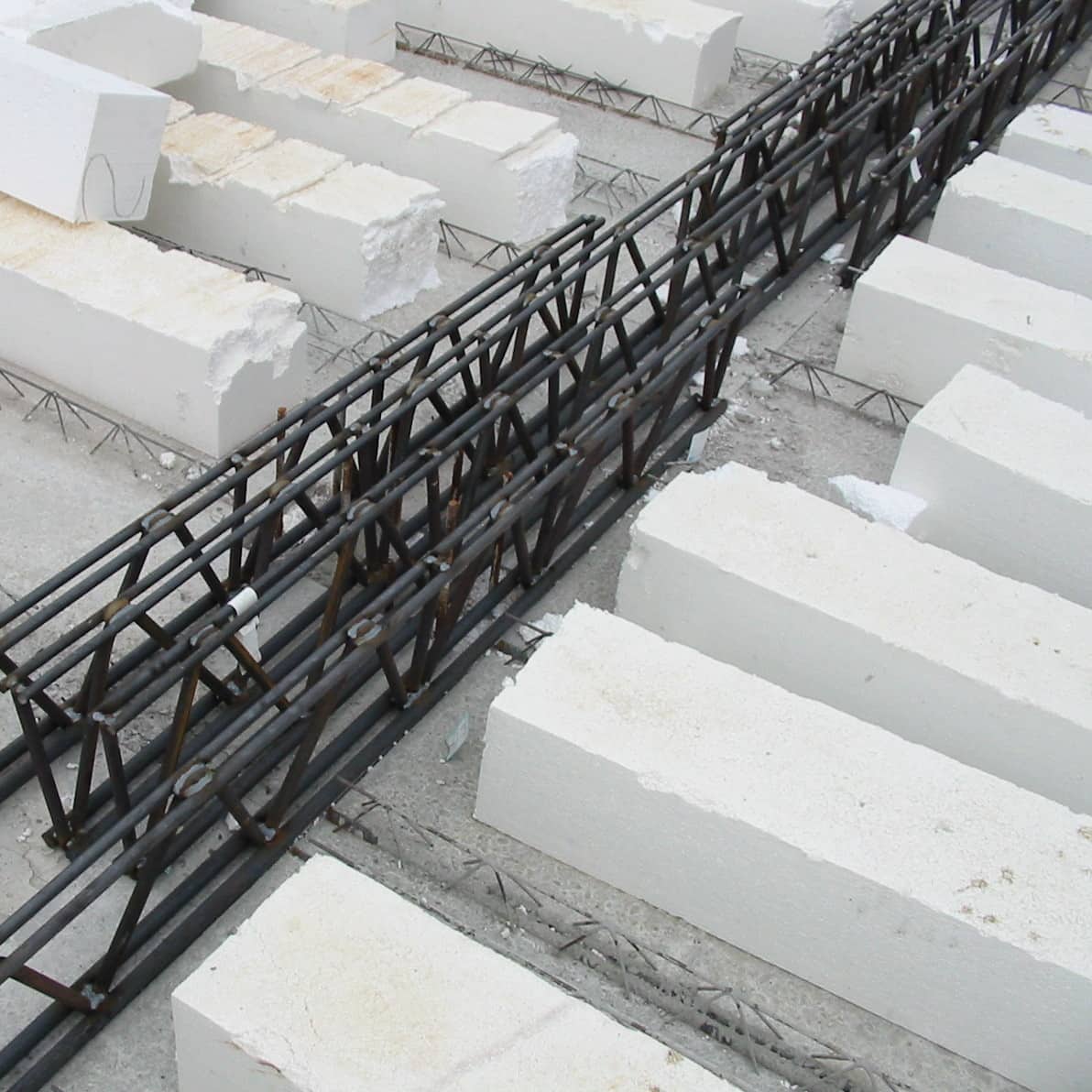

An NPS® Truss is easily assembled after positioning the precast slab, resting directly on the concrete slab. It is a light and versatile structure that allows for a concealed solution within the slab, optimising space and simplifying assembly operations.
DESIGN SERVICES INCLUDED
Tecnostrutture’s technical team offers personalised advice and technical support from the initial stages right through to project completion.
THIS INCLUDE
- Certifications
- BIM modelling of NPS® structures
- Design of NPS® structures with calculation report and executive drawings
- Preliminary technical consulting – e.g. identification of the ideal structural mesh
- Optimisation of the solution and/or conversion of the project to an NPS® solution
OPTIONAL SERVICES
- FEM modelling of the building
- BIM modelling of the building
INSTALLATION NPS® TRUSS AT I.LAB ITALCEMENTI
DOWNLOADS
TECHNICAL DATA SHEETS
↓ NPS Basic beam pre-dimensioning tables
↓ NPS Cls beam pre-dimensioning tables
TECHNICAL MATERIAL
↓ NPS® System catalogue
↓ Specification
↓ Typical sections
↓ Product Catalogue
↓ Sustainability
CERTIFICATIONS AND AUTHORISATIONS
↓ France: CSTB ATEx n°2847-v2
↓ France: CSTB ATEx n°2848-v2
↓ CE marking according to EN 1090-1
TYPICAL SECTIONS
↓ Airfloor® section and details
↓ Typical NPS® Cls beam sections
↓ Airfloor® section
↓ Typical NPS® TRUSS beam cross-sections
↓ Typical NPS® Basic beam sections
↓ Typical NPS® Slim circular column cross-sections
↓ Typical NPS® Slim square column cross-sections
↓ Typical NPS® Style+ oval column cross-sections
↓ Typical NPS® Slim rectangular column cross-sections
↓ Typical square NPS® Style+ abutment cross-sections
↓ Typical circular NPS® Style+ abutment cross-sections
↓ Typical rectangular NPS® Style+ column cross-sections
SUSTAINABILITY DOCUMENTS
↓ NPS contribution for LEED points
↓ NPS contribution for DGNB credits
NPS® Advantages
FAST RETURN ON INVESTMENT
- Reliable costs.
- Less dependence on weather conditions.
- Overlapping construction phases for greater worksite speed.
- Reduction of building construction time by at least 40% compared to traditional systems, ideal for new construction and renovation.
EFFICIENT AND SAFE SOLUTION
- Increased safety on site.
- Almost total elimination of props.
- Reduction of labour requirements on site by 90%.
- Speed of installation: 8 minutes for a multi-storey column, 5 for a beam.
- Delivery of beams, columns and slabs at the time of installation, without the need for storage space.
SEISMIC AND INTEGRATED FIRE RESISTANCE
- Integrated seismic resistance, without the need for bracing.
- Consolidated experience of Tecnostrutture in seismic areas.
- Integrated fire resistance, with no need for post-installation treatment. A saving in terms of cost and time.
- NPS® elements can also be used as visible architectural elements, without the need for additional treatments.
REDUCED ENVIRONMENTAL IMPACT
- Up to 93% recycled steel content.
- Environmental Product Declaration (EPD), crediti LEED e conformità ai CAM.
- 90% reduction of temporary materials on site, with positive effects on costs and waste.
- Environmental impact demonstrated per kg of product through Life Cycle Assessment (LCA)
- Lower energy consumption and CO₂ emissions than steel and reinforced concrete solutions.
- Lower use of raw materials compared to traditional systems, with the same performance.
