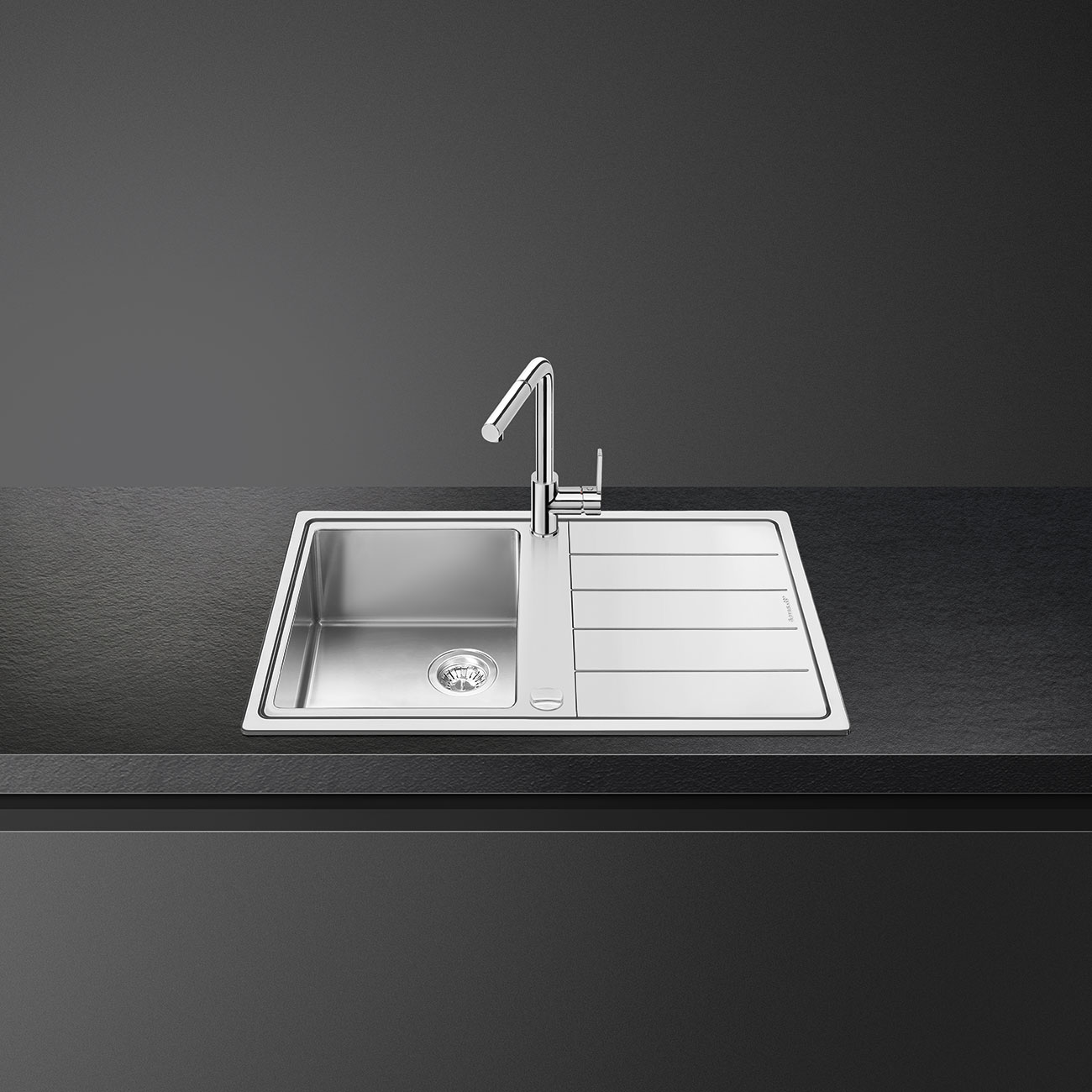

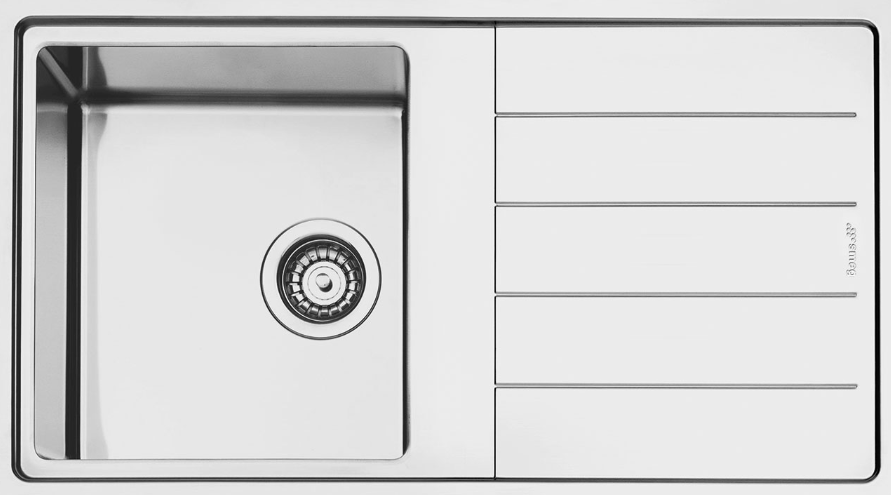

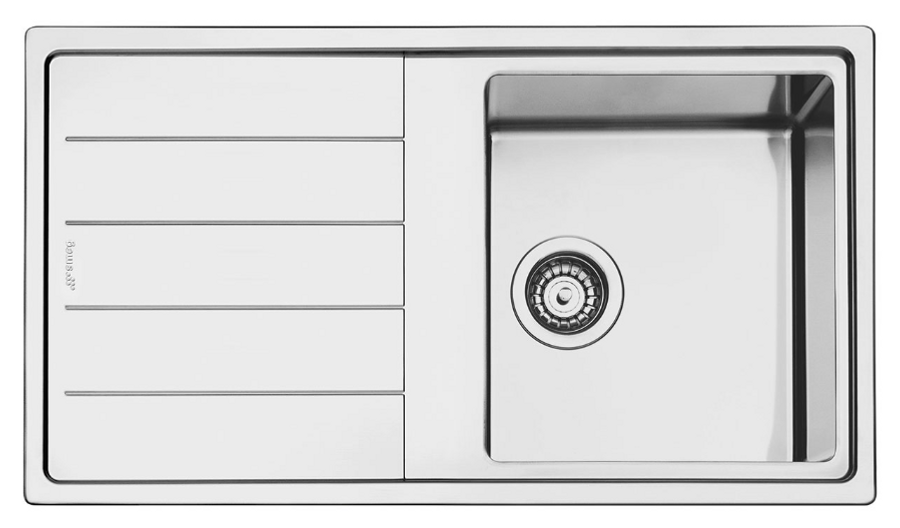

Smeg LDR861-2 Kitchen Sink
LDR861-2 KITCHEN SINK
LDR861-2 KITCHEN SINK
Ultra-low profile built-inUniversale Aesthetic
High quality AISI 304 stainless steel sink for the best performance in resistance and durability, ensuring a hygienic and safe kitchen environment.
INFORMATION
COMPOSITION
The sink is easily reversible, making it possible to create any type of kitchen composition
BRAND
Smeg
PRODUCT TYPE
Kitchen sink
PRODUCT CODE
LDR861-2
AESTHETIC
Universale
COLOUR
Stainless steel
FINISHING
Scotch Brite
FEATURES
The ultra-low profile installation, up to 4 mm, allows a smooth transition between the sink and worktop, creating a visually more harmonious surface and giving a touch of refinement to the kitchen.
USE
The pop-up command allows the sink drain to be opened and closed remotly with a simple gesture and without the need to touch the plug directly, increasing convenience and hygiene in the kitchen
SERIES
Mira
BUILDING IN TYPE
Ultra-low profile
TAP HOLE / PRECUT TAP HOLE
2 Tapholes
TYPE OF STEEL
AISI304
TYPE
Welded sink
INSTALLATION
Possibility of having the tap hole for direct installation of the tap on the sink, for a larger and neater surface area
EAN CODE
8017709304614
SINK MATERIAL
Stainless steel
EXCESS
The drawer allows dishes, cutlery and kitchen utensils to be placed directly on the sink after washing: excess water can drain into the sink, allowing for natural drying

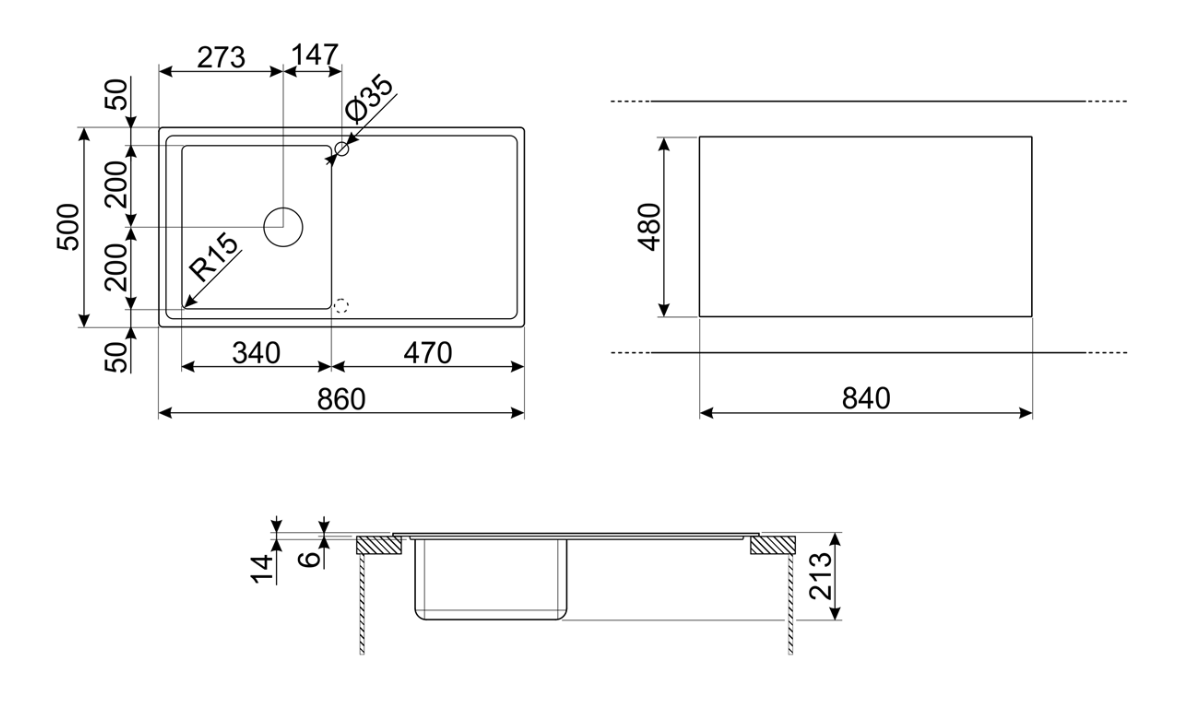

TECHNICAL DRAWING

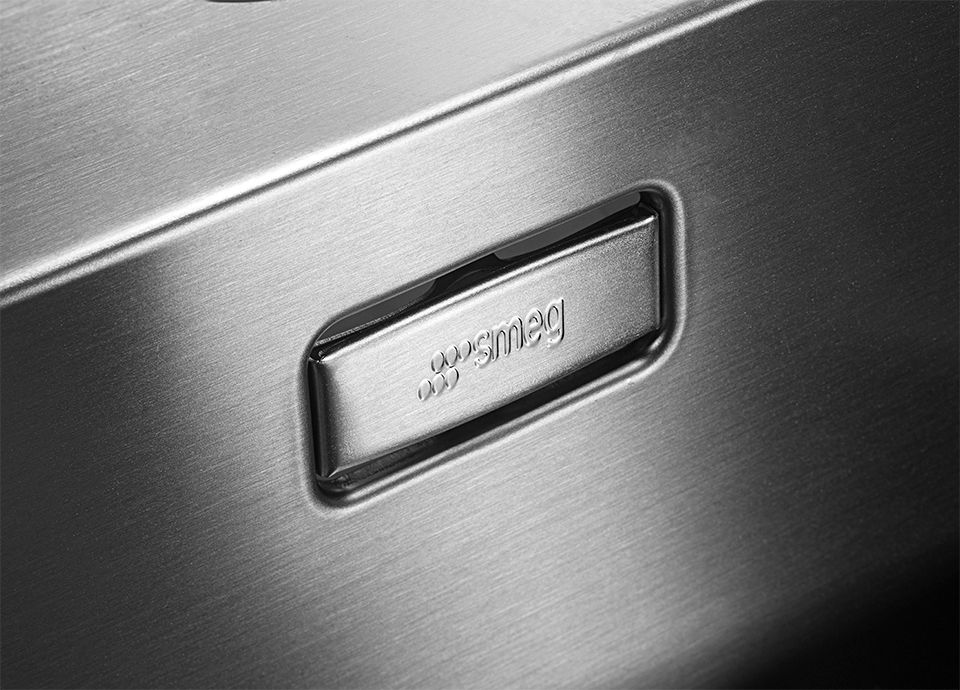

POPUP
- Popup command : Yes, single
- Popup command type : Round
CAPACITY
A single bowl for greater adaptability, capacity and space optimisation
STRAINER
- Strainer position LH bowl : Side bowl
- Strainer dimension LH bowl : 3.5"
SINK DIMENSIONS
86 cm
UNDERMOUNT CUTOUT RADIUS
5 mm
FRAME DEPTH
14 mm
FRAME THICKNESS
0.7 mm
PRODUCT DIMENSIONS
- Height : 214 mm
- Width : 860 mm
- Depth : 500 mm
PACKAGING DIMENSIONS
- Height : 285 mm
- Width : 940 mm
- Depth : 610 mm
PACKAGING COMPOSITION
- Polystyrene : 0.200 kg
- Wood : 0.000 kg
- Plastic : 0.024 kg
- Paper & cardboard : 1.835 kg
NET WEIGHT
5.650 kg
GROSS WEIGHT
7.750 kg
THE BEST OF STAINLESS STEEL
The AISI 304 stainless steel sink ensures maximum durability, resistance to scratches, impacts, and corrosion. Antibacterial surface, easy to clean, and ideal for intensive use, merging hygiene with timeless design.
BOWL DIMENSIONS LH
- Height : 340 mm
- Depth : 400 mm
- A : 200 mm
BOWL THICKNESS LH
1 mm
RADIUS CORNER LEFT BOWL
15 mm
OVERFLOW LH BOWL
Yes, flush fitted
BOWL TYPE LH
Minimum radius
NO. OF BOWLS
1
DRAINER
Reversible
HEIGHT FROM KITCHEN TOP
6 mm
CUTOUT DIMENSION TOPMOUNT
840 x 480 mm
TAP HOLE
2
BASE UNIT SIZE
60 cm
TAP HOLE DIAMETER
35 mm
GASKET TYPE
Sealing paste
DRAINER INCLINATION
2 °
NO. OF CLIPS
8
TYPE OF CLIPS
Standard
SYMBOLS GLOSSARY
REQUIRED
Cupboard width required for sink installation.
ULTRA-LOW PROFILE
Installation of product with flat edge - height of 1 mm.
SINK
Sink depth - depending on the model, the depth can be from13 to 24,5.
TAP HOLE
Thanks to the double tap hole, most of our sinks are easily reversible, giving you the flexibility to make any type of kitchen composition.
