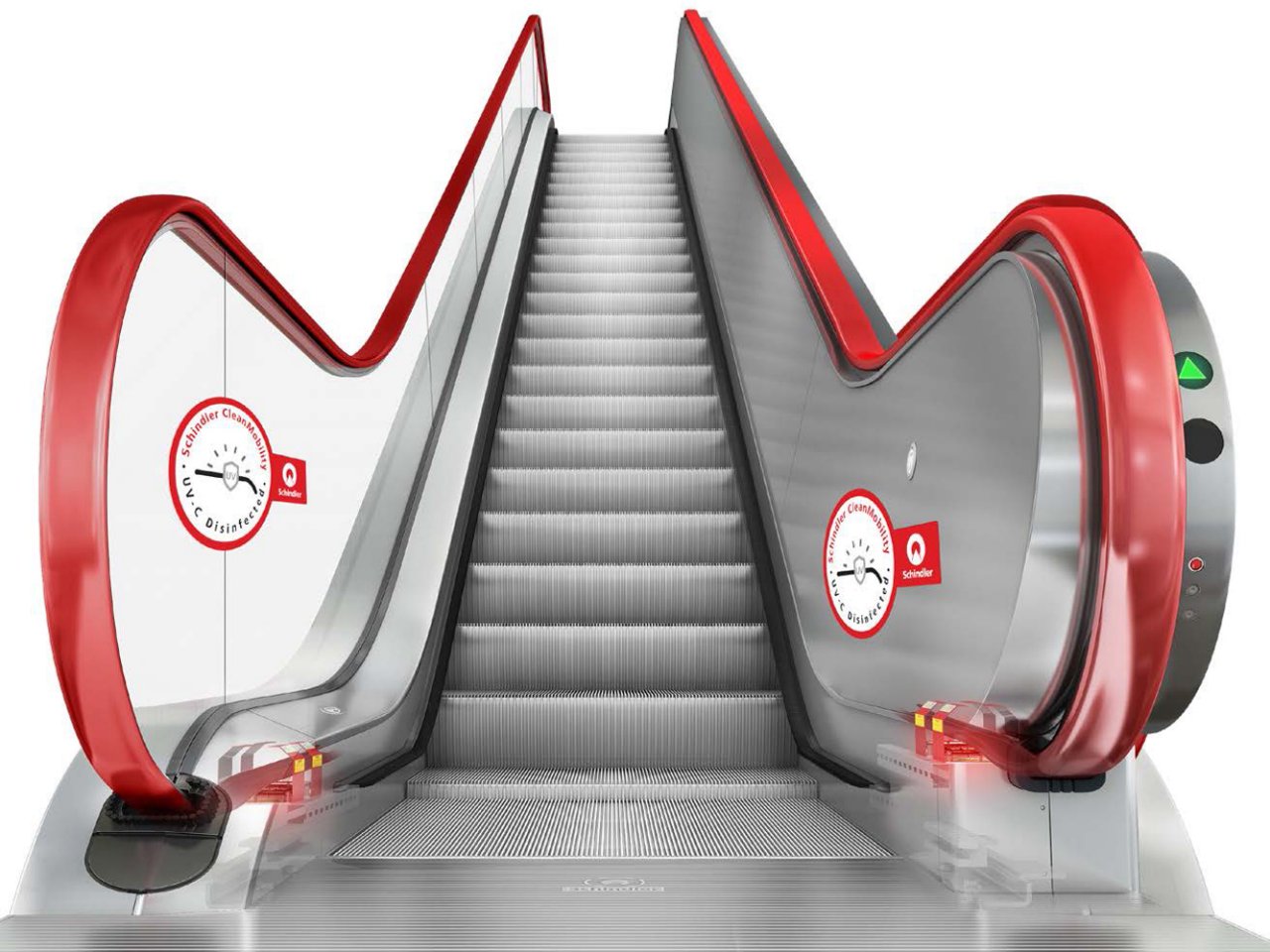

Schindler Handrail Options For Escalators & Moving Walks
HANDRAIL OPTIONS FOR ESCALATORS & MOVING WALKS
HANDRAIL OPTIONS FOR ESCALATORS & MOVING WALKS
Schindler offers CleanMobility solutions for escalators and moving walks.
FEATURES

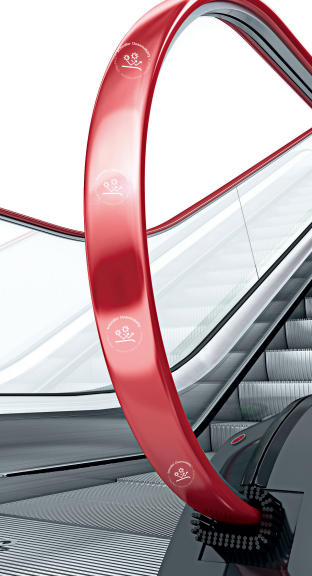

SCHINDLER CLEANRAIL*
Schindler CleanMobility solutions do not confer any health benefits and are not intended to cure, treat, or mitigate any disease. The antimicrobial properties on the handrail do not protect users or others against bacteria, viruses, germs, or other disease organisms.
The antimicrobial additive to the thermoplastic polyurethane body protects the handrail from microbial growth. The additive is engineered for plastic and textile applications, and is safe in food applications.
SCHINDLER ULTRA UV (PRO) 2.0**

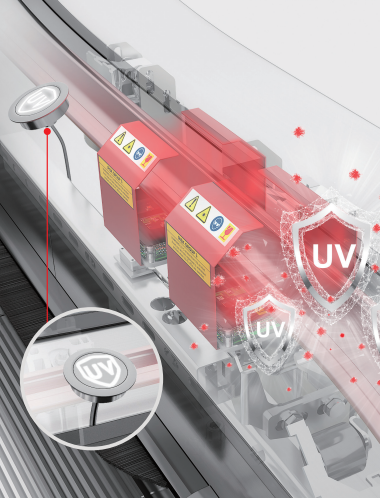

The Schindler handrail Ultra UV (PRO) 2.0 handrail device uses UVC light to treat the handrails. This directly damages the genetic material of bacteria and viruses and helps prevent their spread. High-visibility "Schindler CleanMobility" branding on the balustrade notifies riders of the disinfection effect.
Thanks to the physical disinfection process using UVC LED lighting technology, handrails are disinfected efficiently and continuously. The device is installed inside the escalator or moving walk, is inaccessible to passengers, and will not inhibit passenger movement. The design makes it easy to install. The Schindler Ultra UV (PRO) 2.0 handrail device is a practical solution to provide invisible disinfection.
INFORMATION
BRAND
Schindler
PRODUCT TYPE
Escalators & Moving Walks
INPUT VOLTAGE
24 VDC±10%
POWER CONSUMPTION
<9.8W
PRODUCTION
Made in United States
MATERIAL
Steel & Aluminium
DESIGN LIFETIME
15,000 hrs (until 85% of initial irradiation)
INSTALLATION LOCATION
Inside the escalator or moving walk
ANTIMICROBIAL EFFECT
Additive inhibits microbial growth on the handrail
LIGHT TYPE
LED
IRRADIATION AREA
100mm x 100mm
HANDRAIL DISINFECTION
Schindler Ultra UV (PRO) 2.0 provides high efficiency disinfection properties - Operation indicator signals active handrail disinfection
UVC WAVELENGTH
270 ~280 nm
IRRADIANCE
680~710 μW/cm2
BENEFITS FOR USERS
- High disinfection efficacy
- Installation inside the unit is inaccessible to passengers, and will not inhibit passenger movement
- Physical disinfection without chemicals or heavy metal residue
- Operation indicators foster passenger confidence by signaling active UVC disinfection of the handrails
