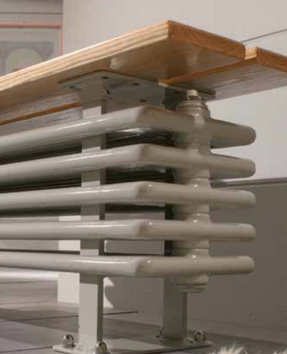

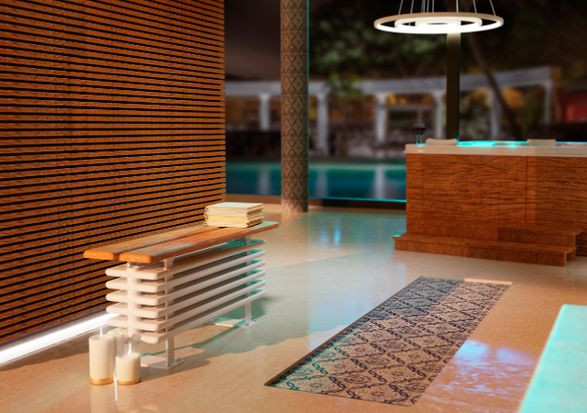

Cordivari Ardesia Bench Tubular Radiator
ARDESIA BENCH TUBULAR RADIATOR
ARDESIA BENCH TUBULAR RADIATOR

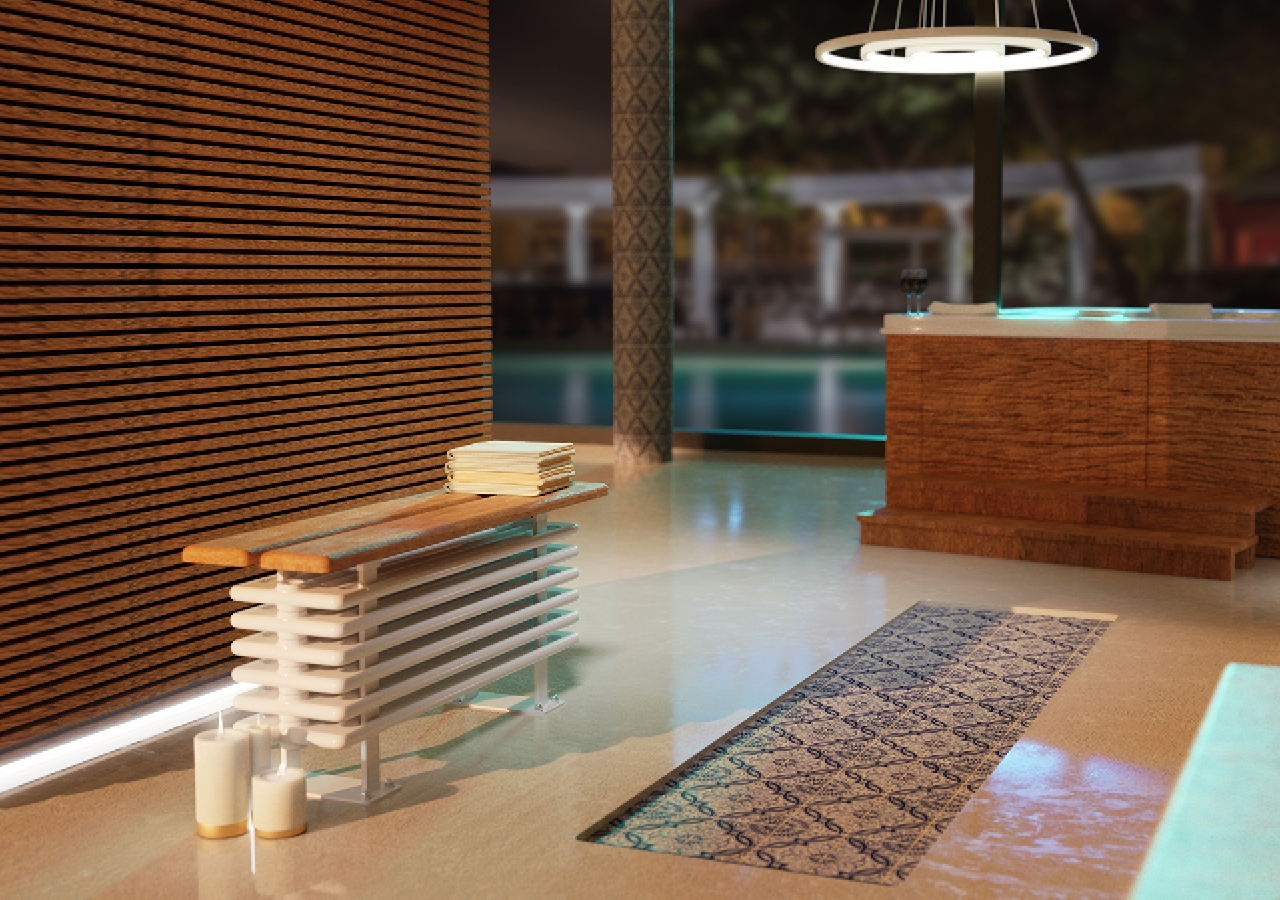

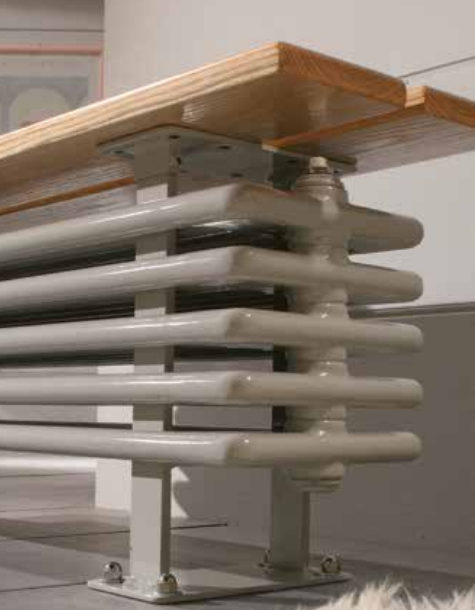

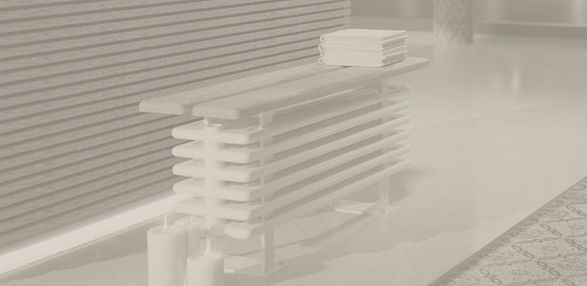

The ardesia bench model combines the distinctive characteristics of the ardesia tubular with an extra prerogative, adding a comfortable seat in solid wood to create a bench with a dual function.
INFORMATION
BRAND
Cordivari
PRODUCT TYPE
Radiator
MAXIMUM TEMPERATURE
110 °C
MAXIMUM WORKING PRESSURE
10 bar
MINIMUM FLOW IN % OF THE NOMINAL FLOW RATE
18
COLLECTION
Ardesia
PRODUCTION
Made in Italy
TUBES
Steel
SEAT
Comfortable Seat
MIDDLE
Plate
CONNECTION
2 1/2” connections
TESTING CONDITIONS
13 bar
MATERIAL
- Heads moulded in mild steel plate.
- Tubes in mild steel electro-welded ø 25 mm.
- Seat in solid wood 25 mm thickness.
DOWNLOADS
↓ Technical Sheet
↓ Browse the leaflet
USE
Heating
ENVIRONMENT
Indoor
AIRVENT
1/2”
SECTION WIDTH
46 mm
DETAIL
The painting is performed exclusively with the use of ecological epoxy powder paints through a process of 12 distinct phases to ensure excellent results that last over the years and an unmatched brilliance.
TECHNOLOGIES
The production of Ardesia® tubular is carried out with the most modern construction technologies, through robotic production lines and highly specialized welding processes to guarantee perfect execution, absolute cleanliness and reliability over the years.
WARRANTY
5 Years
FUNCTIONING
Hot Water
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
CLEANING
Ease of cleaning
THERMAL YIELD
High thermal yields
PACKAGING
The radiator is protected by a recycled film in polyethylene and with a box in recycled carton. User notice included.

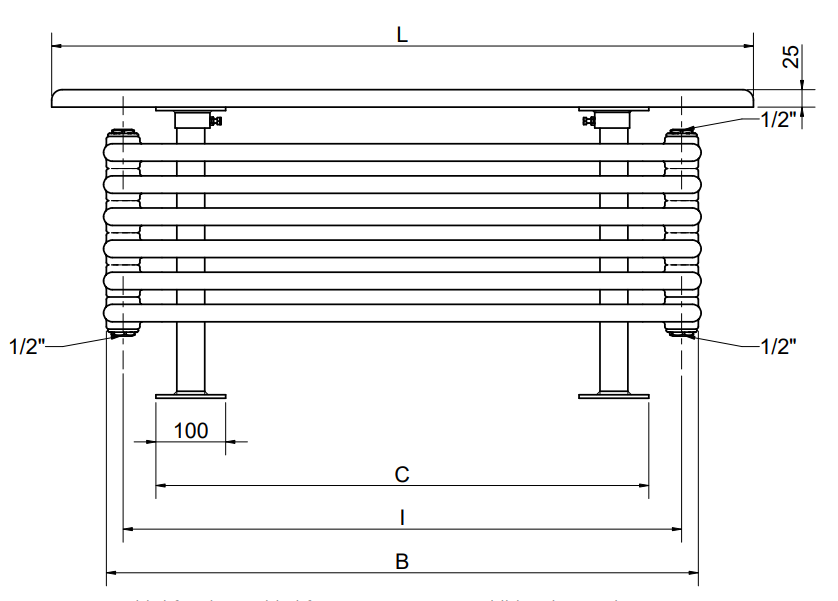

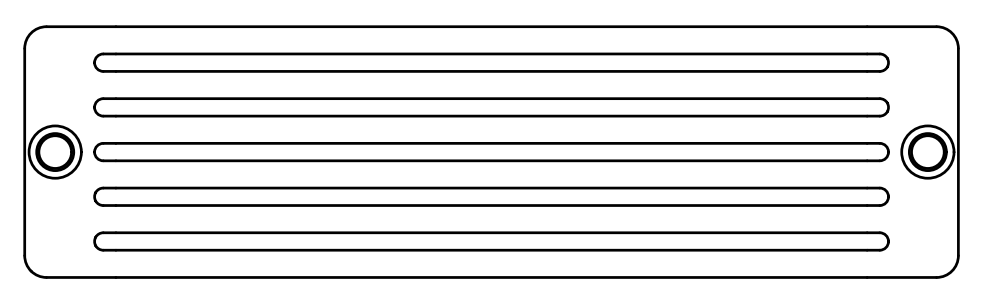

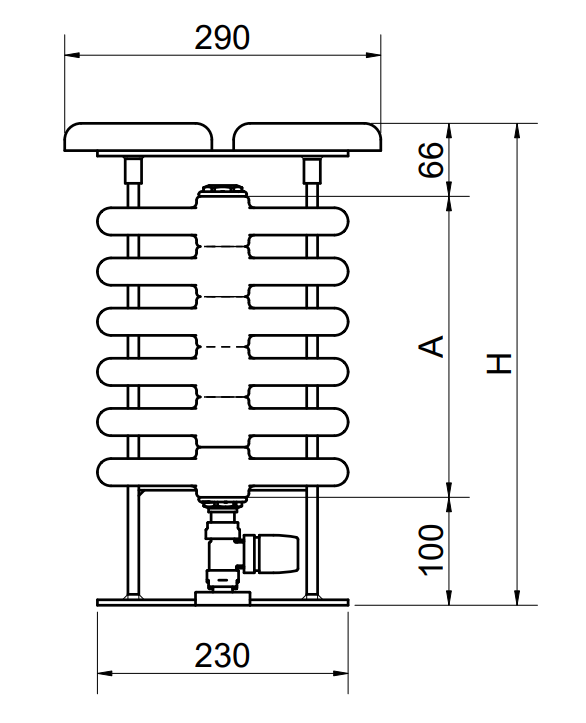

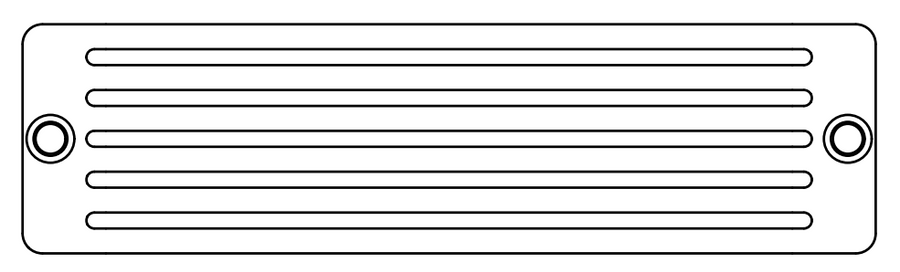

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
