MULTIDIRECTIONAL SCAFFOLDING MULTICOM FORMWORK
MULTIDIRECTIONAL SCAFFOLDING MULTICOM FORMWORK
Thanks to the versatility of the rapid coupling node, the MULTICOM system enables the design of complex structures, in order to meet all needs of a construction site.
INFORMATION
BRAND
Condor
PRODUCT TYPE
Formwork
QUALITY
The system is built in high tension quality steel and is protected by hot dip galvanization which makes it resist corrosion for a long time, avoiding subsequent ordinary maintenance.
SYSTEM
Multicom is a modular scaffolding system. Thanks to the innovative system and components, it enables the design of a Universal structure which always meets the building needs of a construction site.
COLLECTION
Multidirectional
PRODUCTION
Made in Italy
DIRECTIONS
Multiple Directions
STRUCTURAL NODE
The system core is the structural node, made up of an 8 drill steel rosette, solidly joint to the standard, to which relevant ledgers, transoms and diagonals are connected, through a wedge coupling head that is fixed by a hammer blow.
DRILL STEEL ROSETTE
Up of an 8
DIP
Hot Dip Galvanization
DETAIL
-Ledgers, transoms and diagonals meet on the rosette from different spatial directions and always transfer maximum stress to the center of the standard. -In this way, besides enabling multiple directions, the system guarantees rigidity, structural stability and a high load capacity despite a small number of components.
THE SYSTEM

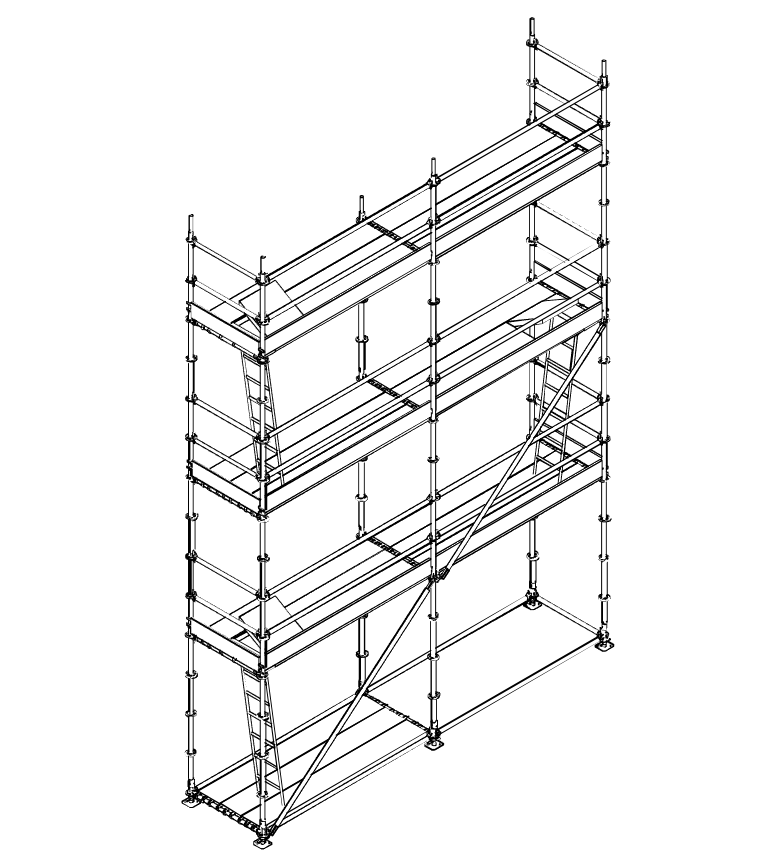

With its assembling method, the system allows to speeding up and easing the installation in the construction site. No leveling of platforms, no couplers to fasten, no pipes to cut to measure. A slight hammer blow is enough to perform fastening saving a considerable amount of time.

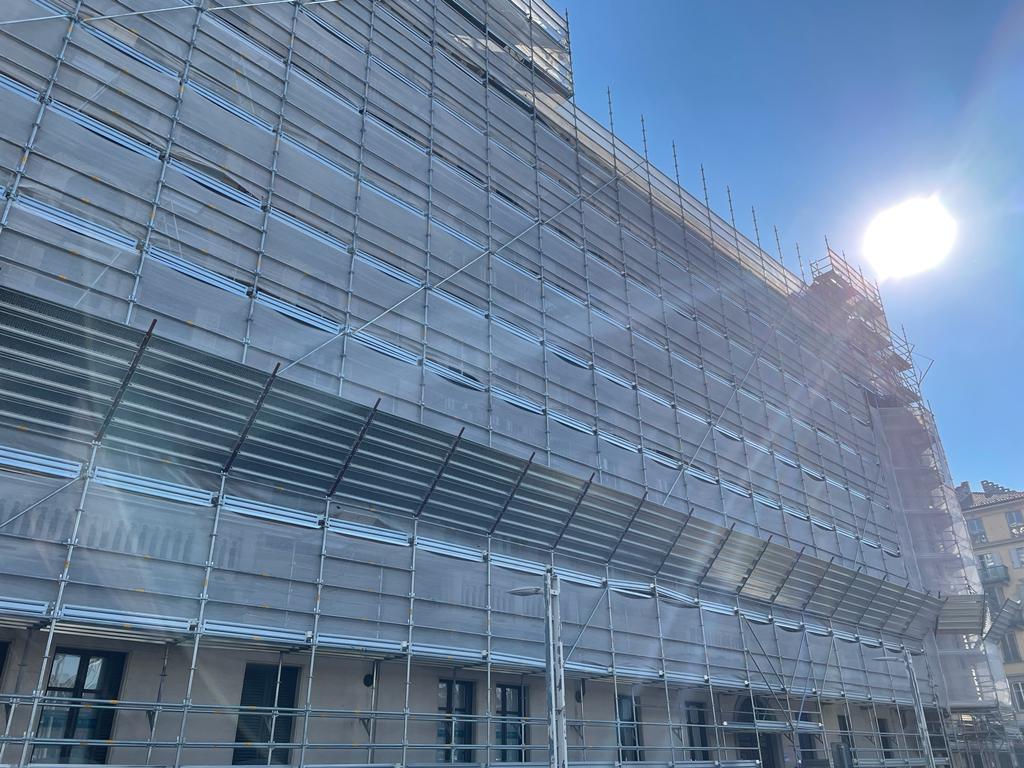

It has interesting applications in complex structures and it is designed for use on facades of linear building, even if its modularity and stability make it suitable for any kind of temporary work.
CERTIFIED CHARACTERISTICS
-Nature and mechanical characteristics of the materials of the structure and the accessories -Mechanical characteristics of the sections -Mesh size -Load-bearing capacity of floors and structure -Class in standardized conventional configurations -Safe assembly and safe use -Dimensions -Permissible load per wheel -Free-standing heights when in use and means of stabilization -Authorized height when rolling -Stability during access and in working position -Payload -Permissible load per support
