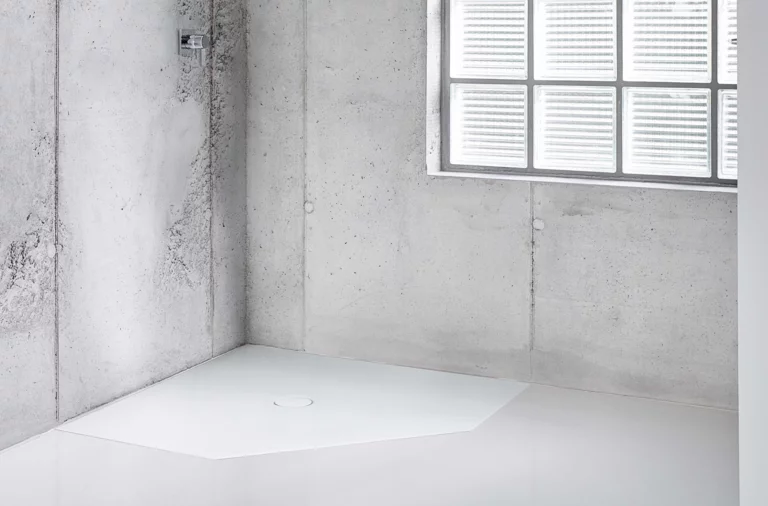

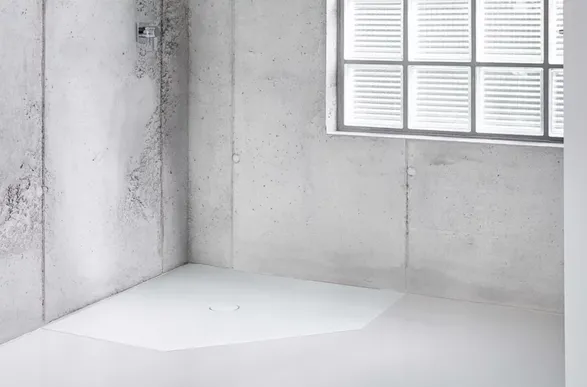

The BetteFloor Caro flush-to-floor shower area with the pore-free surface provides uncompromising hygiene in the bathroom.
information
PRODUCTION
Made in Germany
BRAND
Bette
PRODUCT TYPE
Shower trays
SHAPE
Pentagonal
ITEM NUMBER
7191
WARRENTY
30 Years
MATERIAL
Glazed Titanium - Steel
INSTRUCTIONS FOR USE
We recommend to combine the shower area with the BetteLevel installation feet, installation height: 85 - 225 mm or the Foot-System, installation height: 80 - 200 mm.
WASTE DIAMETER
90 mm
WEIGHT
22,9 kg
SCOPE OF DELIVERY
Including noise-reducing pads.
RIM HEIGHT
30 mm
CORNER RADIUS
5 mm
INSTALLATION
- Corner
- Flush to floor
- Above the floor
FEATURES
The space-saving design of the exterior and low installation height make it the preferred solution for small bathrooms, old buildings and renovations. Their colour selection includes numerous glossy and matt colours.
TECHNICAL ADVICE
We recommend to combine the shower area with the BetteLevel installation feet, installation height: 85 - 225 mm or the Foot-System, installation height: 80 - 200 mm.
DESIGN
Showerfloors
USE
Washroom
TECHNICAL DATA

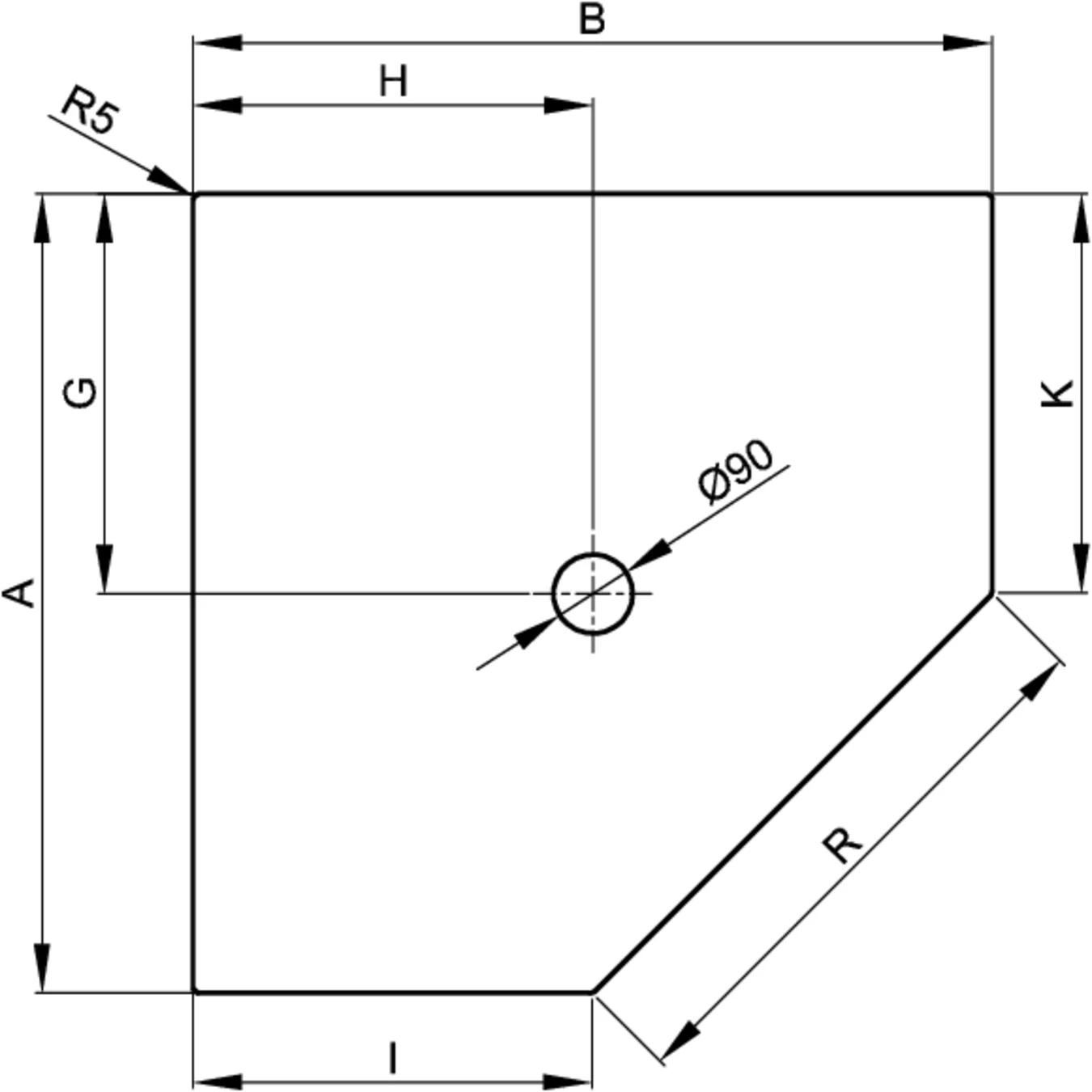

TECHNICAL DRAWING
DIMENSIONS IN DETAIL
| SELECTED DIMENSION | A | B | G | H | I | K | R |
|---|---|---|---|---|---|---|---|
| 900 x 900 mm | 900 | 900 | 450 | 450 | 450 | 450 | 636 |
| 1000 x 1000 mm | 1000 | 1000 | 500 | 500 | 500 | 500 | 707 |
COLORS
GLOSSY COLOURS
- White, glossy, 000 - Starwhite, glossy, 287 - Pergamon, glossy, 001 - Manhattan, glossy, 002 - Manhattan, glossy, 003 - Black, glossy, 056 - Midnight, glossy, 790 - Salvia, glossy, 307 - Curry, glossy, 040 -Azalee, glossy, 130 -Elfenbein, glossy, 014 -Soft cream, glossy, 020 -Natura, glossy, 038 -Caramel, glossy, 046 -Kaschmir, glossy, 090 -Carneol, glossy, 096 -Ruby red, glossy, 057 -Bali Brown, glossy, 065 -Pearl, glossy, 053 -Reflet Grau, glossy, 044 -Ägäis, glossy, 009 -Capri, glossy, 015 -Key West, glossy, 031 -Bermuda Blue, glossy, 023 - Calypso, glossy, 011 -Kaspischgrün, glossy, 112 -Evergreen, glossy, 115 -Moss Green, glossy, 016
MATT COLOURS
-Snow, matt, 440 -Edelweiß, matt, 004 -Cream, matt, 441 -Beige, matt, 422 -Jasmin, matt, 006 -Flax, matt, 423 -Sand, matt, 424 -Silver, matt, 410 -Dust, matt, 413 -Flanell, matt, 008 -Quartz, matt, 412 -Stone, matt, 416 -Cashmere, matt, 415 -Hazel, matt, 417 -Greige, matt, 425 -Graphite, matt, 404 -Slate, matt, 402 -Smoke, matt, 403 -Anthracite, matt, 401 -Ebony, matt, 035 -Raven, matt, 400 -Blue Satin, matt, 418 -Magnolia, matt, 077 -Chantoung, matt, 646 -Anemone 77, matt, 086 -Ebano, matt, 434 -Taupe, matt, 438 -Cacao, matt, 439 -Graphit, matt, 074 -Chinchilla, matt, 029 -Montblanc 756, matt, 140 -Crocus, matt, 043 -Flint, matt, 414
