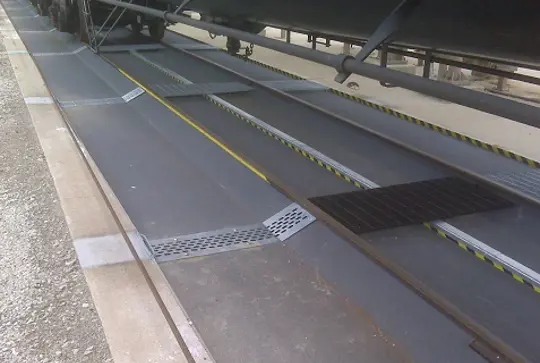

Contech Collector Pans are an ideal solution for controlling soil contamination at rail sites. These all-steel pans and drains are easily installed on existing or new tracks to catch wastes such as spilled or leaking fuel, oils and chemicals, and other harmful pollutants
INFORMATION
BENEFITS OF THE CONTECH COLLECTOR PANS
- Simple installation–minimum track downtime
- Available in a variety of materials to meet most application criteria
- Modular system–if damaged, only damaged section needs to be replaced
BRAND
Contech
PRODUCT TYPE
Collector Pans
ENVIRONMENT
Outdoor
USE
Road
TIE MOVEMENT DOES NOT AFFECT THE PERFORMANCE
Tie movement does not affect the performance of Contech Collector Pans. They are not rigidly attached to the ties, but “float” on them through various attachment methods based on the type application involved.
INSTALLATION
Installation on descending grades is as easily done as on level track—and often more economically.

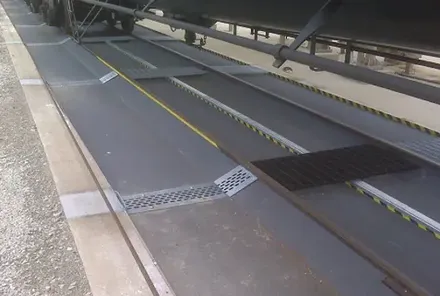

RAIL COLLECTOR PANS FOR OIL COLLECTION
Collector Pans are a modular system of steel pans easily installed on existing or new tracks to catch spilled or leaking fuel, oils, greases and other pollutants.
OIL COLLECTION FOR RAIL TRACKS
Typical applications are along fueling stations, ready tracks, tank car loading and unloading areas, washing facilities—anywhere that pollutants can drip from standing rail cars or other equipment. Their effectiveness has been proven in hundreds of installations for both railroads and industry.
ON INSTALLATIONS AROUND CURVES
On installations around curves, pans can be furnished preformed to fit most curves and simple field modifications will meet practically any field condition.
UNDERDRAINS CAN BE INCLUDED
Underdrains can be included as part of your Contech Collector Pans system. Our PVC plastic pipe is effective with its oil-tight joints and high flow characteristics. Manholes and catch basins are also used on many installations.
EASY FIELD INSTALLATION WITH MINIMAL DOWNTIME

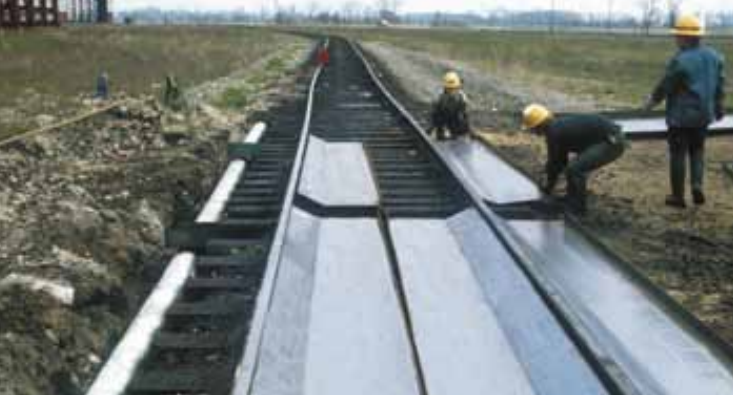

No special installation skills are needed. A competent foreman, welder and four or five unskilled laborers can easily install a system. It involves only a minimal amount of track downtime contrasted with the installation of concrete aprons—which requires weeks of expensive, wasted time.
EASILY FITTED AROUND RAIL JOINTS
Easily fitted around rail joints by field cutting with a torch to the approximate outline of the joint bars and bolts. Contech strongly recommends that rail joints be welded through all pan installations.
LONG SERVICE LIFE
Contech's galvanized or black steel Collector Pans are completely reusable when yard layouts, fueling facilities or ready tracks change. And if an accident damages one, its modular construction means that only the damaged section needs to be replaced. Coated and stainless steel pans are available by request
EFFECTIVE POLLUTION CONTROL
- Contech Collector Pans are a modular system of steel pans and drains easily installed on existing or new tracks to catch spilled or leaking fuel, oils, greases and other pollutants.
- At hundreds of installations within the railroad and manufacturing industries, they are preventing liquid pollution at fueling stations, ready tracks, tank car loading and unloading areas, washing facilities—anywhere oils, chemicals and other pollutants can drip from standing cars and find their way into sewers and streams.
ADVANTAGES
AGENCY/REGULATORY GUIDANCE
Our team is ready to provide you with expert advice and assistance on local regulatory requirements, resulting in faster approvals.
COST ESTIMATES
We can quickly provide engineer’s cost estimates to assist with your solution selection process.
SITE SPECIFIC DRAWINGS
Our engineers can provide site-specific drawings for proposals, project meetings, and submittals, helping you be more efficient with your time.
SOLUTION DEVELOPMENT
Our engineers can review your requirements, weigh all options, and recommend the optimal solution to integrate with your site designs.
ON-SITE ASSISTANCE
Contractors know time is money, so we provide preconstruction meetings, delivery coordination, and on-site installation support to ensure a timely, smooth installation.
TECHNICAL EXPERTISE
Our engineers can assist by providing product specific engineering calculations such as hydraulics, buoyancy, foundation reactions, and unit sizing.

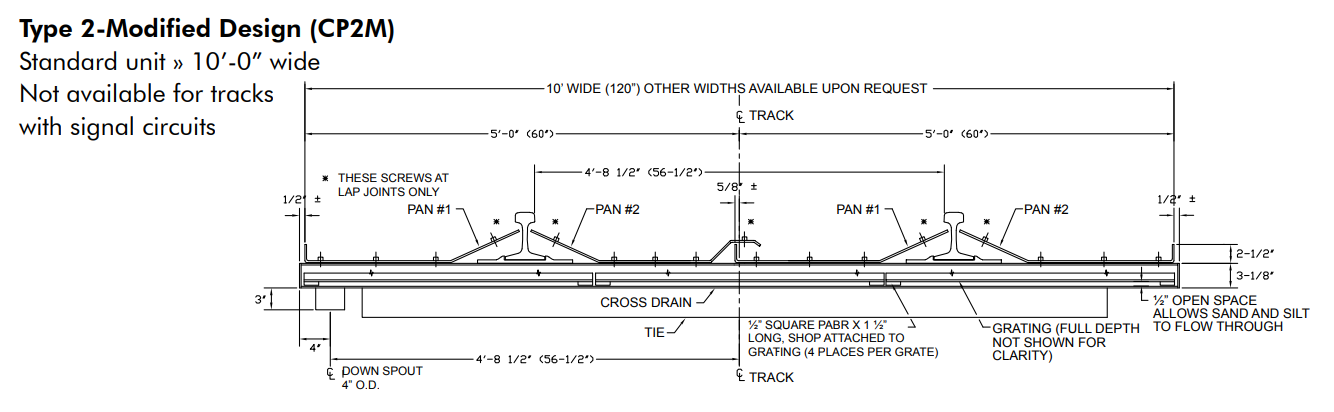

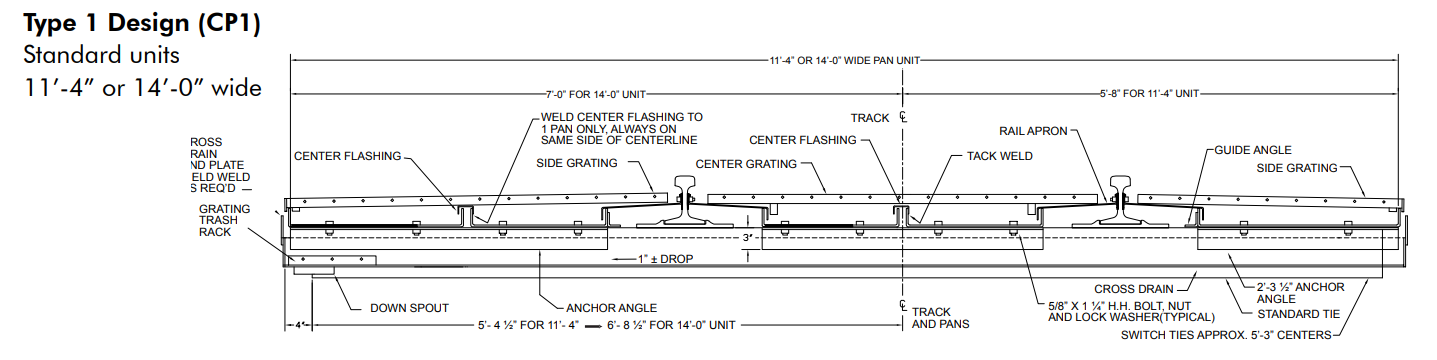

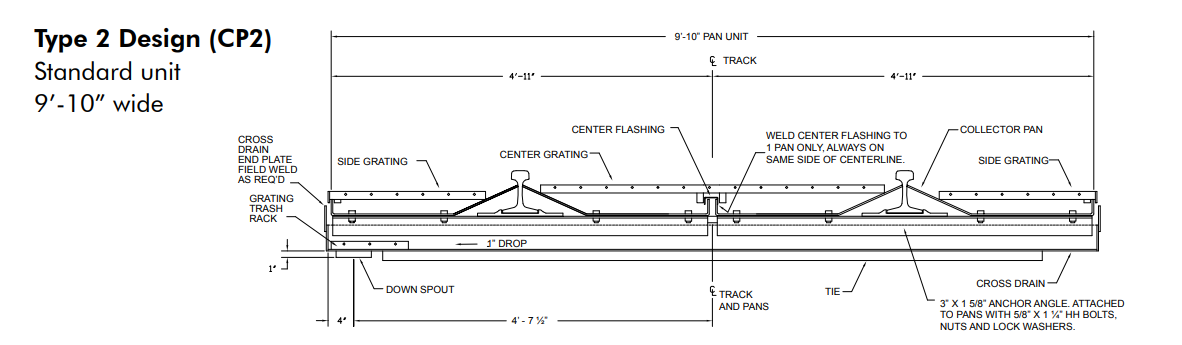

TECHNICAL DRAWING
STANDARD COLLECTOR PAN INFORMATION
| MODULE DATA | 14’-0” TYPE 1 | 11’-4” TYPE 1 | 9’-10” TYPE 2 | 10’-0” TYPE 2 MODIFIED |
|---|---|---|---|---|
| Width-out to out of pan flanges | 14’-0” | 11’-4” | 9’-10” | 10’-0” |
| Module length-center to center of cross drains | 19’-0” | 19’-0” | 19’-0” | 39’-6” (varies) |
| Pan length-actual | 18’-5” | 18’-5” | 18’-5” | 19’-17 /8” |
| Width of crosswalk | 2’-0” | 2’-0” | 2’-0” | 1’-6 3/ 4 |
| O.D. of cross drain downspout | 51/2” | 51/2” | 51/2” | 4” |
| Pan Gauge | 7 | 7 | 7 | 12 |
| Nominal thickness | .179” | .179” | .179” | .105” |

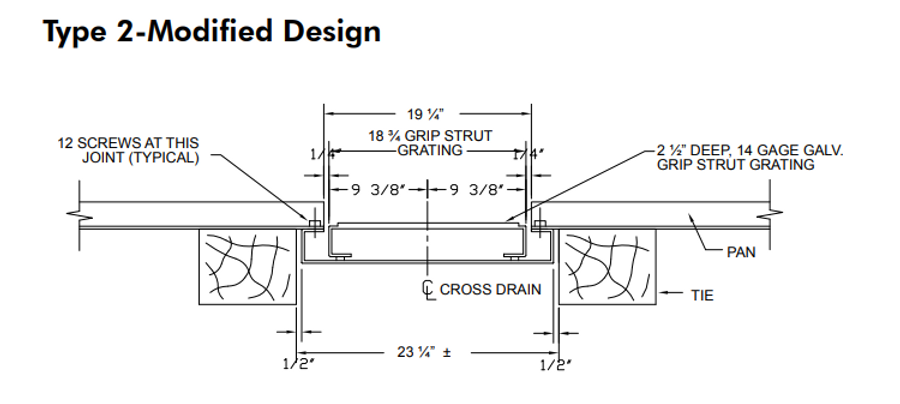

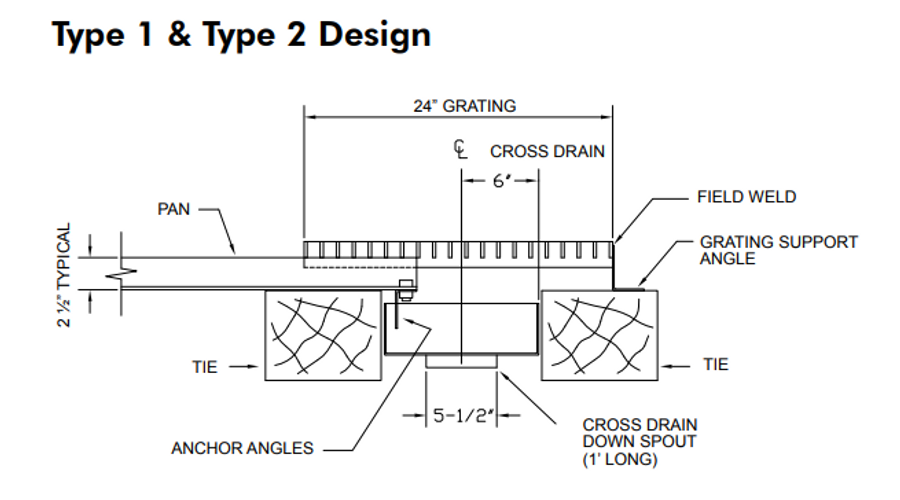

TECHNICAL DRAWING
