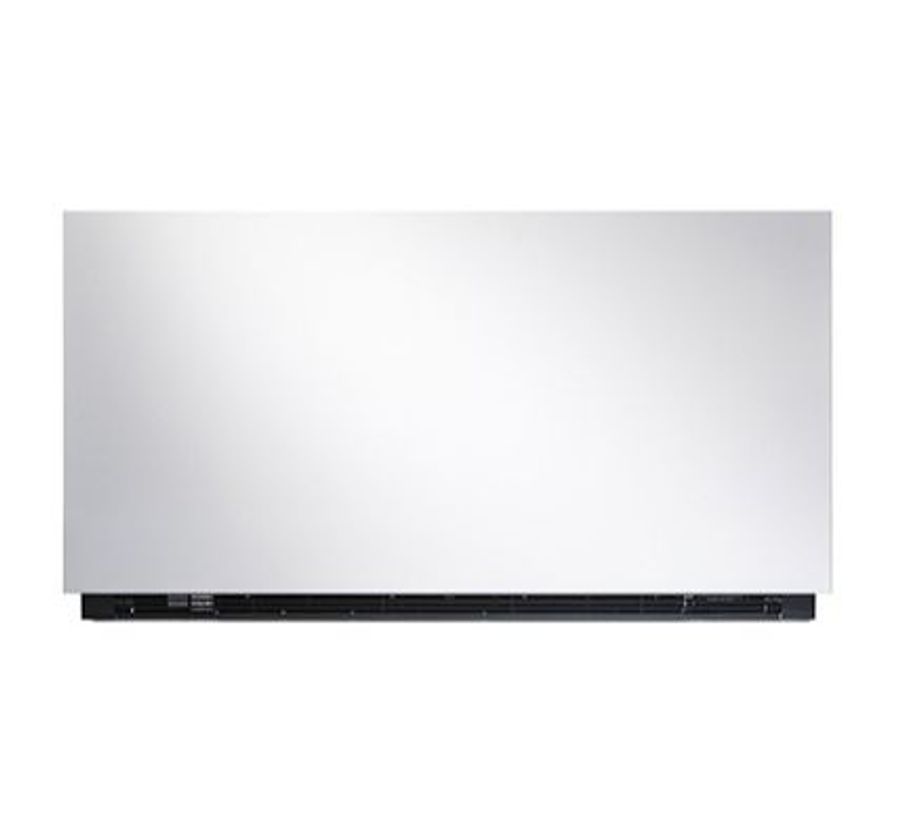

Vasco Niva Fan Coil Unit Radiator
NIVA FAN COIL UNIT RADIATOR
NIVA FAN COIL UNIT RADIATOR
Year after year, the heat pump gains more ground in new and existing houses.
INFORMATION
BRAND
Vasco
PRODUCT TYPE
Radiator
MODEL
- FC75
- FC95
- FC115
WATER FLOW RATE
- FC75 : 192 l/h
- FC95 : 345 l/h
- FC115 : 545 l/h
COLLECTION
Niva
PRODUCTION
Made in Belgium
PRESSURE LOSS
- FC75 : 9.47 kPA
- FC95 : 7.93 kPA
- FC115 : 21.78 kPA
ENVIRONMENT
Indoor
HYDRAULIC CONNECTION
3/4” EK
PALPABLE COOLING CAPACITY
- FC75 : 9.47 W
- FC95 : 7.93 W
- FC115 : 21.78 W
EXPERTS AGREE
Experts agree: this is the energy source of the future. The end-user benefits twice, because a heat pump not only heats in an energy-efficient manner but also cools the house - certainly when combined with Vasco’s brand-new Niva fan coil unit! A fan & The ideal 2-in-1 solution The desired temperature at a fast speed coil unit is a heat exchanger including lamellas in which a fan blows hot or cold air into the room.
ENERGY-EFFICIENT
Energy-efficient operation
TEMPERATURE SYSTEMS
For low water temperature systems
SUPERBLY
Superbly quiet operation
FAN-REGULATION
Modulating fan-regulation
COOLING FUNCTIONC
Cooling is only possible using a heat pump with cooling function
MAXIMUM OPERATING PRESSUR
10 ba
COMBINED
Ideal combined with a heat
pump
DETAIL

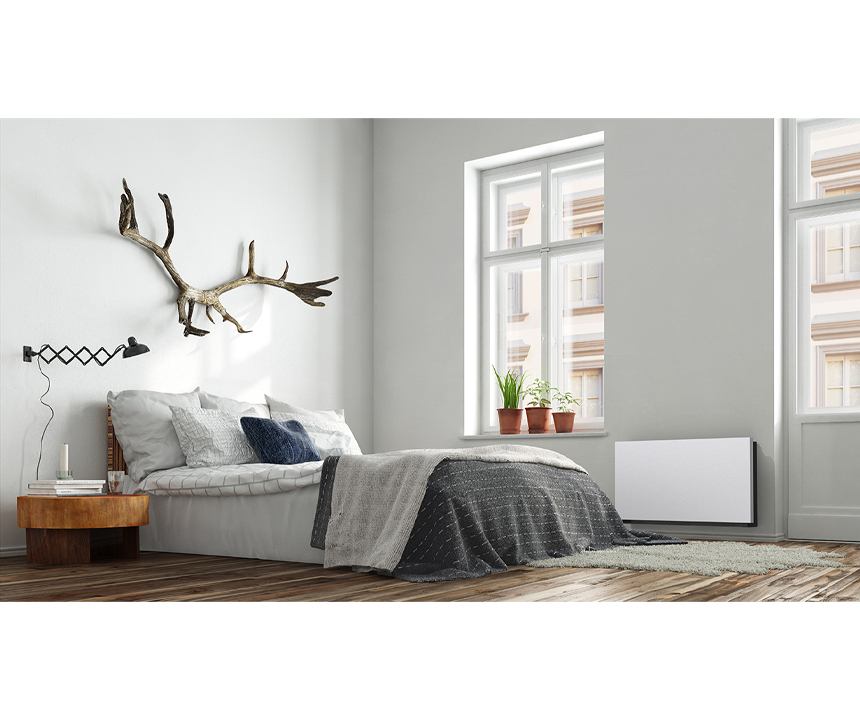

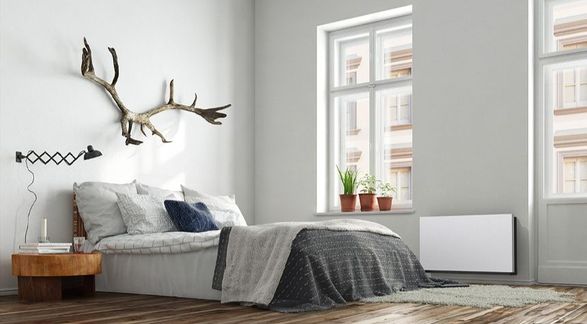

This system, which functions at low water temperatures of 28 - 40°C, has great advantages when combined with a heat pump. The fan coil unit can be used in all the rooms of a house, but it is especially beneficial in bedrooms where we need both heating and cooling. The fan coil unit heats or cools a bedroom in no time from 18°C to 22°C or from 28°C to 24°C. In case of cooling water temperatures between 7 and 12°C are used.
SOLUTION
The ideal 2-in-1 solution
SPEED
The desired temperature at a fast speed

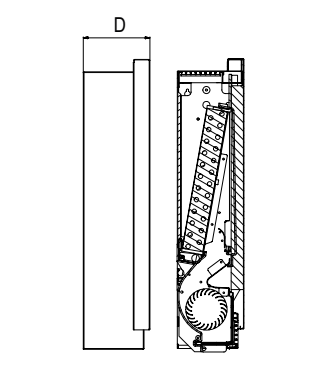

TECHNICAL DRAWINGS
TECHNICAL DATA
TYPES & DIMENSIONS
| TYPE | ORDER CODE | WIDTH (L MM) | HEIGHT(H MM) | DEPTH (D MM) | 45/40/20 (WATT) | 35/30/20 (WATT) | WEIGHT (KG) | CONTENT (L) |
|---|---|---|---|---|---|---|---|---|
| FC75 | 11600-01 | 750 | 610 | 140 | 1114 | 506 | 18 | 0.47 |
| FC95 | 11600-02 | 950 | 610 | 140 | 2004 | 971 | 21 | 0.80 |
| FC115 | 11600-03 | 1150 | 610 | 140 | 3162 | 1698 | 24 | 1.13 |
AIR TECHNICAL DATA
| AIR TECHNICAL DATA | FC75 | FC95 | FC115 |
|---|---|---|---|
| Maximum air flow rate (m³/h) | 162 | 320 | 461 |
| Air flow rate at medium speed (m³/h) | 113 | 252 | 367 |
| Air flow rate at minimum speed (m³/h) | 55 | 155 | 248 |
ELECTRIC DATA
| ELECTRIC DATA | FC75 | FC95 | FC115 |
|---|---|---|---|
| Supply voltag (V/ph/Hz) | 230/1/50 | 230/1/50 | 230/1/50 |
| Maximum power consumption (W) | 11.27 | 18.49 | 19.86 |
| Maximum current consumption (A) | 0.05 | 0.08 | 0.09 |
| Power consumption at minimum speed (W) | 6.6 | 7.2 | 7.3 |
NOISE DATA
| NOISE DATA | FC75 | FC95 | FC115 |
|---|---|---|---|
| Noise pressure at maximum air flow rate (dB(A)) | 42 | 43 | 45 |
| Noise pressure at medium air flow rate (dB(A)) | 33 | 36 | 37 |
| Noise pressure at minimum air flow rate* (dB(A)) | 22 | 24 | 24 |
| Noise pressure at temperature set-point* (dB(A)) | 19 | 20 | 22 |
