SCHINDLER 9500 HORIZONTAL MOVING WALK
SCHINDLER 9500 HORIZONTAL MOVING WALK
For public transit
The Schindler 9500 horizontal moving walk is ideal for meeting the passenger demand and public transportation requirements at airports and other facilities.
FEATURES
HIGH PERFORMANCE, LOW ENERGY CONSUMPTION
The Schindler 9500 horizontal moving walk efficiently maximizes energy use, lowers consumption and costs, and delivers improved performance.
PASSENGER SAFETY, EVERY DAY
The Schindler 9500 horizontal moving walk is designed to meet the industry’s highest standards so that each passenger enjoys a safe ride every day.
VERSATILITY ON DEMAND
Schindler 9500 moving walks share the design versatility of Schindler escalators. There is a wide choice of materials, finishes, colors, sizes, lighting and other options that can be combined to produce customized solutions.
SIMPLICITY INCREASES RELIABILITY
Because the pallets on the Schindler 9500 horizontal moving walk are secured directly to the pallet chain, wear and tear on the pallet band is kept to a minimum, ensuring extremely smooth, comfortable and quiet operation.
INFORMATION
BRAND
Schindler
PRODUCT TYPE
Escalator
ANGLE OF INCLINATION
0° to 3°
BALUSTRADE HEIGHT
3' 3-3/8"
BALUSTRADE DESIGN
E type, slim design
PRODUCTION
Made in United States
MATERIAL
Steel & Aluminium
INSTALLATION LENGTH
Max 100 m at an inclination of 0°
PERFORMANCE AS NEEDED, EFFICIENCY AS DESIRED
Schindler 9500 horizontal moving walks are the ideal solution for transportation lengths up to 328'. With widths of up to 4' 8", the Schindler 9500 horizontal moving walk is ideal for meeting the passenger demand and public transportation requirements at airports, convention centers and other facilities.
DOWNLOADS
INCLINATION
0 ~ 6 degree
PIT DEPTH
- Middle section: 600
- Top/bottom section: 1150
MAX LENGTH
328'
PALLET WIDTHS
3' 4" / 4' 0" / 4' 8"
MICONIC F: INTELLIGENT MICROPROCESSOR CONTROLLER
Two independent safety circuits control each safety device in real time. Dual safety checks mean double the safety: a unique safety feature from Schindler.

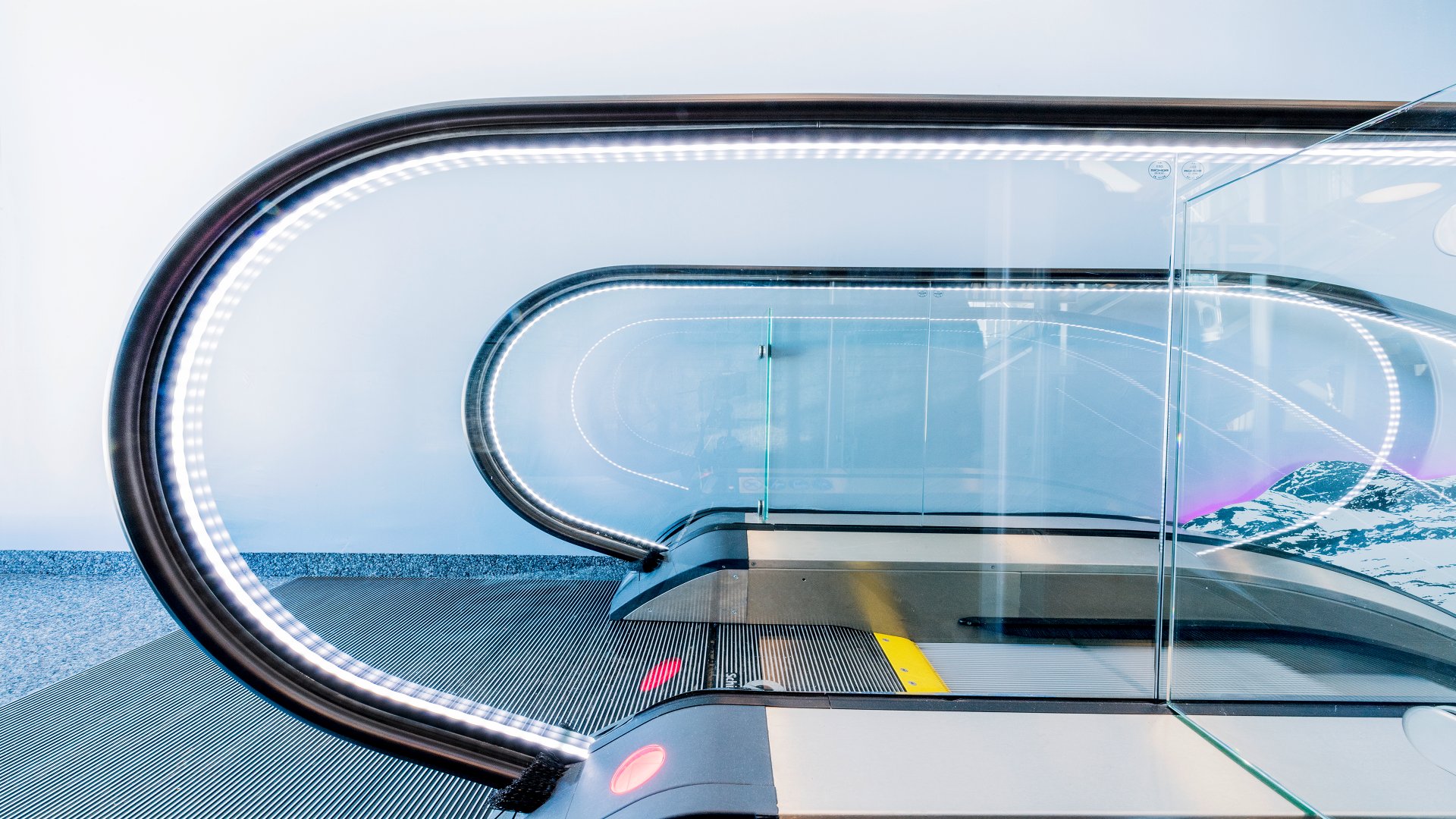

ADVANCED HANDRAIL SOLUTIONS FOR PASSENGERS
Explore our Schindler CleanMobility handrail options for escalators and moving walks.

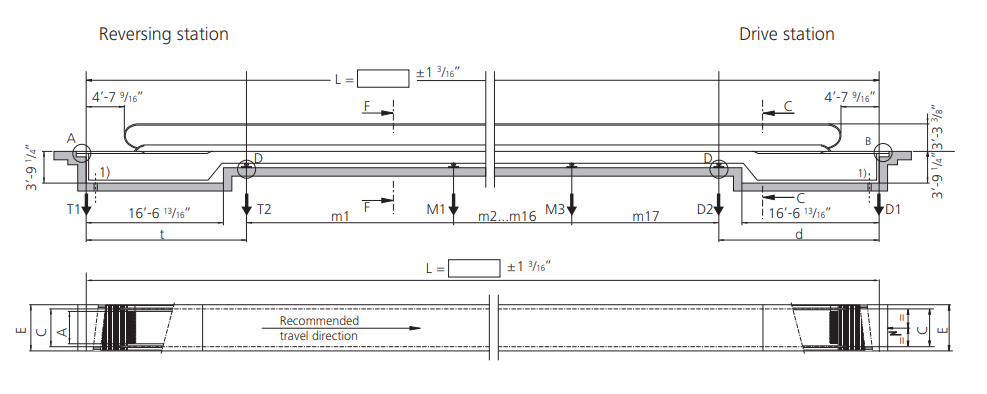

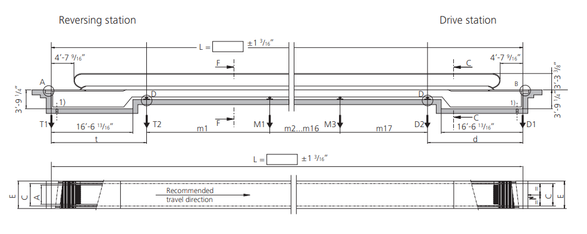

DIMENSIONS
- Balustrade: Design E
- Balustrade Height : 3’-33/8”
- Pallet Width: 40”/48”/56”
- Length : max. 328’ at an inclination of 0°
- Truss: full truss along entire length Inclination: 0° – 3°
ENERGY-EffCIENT
ENERGY-E CIENT INNOVATIVE TECHNOLOGY
The Schindler 9500 features three design solutions that increase energy eciency: more ecient drive systems, components requiring less power, and intelligent power management software. We call it the Schindler E3 energy-saving approach.
E1 – EFFCIENT DRIVE SYSTEM
With state-of-the-art drive technology, the Schindler premium package increases total drive e ciency by up to 23% compared to conventional drive systems.
E2 – ECOLINE POWER MANAGEMENT PACKAGES
Schindler's ECOLINE power management reduces power consumption by up to 38% compared to conventional continuous operation systems.
E3 – EFFECTIVE DESIGN
Shortest installation lengths With patented short pallets, Schindler moving walks have the shortest installation lengths in the market.
