Cordivari Claudia Wide Radiators
CLAUDIA WIDE RADIATORS
CLAUDIA WIDE RADIATORS
Towel warmer
Claudia® is the Cordivari towel rail par excellence, a classic and ageless piece, the first to be produced and to be appreciated by the market.
INFORMATION
QUALITY
The quality of construction, the cleanliness of the welds and the excellent painting process guarantee high reliability. The design of the thermal circuit guarantees very high outputs.
BRAND
Cordivari
PRODUCT TYPE
Radiator
SHADE
Customizable in over 80 colours, including glossy, opaque and mattery shades.
COLLECTION
Claudia Wide
PRODUCTION
Made in Italy
PAINTING PROCESS
Painted with ecological epoxy powders (Certificate DIN 55900-1,-2).
FEAUTURES
- Heating
- Steel
FUNCTIONING
Hot Water
WARRANTY
5 years
MATERIAL
- 30×40 semi-oval vertical collectors in painted mild steel.
- Ø 25 mm horizontal heating elements in painted mild steel.
PACKAGING
Cardboard angular and profiles protected by a recyclable film in polyethylene. User notice included.
CERTIFICATES
FIXING KIT
- The fixing kit is compliant with VDI 6036 norm, class 4.
- Brackets, hex key, airvent, dowels and screws suitable for use on solid walls or perforated bricks, assembly instructions.
P. MAX
8 bar
T. MAX
110°C
FUNCTION
- Hot water
- Dual energy
CONNECTIONS
n° 2 x 1/2” G - 1 x 1/2” G
USE
Indoor

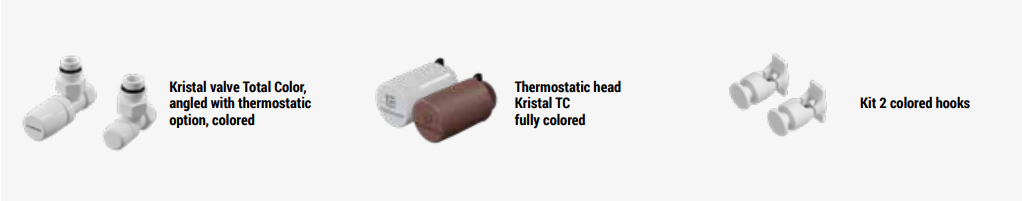

AVAILABLE ACCESSORIES
TECHNICAL DETAIL

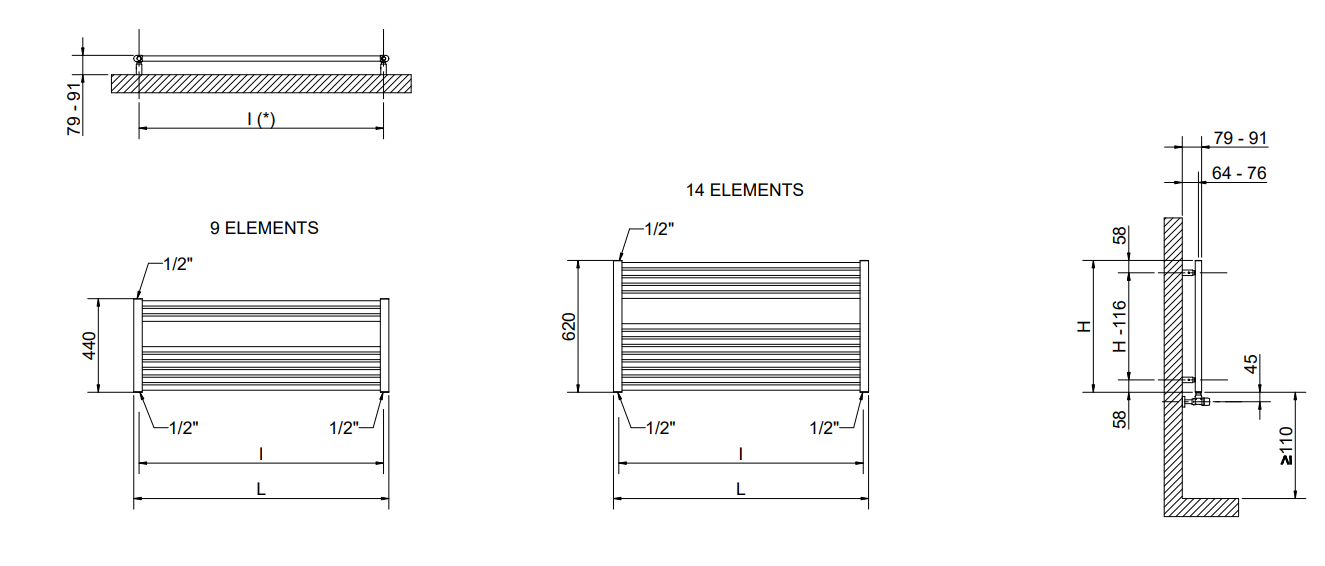

TECHNICAL DRAWING
TECHNICAL DATA
| HEIGHT [MM] | WIDTH L [MM] | PIPE CENTRES I [MM] | ART. NR. R01 WHITE | DRY WEIGHT [KG] | SURFACE [M²] | WATER CONTENT [LT] | ΔT 50°C [WATT] | ΔT 30°C [WATT] | EXP. N | DUAL ENERGY KIT [WATT] |
|---|---|---|---|---|---|---|---|---|---|---|
| 440 | 1200 | 1150 | 3551356100101 | 6.1 | 0.903 | 5.1 | 471 | 261 | 1.155 | 400 |
| 440 | 1400 | 1350 | 3551356100103 | 6.9 | 1.045 | 5.9 | 558 | 311 | 1.145 | 400 |
| 620 | 1200 | 1150 | 3551356100102 | 9.3 | 1.389 | 7.9 | 712 | 390 | 1.176 | 700 |
| 620 | 1400 | 1350 | 3551356100104 | 10.6 | 1.609 | 9.1 | 837 | 457 | 1.183 | 700 |
