Tenax Bahia Net For Collecting Pellets
BAHIA NET FOR COLLECTING PELLETS
BAHIA NET FOR COLLECTING PELLETS
HDPE nets for collecting lead pellets and clay pigeons in clay pigeon shooting
High-density polyethylene (HDPE) nets with a tight weave, resistant and snag-proof, with reinforced edges.
INFORMATION
FEATURES
Laid out on the field to collect lead pellets or hung vertically to mark the perimeter of the shooting area, they allow this sport to be practiced in complete safety.
BRAND
Tenax
PRODUCT TYPE
Net
MATERIAL
Made of polyethylene (HDPE)
COLLECTION
Bahia
COLOR
Vesrde
WEIGHT
180 g/m2
SHIELDING
90%
CHARACTERISTICS
Maintains its characteristics over time
RESISTANT
UV resistant
MESH

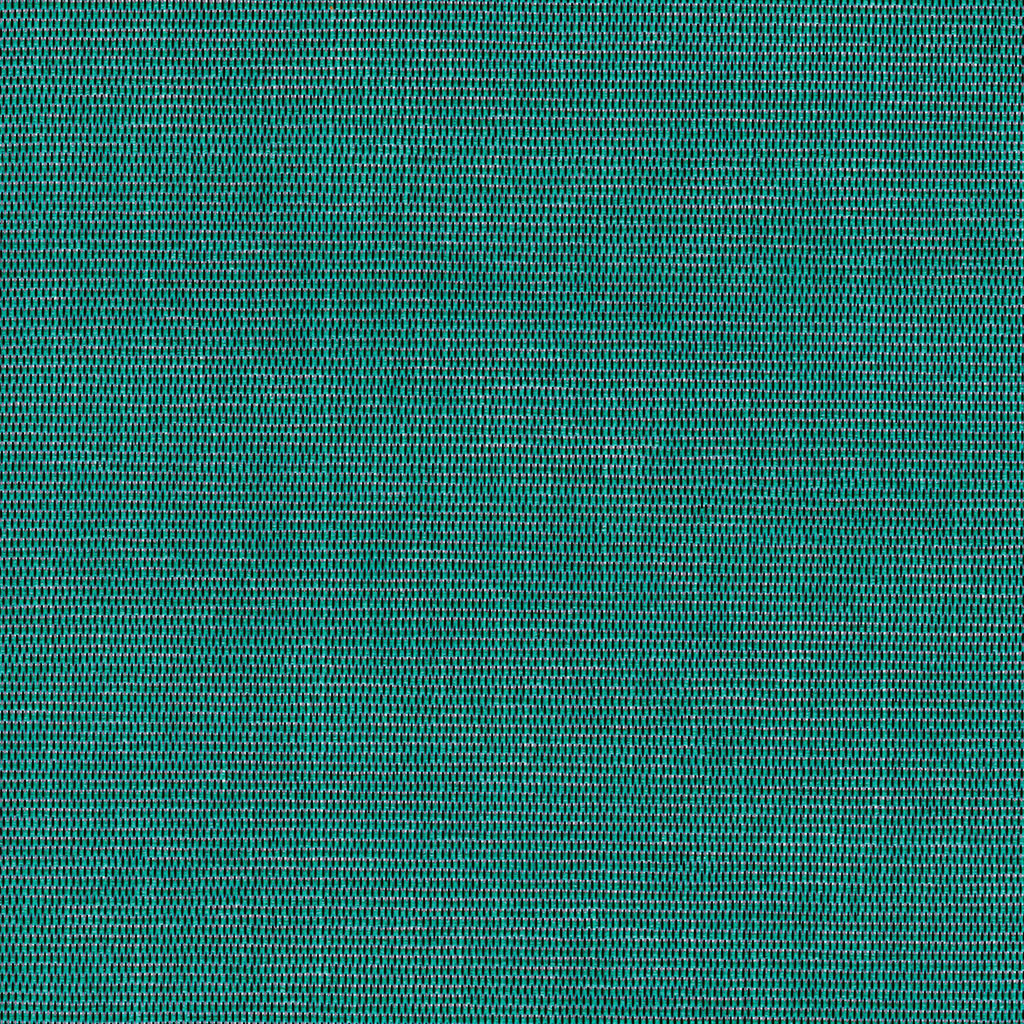

Dense and durable mesh
BENEFITS
Lightweight and snag-resistant
EDGE
Reinforced edge
INSTALL
Safe and easy to install
APPLICATIONS
- Vertically to mark the perimeter of the shooting area
- Laid horizontally on the ground to collect lead pellets and clay pigeons

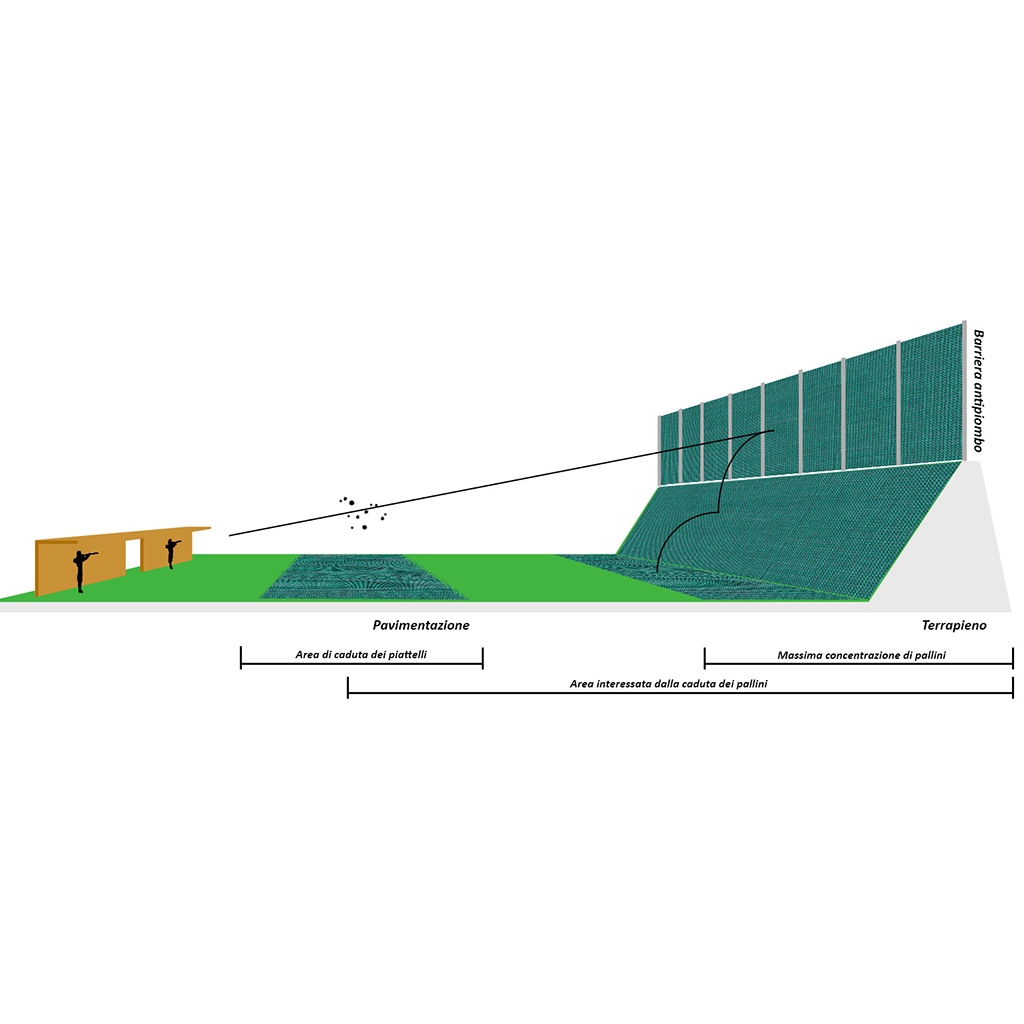

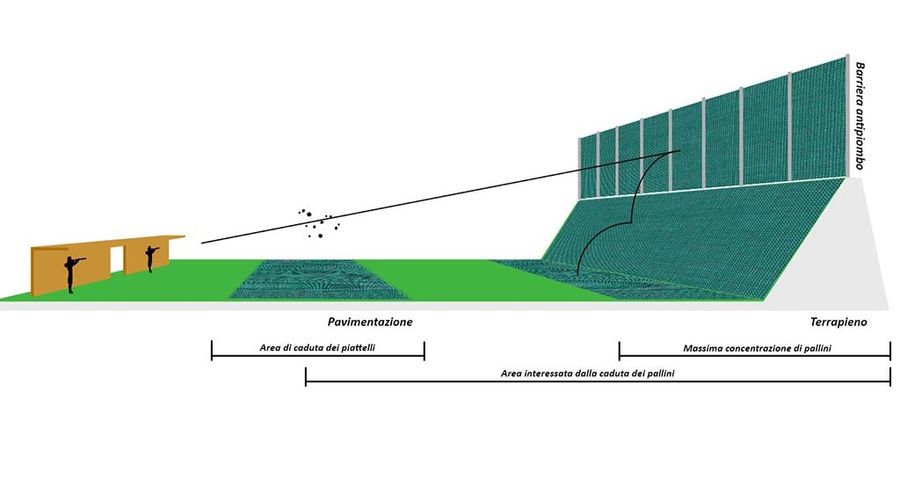

TECHNICAL DRAWING
TECHNICAL DETAIL
MEASURES
| CODE | DIMENSIONS(M) | COLOR | EAN CODE | CONF/UDV | UDV |
|---|---|---|---|---|---|
| 73335106 | 1 X 5 | Green | 8002929000668 | 6 | Box |
| 73035506 | 1 x 100 | Green | 8002929013286 | 1 | Roll |
| 73035556 | 2 x 100 | Green | 8002929028662 | 1 | Roll |
| 73335116 | 1.5 X 10 | Green | 8002929054715 | 6 | Box |
| 1A040332 | 1.5 X 100 | Green | 8002929068682 | 1 | Roll |
| 1A150221 | 1 X 5 | Dark Grey | 8002929116512 | 6 | Box |
| 1A150226 | 1 x 100 | Dark Grey | 8002929116543 | 1 | Roll |
| 1A220100 | 1 x 30 | Dark Grey | 8002929132970 | 1 | Roll |
| 1A220101 | 1.5 X 30 | Dark Grey | 8002929132987 | 1 | Roll |
INSTALLATION
DETAIL
The TENAX BAHIA net is an extremely versatile and reliable solution for shooting ranges, thanks to its robustness and ability to effectively retain both lead pellets and clay pigeon fragments. It can be installed either horizontally, directly on the ground of the practice range to facilitate the collection of residues, or vertically, as a barrier to delimit and secure the perimeter of the shooting range.

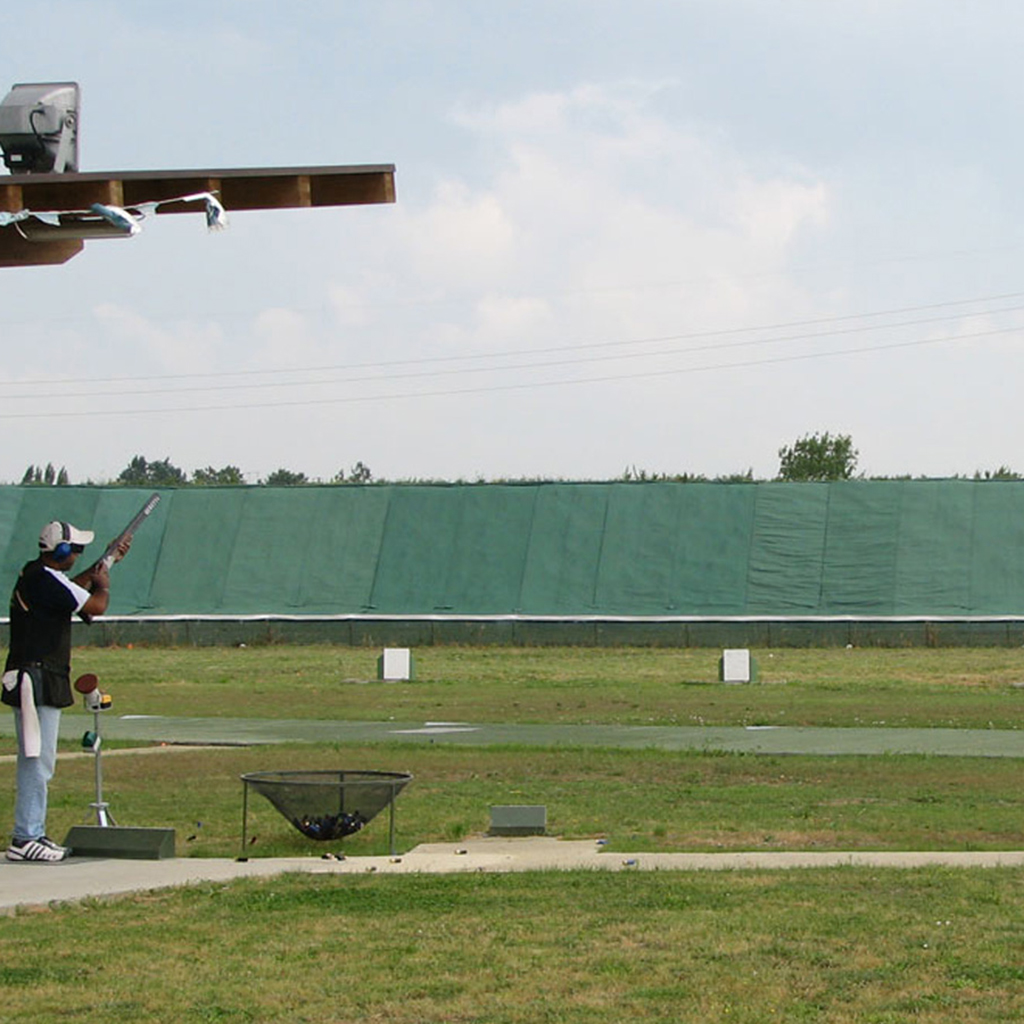

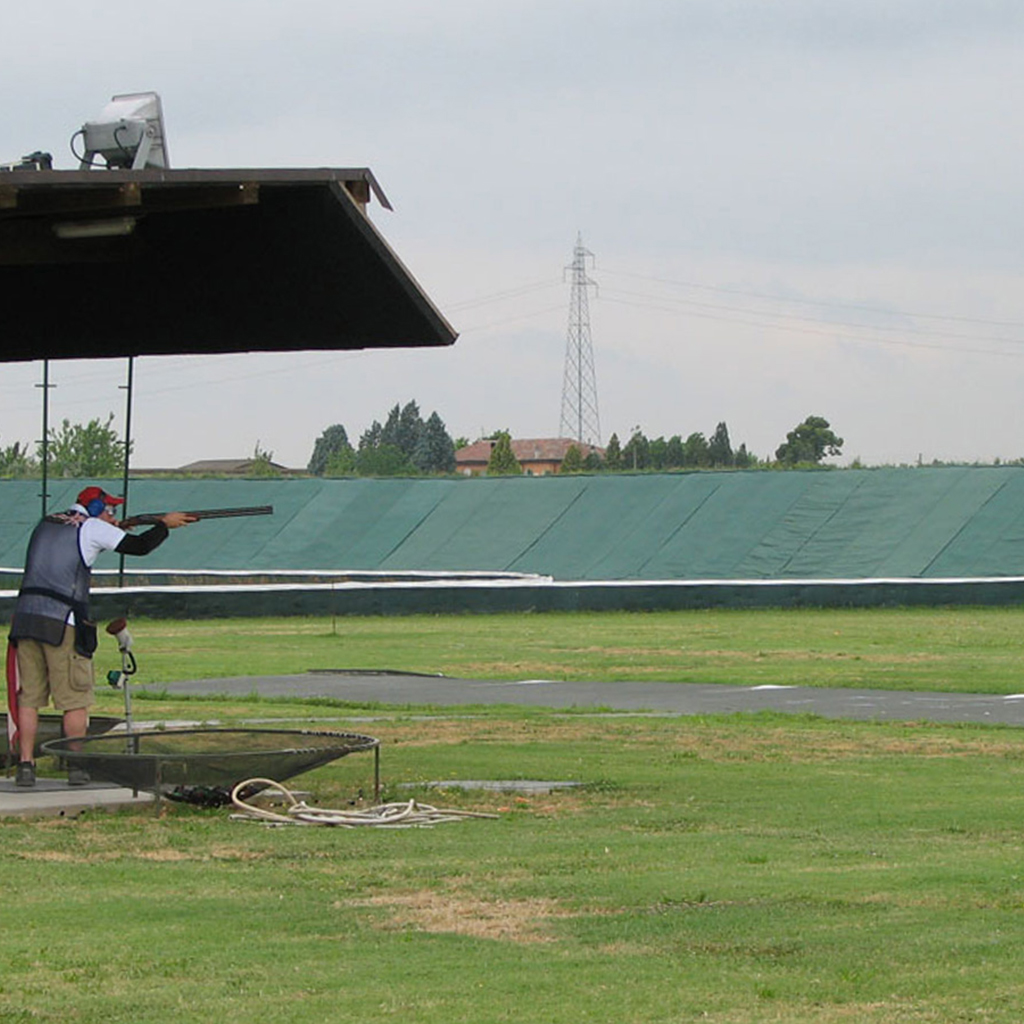

VERTICAL INSTALLATION
When the net is used as a ball barrier or perimeter fence, installation follows a specific procedure. After placing and securing the support posts along the entire perimeter of the shooting area, a metal tension wire is positioned between each post, maintaining a maximum center distance of 1 meter.
Once the supporting structure is complete, the net can be unrolled and secured to the posts and tension wires using plastic or metal cable ties, ensuring that it is taut and stable.

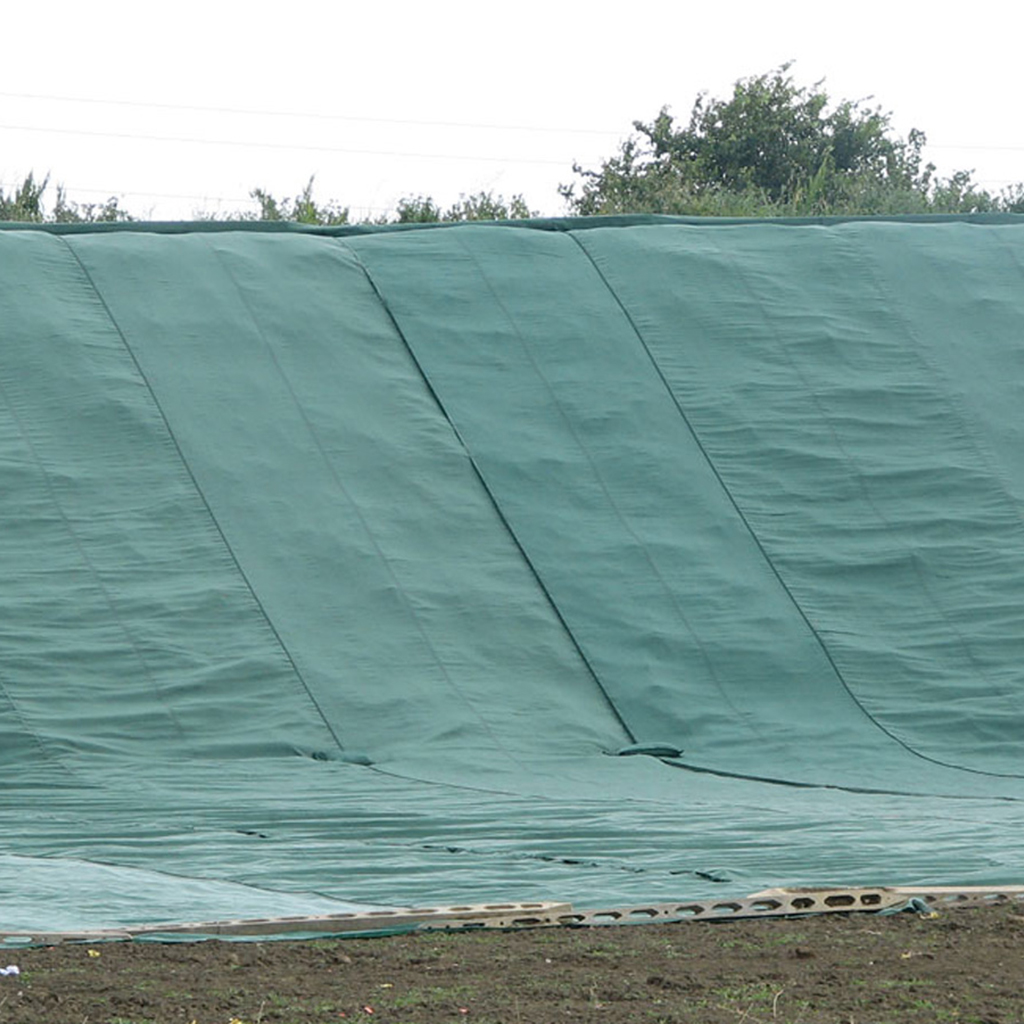

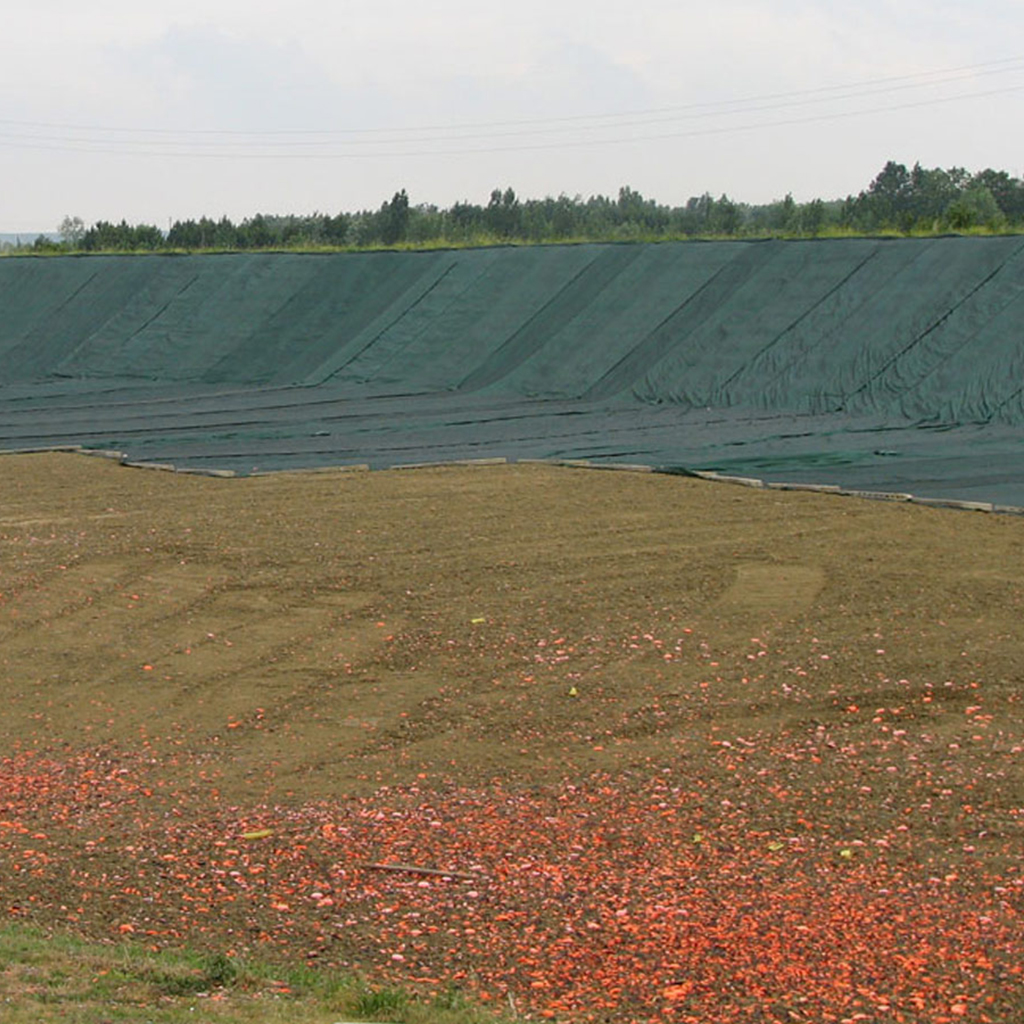

HORIZONTAL INSTALLATION
For ground application, including installation on the embankment at the end of the field, simply cut the rolls to size and lay the net on the surface of the field. Adjacent edges must overlap by at least 20 cm to ensure continuity and strength.
It is essential to ensure that the net is securely anchored to the ground using metal U-shaped nails, positioned at regular intervals: this prevents the sheet from being lifted or moved by the wind and ensures its full functionality.
