Laterlite Latermix beton 1400: bagged structural lightweight concreate
LATERMIX BETON 1400: BAGGED STRUCTURAL LIGHTWEIGHT CONCREATE
LATERMIX BETON 1400: BAGGED STRUCTURAL LIGHTWEIGHT CONCREATE
Latermix beton 1400 is bagged structural lightweight concrete, with a compressive strength of 25 MPA which, thanks to the laterlite expanded clay content as a substitute for traditional aggregates, allows a weight reduction of at least 1000 kg (1 tonne) per m3, with a density of 1400 kg/m3 compared to 2400/2500 kg/m3 of a traditional concrete, I.E. 40% lighter, very useful in renovation and in the construction of lightweight structures(wood, steel, etc.).
information
DETAIL
Thanks to its low thermal conductivity compared to traditional concrete, latermix béton 1400 is also an “Insulating structural concrete” bagged, very useful to avoid thermal bridges in the building envelope.Based on special expanded clay, with a medium / fine grain size, latermix béton 1400 is ready for casting on site, after mixing with only water, and with a simple and traditional method of application.
BRAND
Laterlite
PRODUCT TYPE
Concreate
COLLECTION
Latermix
PRODUCTION
Made in USA
LIGHTWEIGHT
Latermix beton 1400 contains laterlite expanded clay as a replacement for traditional aggregates that significantly reduces weight by at least 1,000 kg (1 tonne) per m3.It has a density of 1400 kg/m3 (as opposed to 2400/2500 kg/m3 of a plain / ordinary concrete) and is classified as an lwac (lightweight aggregate concrete).Latermix beton 1400 t is particularly suitable for reconstruction work, for strengthening existing structures, or to prevent excessive loading in seismic zones.
USE
Construction
ENVIRONMENT
Outdoor
APPLICATIONS
For Fair-faced Concrete Applications
- Reducing thermal bridging in the structural elements of a building envelope
- Strengthening and stiffening loadbearing masonry (edge beams, columns, etc.)
- New structural floors (steel + concrete or timber + concrete composite floors, concrete floor slabs, etc.)

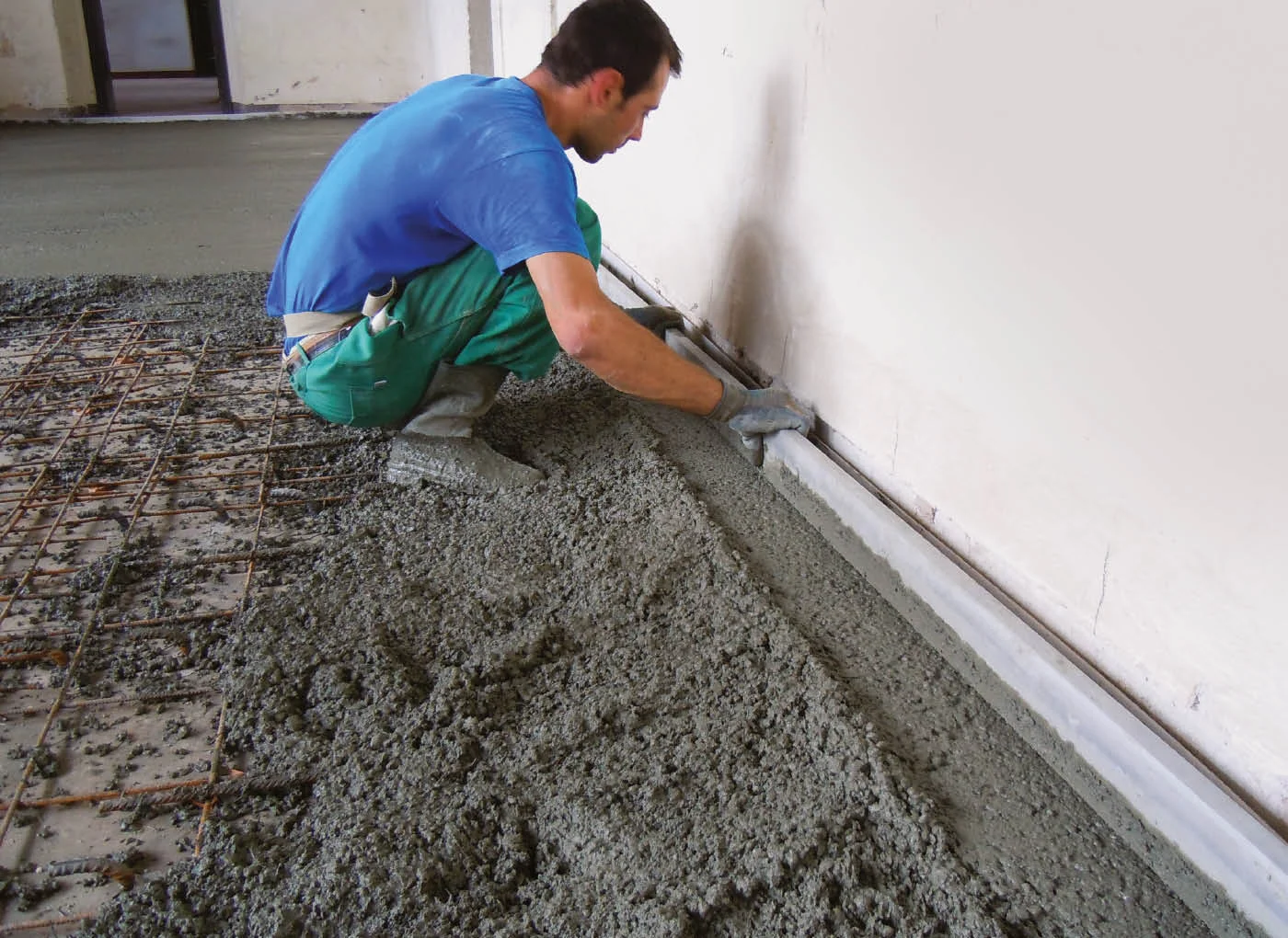

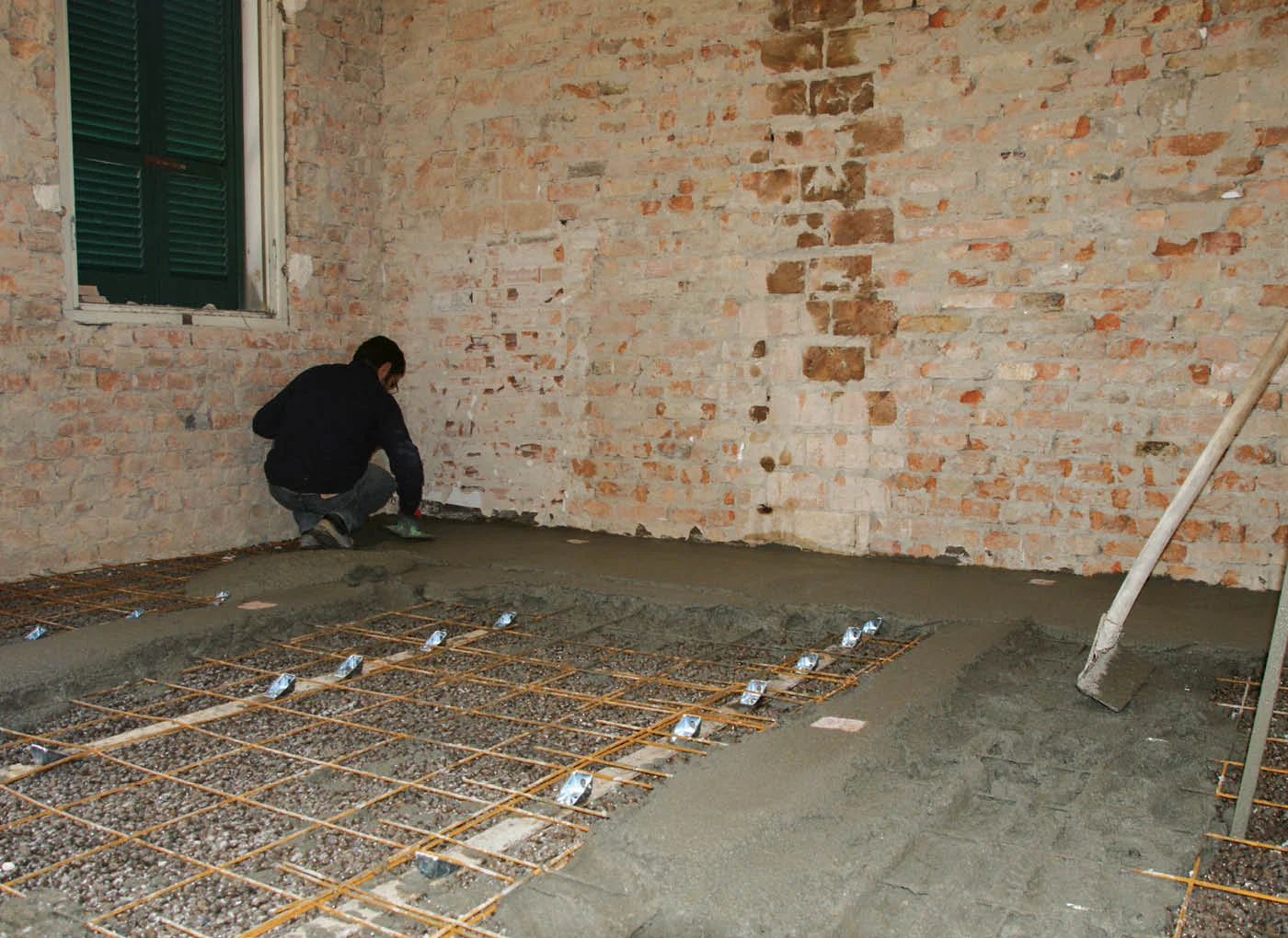

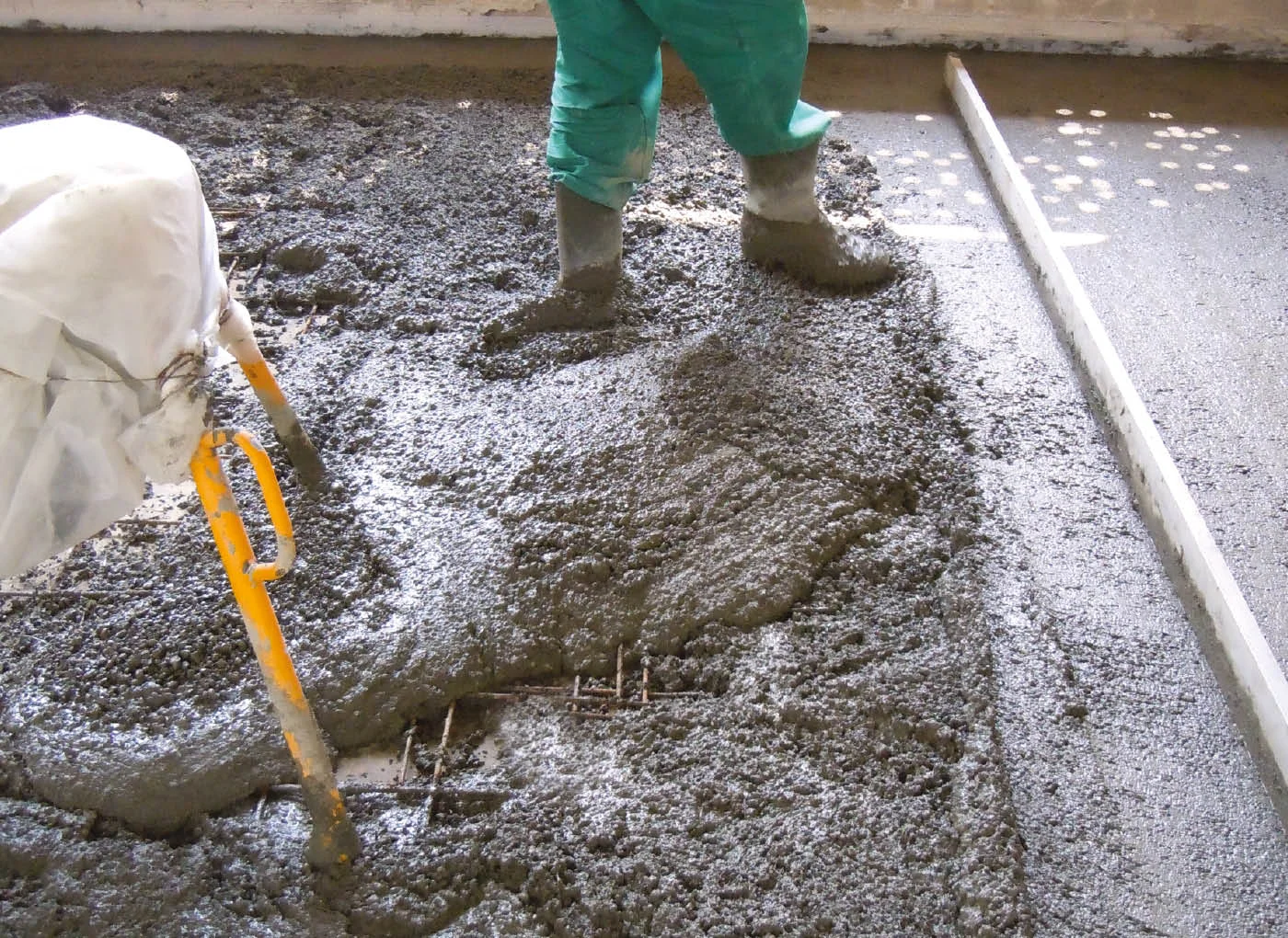

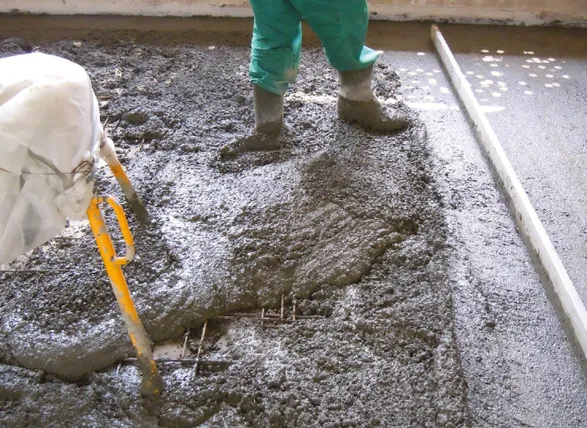

- Structurally strengthening existing floors (in timber, steel, or concrete) by means of the composite floor construction (concrete slab overlay with connectors)
RELIABLE PERFORMANCE
The binder dosage and grading curve of the components of latermix beton 1400 are factory checked and maintained constant. Using only water for the mix means that the performance of the completed component can be controlled effectively; this is particularly important for guaranteeing strength in structural applications and eliminates the risk and inaccuracy associated with products batched on site.
MODULUS OF ELASTICITY (EN 206-1)
E 15.000 N/mm2
COMPRESSIVE STRENGTH CLASS (EN 206-1)
LC 20/22
DENSITY (EN 206-1) (APPROX.)
1400 Kg/m3 (class D 1,5)
THERMAL CONDUCTIVITY
λ 0,42 W/mK
CHARACTERISTIC COMPRESSIVE STRENGTH (EN 206-1)
- Rck=25 MPa – N/mm2 (cube specimen)
- flck=22,5 MPa – N/mm2 (cylindrical specimen)
NON-COMBUSTIBLE
Latermix Beton is a 100% mineral non-combustible product (Euroclass fire rating – A1) that is safe, including in the presence of fire.
PACKAGES

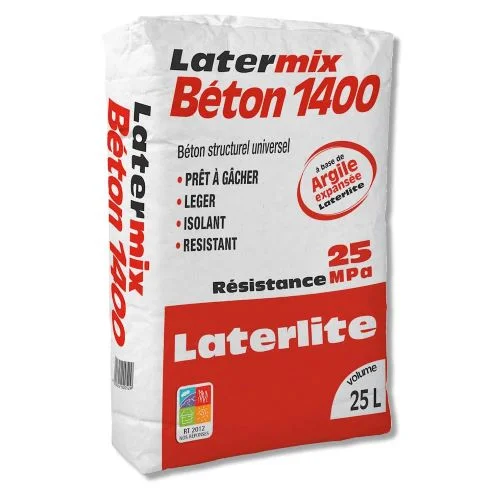

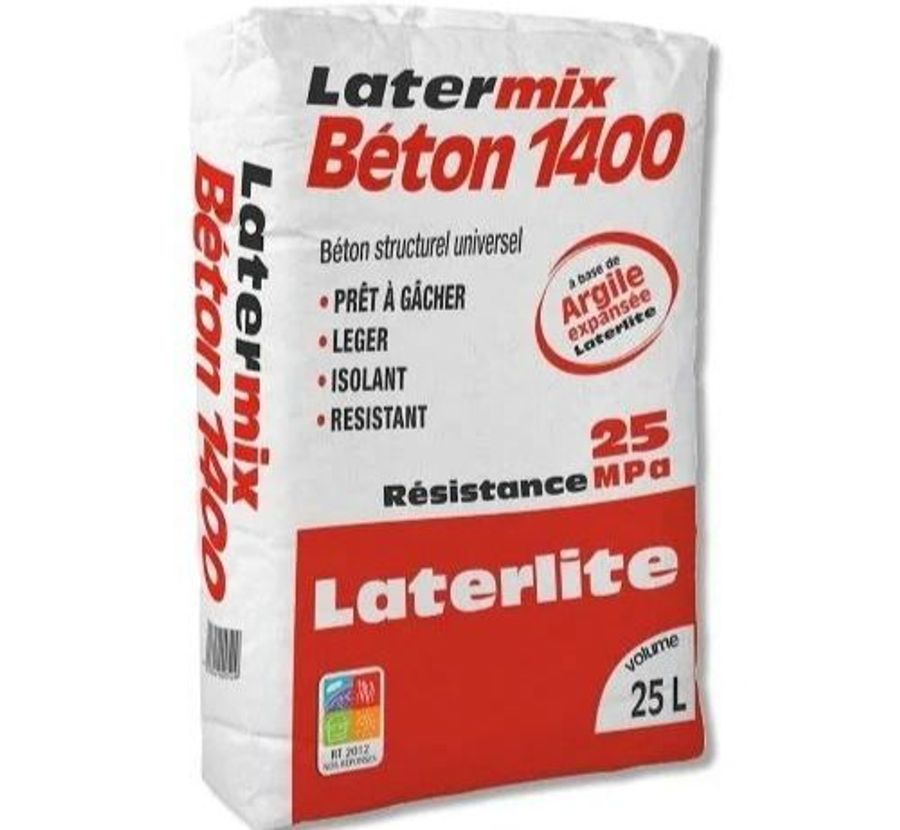

Bags each of 25 litres. On non-returnable wooden pallets, 56 bags/pallet – 1,4 m3/palletbags required per 1m2 of floor area 0,47 bags per 10 mm depth – horizontal use as strengthening slabstorage life: 12 months from date of packaging.
STRUCTURAL STRENGTH
Latermix Beton 1400 is a true structural concrete of class LC 20/22 (Rck 25 MPa – 250 kg/cm2) that can be used for loadbearing RC structures compliant with EN 206 and Eurocode 2.
HIGH YIELD AND TRANSPORT EFFICIENCY
Lightweight means increased efficiency in both product yield and transport, allowing 60% more volume of latermix 1400 concrete to be mixed on site compared to the same weight of traditional dry concrete.In terms of performance, only 47 bags of latermix béton 1400 are needed to produce 1 m³ of in-situ concrete, compared to 80 25 kg bags for a dry concrete of ordinary aggregates.
APPARENT PACKED DENSITY (APPROX.)
1150 Kg/m3
FIRE RATING
Reaction to fire Euroclass fire rating A1
LOW THERMAL CONDUCTIVITY CONCRETE: INSULATING CHARACTERISTICS
Its Lambda (thermal conductivity) is 4,5 times lower than that of an ordinary concrete (Lambda= 0.42 w/mk as opposed to 1.9 w/mk).
Latemix beton 1400 reduces thermal bridging (psi value ψ – linear thermal transmittance) and increases the energy efficiency of buildingsthe reduction of thermal bridges is possible both in new construction and in the renovation of all construction elements in contact with the building envelope, such as: in the junction between floor slabs and exterior walls, in horizontal and vertical walls or structural slab joints, in balconies and overhangs, in other structural or decorative elements, in stair construction, as well as in details of the surroundings of openings (lintels, sills, pillars, etc.).
Using latermix beton 1400 reduces heat loss and avoids the risk of pathologies such as mould and condensation in the interior of dwellings, typical of thermal bridges in both renovations and new construction, without the need to use complex systems to break these thermal bridges.
