PORT HAVEN 2-HANDLE KITCHEN FAUCET
PORT HAVEN 2-HANDLE KITCHEN FAUCET
Model : LG31-TDC
Whether you’re feeding four or forty, do it with flair. Industrial design gives the Port Haven collection just enough edge to offset the oh-so-elegant, statuesque faucets that make a statement in your kitchen without ever uttering a word.
INFORMATION
BRAND
Pfister Faucets
PRODUCTION
Made in USA
PRODUCT TYPE
Faucet
COLLECTION
Port
MAX DECK THICKNESS
3
# OF HANDLES
2
GPM FLOW RATE
1.8
TOTAL SPOUT HEIGHT
14-3/8
DECK TO AERATOR HEIGHT
8-1/2
USE
Kitchen
ENVIRONMENT
Indoor
SOAP DISPENSER
No
FAUCET ARC TYPE
High-Arc
TYPE SIDE SPRAY
Optional Side Spray
DETAIL
These faucets are anything but ordinary. Keeping with the theme of popular trends, Port Haven thrives in modern rustic, modern industrial and eclectic traditional kitchen designs.
CODE COMPLIANCE
- ADA Compliant
- NSF/ANSI/CAN 61: Q≤1
- IAPMO Certified to ASME A112.18.1/CSA B125.1
FEATURES
- Optional side spray included

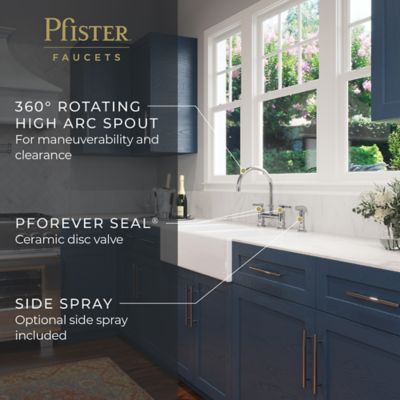

- High arc spout for added clearance and reach
- Complies with Federal and State safe drinking water legislation.
- Spout swivels 360 degrees for maximum maneuverability
- Meets ADA/ANSI A117.1 requirements, ensuring accessibility to all disabled persons
- Pforever Seal™ features an advanced ceramic disc valve technology with a never-leak guarantee
- Rated to meet or exceed CALGreen criteria, which helps to conserve water in the average home by at least 20 percent

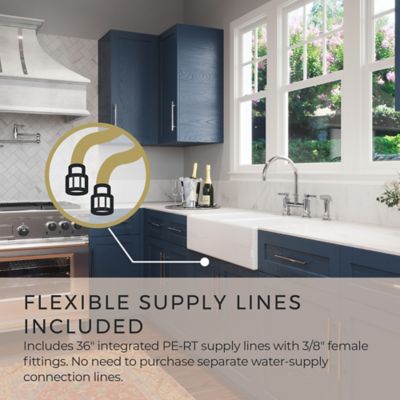

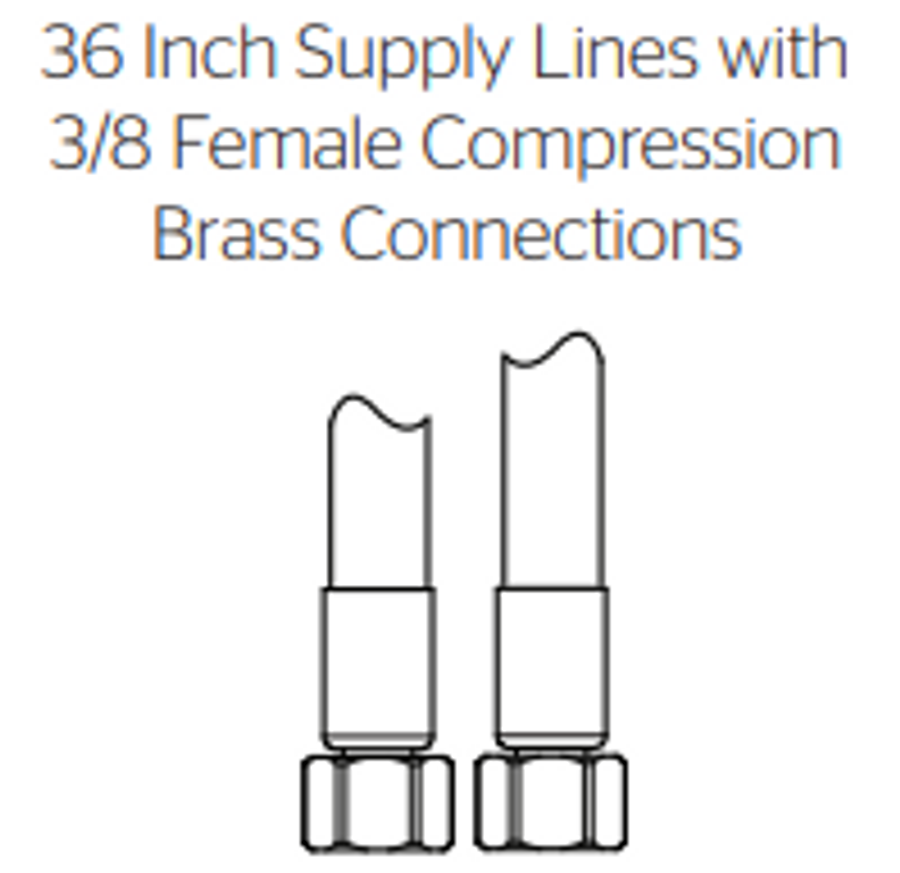

- Includes 36” integrated PE-RT supply lines with 3/8” female fittings. No need to purchase separate water-supply connection lines.

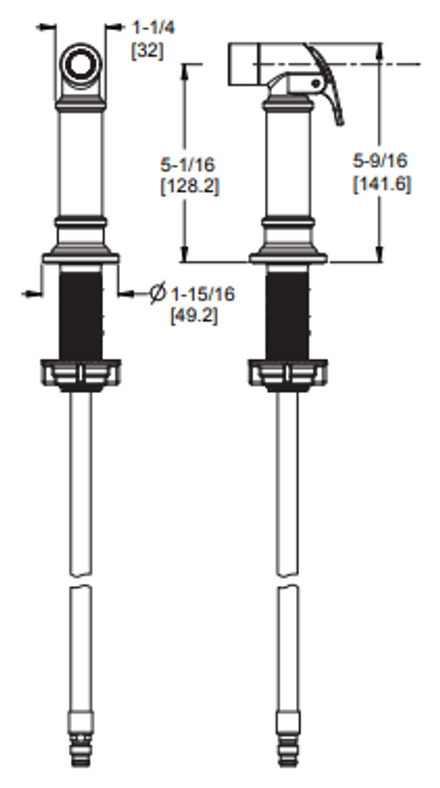

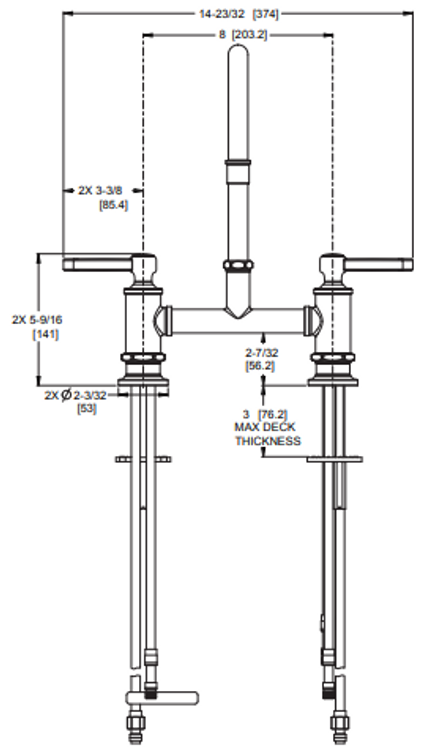

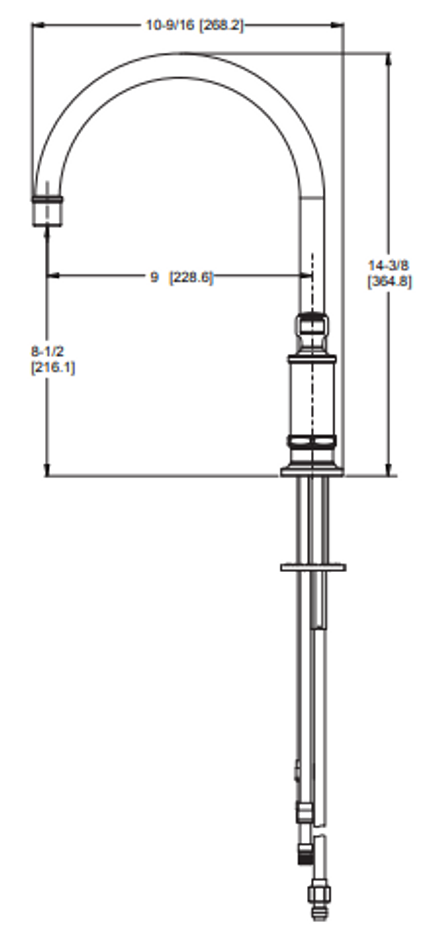

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
FINISHES
FINISHES
- Brushed Gold
- Tuscan Bronze
- Stainless Steel
- Polished Nickel
- Polished Chrome
