Emco Emco diplomat premium with maximus insert and scraping edge
EMCO DIPLOMAT PREMIUM WITH MAXIMUS INSERT AND SCRAPING EDGE
EMCO DIPLOMAT PREMIUM WITH MAXIMUS INSERT AND SCRAPING EDGE
The premium entrance mat with the stylish, carpet-look Maximus insert stands out from the crowd with its premium-quality tufted velour and high-end design. Particularly ideal for collecting fine dirt. The additional profile offers even more cleaning power. Optimally designed for buildings exposed to average to heavy footfall.
FEATURES
FEATURES
(covered, Zone 1+2)
INFORMATION
BRAND
Emco
PRODUCT TYPE
Technical Mats
STANDARD PROFILE CLEARANCE A
5 mm, rubber spacers
CONNECTION
Thanks to plastic-coated steel cable
APPROX. HEIGHT (MM)
- 12
- 17
- 22
WEIGHT (KG/M²)
- 10.3
- 12.1
- 9.0
ADDITIONAL PROFILES
Scraper bar
PROFILE WIDTH (MM)
27.5 mm
USAGE AREA
- Hotel
- School
- Sports hall
- Retail sector
- Retirement homes and Care-/Nursery Homes
- Family home
- Medical practice
- Apartment building
- Kindergarten/Nursery
- Offices and administrative buildings
ACCESSIBILITY
- Prams
- Hand trolleys
- Wheelchairs
- Sack-/hand truck
- Light shopping trolleys
MAT TYPE
emco DIPLOMAT
CONNECTION
Thanks to plastic-coated steel cable
DIRT COLLECTION ZONE
Indoor and outdoor (covered, Zone 1+2)
EXAMPLES OF TYPE OF DIRT
- Street dust
- Textile fibres
- Small leaves
- Damp street dust
- Dmp sand deposits
- Ash
- Hair
- Dust
- Sand
- Twigs
SUPPORT CHASSIS
Made using aluminium with sound absorbing insulation on the underside
MAT DIVISION AS PER FACTORY
- From a profile length of 3000 mm or a maximum mat weight of 25 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request.
- From a profile length of 3000 mm or a maximum mat weight of 30 kg. For profile lengths above 2300 mm, a surcharge is applicable . Mat devisions/splits possible at customer's request.
PROFILE WIDTH
Normal
TYPE OF DIRT
Rubs off fine and damp dirt
USE CLASSIFICATION EN1307
Property suitable inlay 33
INSERT TYPE
Premium
INSERT STYLE
Maximus
PILE MATERIAL
100% PA 6.6 (polyamide)
COLOUR
- Red 80.07
- Grey 80.03
- Black 80.01
- Brown 80.04
- Brown mottled 81.04
- Anthracite 80.02
- 81.07 red pattern
- Black mottled 81.01
- Anthracite mottled 81.02
REVOLVING DOOR DRIVES
Our mats with a profile spacing of 3mm in accordance with DIN EN 16005 are available for revolving door drives.
TREAD SURFACE

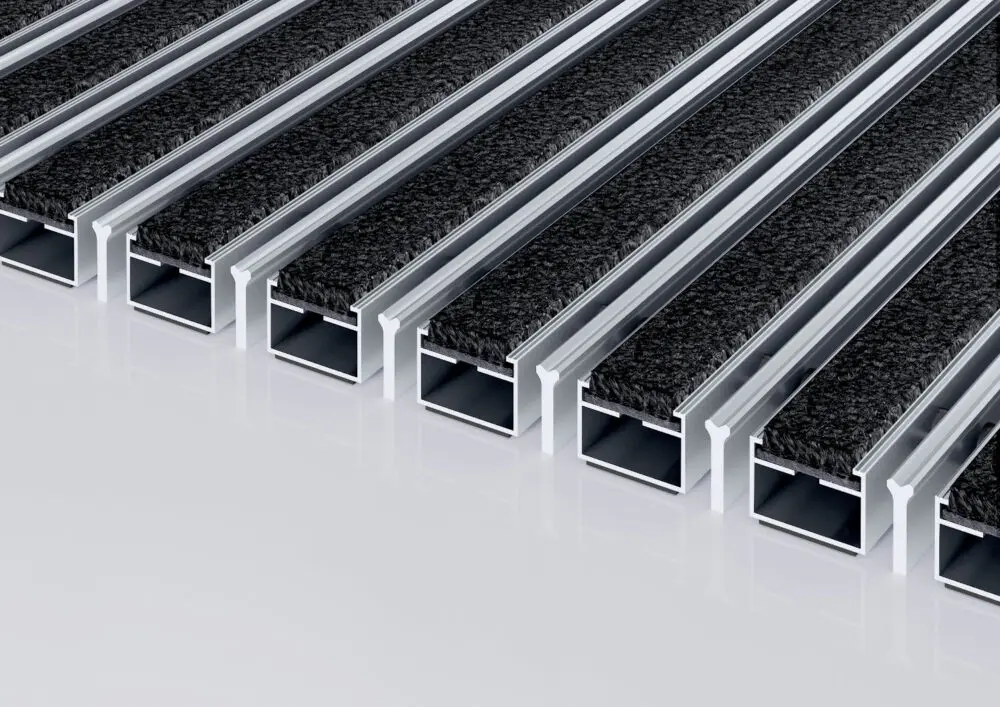

The stylish Maximus insert stands out from the crowd with its premium-quality tufted velour and high-end design. The additional profile increases the cleaning power.
SUPPORT CHASSIS COLOUR
Anodised colours for an additional charge: EV3 gold, C33 mid-bronze, C35 black or C31 stainless steel
DOWNLOADS
COLLECTION
Diplomat
FLAMMABILITY
Insert with fire classification Bfl-s1 according to EN 13501.
