Schindler 9500 Inclined Moving Walk
SCHINDLER 9500 INCLINED MOVING WALK
SCHINDLER 9500 INCLINED MOVING WALK
For indoor/outdoor application

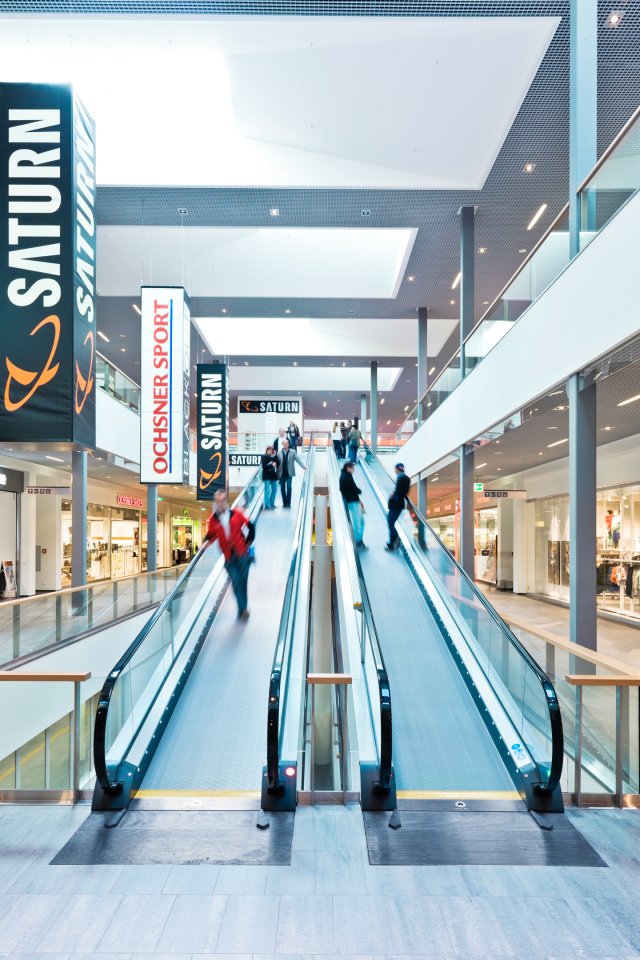

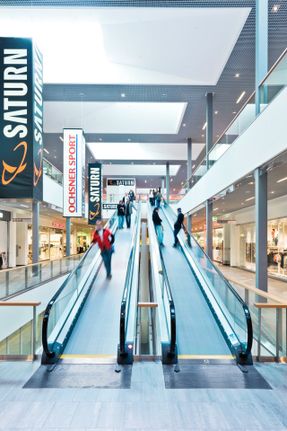

We’ve developed the Schindler 9500AE inclined moving walk especially for shopping malls, providing quiet and comfortable transportation from floor to floor.
FEATURES
SMALL INSTALLATION DIMENSIONS
The Schindler 9500AE inclined is the most compact moving walk ever. Patented short pallets with a depth of only 133 mm greatly reduce the transition curves. As a result, these moving walks require minimal installation space.
ENERGY-EFFICIENT, ECO-FRIENDLY
Integrated with our latest energy-saving technology: premium drive efficiency, smart power management at times of low passenger density and selected low-power components, the Schindler 9500AE inclined is one of the most efficient moving walks in retail applications.
INCREASED SAFETY
The short pallets of the Schindler 9500AE inclined line are guided beneath the skirting, increasing user safety even further. The pallets are directly attached to the chain, so there’s no need for connection elements and rollers that are susceptible to wear. This makes the 9500AE inclined line quiet and increases service life. The slightly cambered pallet surface also offers excellent grip even when damp or wet.
INFORMATION
BRAND
Schindler
PRODUCT TYPE
Escalator
MAXIMAL RISE
24’ 7-1/4" at a pallet width of 40"
ANGLE OF INCLINATION
10° to 12°
DETAIL

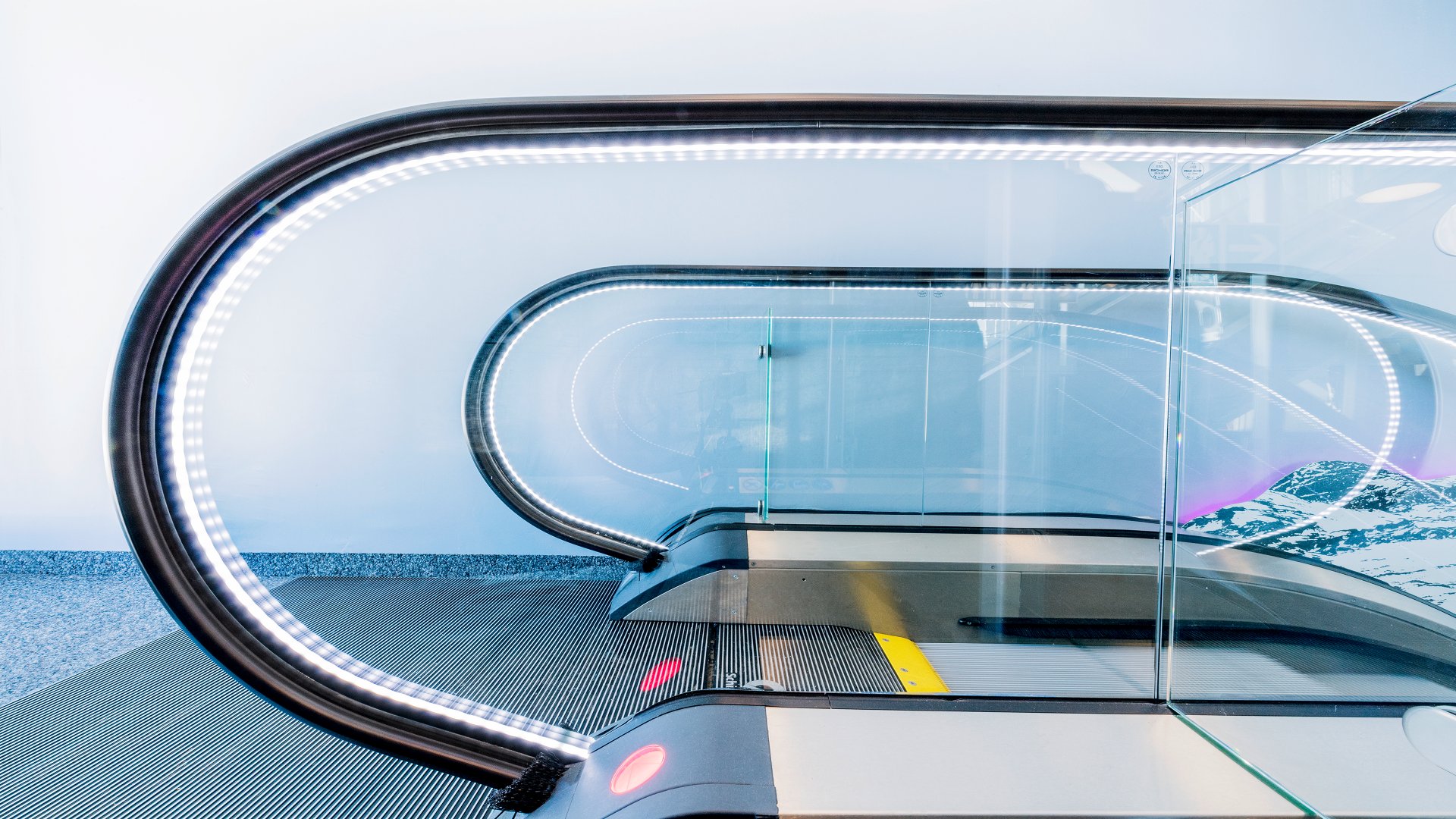

Schindler LED lighting Using LED lights reduces energy consumption by up to 80% and extends lifetime by 100%.
PRODUCTION
Made in United States
MATERIAL
Steel & Aluminium
ADVANCED HANDRAIL SOLUTIONS FOR PASSENGERS
Explore our Schindler CleanMobility handrail options for escalators and moving walks.
ENERGY-E CIENT INNOVATIVE TECHNOLOGY
Integrated with our latest energy-saving technology: premium drive e ciency, smart power management at times of low passenger density and selected low-power components, the Schindler 9500 inclined moving walk is one of the most e cient moving walks in retail applications.
INCLINATION
10°, 11°, 12°
ENERGY CONSUMPTION
80%
YOUR SAFETY, OUR RESPONSIBILITY
At Schindler, safety comes first – and it always will. Schindler cares about every single passenger: With the highest standards in the industry we work to ensure each passenger enjoys a safe ride.
PEACE OF MIND ON THE GO
Developed especially for shopping malls, Schindler 9500AE inclined moving walks provide quiet, comfortable transportation from floor to floor. Schindler assures dependable performance and passenger safety. Streamlined and flexible in design, these units leave plenty of room for architectural expression, indoors or outside.
BALUSTRADE HEIGHT
2’ 11-7/16"
PALLET WIDTHS
32" / 40"

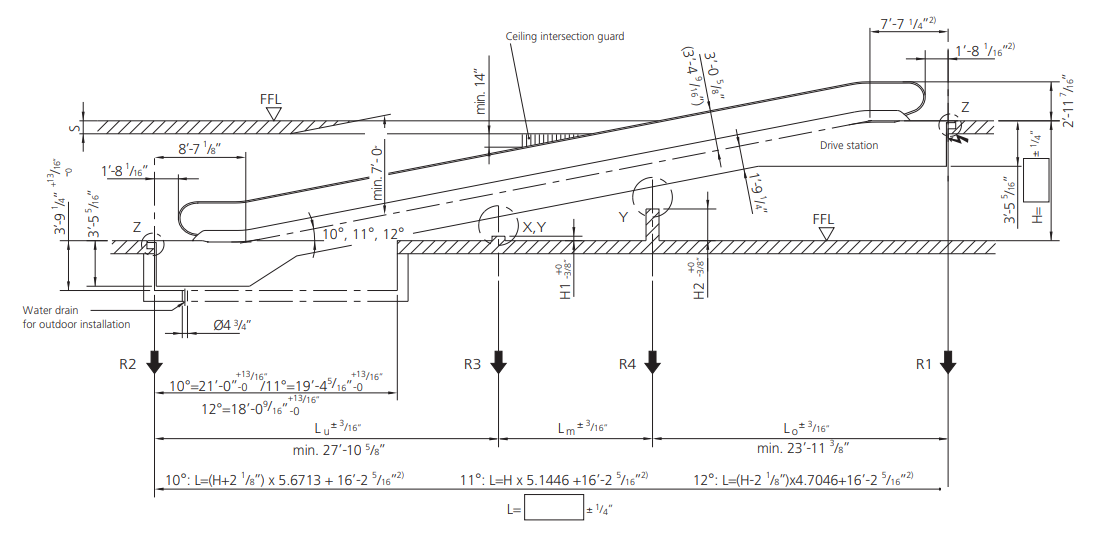

DIMENSIONS
- Pallet Width: 32”/40”
- Balustrade Height: 2’-11 7/16”
- Inset depth : 1′-8 1/16″
- Additional offset : 1′-8 1/16″
- Entry platform length : 8′-7 1/8″
- Upper section length : 7′-7 1/4″
YOUR SAFETY, OUR RESPONSIBILITY
The Schindler 9500 inclined moving walk is designed to meet the highest standards in the industry. We work to ensure that each passenger enjoys a safe ride.
ELEGANT ADAPTABLE DESIGN OPTIONS
The Schindler 9500 inclined moving walk offers you not only timeless basic equipment but also highly distinctive customized design options, which make it easily adaptable to smaller commercial areas and high-end shopping centers.
SUPERB QUALITY, GLOBAL SERVICE
Thanks to its high-grade, low-wear-and-tear components, the Schindler 9500 inclined moving walk is a product with superb quality and performance. Wherever you are, Schindler global services protect your long-term investment.
ENERGY-EffCIENT
ENERGY-E CIENT INNOVATIVE TECHNOLOGY
The Schindler 9500 inclined moving walk features three design solutions that increase energy e ciency: more e cient drive systems, components requiring less power, and intelligent power management software. We call it the Schindler E3 energy-saving approach.
E1 – EFFCIENT DRIVE SYSTEM
With state-of-the-art drive technology, the Schindler premium package increases total drive e ciency by up to 23% compared to conventional drive systems.
E2 – ECOLINE POWER MANAGEMENT PACKAGES
Schindler's ECOLINE power management reduces power consumption by up to 38% compared to conventional continuous operation systems.
E3 – EFFECTIVE DESIGN
Shortest installation lengths With patented short pallets, Schindler moving walks have the shortest installation lengths in the market.
SUPERB PERFORMANCE
SUPERB PERFORMANCE, GLOBAL SERVICE
Thanks to its high-grade, low-wear-and-tear components, the Schindler 9500 inclined moving walk is a product with superb quality and performance. Wherever you are, Schindler global services protect your long-term investment.
QUIET RUNNING – QUIET DRIVE UNITS
The Schindler 9500 inclined moving walk is quieter in operation than other leading commercial moving walk brands.
SMOOTH OPERATION
Schindler uses hydrolysis-resistant polyurethane pallet chain rollers. These are the most reliable rollers on the market. They help ensure smooth running even in tropical and subtropical regions.
LONG SERVICE LIFE
Schindler is committed to designing for a service life of over 20 years. For example, the microprocessor-controlled lubrication system, which feeds the precise amount of lubricant to every lubrication point. Such attention to detail helps assure a long service life for all mechanical parts. Lubrication system standard in all Schindler equipment.
