ELECTRO-WELDED GRATING
Due to the electro-welded grating’s high twist resistance and balanced load distribution, these products boast an unlimited service life.

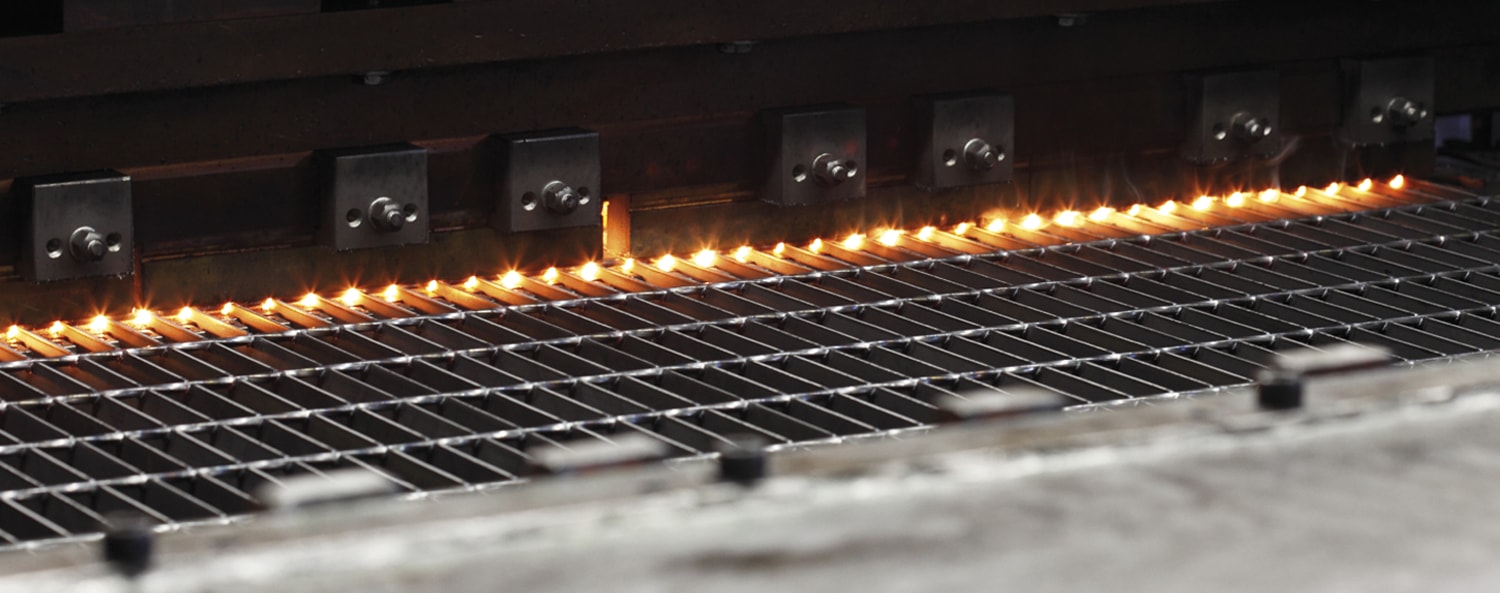

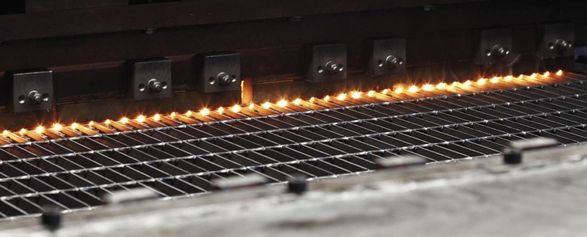

It consists of bearing bars intersected with smooth round or square twisted cross bars, electro-welded together via a single pressing phase. The bearing bars have variable cross-sections, ranging from a minimum of 20 x 2 mm to a maximum of 100 x 5 mm.
INFORMATION
BRAND
Baldassar
PRODUCT TYPE
Grating
ENDLESS POSSIBLE APPLICATIONS
From the civil construction section to offshore projects.
PRODUCTION
Made in Italy
DOWNLOADS
↓ Catalogue
↓ Waste Management
DETAIL
The bearing bars, in combination with the type of mesh used, determine the load-bearing capacity of the panels. The cross bars have the function of connecting the bars, ensuring grating stability and increasing the load capacity.
ULTRA-VERSATILE IN TERMS OF SHAPE AND PRODUCT
Allows various and special shapes to be produced.
EXTREMELY RESISTANT AND INEXPENSIVE
It supports heavy loads in all installation conditions.
COLLECTION
Electro
REQUIREMENTS
Versatile in case of different requirements

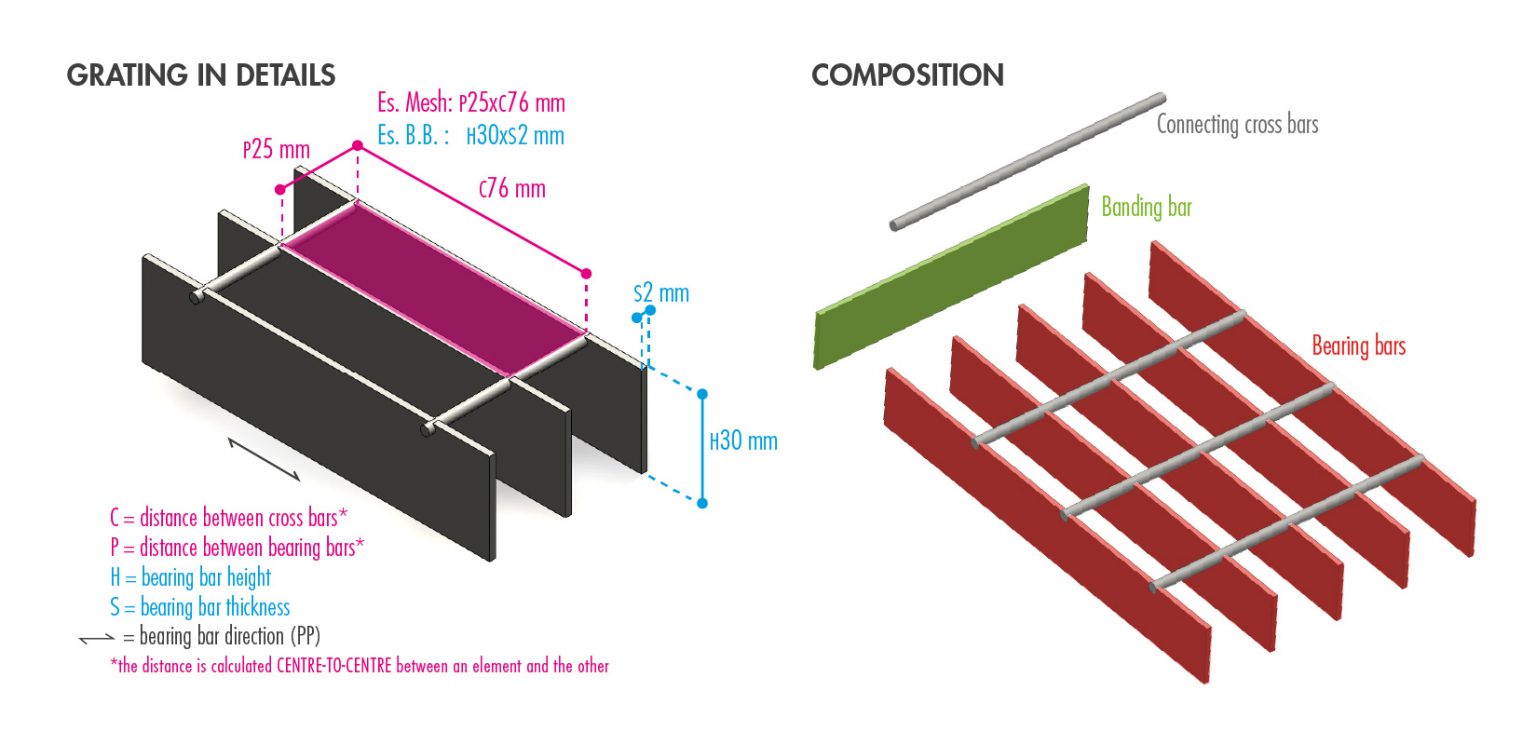

HOW TO READ A GRATING
C = distance between cross bars* P = distance between bearing bars* H = bearing bar height S = bearing bar thickness *The distance is calculated between the MIDPOINT of one element and another.
MESHES AND LOAD CLASSES
MESHES AND LOAD CLASSES
TYPES OF STANDARD ELECTRO-WELDED GRATING
BALL-PROOF

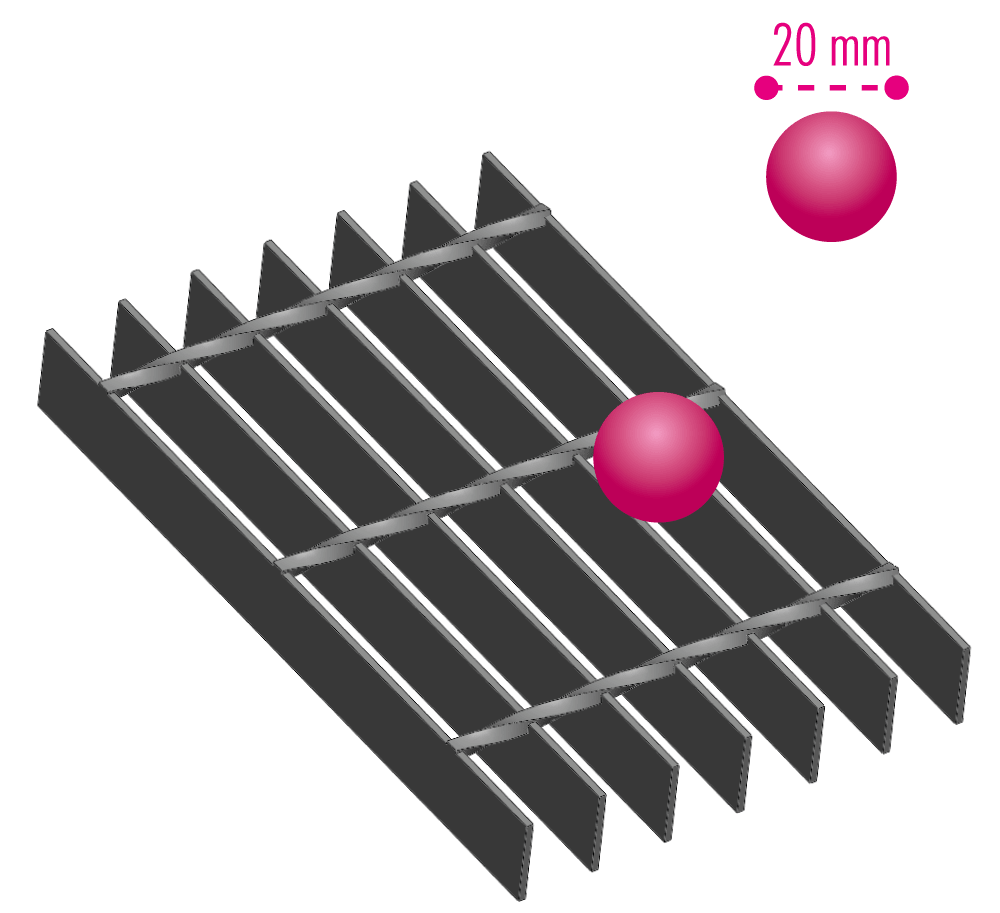

This grating for industrial flooring consists of meshes that prevent a 20 mm-diameter ball from passing through. Recommended for environments where fall protection is needed.
SMOOTH ROUND CROSS BAR

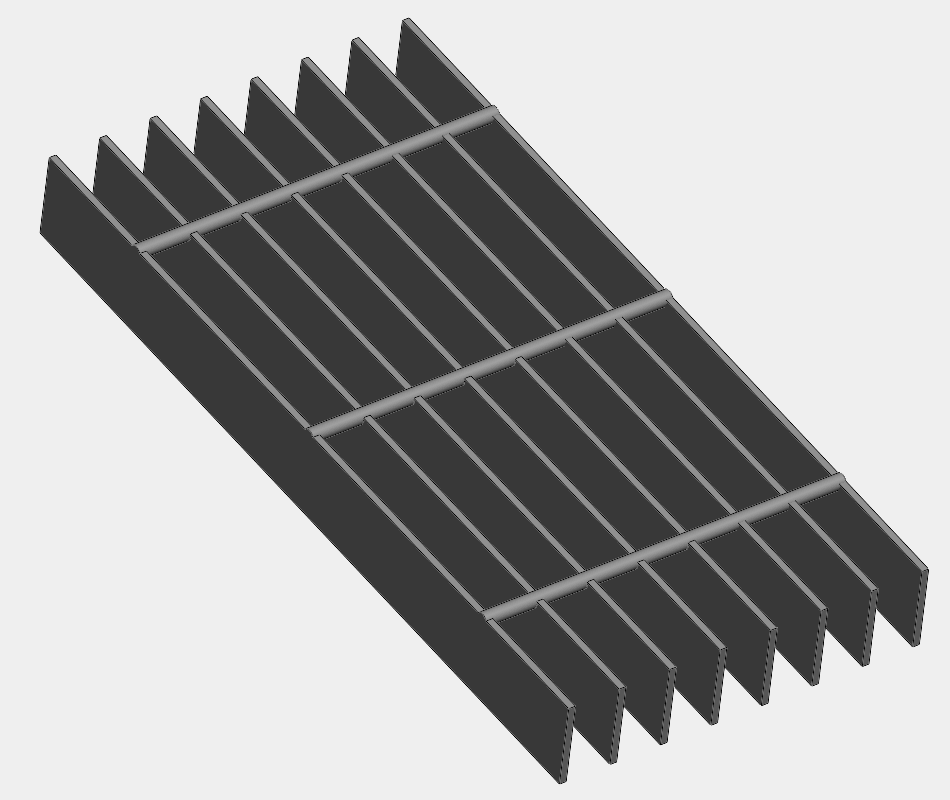

The electro-welded grating with smooth round cross bars ensures a stable grating, whilst also increasing the load capacity and ensuring high operating performance, in addition to providing a high aesthetic value.

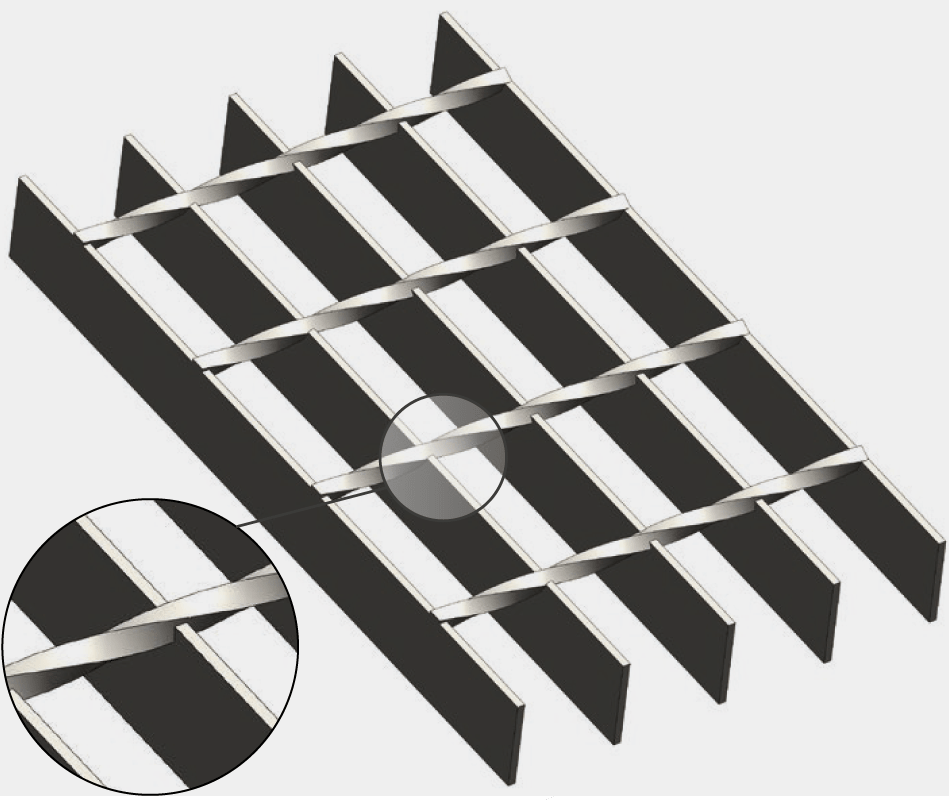

TWISTED SQUARE CROSS BAR
The electro-welded grating with twisted square cross bars is mainly used in slippery areas and ensures a stable grating, whilst also increasing the load capacity and ensuring high operating performance. They are recommended for industrial areas where there is a risk of slipping.
HEEL-PROOF
The term “heel-proof” has no regulatory reference but is commonly used to define a grating that has bearing bars with a centre-to-centre distance of 15 mm or less. It is usually used in the civil sector, wherever there is a high pedestrian footfall.
SINGLE PANEL

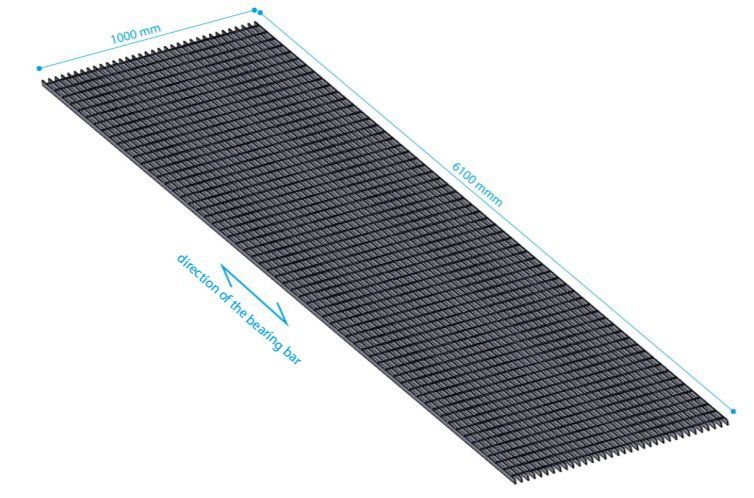

Baldassar’s standard Electro-Welded Grating panels have the following dimensions: 6100 x 1000 mm. The bearing bars are parallel to the longer side, while the connecting elements are parallel to the shorter side.
ELECTRO-WELDED GRATING PANEL

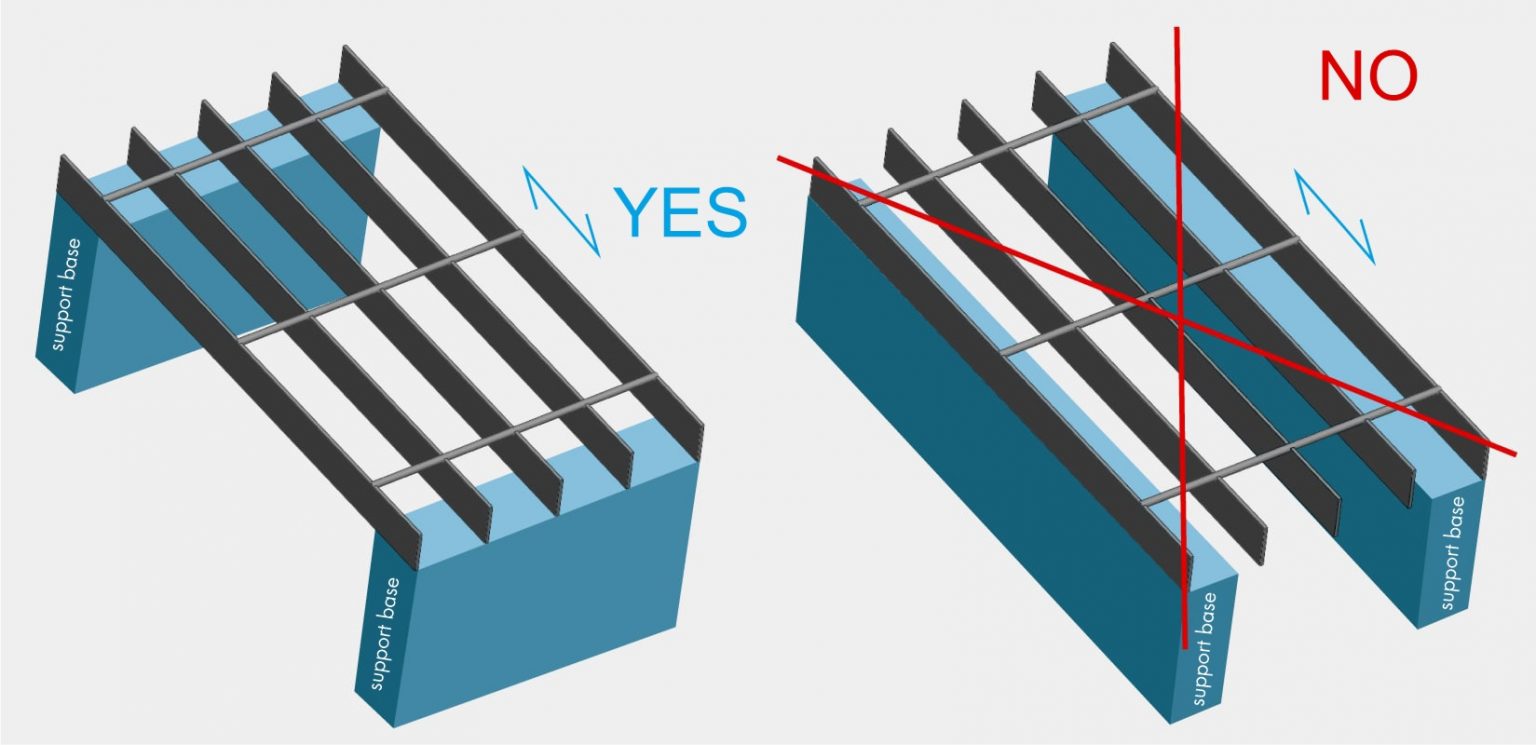

The values shown in the load classes are only and exclusively guaranteed if the direction of the planes on which the Baldassar Electro-Welded Grating panel rests is perpendicular to the direction of the load-bearing bars; if it is parallel to the direction of the load-bearing bars, the panel’s load-bearing capacity would be severely compromised.
SERRATED

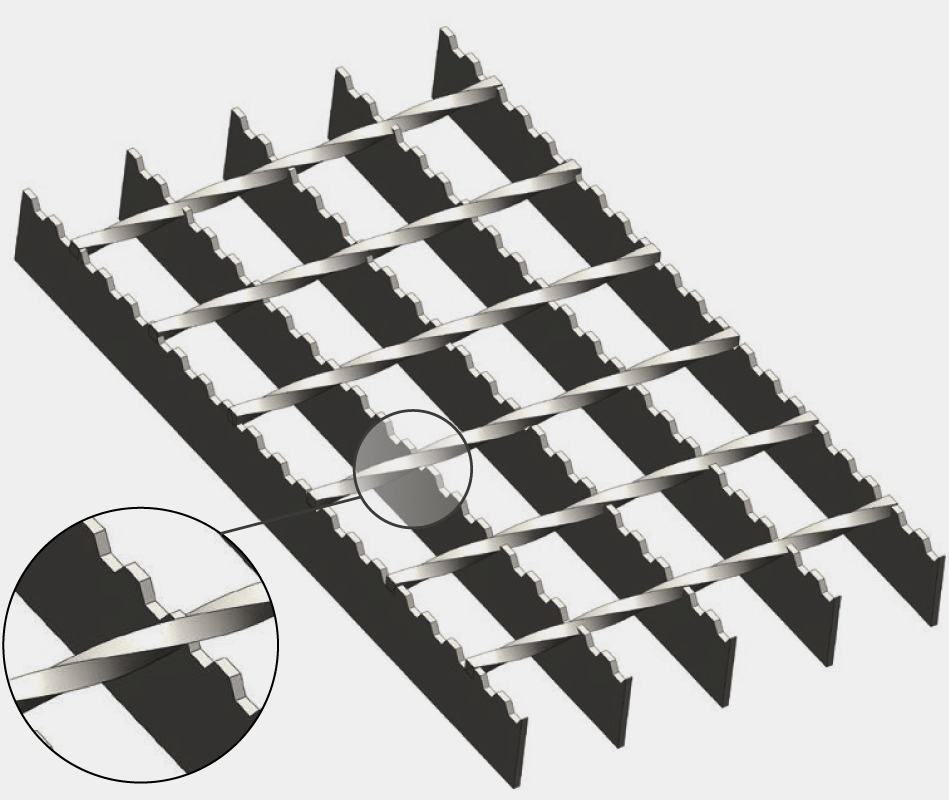

The serrated grating is created by using laminate or sheared bearing bars with a surface consisting of suitably-shaped teeth which are usually connected by twisted square cross bars.
This particular combination has been designed to meet the accident prevention regulations, where a particular non-slip function is required. It is widely recommended for any environments that work with liquids or oily substances.
SPECIAL PROCESSES
BANDING
As a result of the banding process, the grating panel can have various standard finishes or be designed according to the customer’s design, such as with round, bevelled, square or shaped bands. This deformation process is fully designed and performed inside the Baldassar premises.
CALENDERING

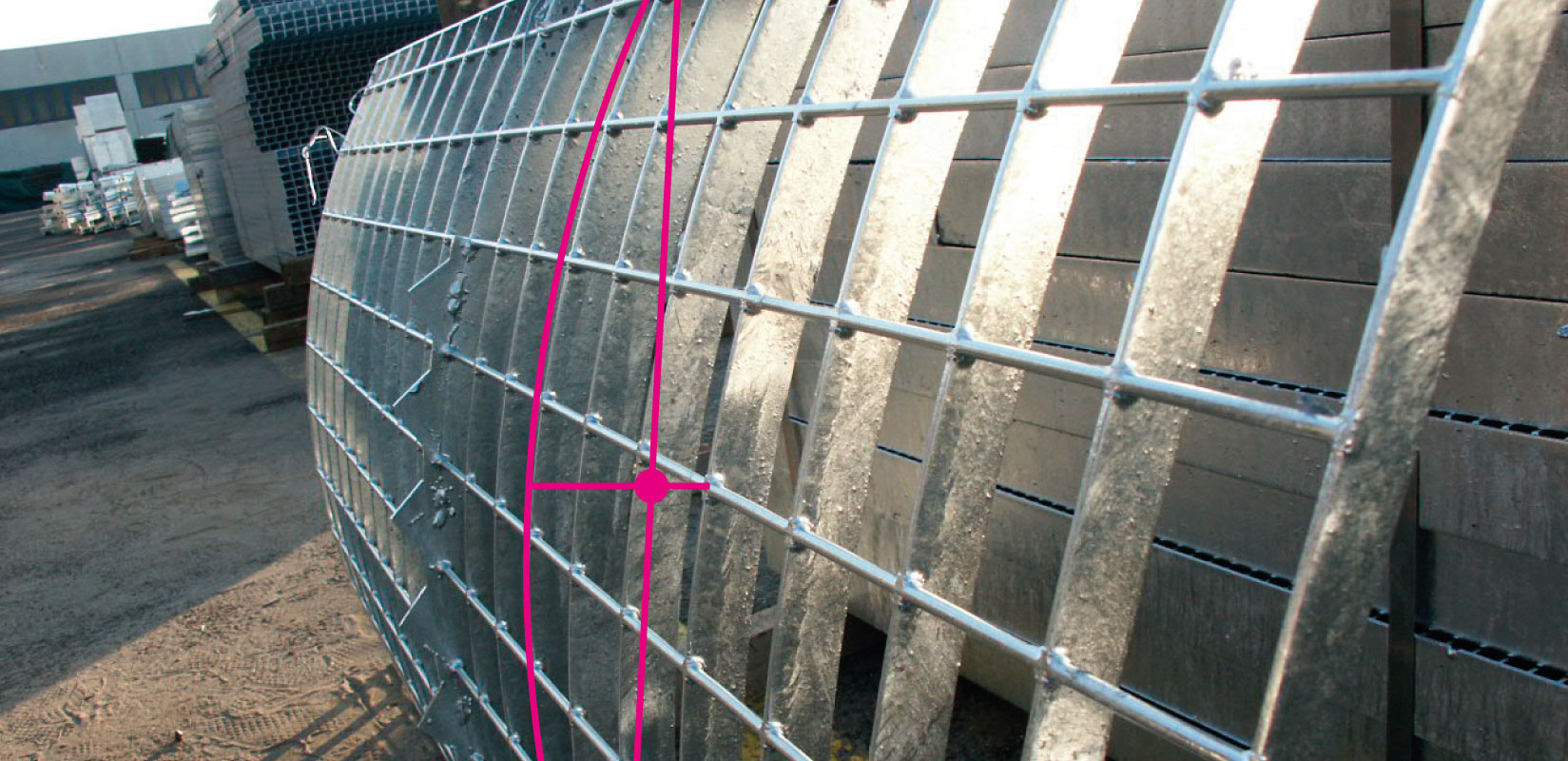

Thanks to the cutting-edge equipment, our technical department is able to deform the metal profiles according to specific designs, by giving it a circular curvature. The process is carried out in-house; therefore, there is no need to wait for third-parties to be carry out this process.

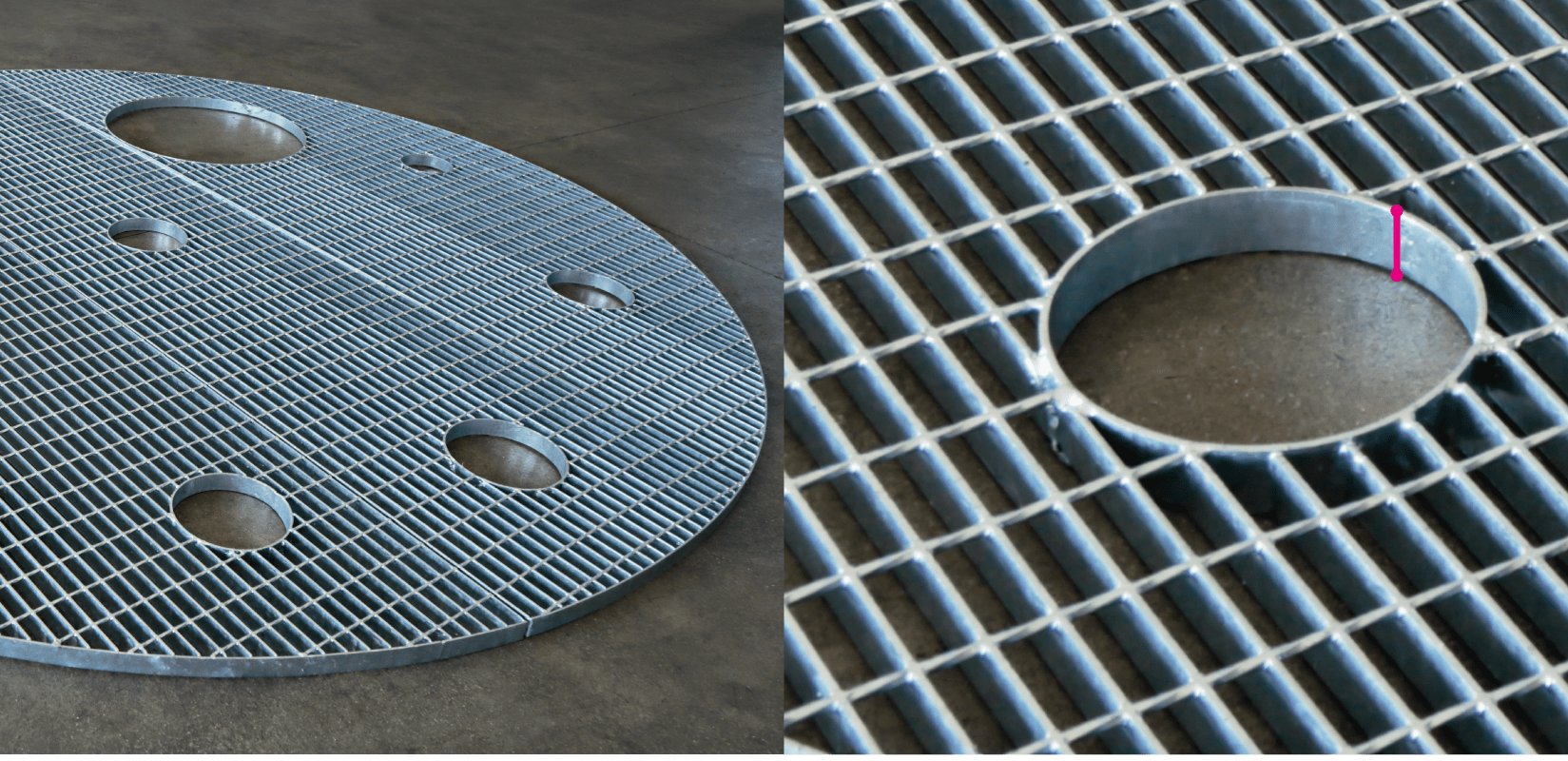

SHAPING

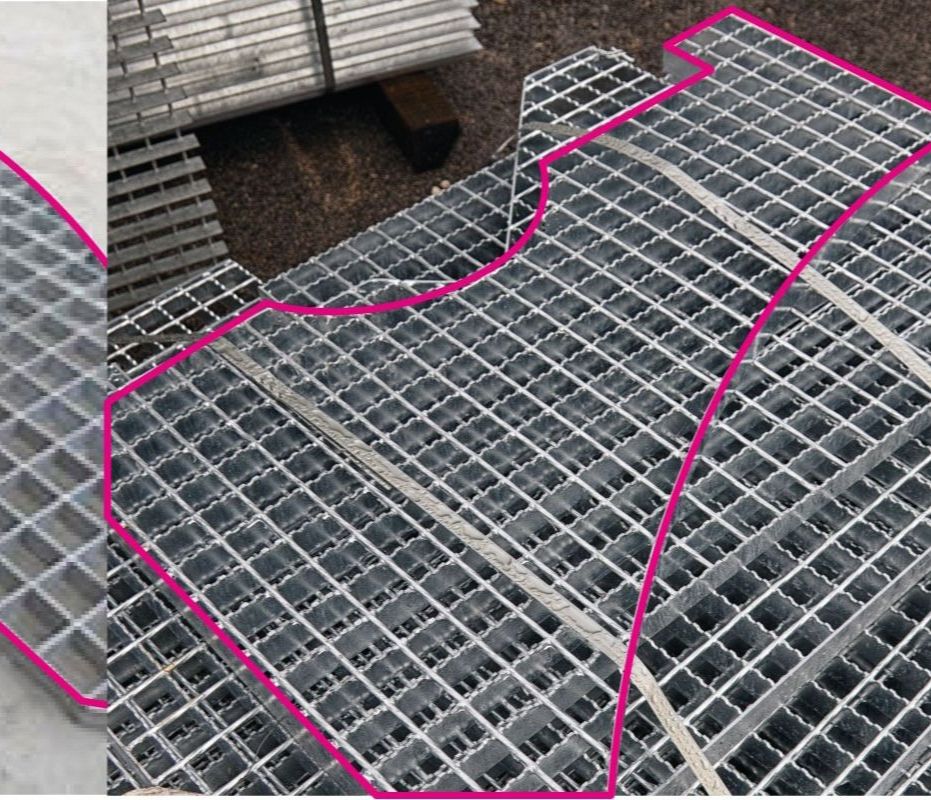

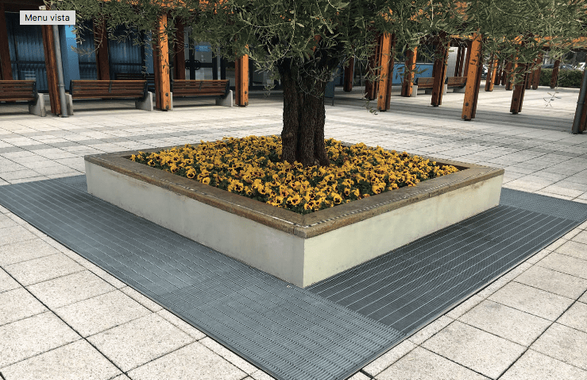

Each building and every situation has different shapes and needs. It is for this reason that Baldassar has established a specialised technical department to be able to create products with special shapes and patterns. Thanks to the shaping process, each grating element can have the most suitable contour for an easier insertion and installation, with minimum waste material.
