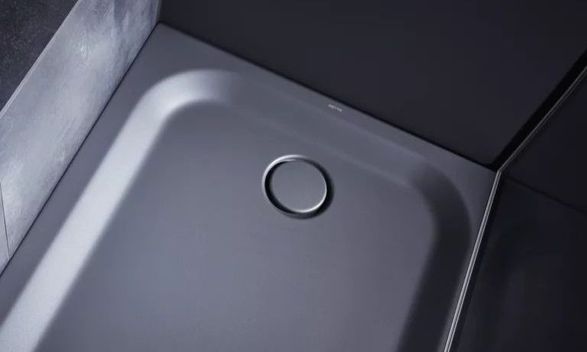

Bette BetteUltra 1050-1500 mm Shower Tray
BETTEULTRA 1050-1500 MM SHOWER TRAY
BETTEULTRA 1050-1500 MM SHOWER TRAY

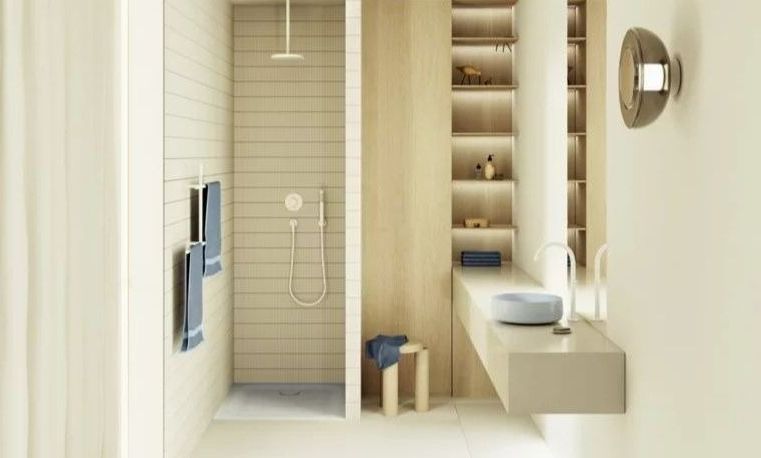

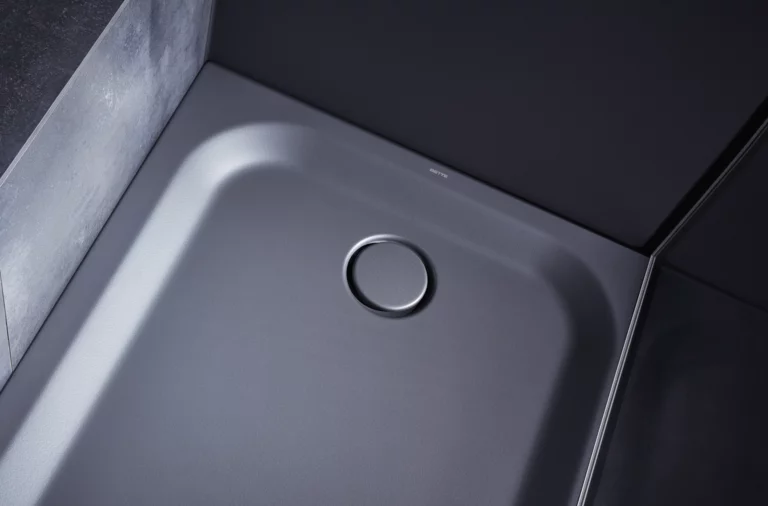

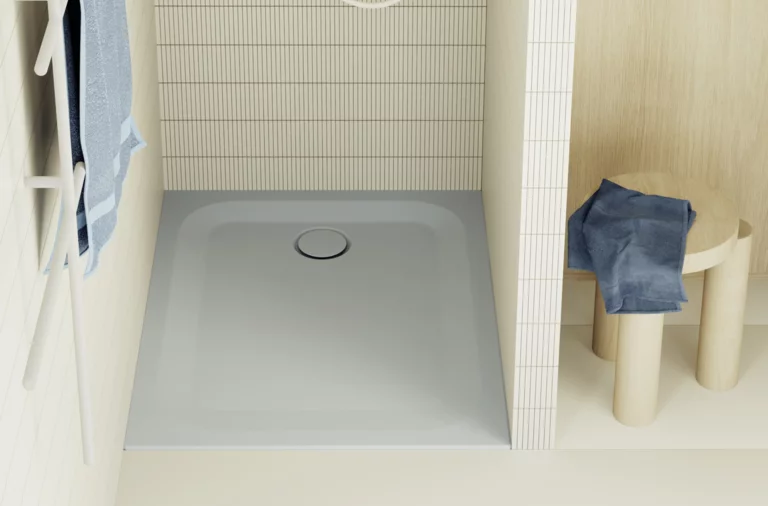

BetteUltra combines variety, comfort and elegant design. With a depth of only 2.5 cm or 3.5 cm, it blends harmoniously with any bathroom design.
The flat shower tray is available in 60 different sizes, and can be installed flush-to-floor or almost flush-to-floor.
information
BRAND
Bette
PRODUCT TYPE
Shower trays
PRODUCTION
Made in Germany
ITEM NUMBER
8710
SHAPE
Rectangular
TECHNICAL ADVICE
- From a side length of 1000 mm we recommend the use of one Support foot BetteLevel B57-0426.
- The Support foot BetteLevel B57-0426 can not be combined with the
preassembled Minimum support (T1).
INSTALLATION
- Flush to floor
- Above the floor
- Almost flush
INSTRUCTIONS FOR USE
For installation, we recommend the Universal installation system, the Basic installation system, adjustment range 67–205 mm, the minimum support (pre-assembled at the factory) or the BetteLevel mounting feet, adjustment range 85–225 mm. Alternatively, the foot system, adjustment range 80–200 mm.
MATERIAL
Glazed Titanium - Steel
QUALITY
Sustainable
WARRENTY
30 Years
WEIGHT
18.7 kg
SCOPE OF DELIVERY
Including noise-reducing pads.
RIM HEIGHT
30 mm
CORNER RADIUS
10 mm
WASTE DIAMETER
90 mm
TYPE
With The Floor
COLLECTION
BetteUltra
USE
Washroom
ENVIRONMENT
Indoor
TECHNICAL DATA

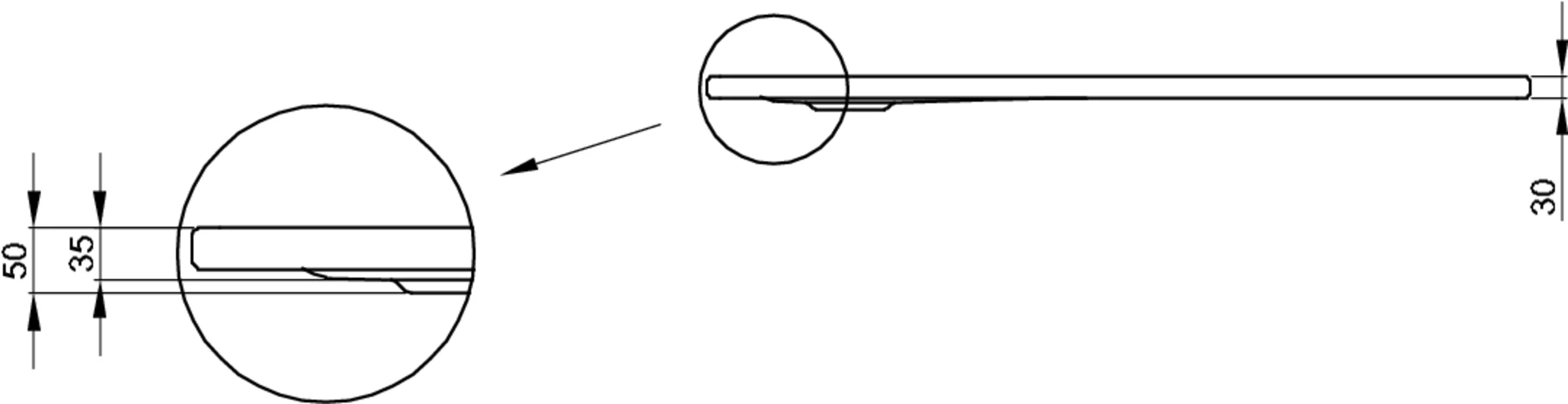

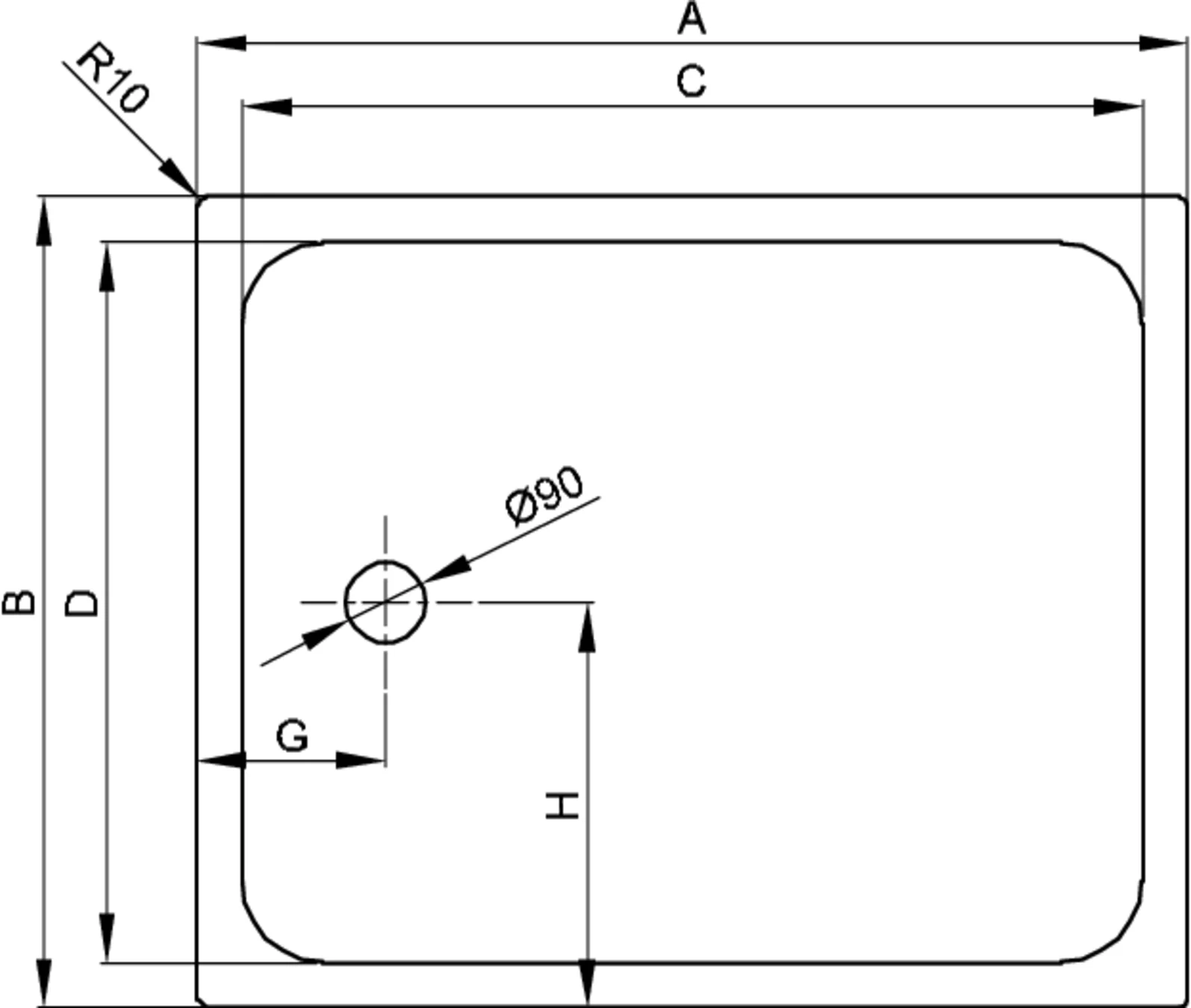

TECHNICAL DRAWING
DIMENSIONS IN DETAIL
| SELECTED DIMENSION | A | B | C | D | G | H |
|---|---|---|---|---|---|---|
| 1050 x 750 x 35 mm | 1050 | 750 | 900 | 650 | 235 | 375 |
| 1100 x 700 x 35 mm | 1100 | 700 | 900 | 600 | 210 | 350 |
| 1100 x 750 x 35 mm | 1100 | 750 | 1000 | 650 | 210 | 375 |
| 1100 x 800 x 35 mm | 1100 | 800 | 920 | 700 | 210 | 400 |
| 1100 x 900 x 35 mm | 1100 | 900 | 1000 | 800 | 210 | 450 |
| 1100 x 1000 x 35 mm | 1100 | 1000 | 1000 | 900 | 210 | 500 |
| 1100 x 1100 x 35 mm | 1100 | 1100 | 1000 | 1000 | 210 | 550 |
| 1200 x 700 x 35 mm | 1200 | 700 | 1100 | 600 | 210 | 350 |
| 1200 x 750 x 35 mm | 1200 | 750 | 1100 | 650 | 210 | 375 |
| 1200 x 800 x 35 mm | 1200 | 800 | 1100 | 700 | 210 | 400 |
| 1200 x 900 x 35 mm | 1200 | 900 | 1100 | 800 | 210 | 450 |
| 1200 x 1000 x 35 mm | 1200 | 1000 | 1100 | 900 | 210 | 500 |
| 1200 x 1100 x 35 mm | 1200 | 1100 | 1100 | 1000 | 210 | 550 |
| 1200 x 1200 x 35 mm | 1200 | 1200 | 1120 | 1120 | 210 | 600 |
| 1300 x 700 x 35 mm | 1300 | 1200 | 1200 | 600 | 210 | 350 |
| 1300 x 750 x 35 mm | 1300 | 750 | 1200 | 600 | 210 | 375 |
| 1300 x 800 x 35 mm | 1300 | 800 | 1200 | 700 | 210 | 400 |
| 1300 x 900 x 35 mm | 1300 | 900 | 1200 | 800 | 210 | 450 |
| 1300 x 1000 x 35 mm | 1300 | 1000 | 1200 | 900 | 210 | 500 |
| 1300 x 1300 x 35 mm | 1300 | 1300 | 1200 | 1200 | 210 | 650 |
| 1400 x 700 x 35 mm | 1400 | 700 | 1300 | 600 | 210 | 350 |
| 1400 x 750 x 35 mm | 1400 | 750 | 1300 | 600 | 210 | 375 |
| 1400 x 800 x 35 mm | 1400 | 800 | 1300 | 700 | 210 | 400 |
| 1400 x 900 x 35 mm | 1400 | 900 | 1300 | 800 | 210 | 450 |
| 1400 x 1000 x 35 mm | 1400 | 1000 | 1300 | 900 | 210 | 500 |
| 1400 x 1400 x 35 mm | 1400 | 1400 | 1300 | 1300 | 210 | 700 |
| 1500 x 700 x 35 mm | 1500 | 700 | 1400 | 600 | 210 | 350 |
| 1500 x 750 x 35 mm | 1500 | 750 | 1400 | 600 | 210 | 375 |
| 1500 x 800 x 35 mm | 1500 | 800 | 1400 | 700 | 210 | 400 |
| 1500 x 900 x 35 mm | 1500 | 900 | 1400 | 800 | 210 | 450 |
| 1500 x 1000 x 35 mm | 1500 | 1000 | 1400 | 900 | 210 | 500 |
| 1500 x 1500 x 35 mm | 1500 | 1500 | 1400 | 1400 | 210 | 750 |
COLORS
GLOSSY COLOURS
- White, glossy, 000 - Starwhite, glossy, 287 - Pergamon, glossy, 001 - Manhattan, glossy, 002 - Manhattan, glossy, 003 - Black, glossy, 056 - Midnight, glossy, 790 - Salvia, glossy, 307 - Curry, glossy, 040 -Azalee, glossy, 130 -Elfenbein, glossy, 014 -Soft cream, glossy, 020 -Natura, glossy, 038 -Caramel, glossy, 046 -Kaschmir, glossy, 090 -Carneol, glossy, 096 -Ruby red, glossy, 057 -Bali Brown, glossy, 065 -Pearl, glossy, 053 -Reflet Grau, glossy, 044 -Ägäis, glossy, 009 -Capri, glossy, 015 -Key West, glossy, 031 -Bermuda Blue, glossy, 023 - Calypso, glossy, 011 -Kaspischgrün, glossy, 112 -Evergreen, glossy, 115 -Moss Green, glossy, 016
MATT COLOURS
-Snow, matt, 440 -Edelweiß, matt, 004 -Cream, matt, 441 -Beige, matt, 422 -Jasmin, matt, 006 -Flax, matt, 423 -Sand, matt, 424 -Silver, matt, 410 -Dust, matt, 413 -Flanell, matt, 008 -Quartz, matt, 412 -Stone, matt, 416 -Cashmere, matt, 415 -Hazel, matt, 417 -Greige, matt, 425 -Graphite, matt, 404 -Slate, matt, 402 -Smoke, matt, 403 -Anthracite, matt, 401 -Ebony, matt, 035 -Raven, matt, 400 -Blue Satin, matt, 418 -Magnolia, matt, 077 -Chantoung, matt, 646 -Anemone 77, matt, 086 -Ebano, matt, 434 -Taupe, matt, 438 -Cacao, matt, 439 -Graphit, matt, 074 -Chinchilla, matt, 029 -Montblanc 756, matt, 140 -Crocus, matt, 043 -Flint, matt, 414
