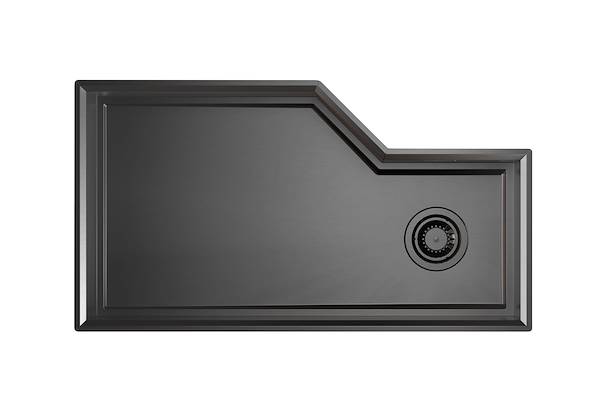

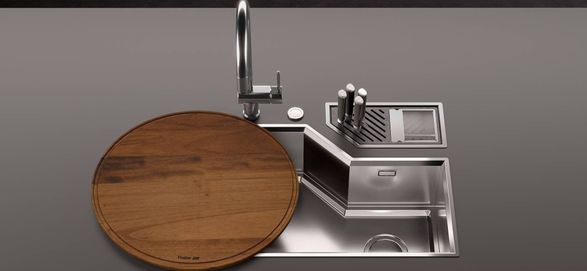

Foster Sink Diade Kitchen Sinks
SINK DIADE KITCHEN SINKS
SINK DIADE KITCHEN SINKS
Kitchen Sinks
Code: 3028 000
FEATURES
HIGH THICKNESS
1mm thick steel. A significant thickness, which guarantees the maximum sturdiness and durability.

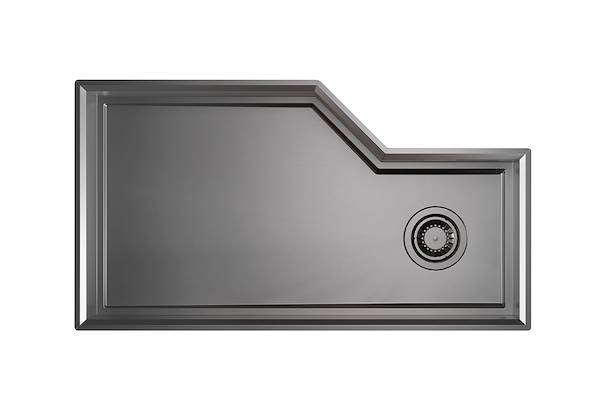

MOULDED BOTTOM
The moulded bottom guarantees perfect water flow and facilitates cleaning operations thanks to the perimeter step with sloping walls.
SAVE SPACE SYSTEM
Drain and siphon are designed to leave as much space as possible in the under-sink area, more and more useful today for theseparate waste collection systems.
BASKET 3,5" WASTE FITTING
The drain is equipped with a large 3.5" drain, with the practical basket cap that prevents the discharge of solid parts.
DEEP BOWLS
This bowls reach an important depth, over 20 cm, thanks to the advanced production technology, that can be offer great capiency and practicity in all the washing operations.

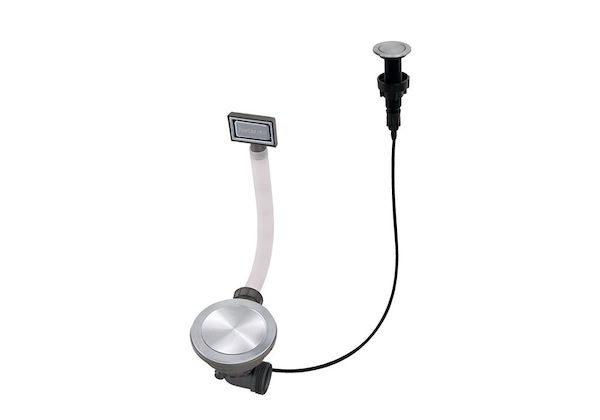

SPACE WASTE FITTING
The elegant SPACE steel cap closes the drain and leaves no visible residues collected in the basket below. Space also has a small footprint and allows the optimal use of the under-sink compartment.
PERIMETRAL OVERFLOW
The overflow is always a security on the Foster sinks that prevents the overflow of water in case of oversights. The perimeter drain solution improves aesthetics thanks to its square and essential shape.
The details of your sink or bowl add a unique and distinctive look to the washing area in your kitchen. Foster’s perimeter overflow is studied down to the very last detail; the minimal design is also mirrored in the original overflow, with an outer drain which enhances Foster sinks.
INFORMATION
BRAND
Foster
PRODUCT TYPE
Kitchen Sink
PRODUCTION
Made in Italy
TEXTURE
Brushed in line
PRODUCT CODE
3028000
STANDARD FITTINGS
- Gasket
- Drain
- Fixing Hooks
- Overflow And Siphon
- Boxed Packing
USE
Kitchen
NUMBER OF BOWLS
1 bowl
FINISH
Foster Brushed
BASE
90 cm
MIXER HOLES
No standard holes
MATERIAL
AISI 304 stainless steel
DIMENSIONS
800 x 440 mm
BOWL DIMENSION
760 x 400 mm
DOWNLOADS
↓ Technical Sheet
↓ User Manual
DRAINER
No
WASTE FITTING
3,5" drain
EDGE/INSTALLATION TYPE
- Flush-mount
- Top-mount

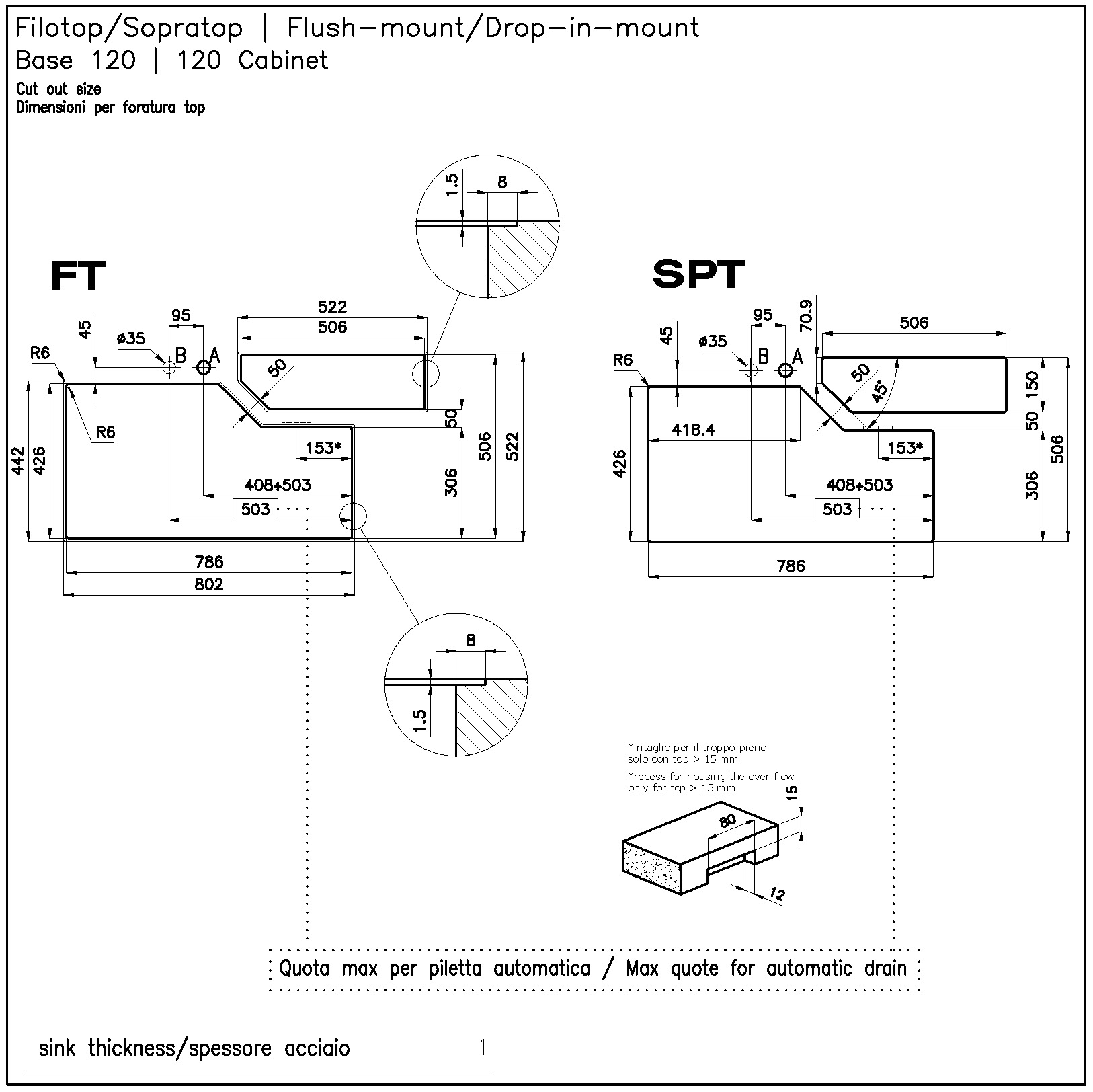

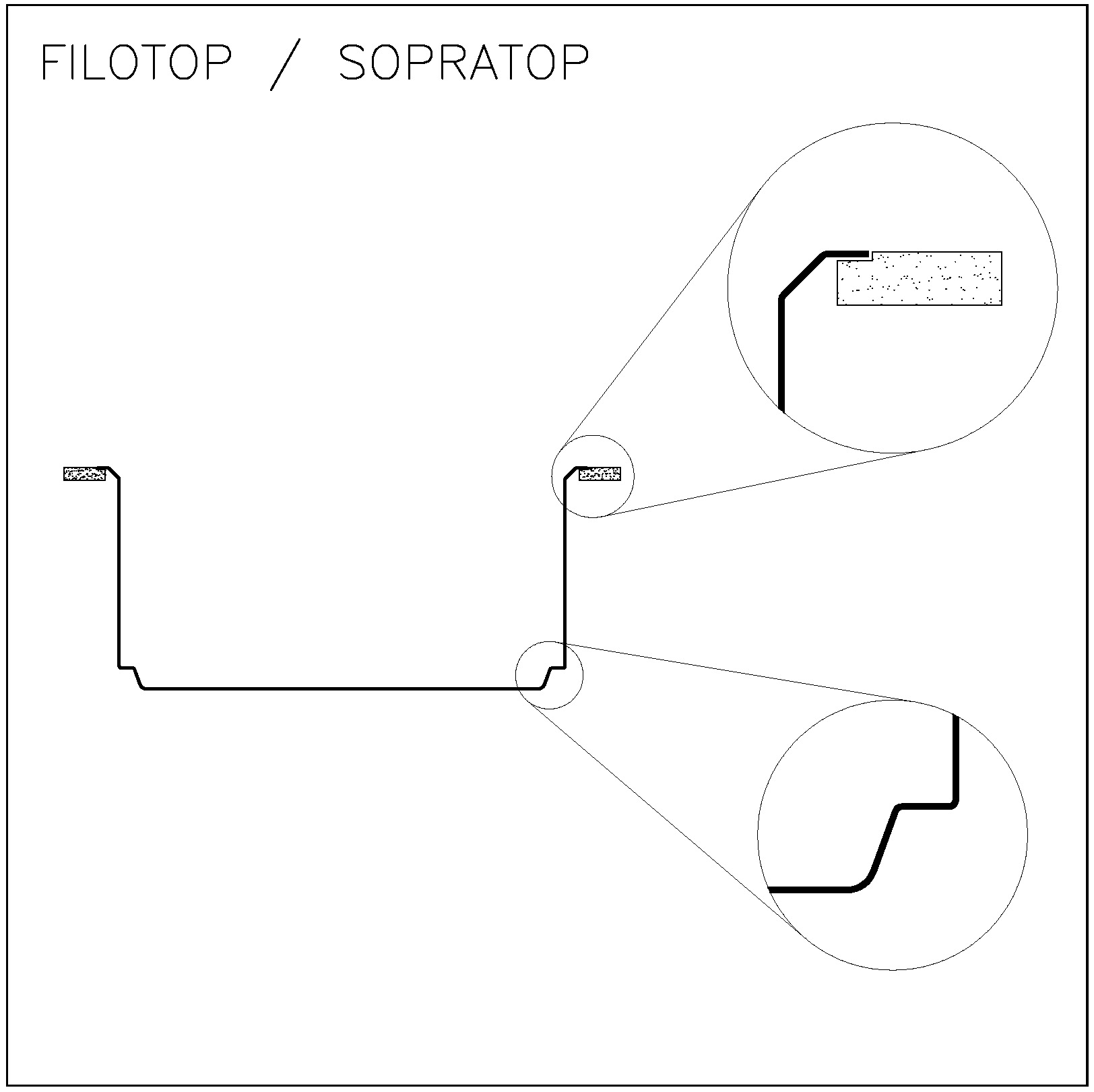

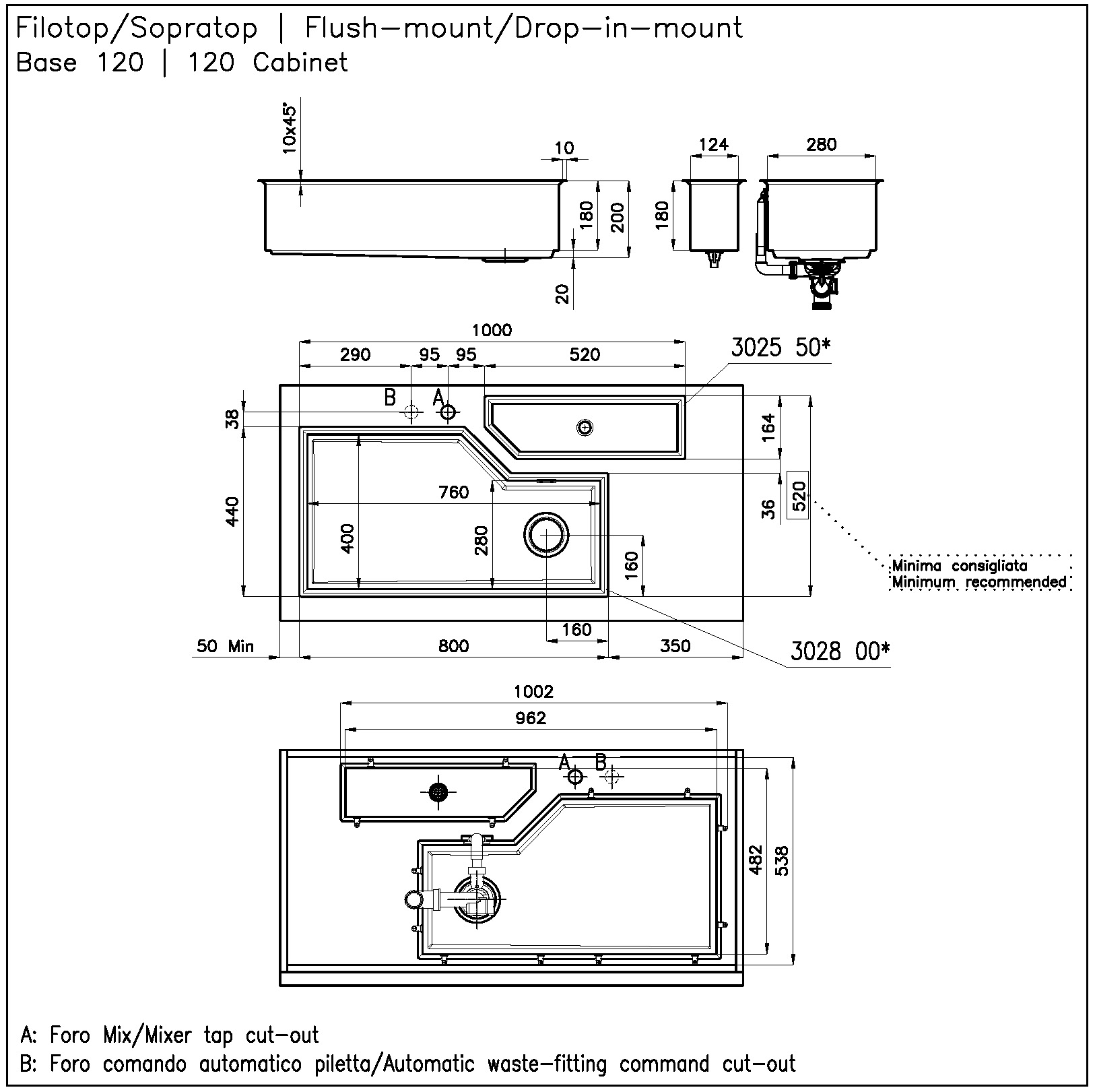

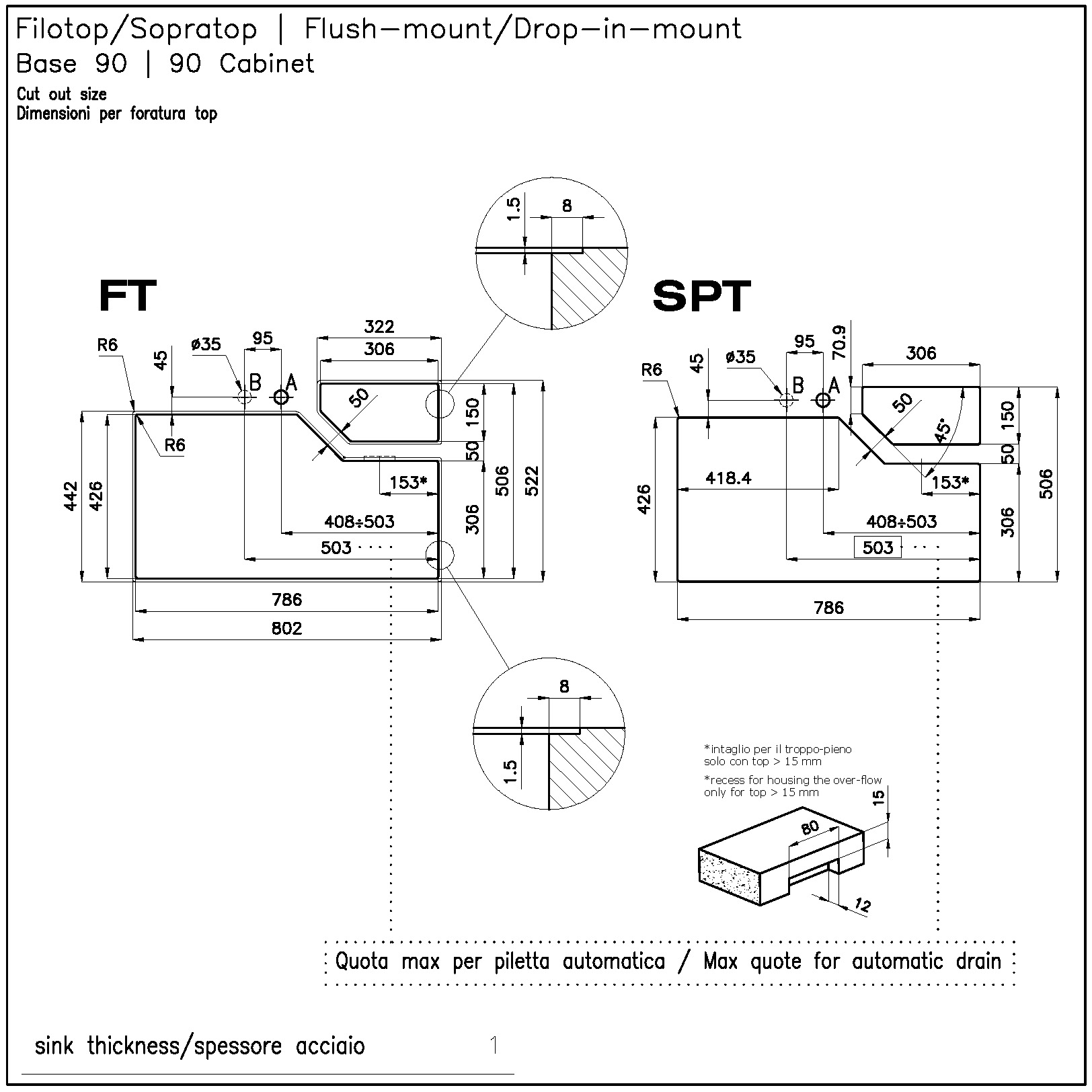

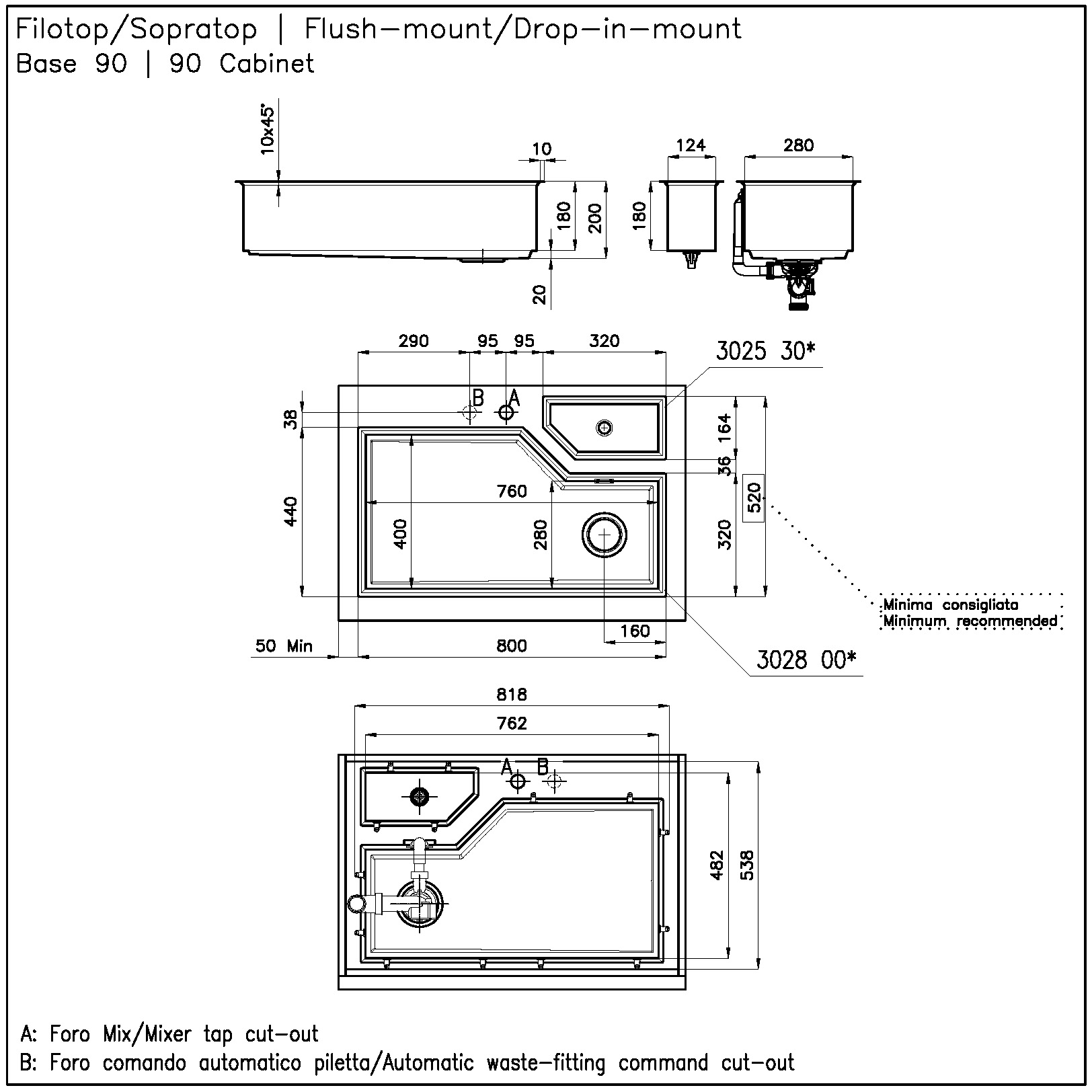

TECHNICAL DRAWINGS
TECHNICAL DRAWINGS
DETAIL
ACCESSORIES EQUIPMENT/WASTE FITTINGS
ALTERNATIVES
OPTIONAL

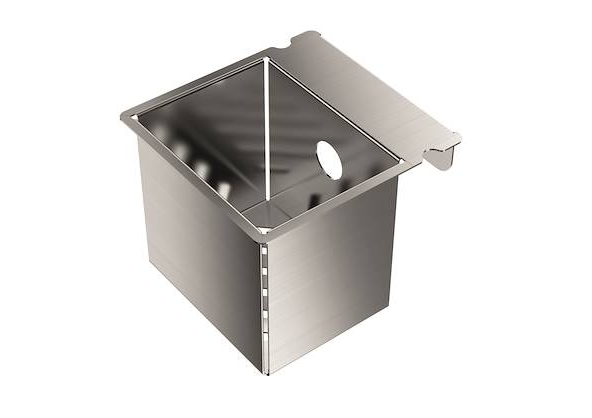

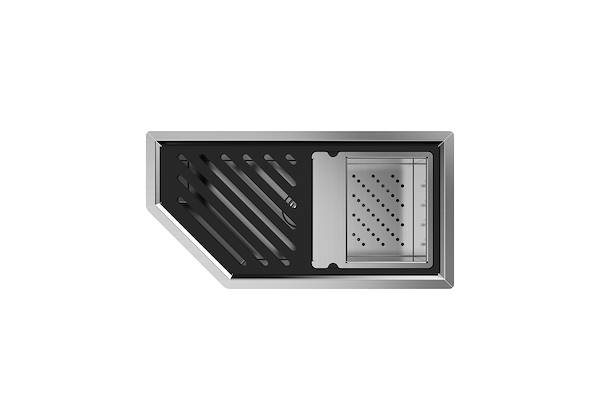

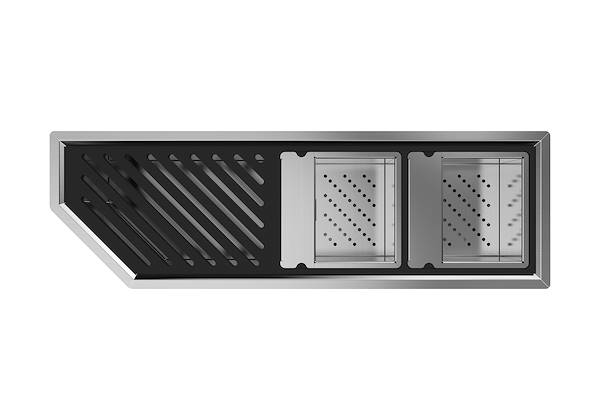

-Volta 8491 100 -Dispenser Evo Satin 8520 100 -Diade Equipped Troughs 8100 800 -Diade Equipped Troughs 8100 801 -Diade Equipped Troughs 8100 80
OPTIONAL

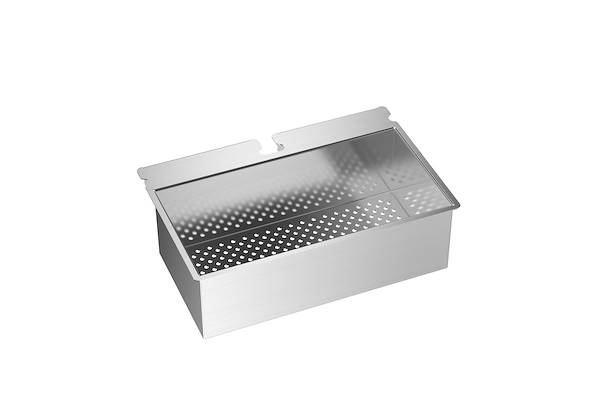

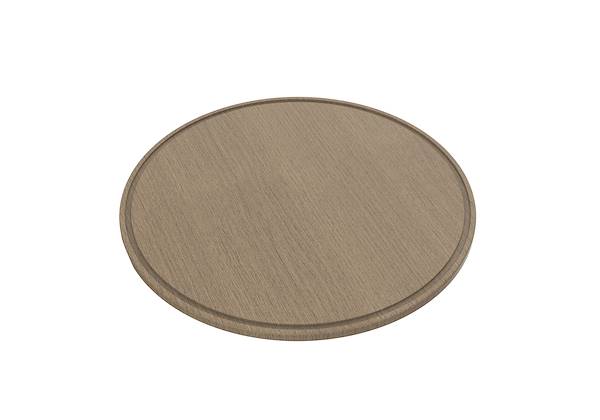

-Stainless Steel Perforated Tray -Black Lid 8151 005 -Stainless Steel Colander 8151 010 -Iroko-wood Round Chopping Board 8642 005
