POTISSIMUM INDUSTRIA GRATING
POTISSIMUM INDUSTRIA GRATING

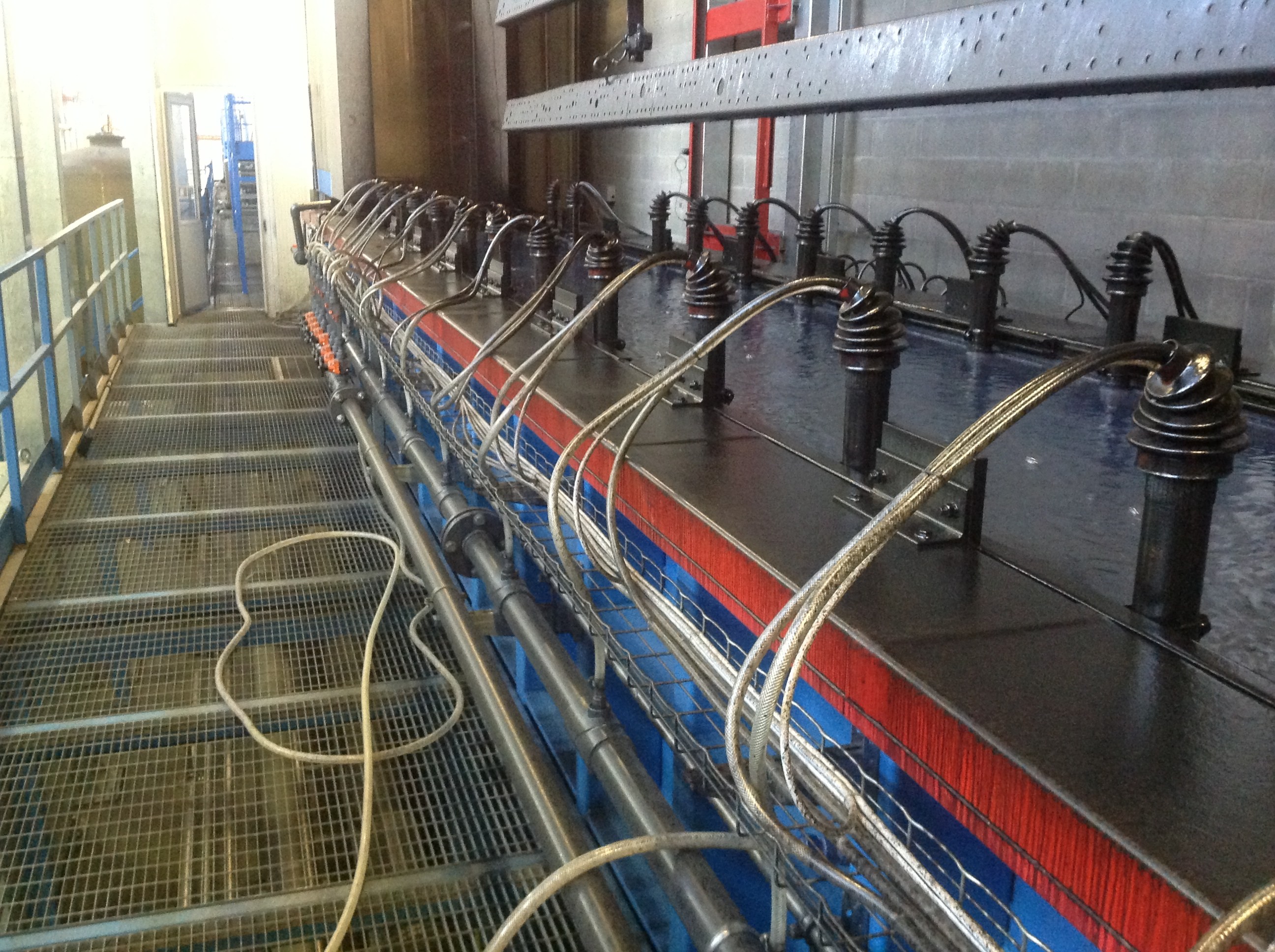

Potissimum® industry is the electrowelded steel grating that, thanks to an advanced production process, is exceptionally strong but also highly versatile and suitable for use in disparate industrial sectors.
Projects ranging from the simplest to the most complex can be customised with bespoke framed and shaped panels. The Design Department, a benchmark in the sector, assists the customer in the design phase to identify the most suitable and economic solution for his needs.
Both the stocked Standard GEAs in 6100×1000 mm format and the cut-to-size material are CE marked and supplied with the relevant Protected Designation of Origin (PDO).
INFORMATION
BRAND
Defim Orsogril
PRODUCT TYPE
Grating
MATERIAL
UNI EN 10025 S 235 JR steel
COATING
EN ISO 1461 hot-dip galvanisation
COLLECTION
Potissimum
PRODUCTION
Made in Italy
FRAMED
Orsogril potissimum® industrial electrowelded grating – bespoke framed electrowelded grating panels (bearing bar – mesh)

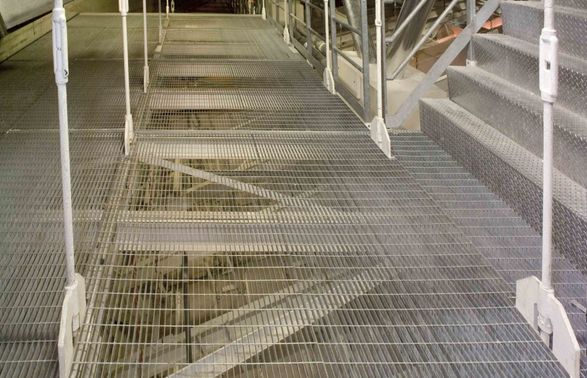

APPLICATIONS
- Floors
- Stairs
- Water traps

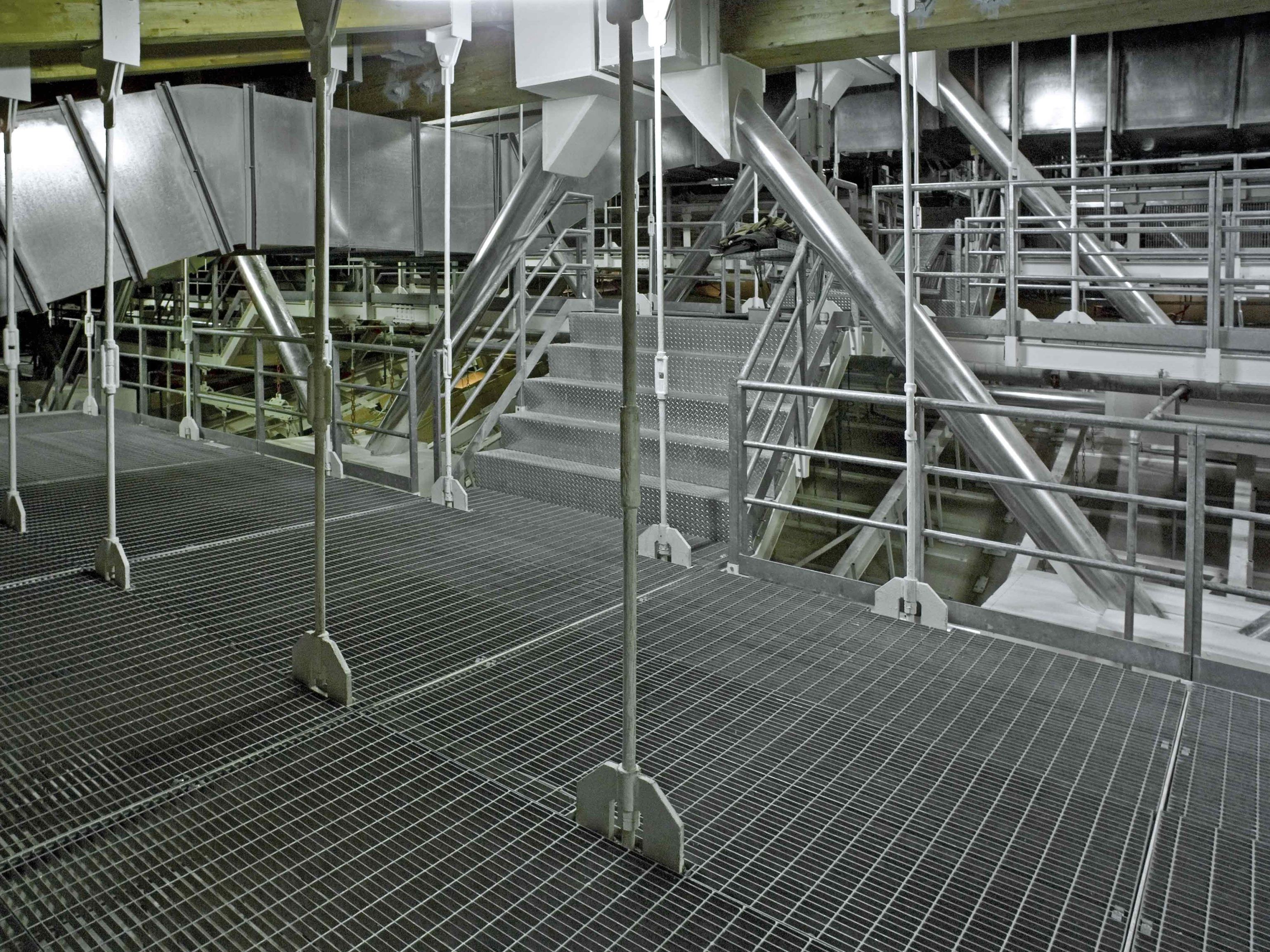

- Industrial flooring
- Mezzanine floors
FRAME
Bespoke Framed
AVAILABLE FINISHES
4
CE CERTIFICATE
Ref. Factory Production Control Certificate 0948-CPR-0287
HOOK
Aglaia grating hook fastener for mesh size – bottom or top fixing
TECHNICAL DRAWINGS
ACCESSORIES
Grating Hook Fasteners
STOCKED STANDARD GEA FORMAT
6100×1000 mm
PANEL
Banding flat bar ..mm with continuous groove, electrowelded to the panel (for regular panels)
FINISHES
TECHNICAL DETAIL
TECHNICAL DATA 1
| BEARING BAR HEIGHT (MM) | BEARING BAR THICKNESS (MM) | TRANSVERSE LENGTH (MM) |
|---|---|---|
| 25 | 2 | 998 |
| 30 | 2 | 998 |
| 40 | 2 | 998 |
| 25 | 3 | 999 |
| 30 | 3 | 999 |
| 40 | 3 | 999 |
| 50 | 3 | 999 |
| 40 | 4 | 1000 |
| 25 | 5 | 1000 |
| 30 | 5 | 1000 |
| 32 | 5 | 1000 |
TECHNICAL DATA 2

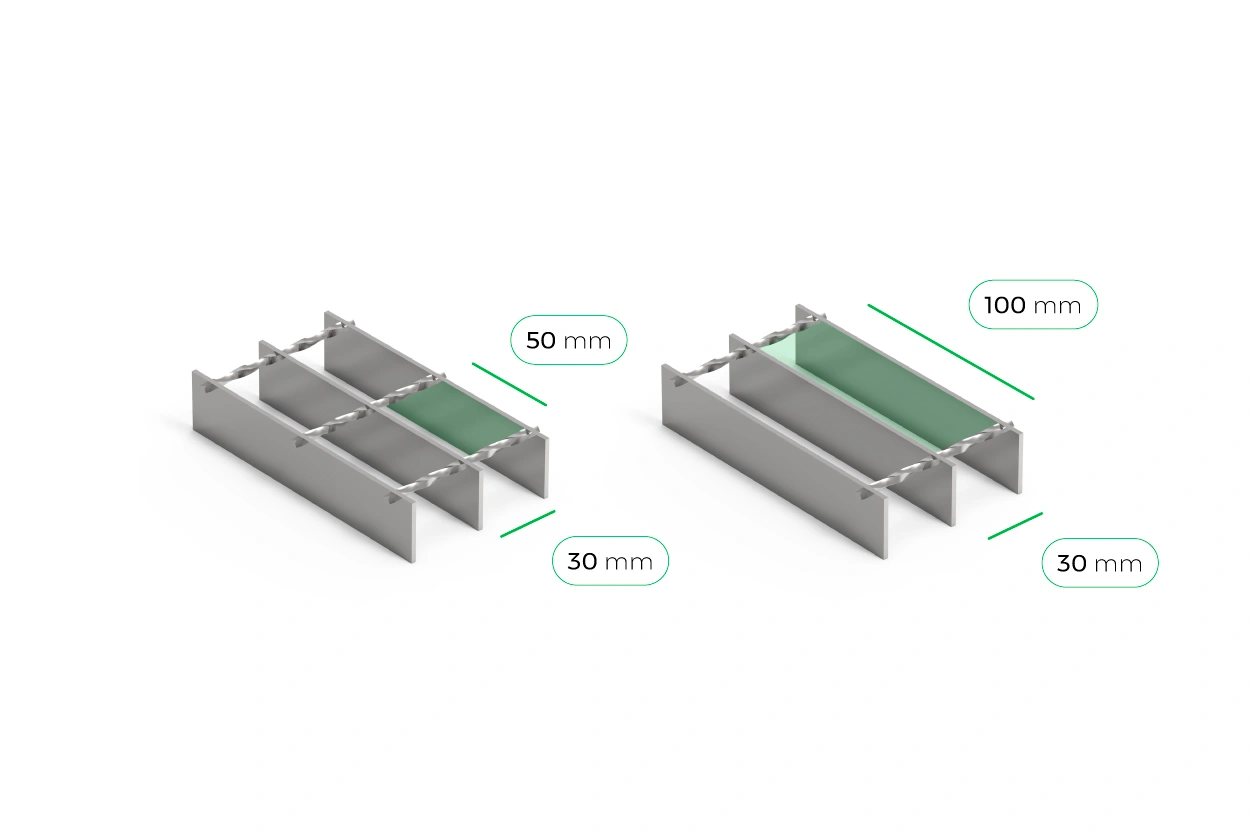

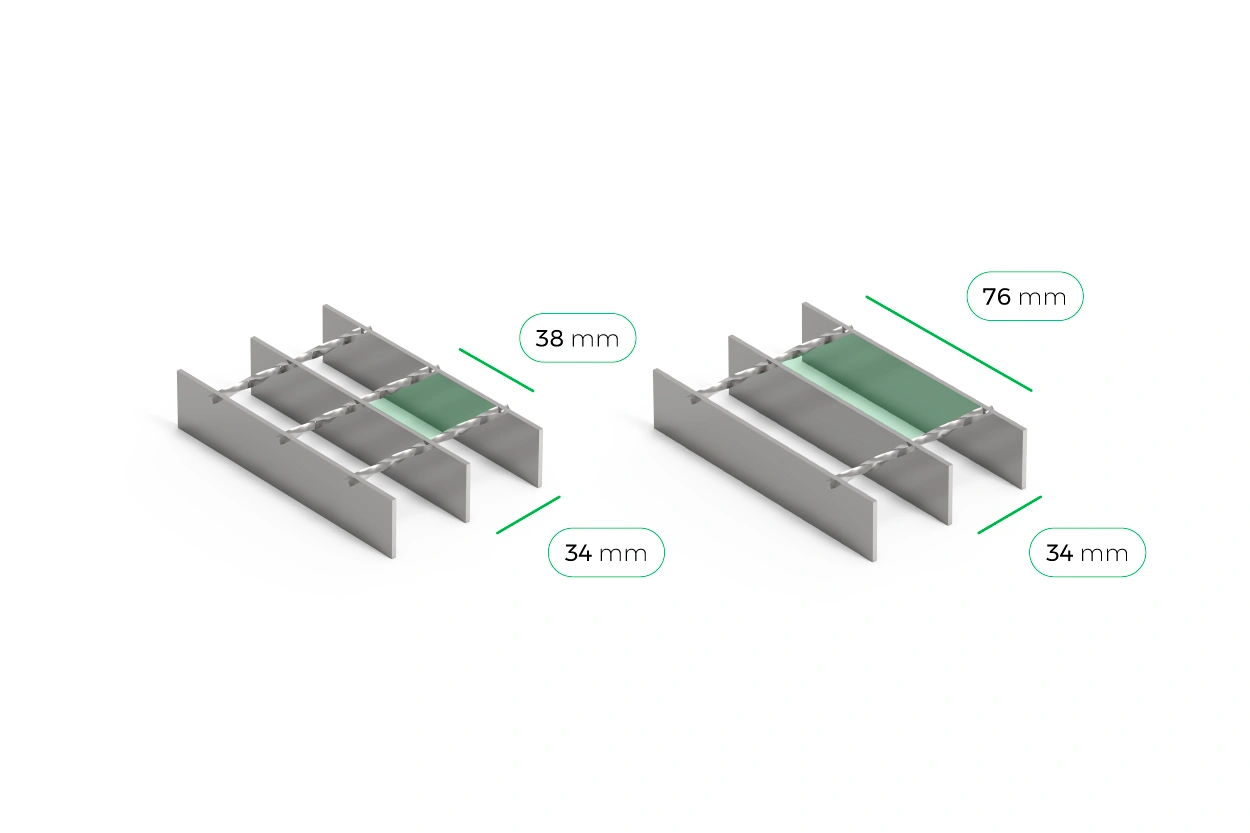

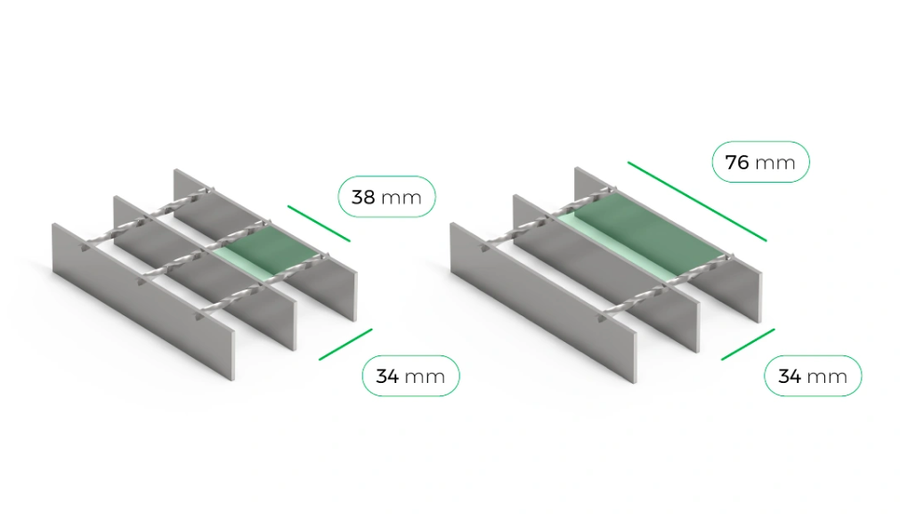

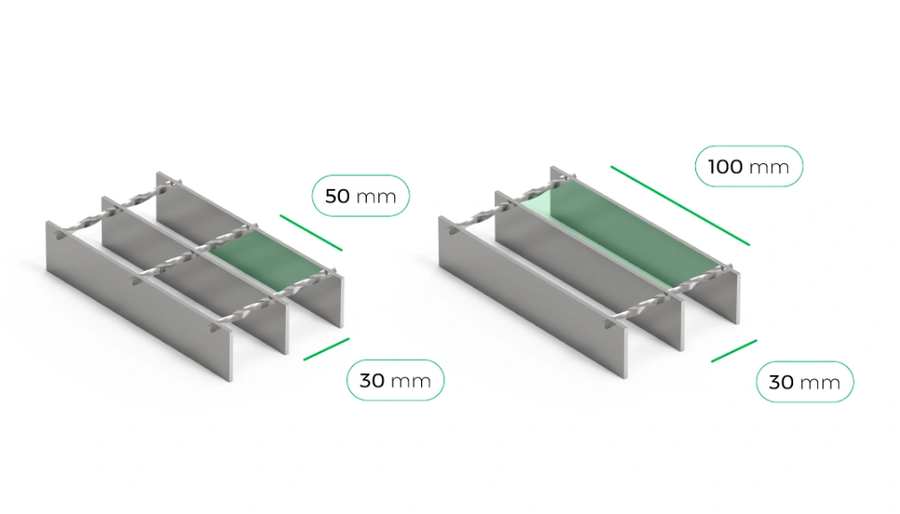

| NO. OF BEARING BARS 34 & MESH 30 x 50 | NO. OF BEARING BARS 34 & MESH 30 x 100 | NO. OF BEARING BARS 30 & MESH 34 x 38 | NO. OF BEARING BARS 30 & MESH 34 x 76 |
|---|---|---|---|
| - | - | 14.0 | 12.4 |
| - | - | 16.2 | 14.6 |
| - | - | 20.7 | - |
| 21.0 | 19.8 | 19.6 | 18.0 |
| 24.9 | 23.7 | 23.1 | 21.4 |
| 32.6 | 31.4 | 29.9 | 28.3 |
| - | - | 36.7 | 35.1 |
| 43 | 41.8 | 39.1 | 37.4 |
| 34.4 | - | - | - |
| 40.9 | 38.9 | - | - |
| 43.5 | - | - | - |
DETAIL

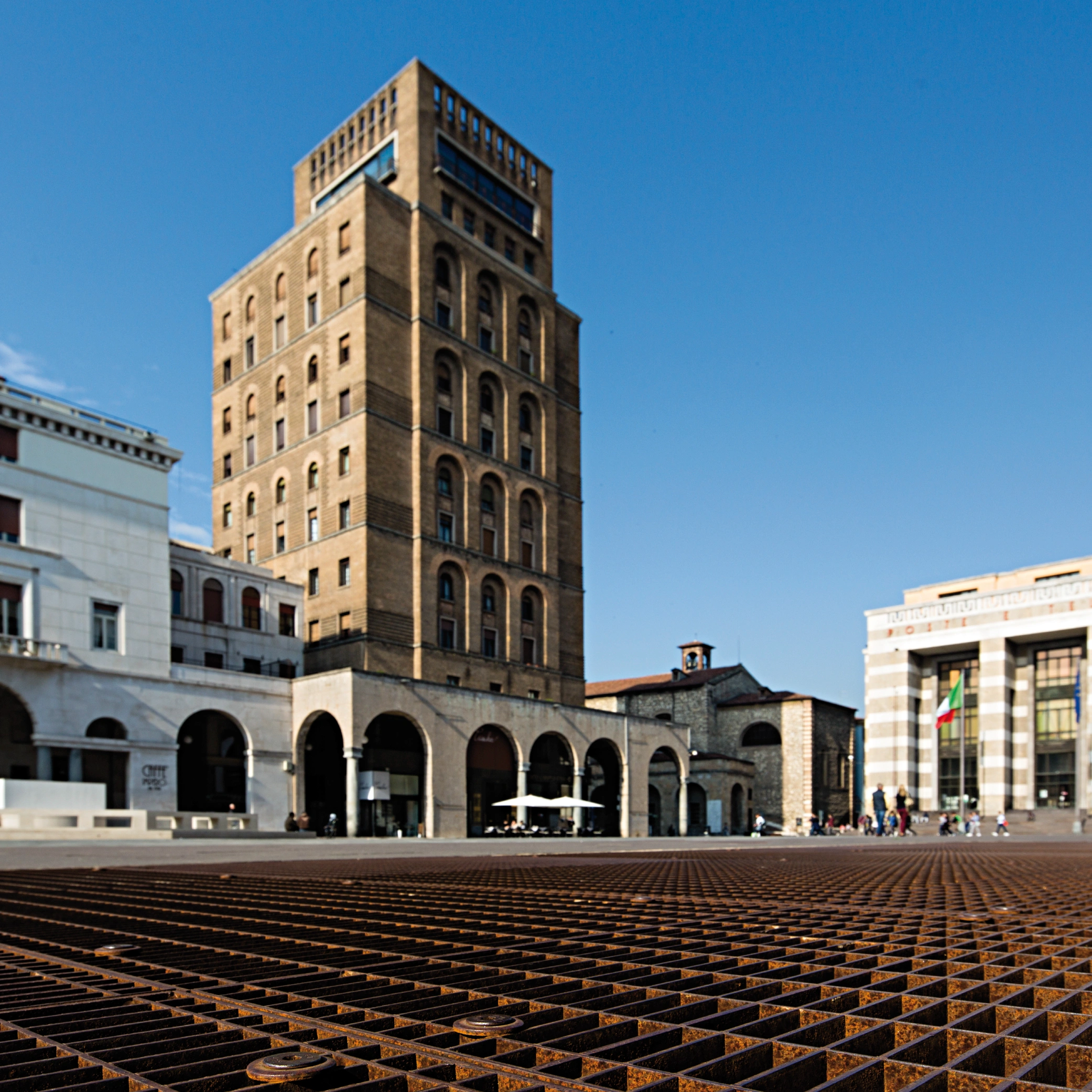

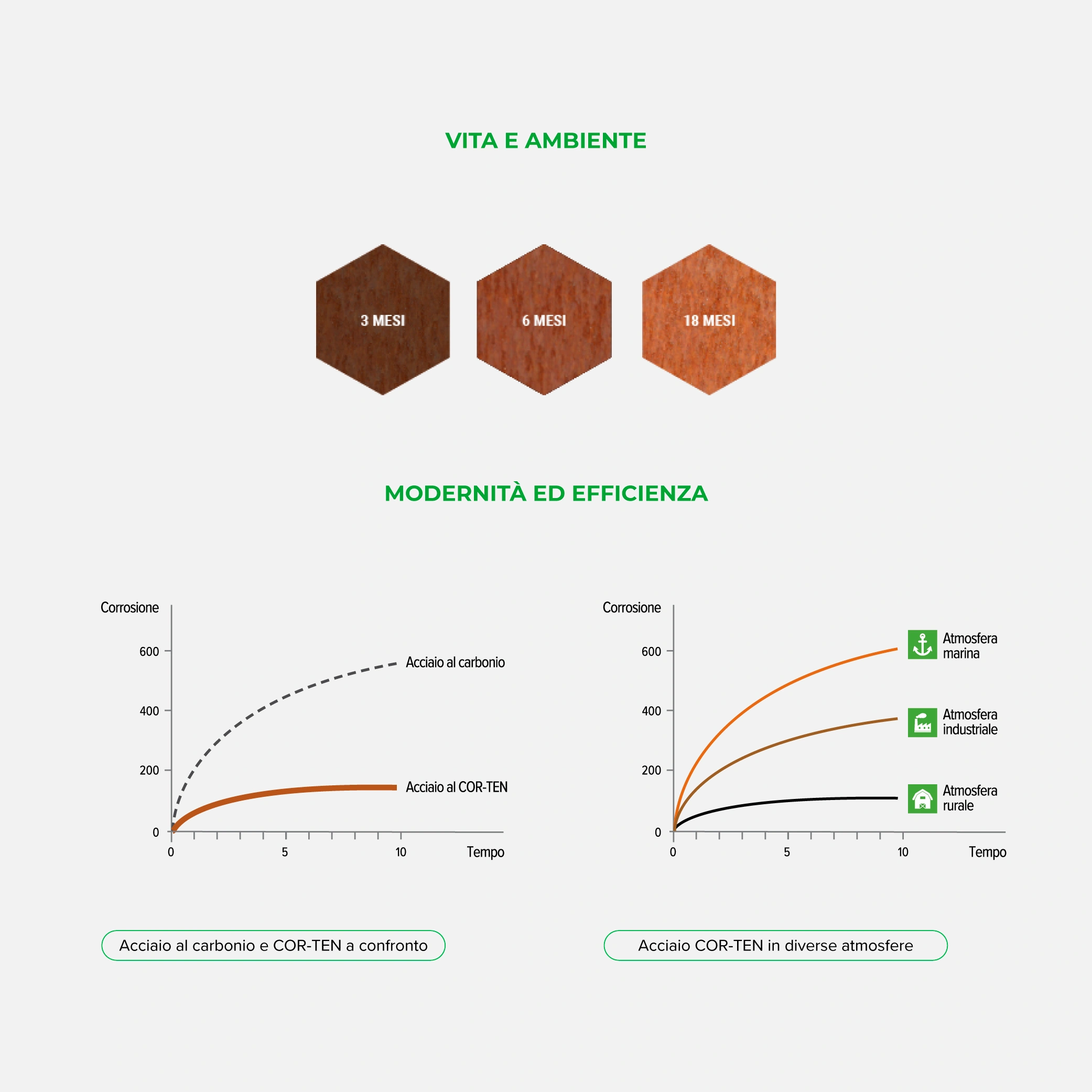

LIFE AND THE ENVIRONMENT (COR-TEN)
The curing and oxidation process makes the steel of this product a ‘living’ material that can vary over time, changing in hues and shades in a way that can always enhance the overall aesthetic appearance thanks to the play of light and shadow typical of the grating structure. It is the original, highly aesthetic choice for quality projects.
MODERNITY AND EFFICIENCY (COR-TEN)
With a low alloy content and high mechanical resistance, COR-TEN is a steel that is playing an increasingly important role in modern architecture due to its aesthetics but also its durability and need for no maintenance. Indeed, it guarantees zero maintenance costs, five to eight times the corrosion resistance of carbon steel, and exceptional mechanical resistance.
