ELOTHERM PIPES FITTINGS
ELOTHERM PIPES FITTINGS
Polybutylene Pipes and PPSU Push Fittings for the Conveyance of Hot and Cold Water
Elotherm is a complete system consisting of polybutylene pipes and a wide range of ppsu push fittings designed and made for the transport of cold and hot water even at high temperatures.
Elotherm push fittings allow for quick installation, safe and reliable in time, and their structure allows to absorb the linear expansion of the pipe. The o-ring guarantees reliability over time as it is not compressed or deformed by the pressure of a tightening screw, but held in place by the pressure of the liquid circulating in the system.
INFORMATION
BRAND
Nupi
PRODUCT TYPE
Piping System
DETAIL
The elotherm system is suitable for the transport of drinking water and alimentary fluids in accordance with circular no. 174 of 6th April 2004 of the Italian ministry of health.

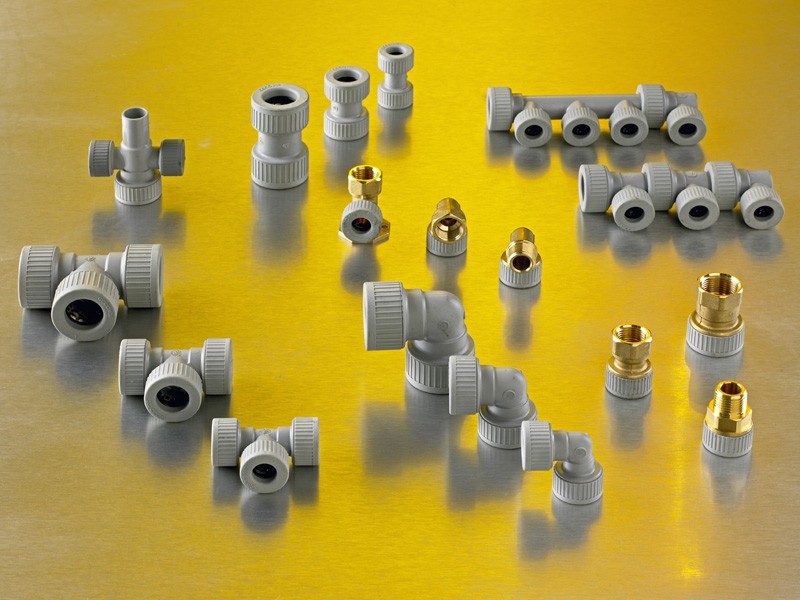

PPSU FITTINGS
Ppsu is a polymer with outstanding temperature resistance (-40 ° c to +160 ° c), is highly resistant to impact and high pressures and is suitable for food use.
- High wear resistance
- Unaffected by UV rays
- Very high resistance to fire
- Resistance to thermal aging
- Operating temperature above 80 ° C
PRODUCTION
Made in Italy
COLLECTION
Elotherm

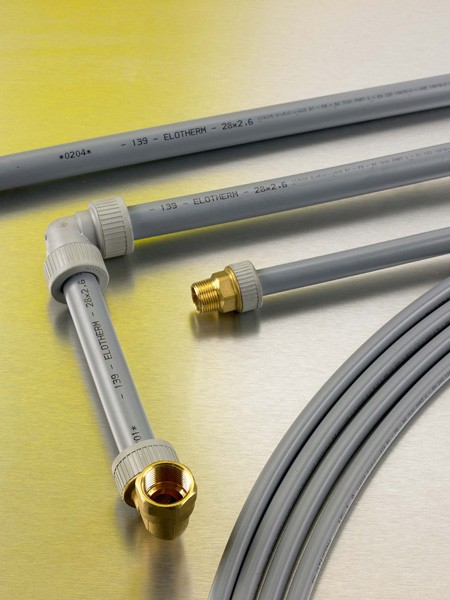

THE ELOTHERM SYSTEM IS MADE OF POLYBUTYLENE PIPES ANSD PPSU FITTINGS
Polybuthylene is a polymer used for pipes highly resistant to high temperatures and with no molecular memory conforming to BS 7291 standard.
- Operating temperature: 80° C (max. 100° C)
- Operating pressure at 80°: 10 bar - Class 5 (UNI EN ISO 15876)
MANUFACTURING
Polybutylene Pipes
USE
Construction
ENVIRONMENT
Outdoor
TEMPERATURE
High
SUITABLE FOR
Drinking Water
THE ELOTHERM SYSTEM IS SUITABLE FOR
- Heating installations
- Plumbing installations
- Floor heating installations
- Installations for the transport of industrial fluids
- Installations for the transportation of alimentary fluids
